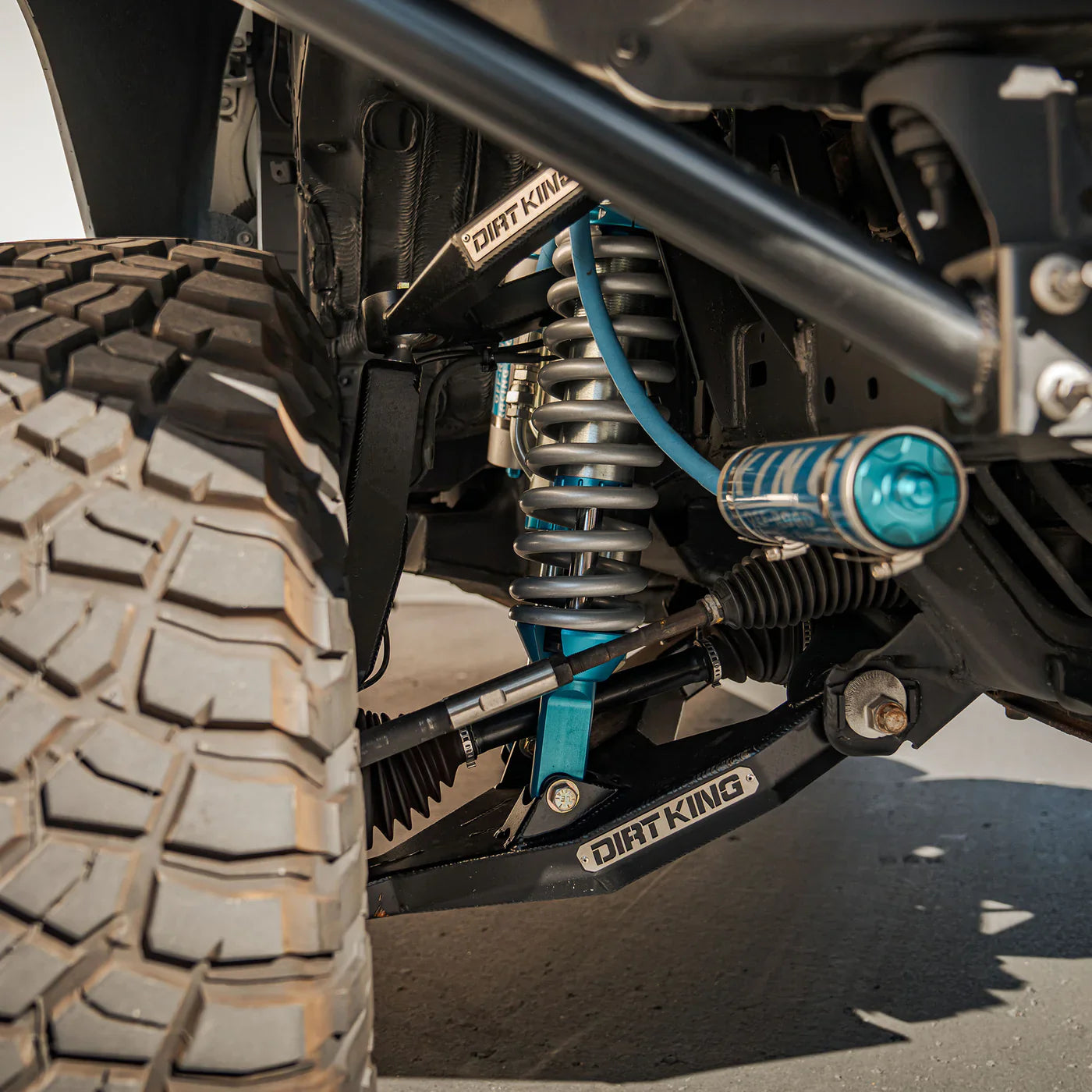

The Dirt King Fabrication Long Travel Kit is engineered to drastically improve off-road handling without compromising daily drivability. Designed for performance and durability, this suspension system increases wheel travel, enhances articulation, and delivers superior control in demanding terrain.With 13.5” of wheel travel and clearance for up to 35” tires, this kit significantly upgrades your Tacoma’s off-road capability. The upper and lower control arms feature 1” stainless steel uniballs at the outer pivots, replacing traditional ball joints for increased strength and articulation.Unlike many competitors, this kit retains the factory lower arm mounting location—resulting in improved ground clearance and optimized suspension geometry. CAD designed, thoroughly tested, and 100% made in the USA, this is a system built for serious off-road enthusiasts.
Features
Extended Wheel Travel: Provides 13.5” of travel for maximum off-road performance
Increased Track Width: 3.5” wider per side for improved stability and handling
Uniball Pivot Design: 1” stainless steel uniballs for superior strength and articulation
Bolt-On Design: Minimal modifications required for installation
Heavy-Duty Construction: 3/16” and 1/8” boxed plate with internal ribbing for strength and weight reduction
Premium Materials: 4130 chromoly uniball cups and zinc plated components for durability
Serviceable Design: Grease fittings included for easy maintenance
Bypass & Bump Ready: Pre-tabbed for bypass shocks, limit straps, and bump stops
Adjustable Options: Choice of ¾” heims or polyurethane bushings for upper control arms
Made in USA: Designed, tested, and manufactured domestically
Specifications
Wheel Travel: 13.5”
Lift Range: 0–4”
Track Width: +3.5” per side
Max Tire Size: 35”
Max Backspacing: 4.75”
Min Wheel Size: 16”
Bump Stop Size: 2.0” x 2.0”
Shock Compatibility: Dirt King spec coilovers & bypass shocks

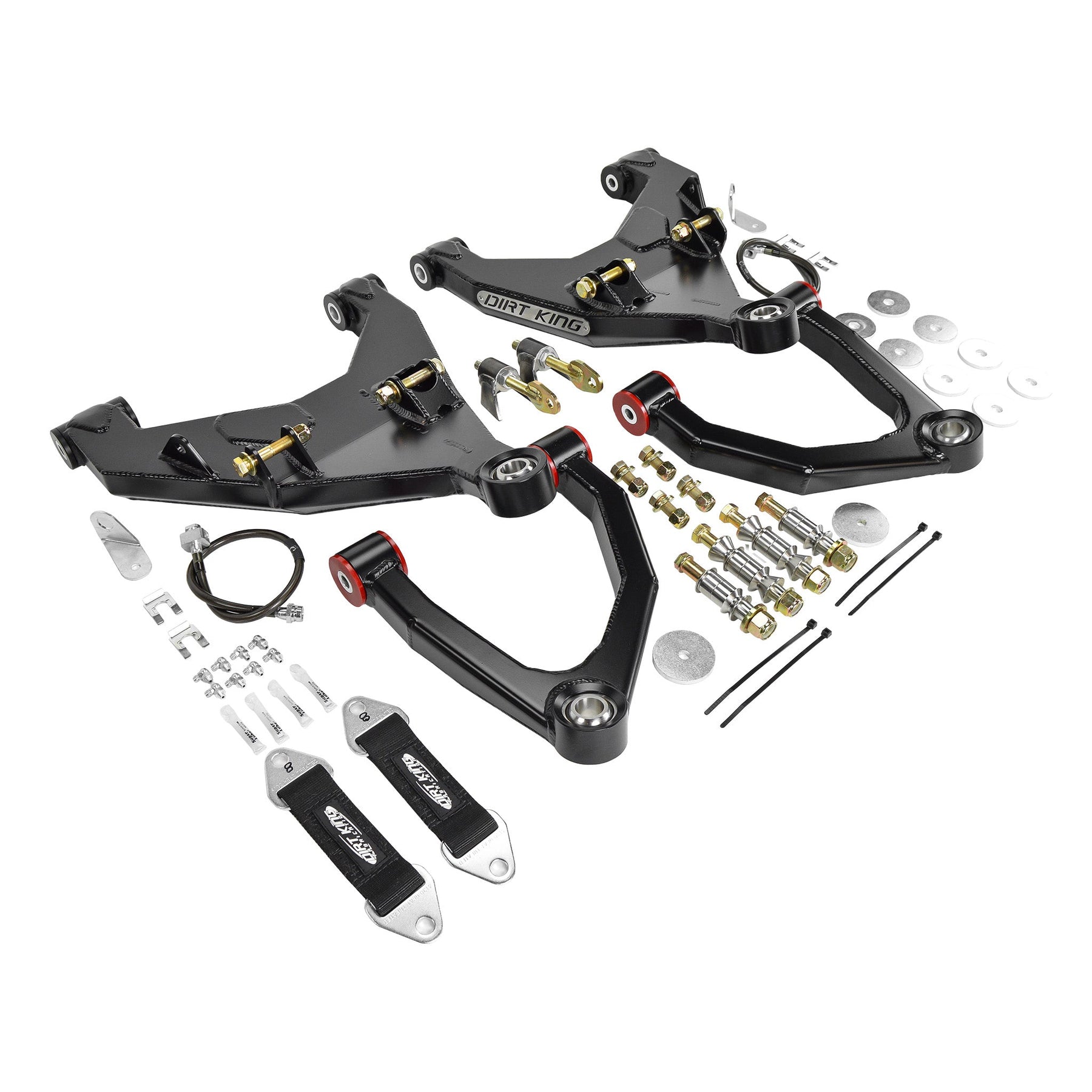

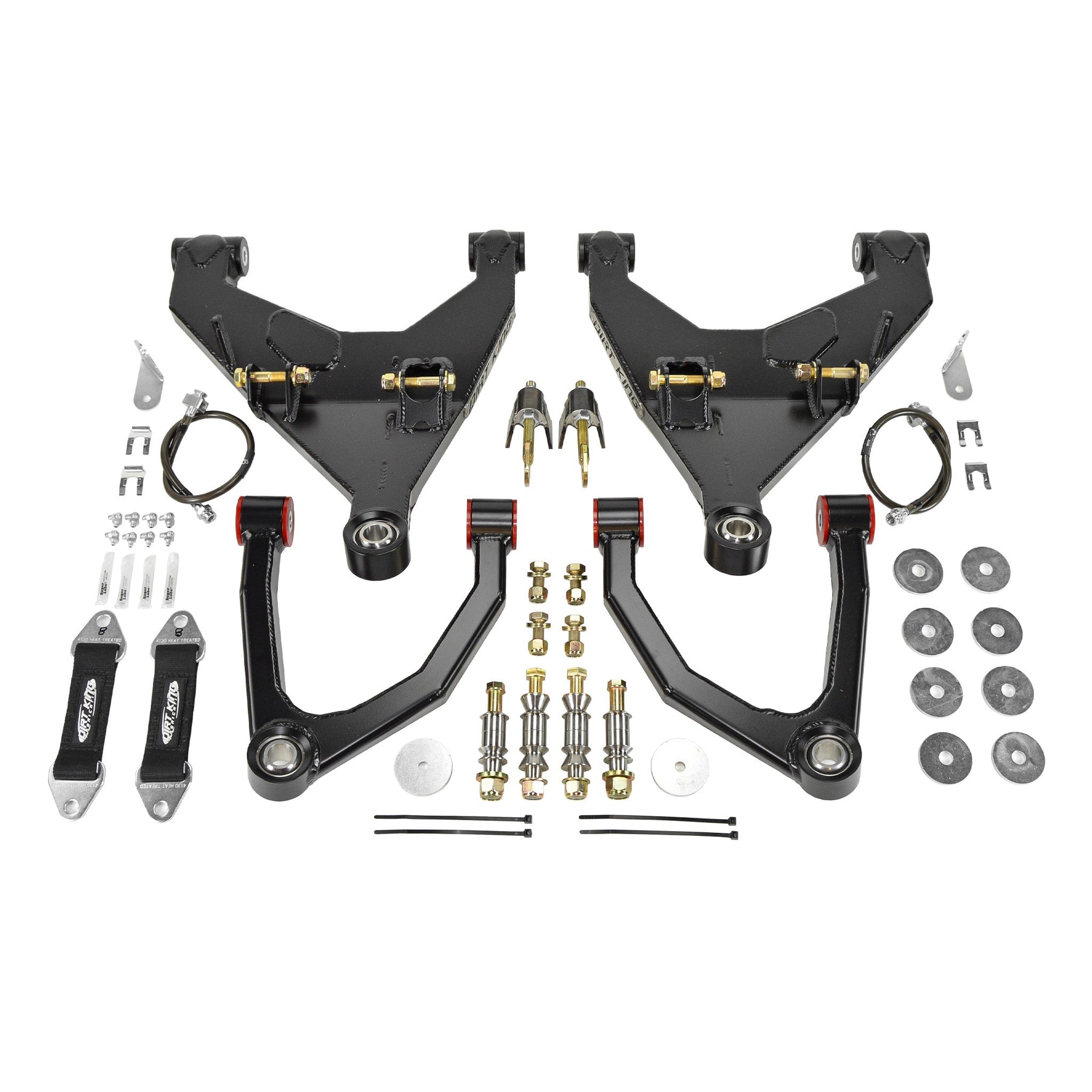

What’s Included
Upper Control Arms: Boxed plate construction
Lower Control Arms: Boxed plate construction
Limit Straps: 8” quad-wrapped straps
Limit Strap Mounts: Weld-on adjustable mounts

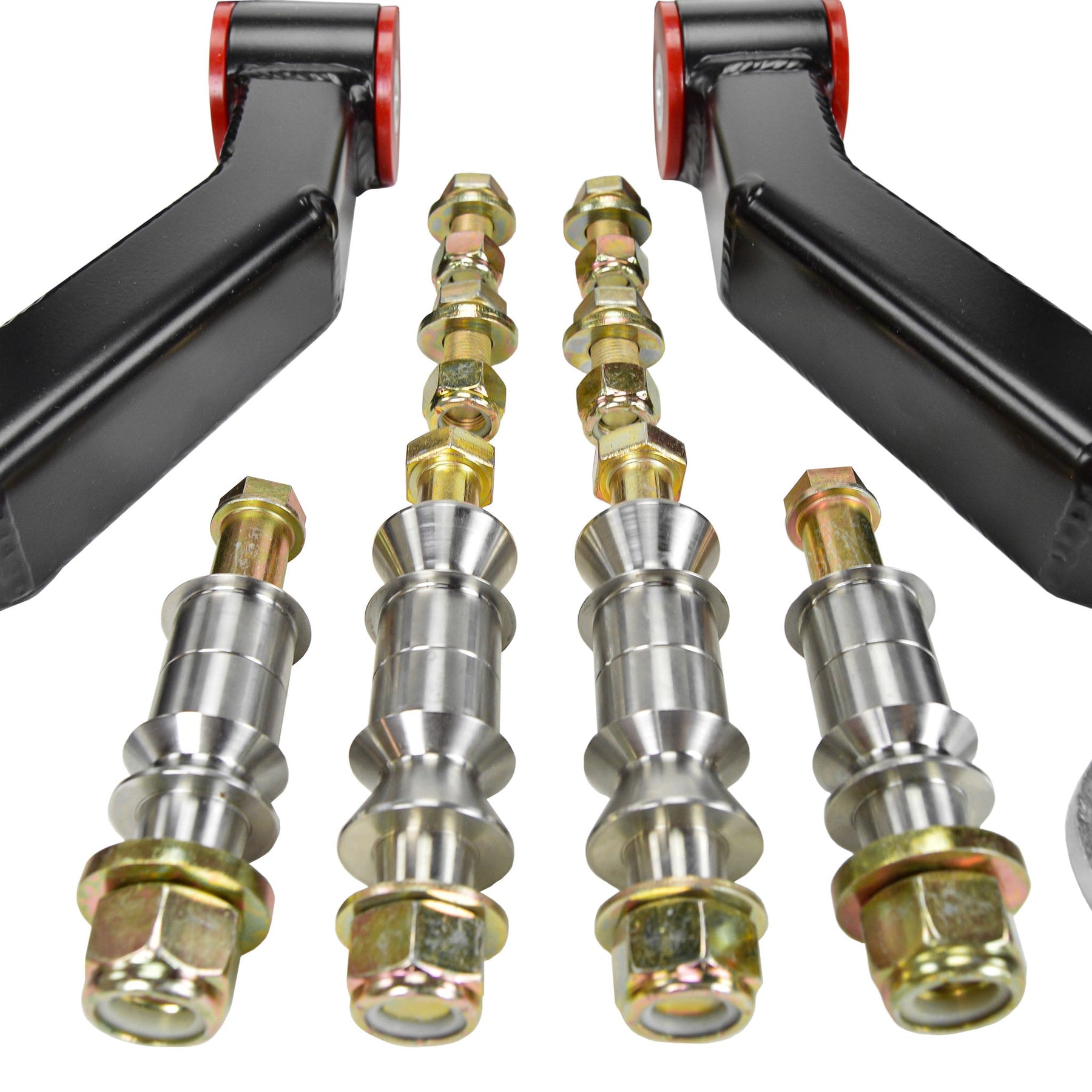

Misalignment Spacers: 17-4 stainless steel
Tie Rod Extensions: 17-4 stainless steel
Brake Lines: DOT-approved extended lines
Hardware: Grade 8 mounting hardware
Bushing Washers: Zinc plated
Bump Stop Spacers: Included
Installation Notes
4WD Requirements: Requires 1” diff drop kit and CV machining for full travel
Shock Requirements: Best performance achieved with Dirt King spec shocks or custom-built equivalents
Fabrication Required: Bypass mounts and bump stops require welding and frame modification
Tire Clearance Mods: Pinch weld folding, cab mount trimming, and wheel well modifications required for 35” tires
Professional Installation Recommended: Due to complexity and required modifications
Compatibility
Toyota Tacoma: 2016–2023 (2WD / 4WD)
Additional Notes
Fiberglass Required: Front fiberglass fenders required for proper clearance
Lift Compatibility: Contact manufacturer before pairing with lift spindles or bracket lifts
Brand Compatibility: Designed for OEM and Dirt King Fabrication components; compatibility with other brands must be verified
