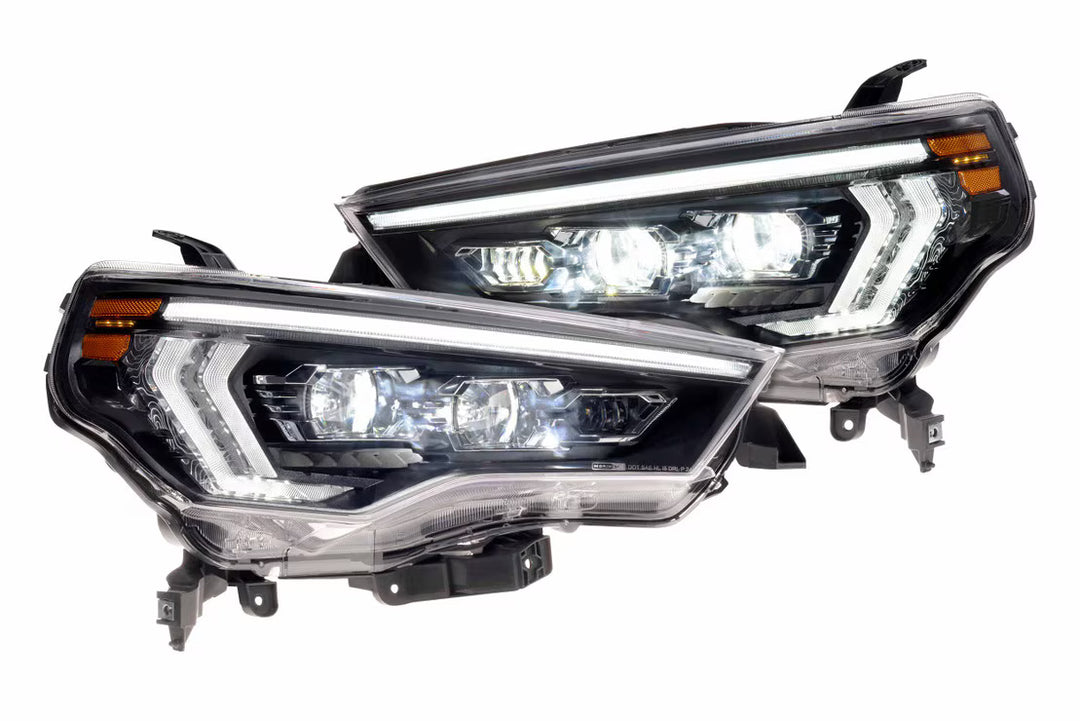

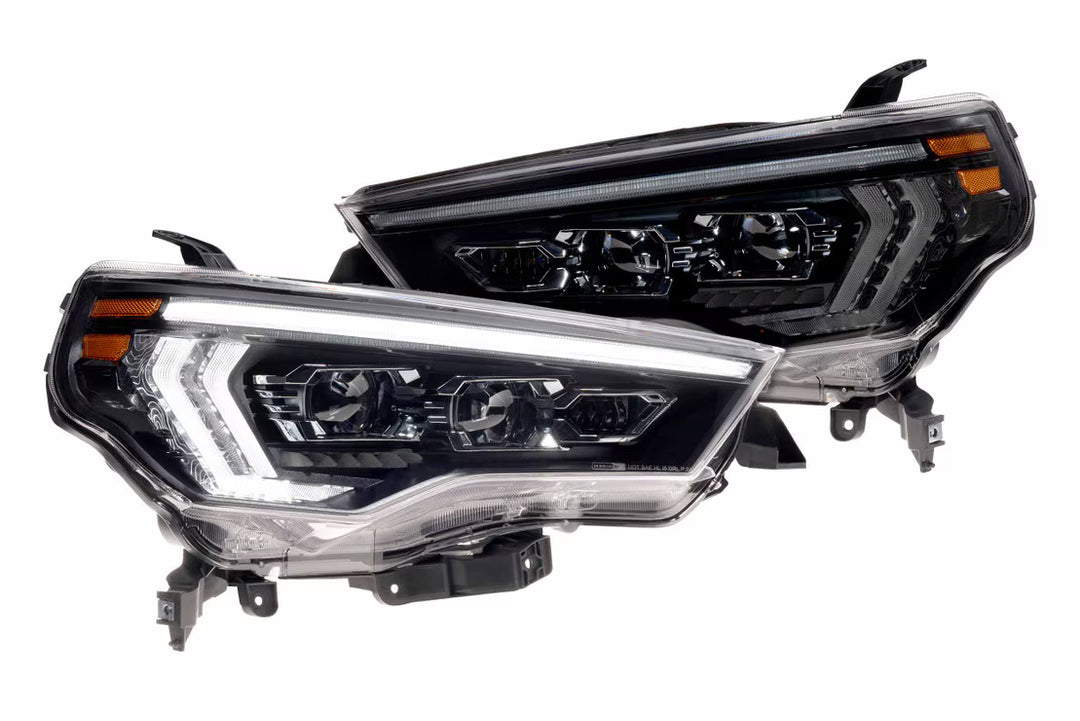

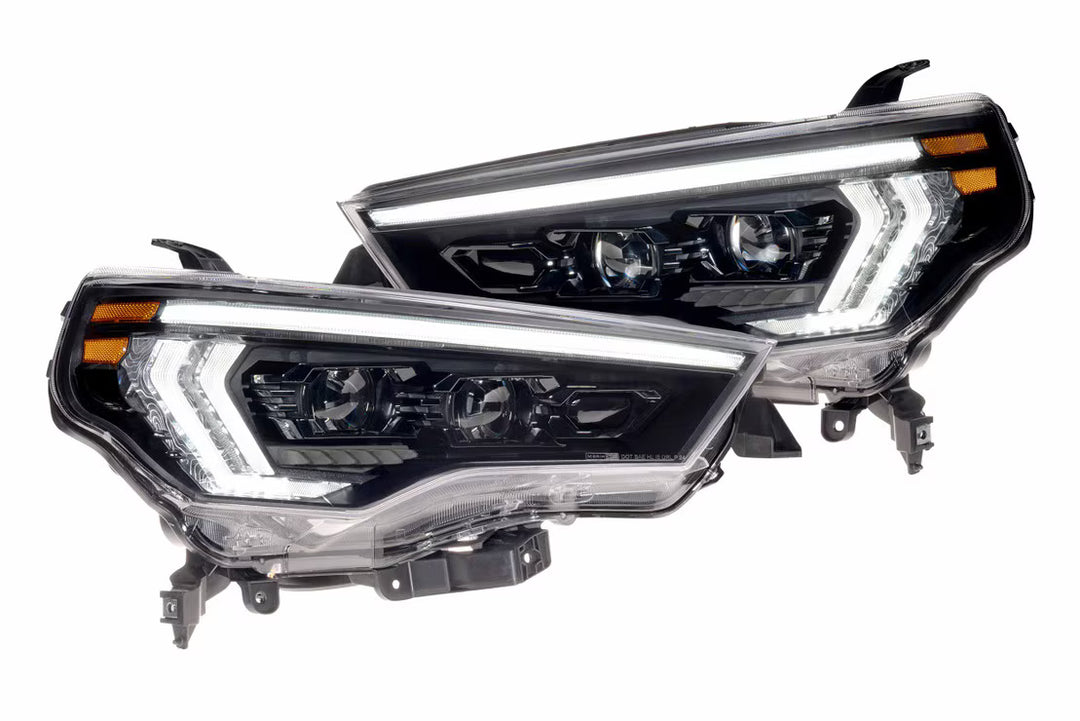

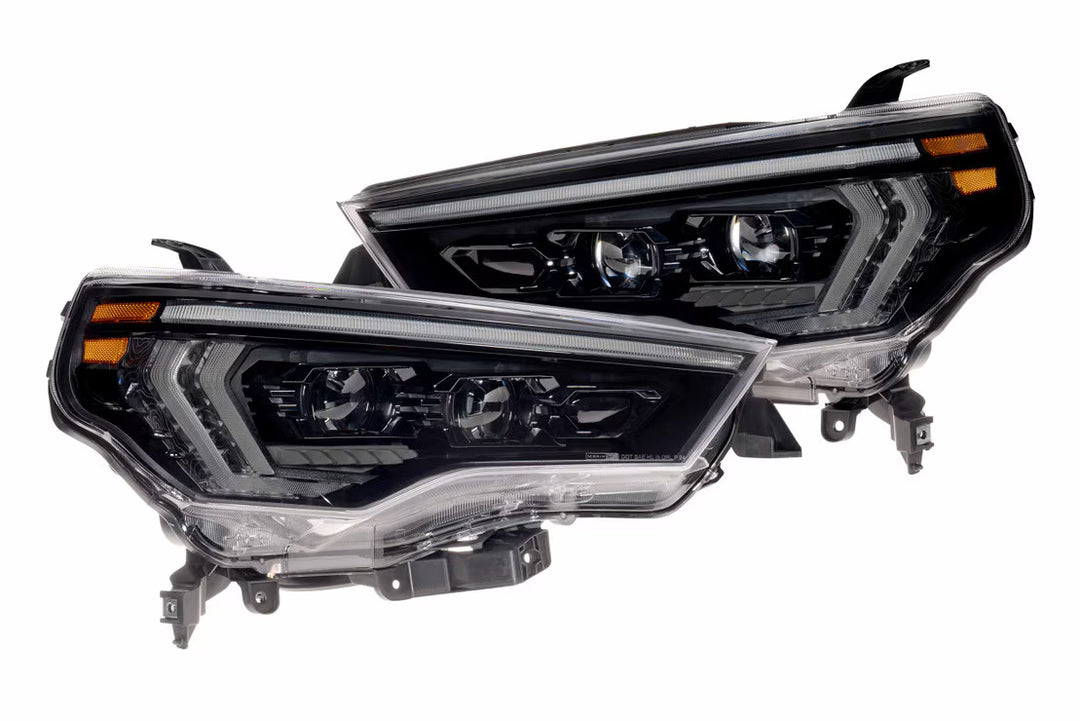

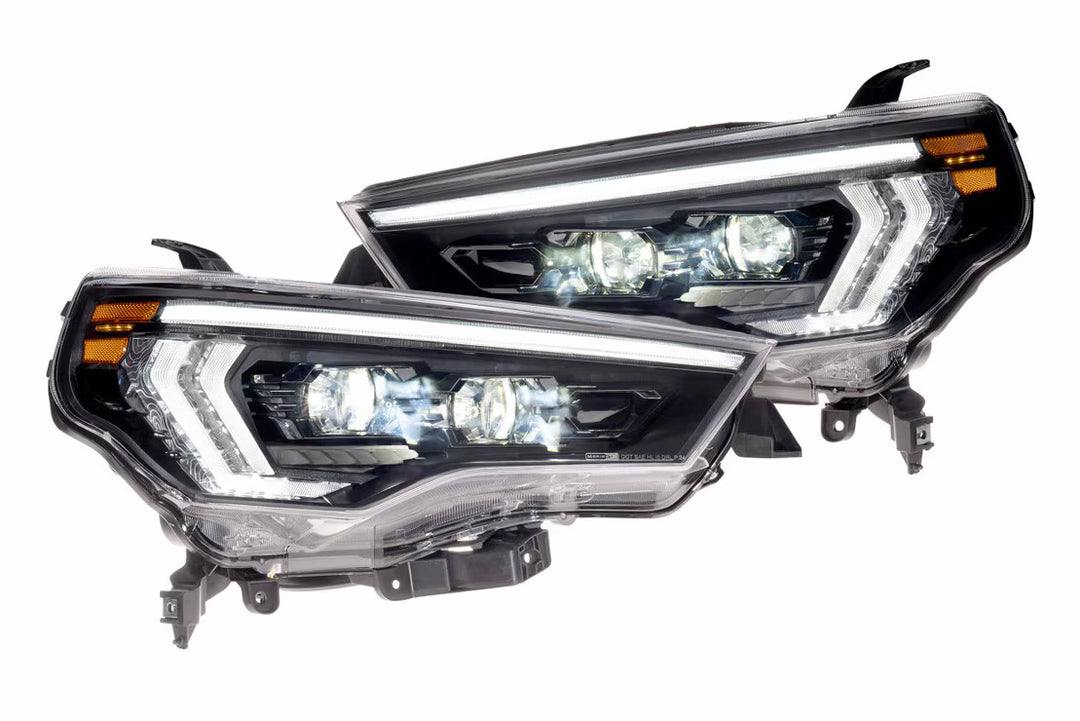

The all-new XB Evo Hybrid headlights deliver everything Morimoto is known for — technology, compliance, quality, and styling — at a price more enthusiasts can justify. Built around the same high-performance Bi-LED projectors found in the flagship XB Evo model, the Hybrid version delivers an incredibly bright, wide low beam and a powerful high beam that dominates the darkness.
Powered by OE-grade Nichia LEDs from Japan and engineered in the USA, the XB Evo Hybrid offers true OEM+ build quality with an industry-leading five-year warranty.
Important notes
-
Factory Bi-LED models: If your truck has factory Bi-LED headlights, do not use the factory high beam connectors. Blank caps are included and must be installed.
-
Supercharged drivers: Optional Supercharged LED drivers increase output by approximately 30% but result in non-compliant intensity for on-road use in USA and Canada.
-
North America compatibility: Developed for North American vehicles only.
-
Authorized dealer requirement: Warranty is only valid if purchased from an authorized dealer.
-
Installation documentation: Document any installation issue with photo/video and contact support prior to removing lights.

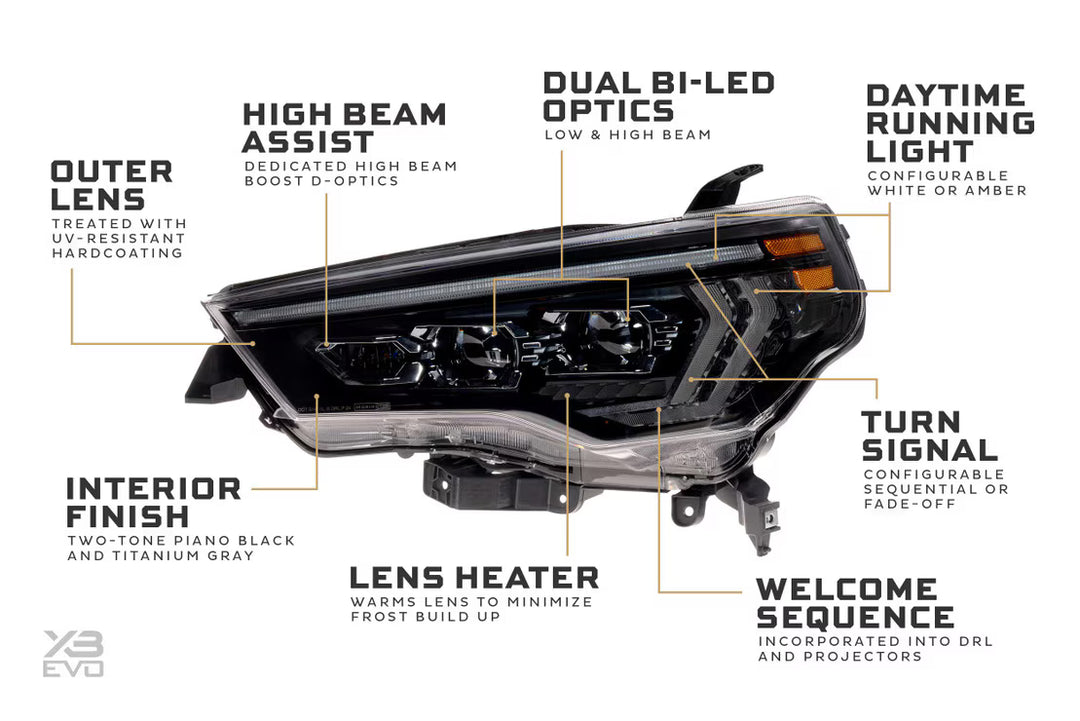

Features
-
XB Evo Hybrid platform: Delivers Morimoto’s advanced technology and styling at a competitive price point.
-
Dual Bi-LED projectors: Same Ishida optics used in the premium XB Evo model.
-
Nichia LED powered: Latest OE-grade automotive LEDs from Nichia Japan.
-
IIHS-level performance: Light output exceeds rigorous IIHS intensity and distribution standards.
-
DOT compliant (standard drivers): Fully compliant with FMVSS108 for public road use.
-
Optional supercharged output: Boost low and high beam intensity by 30% for off-road performance.
-
TIR DRL optics: Glass-like 3D TIR optics deliver incredibly bright white DRL.
-

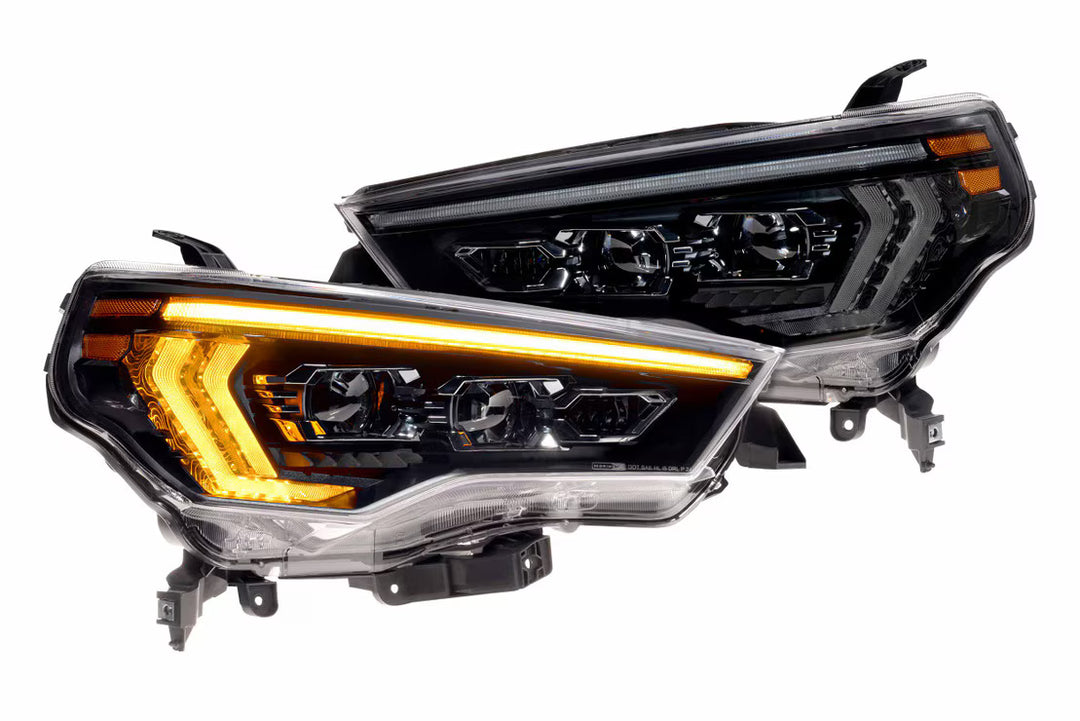

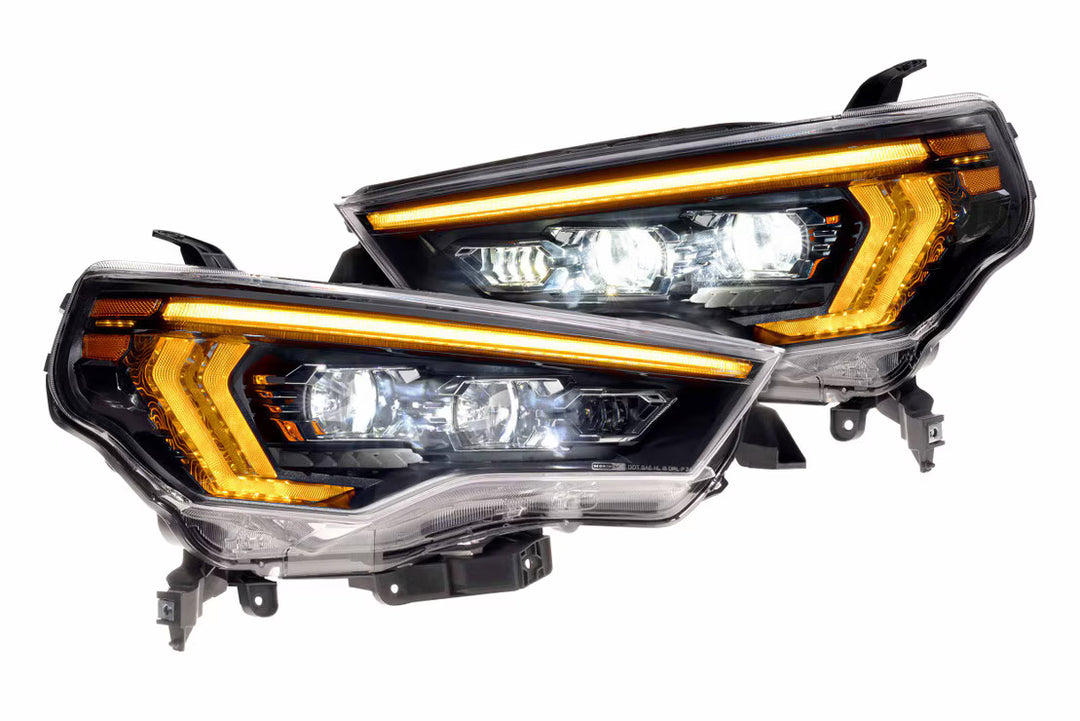

Fade-off turn signals: Integrated amber turn signals with elegant fade-off effect.
-
OE fitment: Direct bolt-on installation with plug-and-play wiring. No errors, flickering, or interference.
-
Five-year warranty: Industry-leading limited warranty supported in Atlanta, GA.

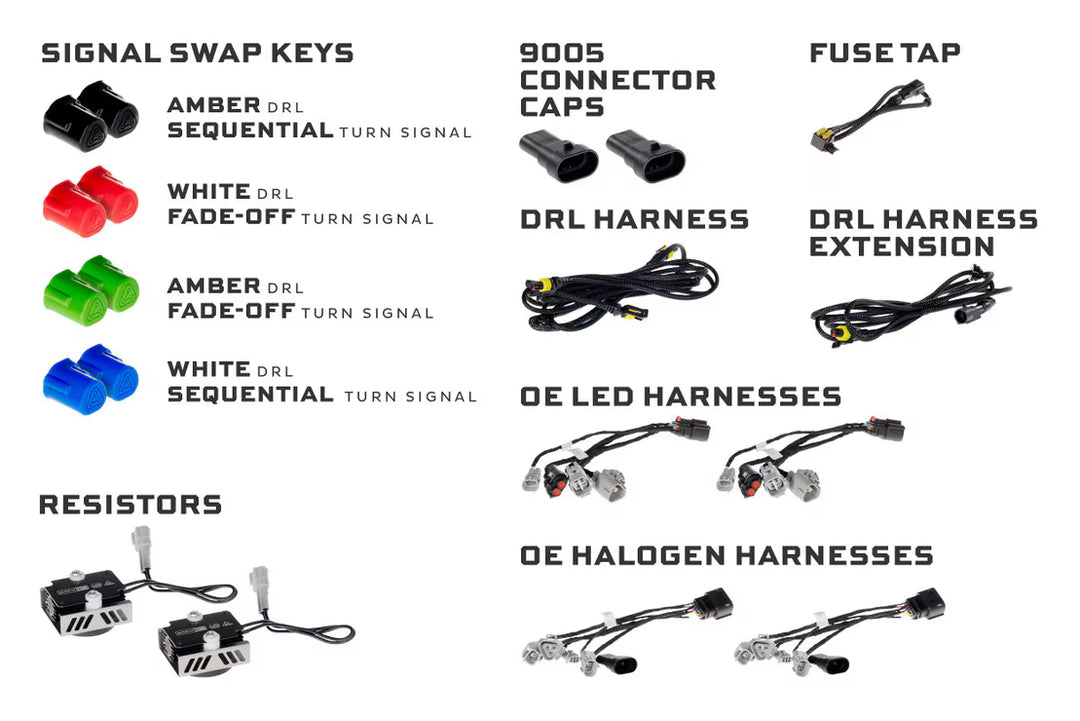

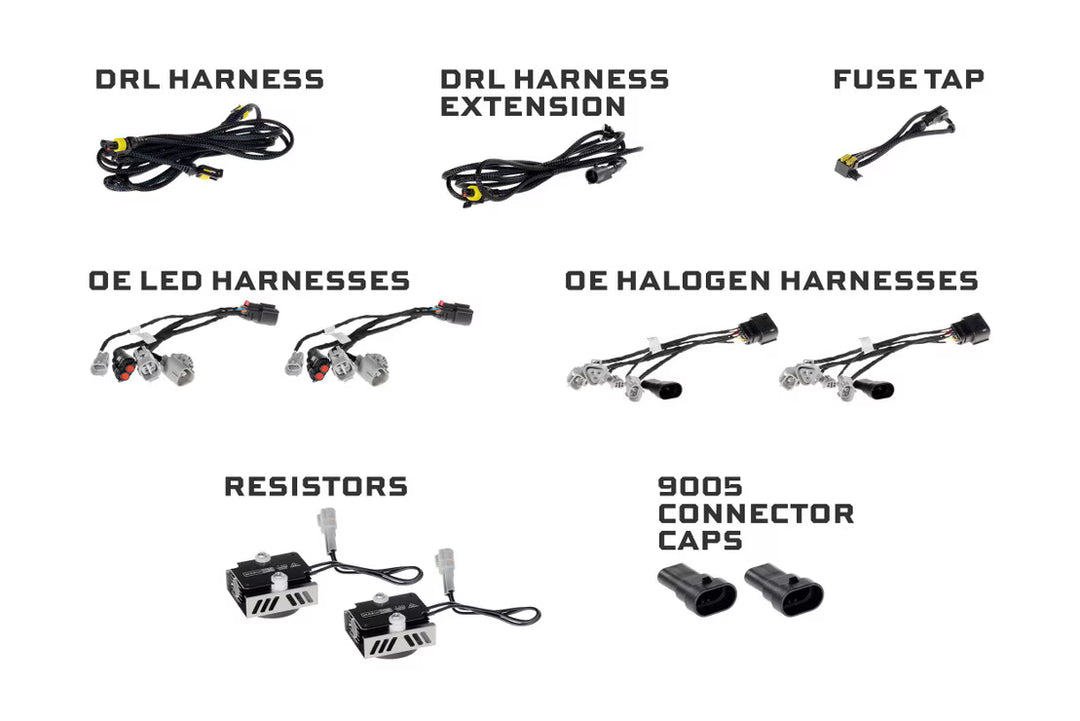

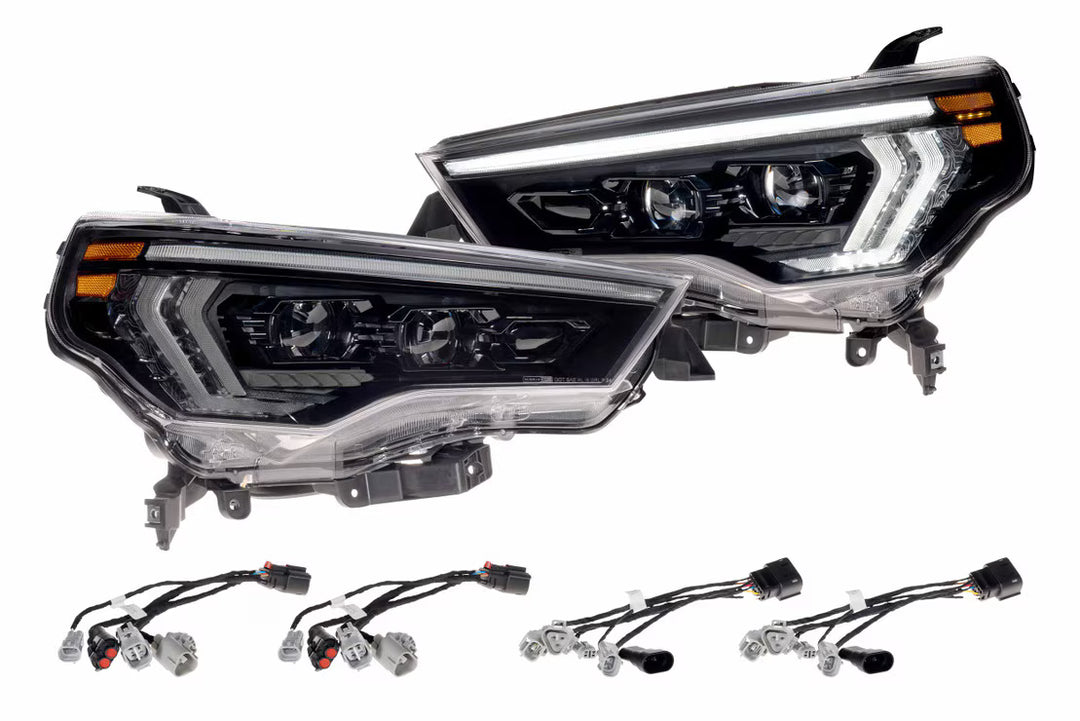

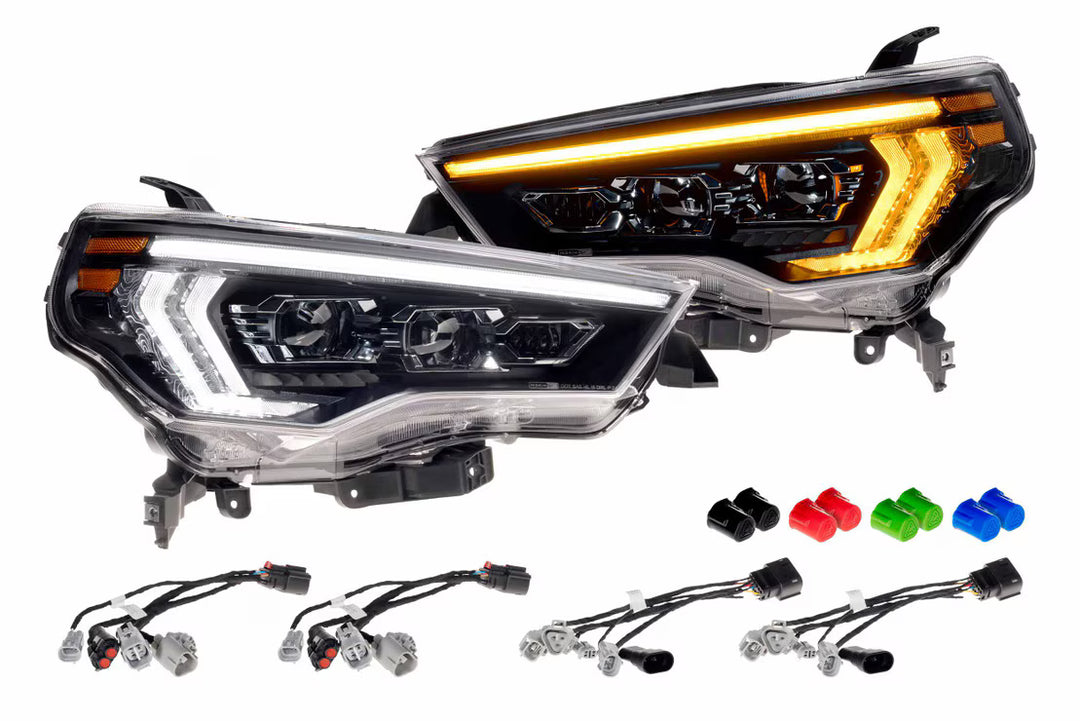

What’s included
-

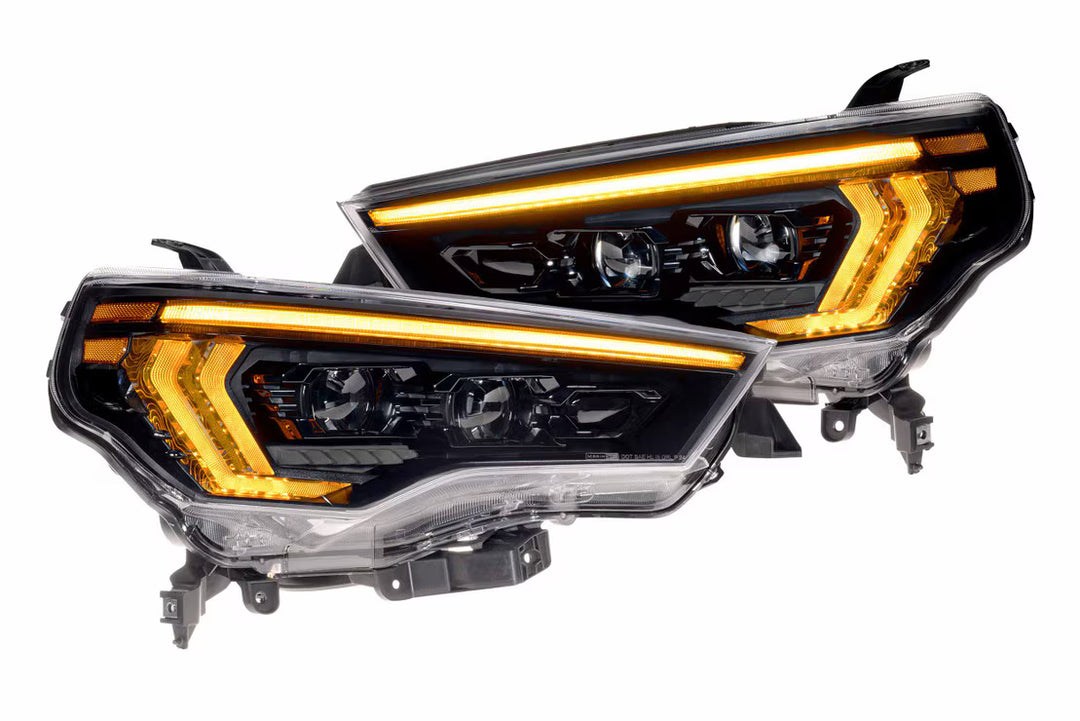

Headlights: 1x Driver Side (LH), 1x Passenger Side (RH).
-
Adapters: 2x Halogen adapters, 2x OEM LED adapters.
-
Resistors: 2x magnet mount resistors.
-
Caps: 2x high beam connector caps.
-
Harnesses: 1x DRL harness, 1x DRL harness extension.
-
Fuse tap hardware: Included.
Optional add-ons
-

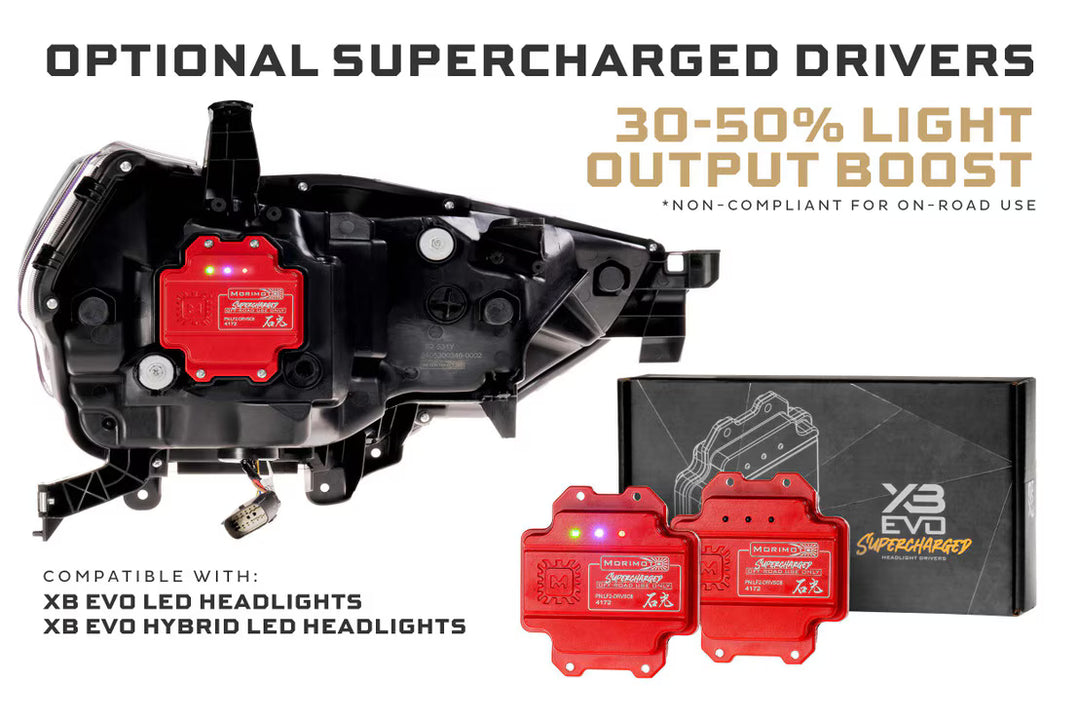

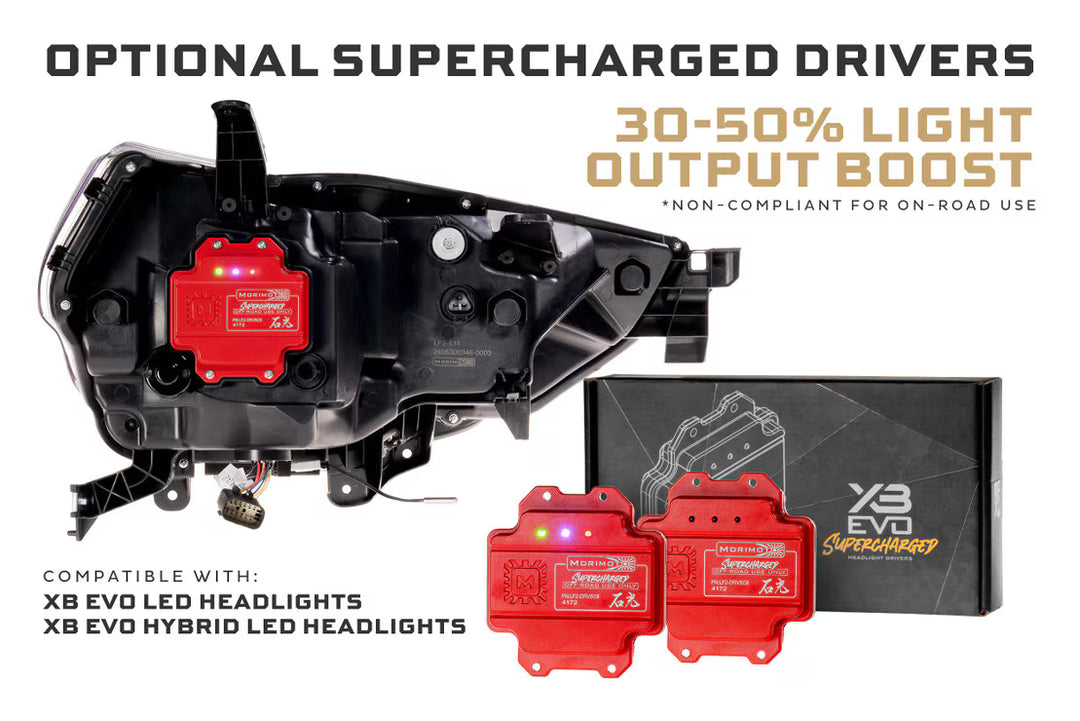

Supercharged LED drivers: LF2-DRVSC9.
-
Protective film: Lamin-X clear film for LF2-531Y.

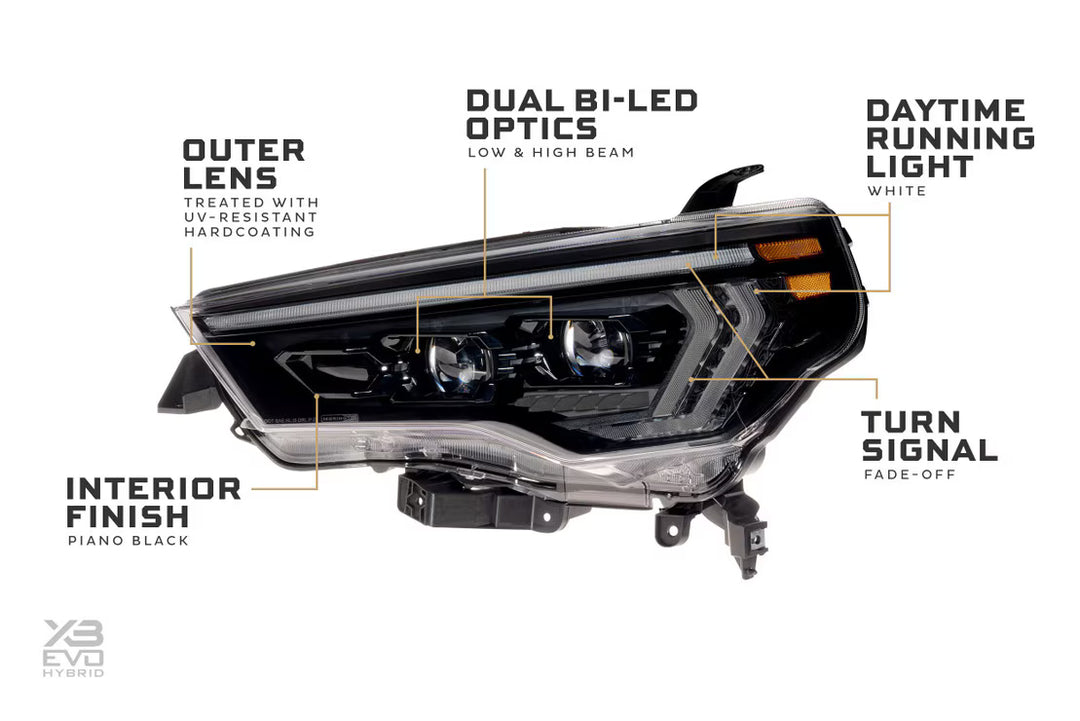

Technical specifications
-
Traffic pattern: LHD / Right-hand traffic only.
-
Standard output: DOT (FMVSS108) compliant (LB2V and UB2).
-
Supercharged output: Non-compliant (off-road only).
-
Main optics: 2x Type 1 Ishida Optic Bi-LED (Nichia NC4W193F @ 750mA).
-
Functions: Low, High, Park, Turn, DRL.
-
Turn signal mode: Fade off.
-
DRL color: White.
-

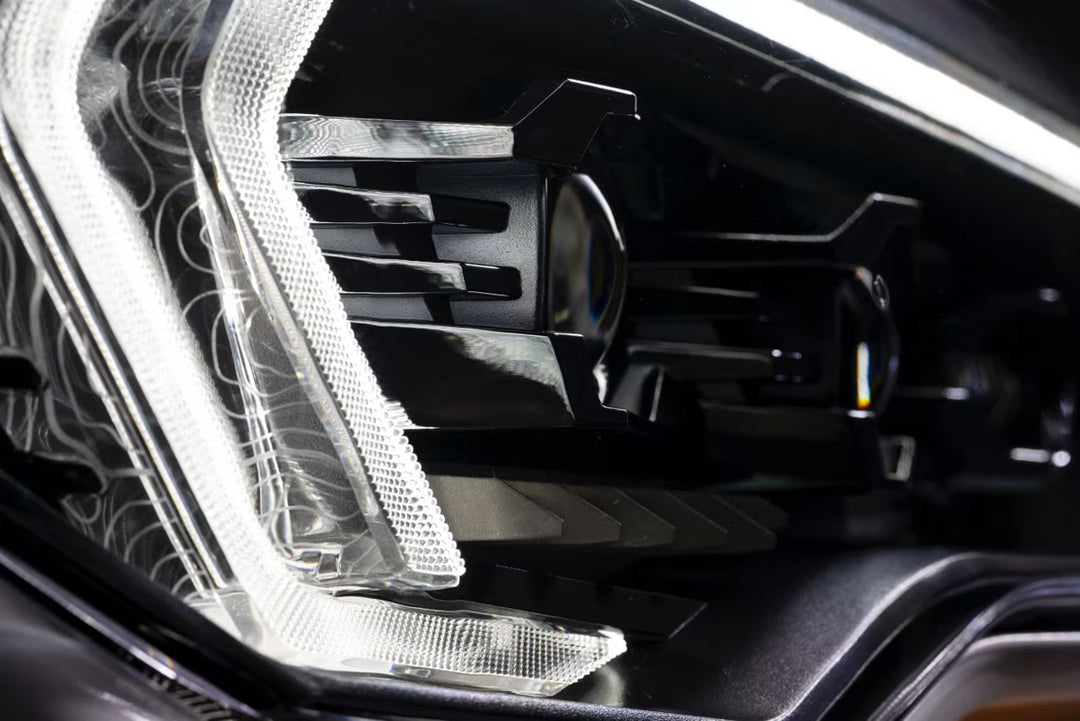

DRL/Signal optics: Glass-like 3D TIR optics with topography sidewall pattern.
-
Internal finish: Piano Black with contrasting textures.
-
Side marker: Amber reflex reflector (DOT compliant).
-
Wiring: Plug-and-play for all sub-models.
-
Lens material: Polycarbonate with UV-shield hard coating (exceeds OE Toyota benchmark).
Compliance
-
Meets: DOT, SAE, and FMVSS108 standards (standard drivers only).
-
Note: Supercharged drivers result in non-compliant peak intensity for public road use in USA/Canada.
Compatibility
- Toyota 4Runner (2014-2024).
-
Replaces part numbers: 81170-35571, 81170-35570, 81070-35600, 81070-35610, 81130-35541, 81140-35610, 81140-35620.
