Name: ORACLE Lighting H4 - 4,000+ Lumen LED Light Bulb Conversion Kit (Low Beam)
Brand: ORACLE Lighting
SKU: 5231-001
Price: 248.5 USD
Availability: InStock

$248.50

Shipping calculated at checkout.

In stock, ready to ship
Backordered, shipping soon

Upgrade your low beams with ORACLE H4 LED Headlight Bulbs and illuminate the road with 4,000-6,000 lumens of crisp 6000K light - powered by Philips Luxeon ZES chips and a Samsung-designed driver for maximum output, instant start-up, and long-term reliability at less than half the power draw of factory halogens.

  4,000-6,000 Lumens
  Philips Luxeon ZES Chips
  6000K Color
  CAN-Bus Compatible
  No Relay Harness Needed
  2-Year Warranty


Part Number: 5231-001 | Bulb Size: H4 | Application: Universal Low Beam

Product Overview ▼

The ORACLE H4 LED Headlight Conversion Kit replaces your factory halogen low beam bulbs with high-output Philips Luxeon ZES LED chips that deliver a 4,000-6,000 lumen blanket of light - dramatically improving nighttime visibility and driver safety. The internal driver components were engineered by Samsung for excellent performance in a compact package.

The adjustable heat sink is removable for reverse installation or external mounting outside the headlight back-cap, eliminating fitment issues across a wide range of vehicles. With instant start-up, no flickering, no relay harness required, and CAN-Bus compatibility, this is a true plug-and-play upgrade for most applications.

Special Notes: Dodge, Chrysler, Jeep, or later-model EU vehicles (Mercedes, BMW, Audi, etc.) may require additional CAN-Bus decoder harnesses if flashing, strobing, or shutting down occurs with the engine on.

Disclaimer: Ensure daytime running lights (DRL) are not engaged during installation - DRLs reduce voltage below the kit’s operating threshold. Use headlights in the “on” position only. Questions? Call our certified technicians at (800) 407-5776.

Key Features ▼

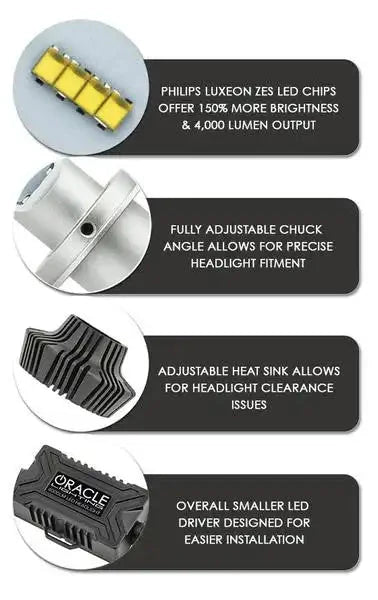

Philips Luxeon ZES Chips: High-output LEDs with excellent heat dissipation for harsh environments
Samsung-Designed Driver: Compact, high-performance internal driver components
4,000-6,000 Lumens: Minimum 4,000 Lm output, up to 6,000 Lm maximum
6000K Compliant Color: Crisp, clean white light output
CAN-Bus Compatible: Works with most modern vehicle electronics
No Relay Harness Needed: True plug-and-play installation
Adjustable Heat Sink: Removable for reverse install or external back-cap mounting
One Bulb High/Low Beam: Single bulb handles both beam functions
No Flickering or Flashing: Stable, consistent output
Instant Start-Up: Full brightness from the moment you switch on
Self-Regulated Cooling: Built-in thermal management for extended reliability
Less Power Draw: Uses less than half the amperage of factory halogen bulbs

Performance & Technical Specifications ▼

Bulb SizeH4

Beam TypeLow Beam (Single Bulb High/Low)

Minimum Output4,000+ Lumens

Maximum Output6,000 Lumens

Color Temperature6000K

LED ChipPhilips Luxeon ZES

DriverSamsung-Designed

CAN-Bus CompatibleYes

Relay Harness RequiredNo

Heat SinkAdjustable / Removable

Warranty2 Years

Vehicle Fitment ▼

Universal H4 fitment - compatible with any vehicle using H4 headlight bulbs. The adjustable, removable heat sink accommodates a wide range of headlight housings including tight back-cap clearances.

CAN-Bus Note: Dodge, Chrysler, Jeep, and late-model European vehicles (Mercedes, BMW, Audi, etc.) may require an additional CAN-Bus decoder harness to prevent flickering, strobing, or shutdown behavior.

What's Included ▼

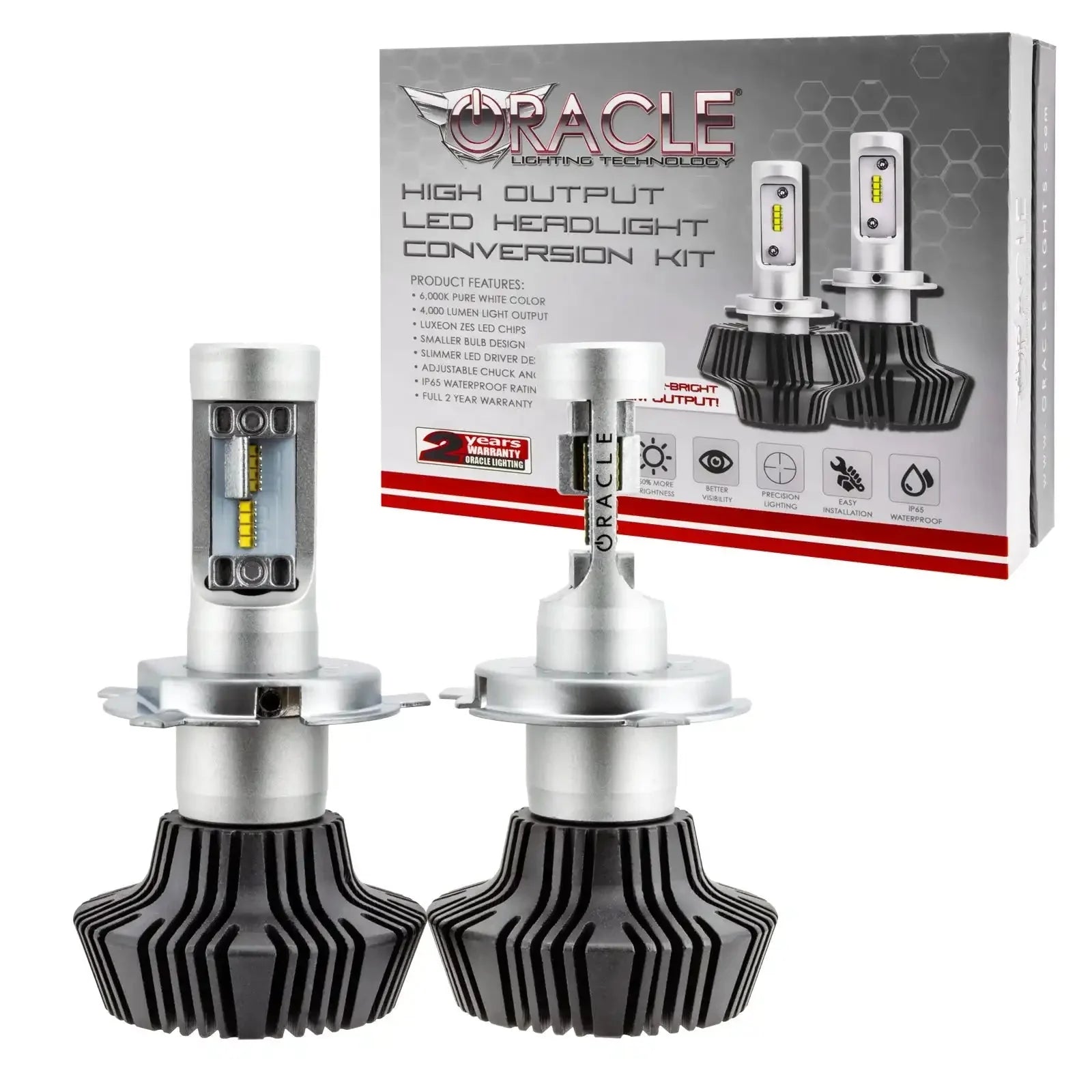

(2) ORACLE Lighting H4 4,000+ Lumen LED Headlight Bulbs
(2) H4 Connectors

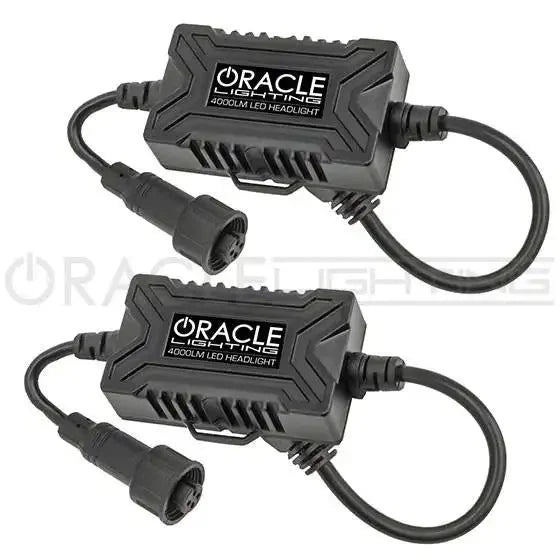

(2) H4 Compact LED Drivers
2-Year Warranty

Installation Guide & Resources ▼

Easy DIY installation - no relay harness required for most vehicles. The adjustable heat sink can be reversed or mounted externally for tight fitment situations. Ensure DRLs are off before installing.
