An entry-level wired RGB controller with an IR wireless remote for controlling ORACLE ColorSHIFT® products - 24 colors, 9 dynamic modes, 16 speed levels, and 0-100% brightness adjustment. Simple, affordable, and effective.
24 Colors 9 Color-Changing Modes 16 Speed Levels 0-100% Brightness IR Wireless Remote 12V / 6A Total Indoor Mount Only 1-Year Warranty
Part Number: 1612-504 | Voltage: 12V | Max Load: 2A per channel / 6A total | Compatible With: ORACLE ColorSHIFT® Products
Product Overview ▼

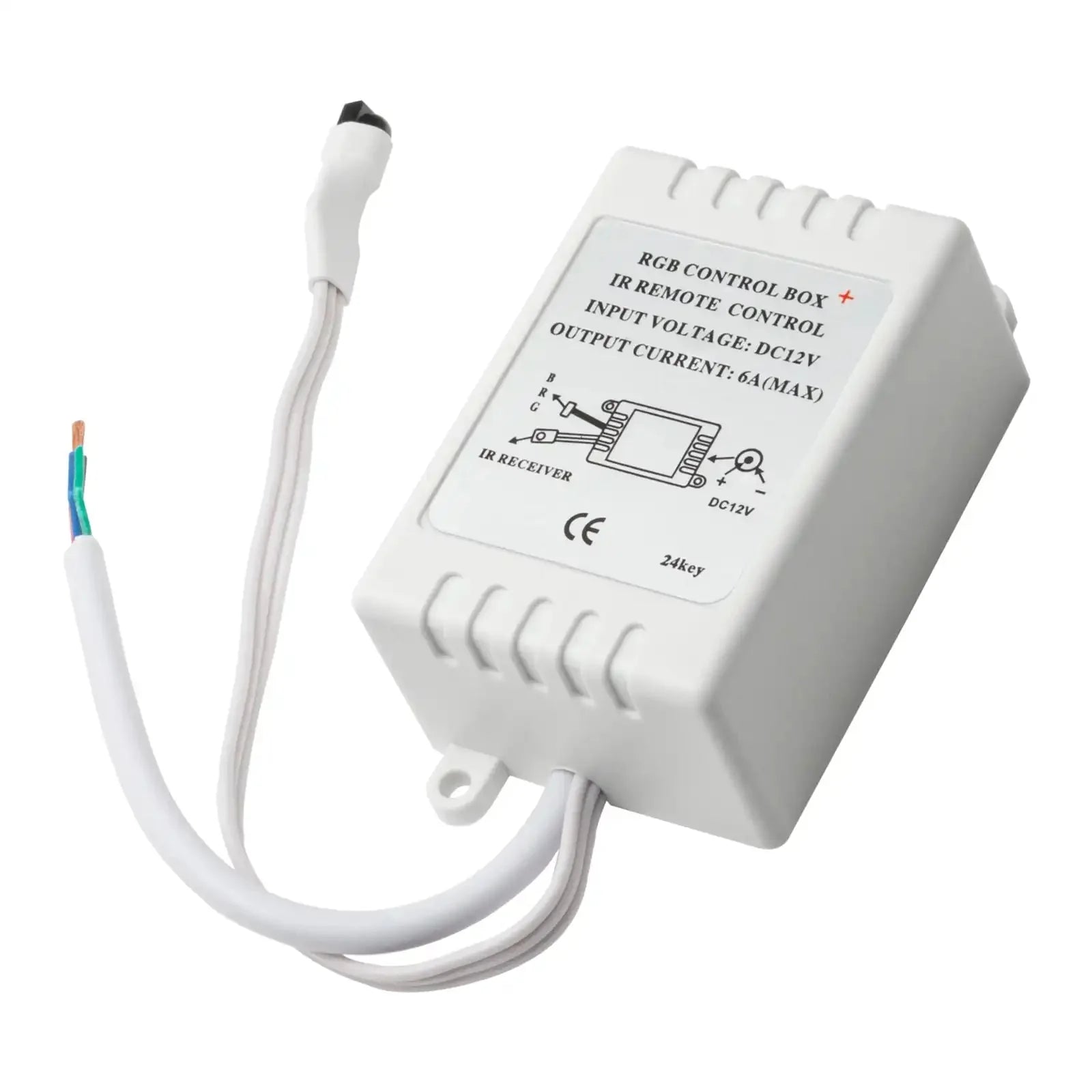

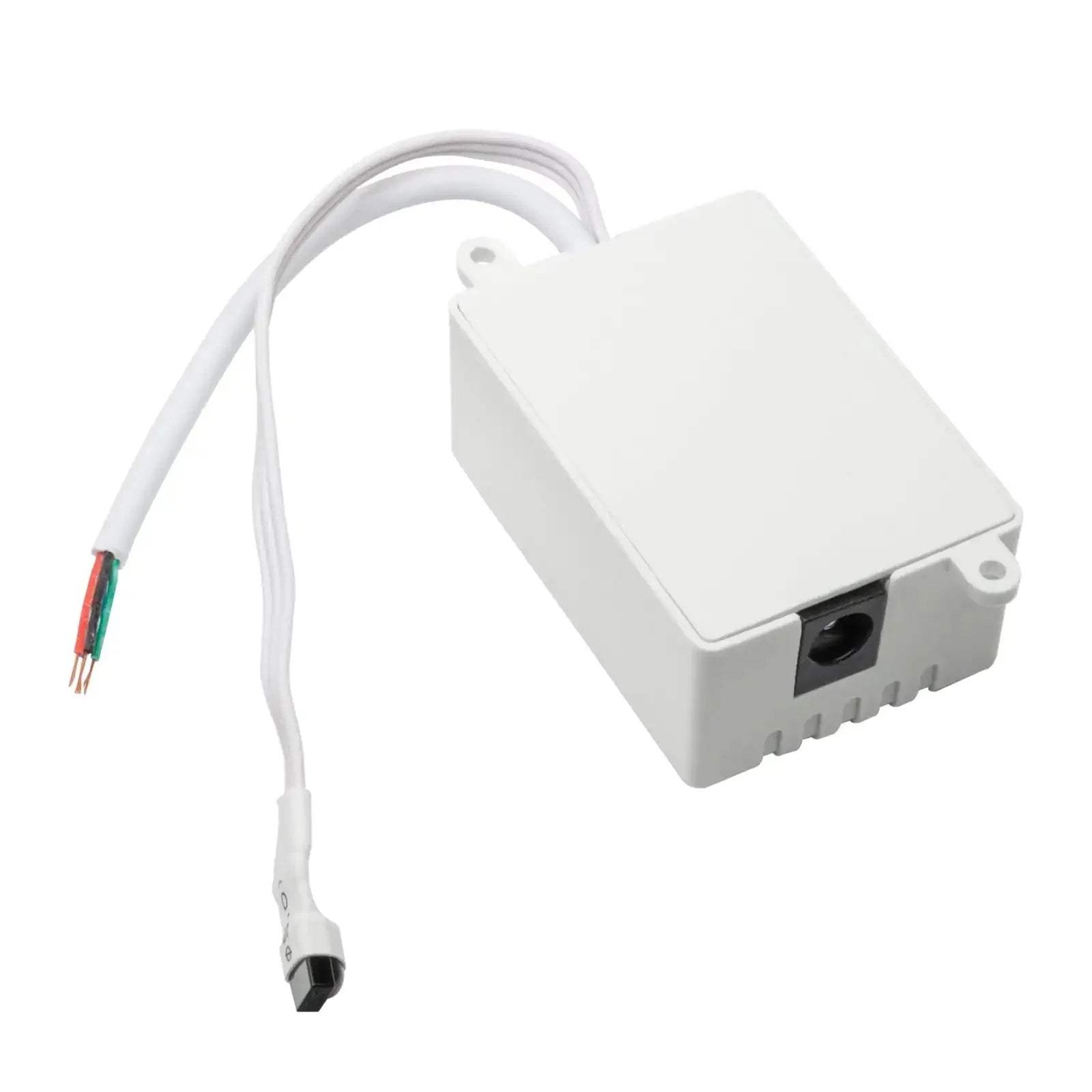

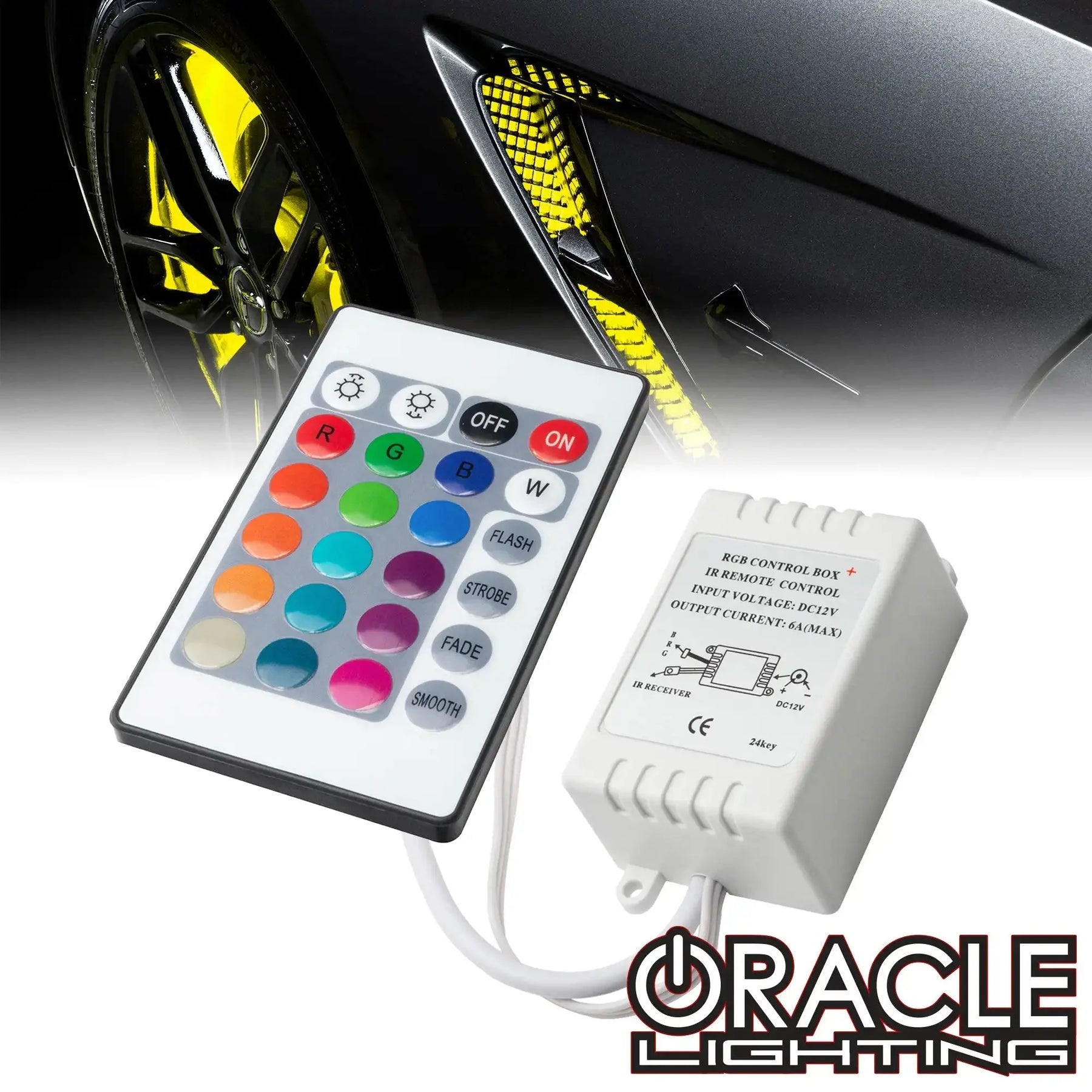

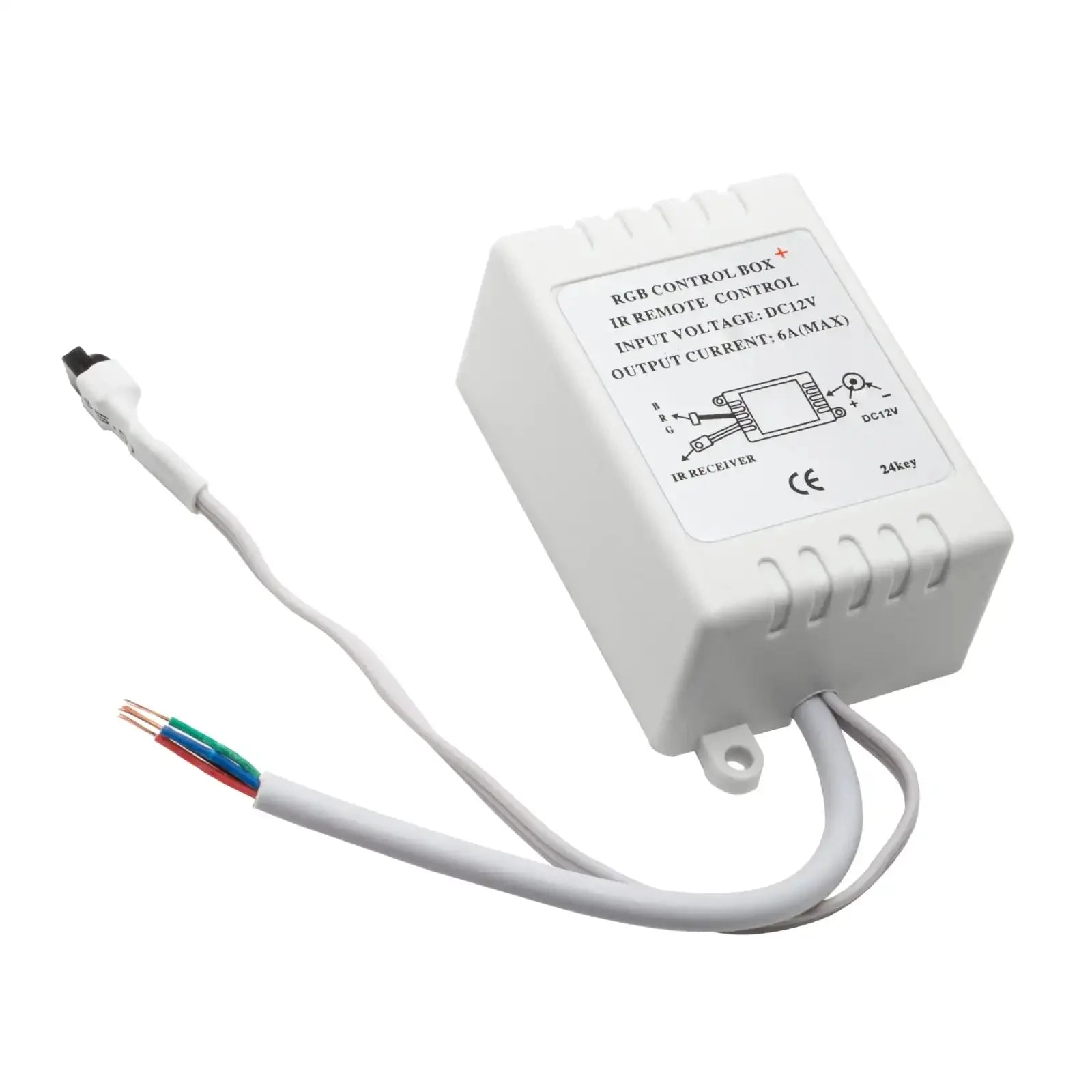

The ORACLE Simple ColorSHIFT® RGB Controller is an entry-level wired controller with a handheld IR wireless remote, designed to control ORACLE ColorSHIFT® lighting products. Choose from 24 colors and 9 dynamic color-changing modes, with adjustable brightness from 0 to 100% and 16 speed levels for dynamic modes.
Compact and easy to install, this controller is ideal for buyers looking for straightforward RGB control without the complexity of app-based or Bluetooth systems.
Not Weatherproof - Indoor Mount Required: This controller must be mounted inside the vehicle's cabin. If mounted outside the cabin, modifications may be required depending on your application.
Key Features ▼
- 24 Colors: Wide color selection for any mood or style
- 9 Color-Changing Modes: Dynamic lighting patterns for show or daily use
- 16 Speed Levels: Fine-tune the pace of dynamic color modes
- 0-100% Brightness Adjustment: Full dimming control from off to full brightness
- IR Wireless Remote: Handheld infrared remote for convenient control
- 12V Operation: Compatible with standard automotive 12V systems
- 2A per Channel / 6A Total: Sufficient load capacity for most ORACLE ColorSHIFT® applications
- Compact Form Factor: 3.1" L × 2.7" W × 1.1" H - easy to tuck away inside the cabin
Performance & Technical Specifications ▼
Part Number1612-504
Operating Voltage12V DC
Max Load2A per Channel / 6A Total
Colors24
Color-Changing Modes9
Speed Levels16
Brightness Control0-100%
Control MethodIR Wireless Remote
Dimensions3.1" L × 2.7" W × 1.1" H
WeatherproofNo - Indoor / Cabin Mount Only
Warranty1 Year
What's Included ▼
- (1) Simple ColorSHIFT® RGB Controller Module

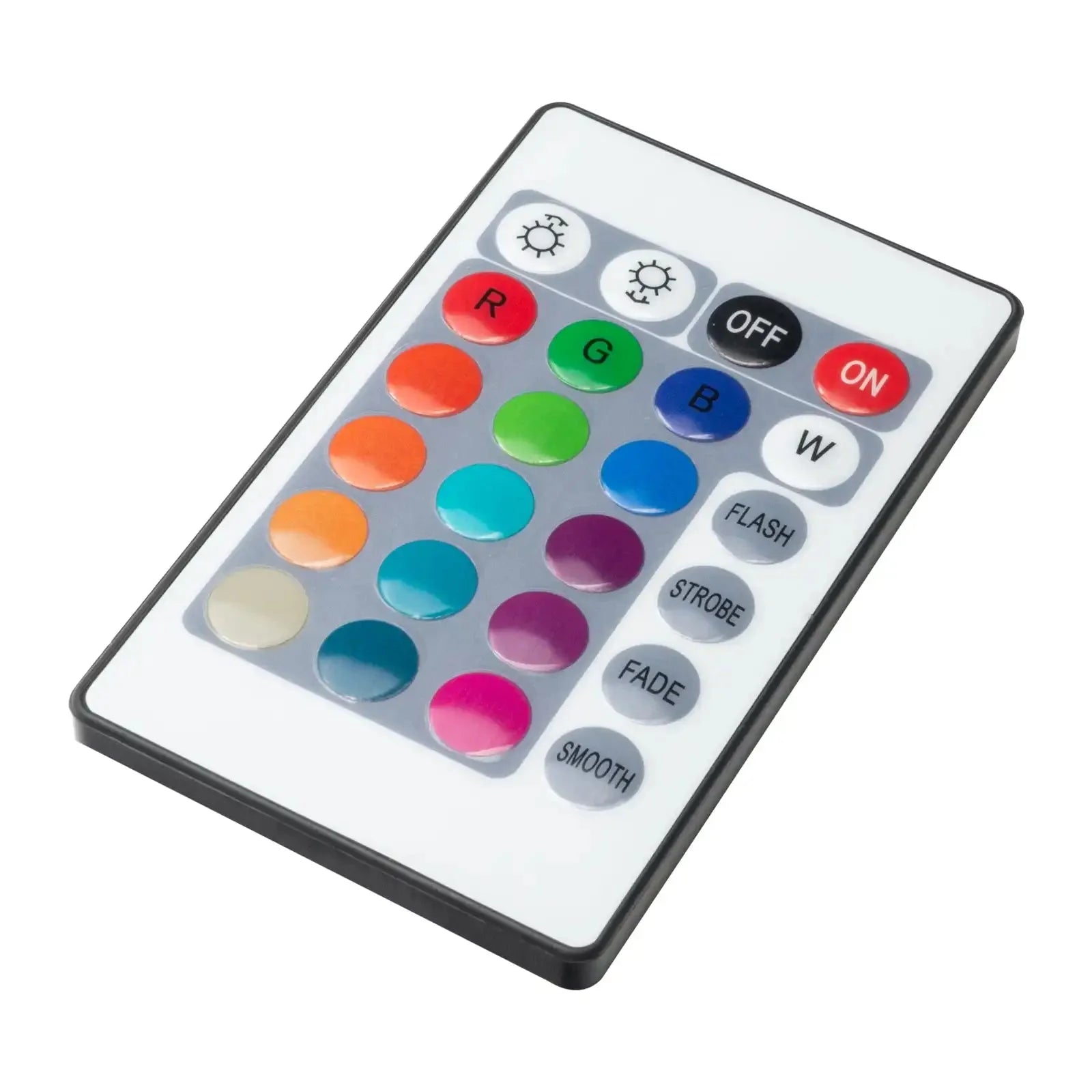

- (1) Simple ColorSHIFT® RGB IR Wireless Remote

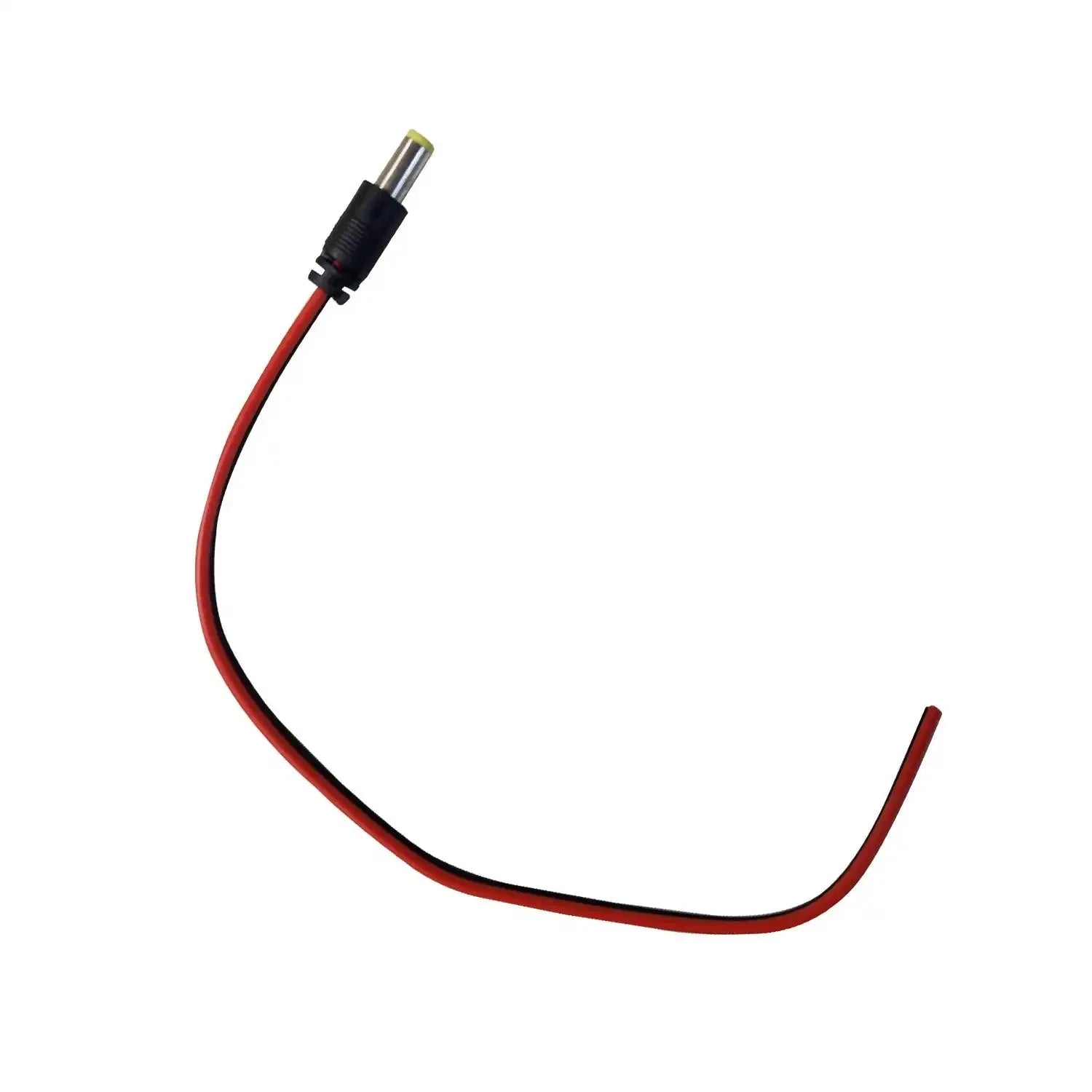

- (1) 12V DC Connector
- 1-Year Warranty
Installation Guide & Resources ▼
Mount the controller module inside the vehicle cabin. Connect to your ORACLE ColorSHIFT® product using the included 12V DC connector. Use the IR wireless remote to select colors, modes, brightness, and speed. See the wiring guide diagram below for connection reference.
Mount inside the cabin only. This controller is not weatherproof. External mounting may require additional modifications.
Estimated Installation Time: 15 minutes
Experience Level: Beginner
Designed for a straightforward installation using basic hand tools.
Experience Level: Beginner
Designed for a straightforward installation using basic hand tools.
