Dirt King Performance Lower Control Arms for Tundra (2007-2021)

The Dirt King Fabrication Performance Lower Control Arms for the Toyota Tundra are designed to dramatically improve off-road performance without compromising on-road driveability. These arms are significantly stronger than factory lower arms, built to withstand the toughest off-road abuse. The internally ribbed design ensures that critical components remain intact in the event of major contact, keeping you moving on the trail.Specifically engineered for off-road articulation, these lower control arms feature tabbing for bump stops, limit straps, and bypass shocks, while still accepting the factory sway bar and compatible shocks. The outer pivots utilize 1" Probearing stainless steel uniballs for added strength and articulation, paired with high-grade 17-4 stainless steel misalignment spacers and Grade 8 mounting hardware. Progressive steering stops allow maximum steering without over-articulating CVs or tie rods.The inner pivots use Delrin bushings, chosen over vulcanized rubber, poly, or uniball options for durability, articulation, and noise reduction. This is a direct bolt-on application with all necessary hardware included, finished in a durable black powder coat, and designed with replaceable wear components for long-term use.

Important Notes

• Designed to pair with OEM and Dirt King components. Compatibility with other brands must be approved.
• If installing 35” tires, modifications to the wheel wells and bumper may be required.

Specifications

• Track Width: Stock
• Maximum Tire Size: 35”
• Maximum Backspacing: 4.75”
• Minimum Rim Size: 17”
• Factory Sway Bar Compatible: Yes
• Bypass Shock Compatible: 2.5” & 3.0”
• Bump Stop Size: 2.0” x 2.0”
• Coilover Compatibility: OEM replacement coilovers

What’s Included

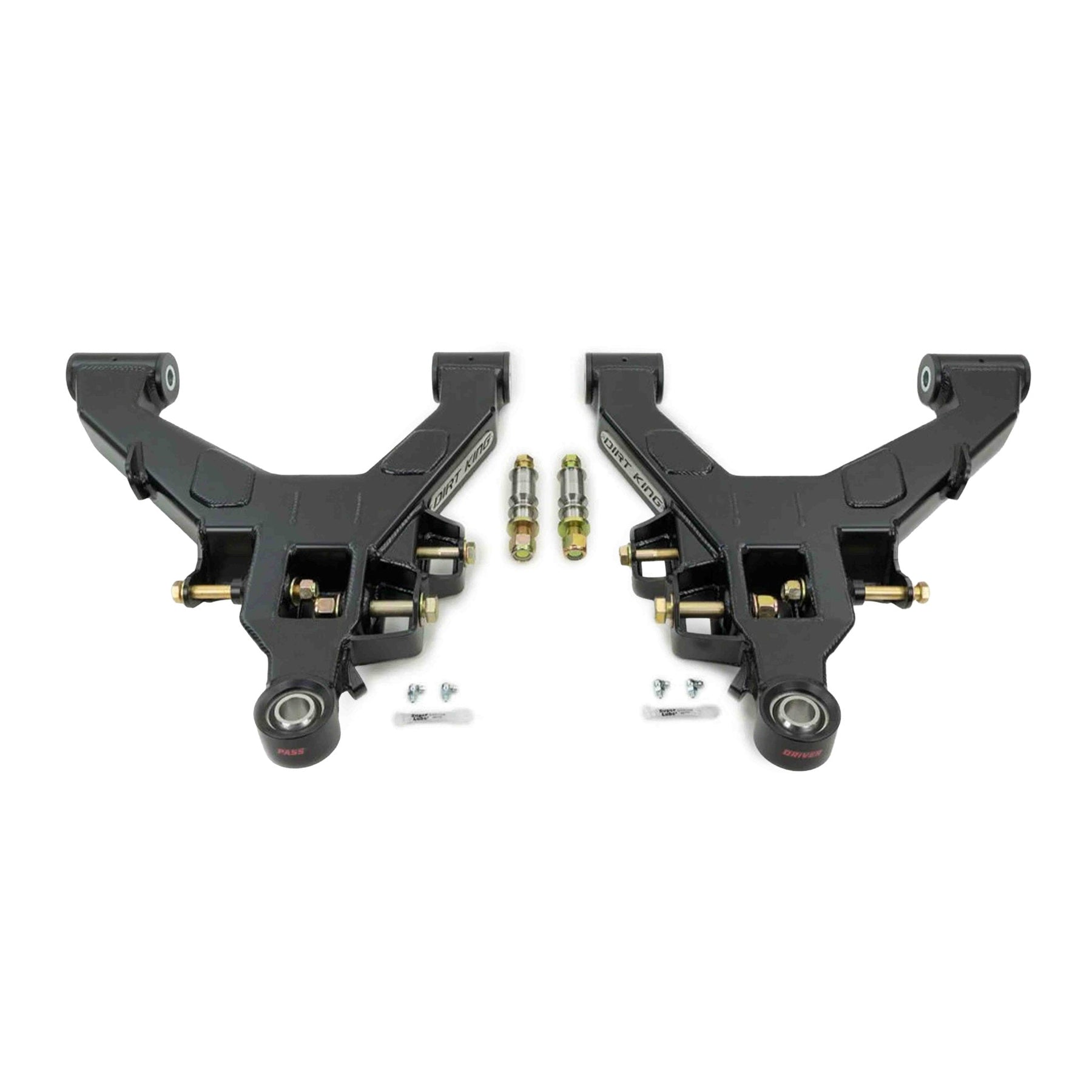

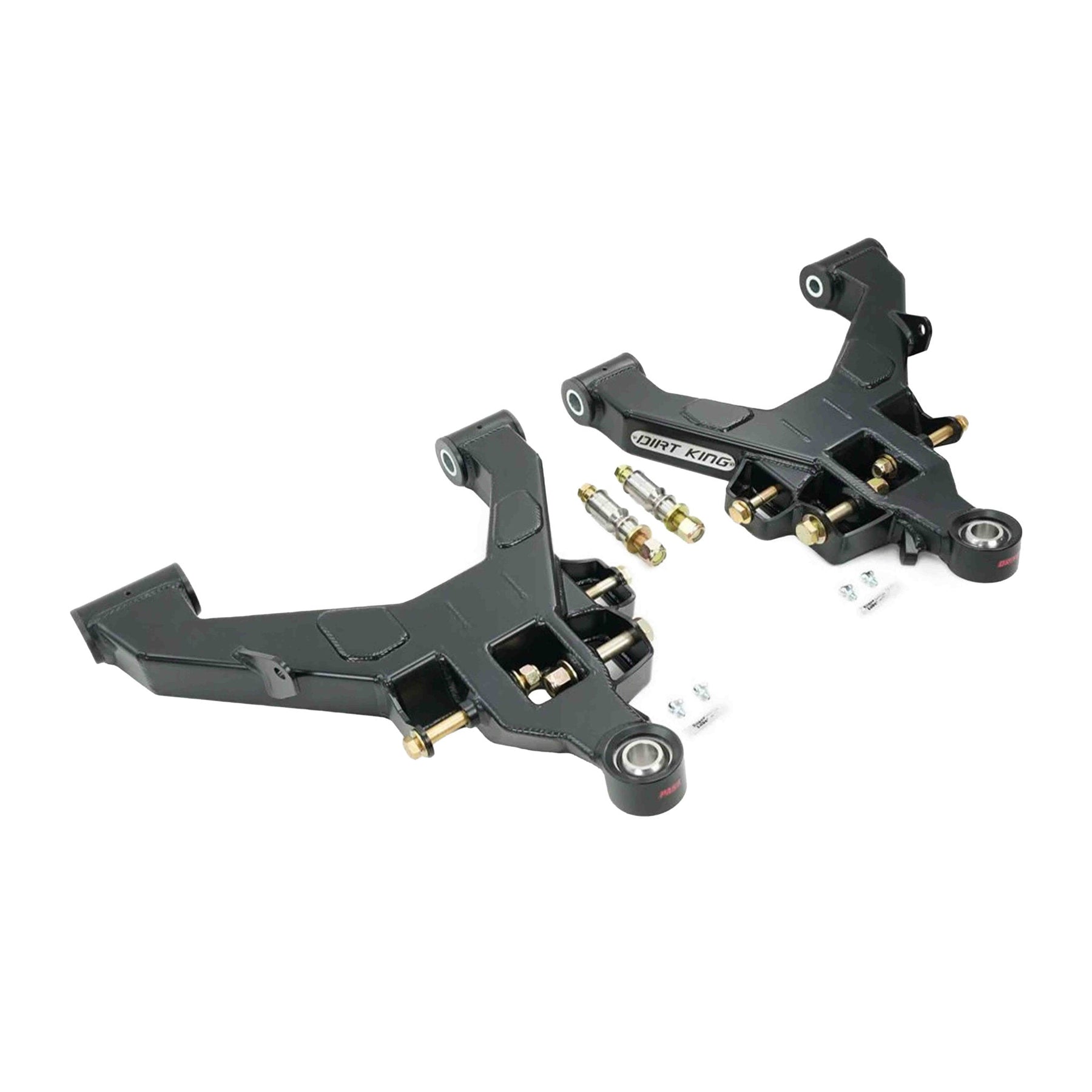

• Arms: Boxed plate lower control arms
• Bushings: Delrin inner bushings
• Fittings: Grease fittings
• Uniballs: 1” Probearing stainless steel uniballs
• Logo Plates: Brushed stainless steel
• Spacers: 17-4 stainless steel misalignment spacers
• Hardware: Grade 8 mounting hardware
• Sleeves: Zinc plated inner bushing sleeves and bump stop spacers
• Finish: Durable black powder coat
• Extras: Dirt King sticker pack
• Instructions: Installation instructions

Features

• CAD Designed: Ensures precise fitment and durability
• Steel Gussets: Formed steel bushing gussets for added strength
• Ribbed Construction: Internally ribbed with extrusions for weight reduction
• Preassembled: Ready for fast installation
• Grease Ports: Easy servicing with grease fitting access
• Zinc Plating: Corrosion-resistant components
• Bump Stop Tabbing: Allows bump stop installation
• Limit Strap Tabbing: Accepts limit straps for suspension control
• Bypass Tabbing: Compatible with bypass shocks
• Welded: Professionally MIG welded for strength
• Made in USA: Proudly manufactured domestically

Compatibility

• Toyota Tundra: 2007–2021 2WD / 4WD
