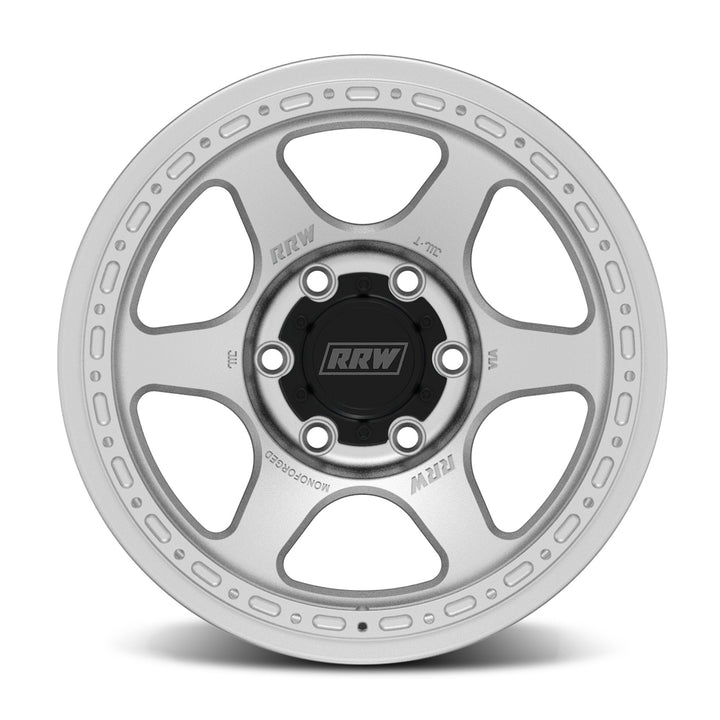

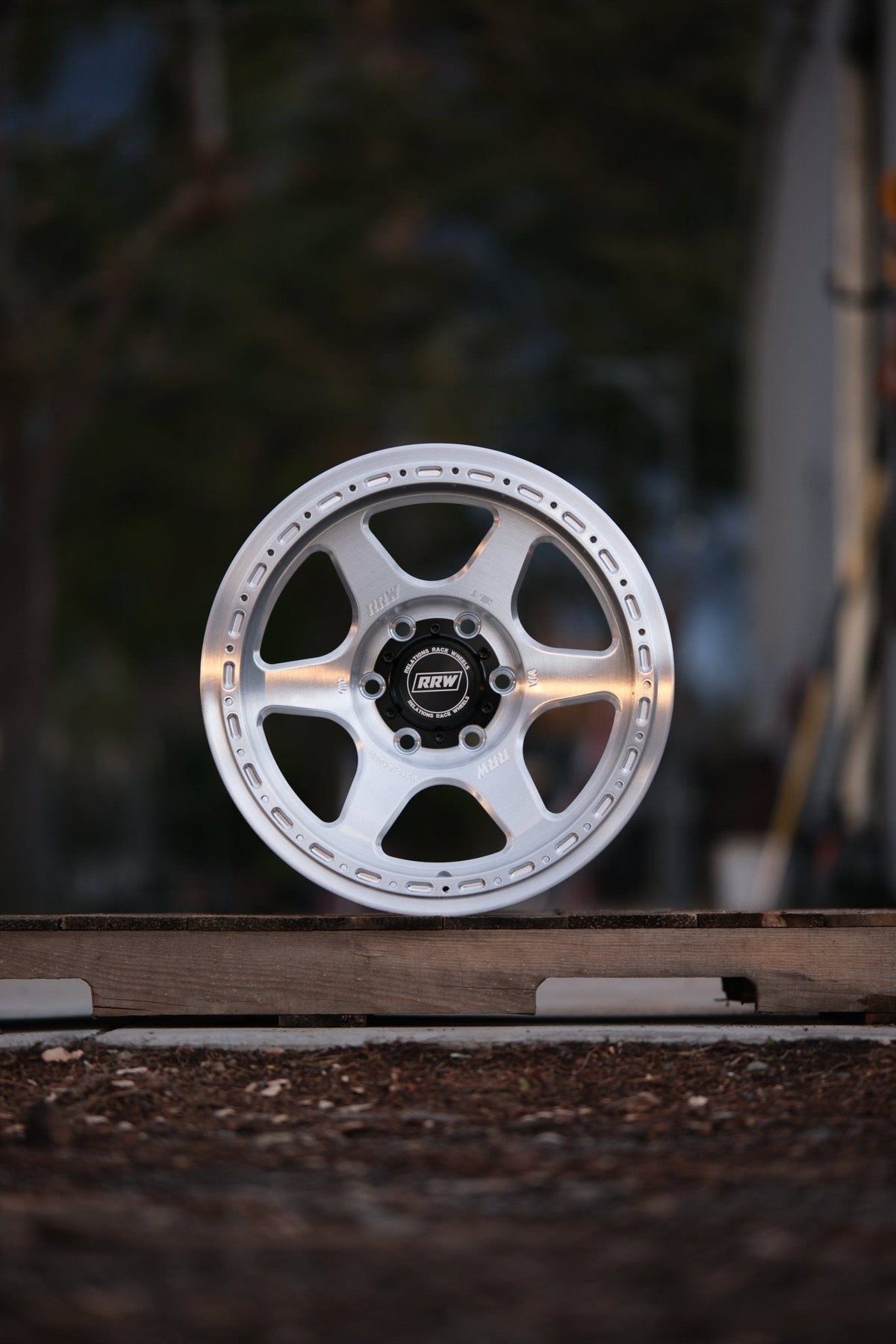

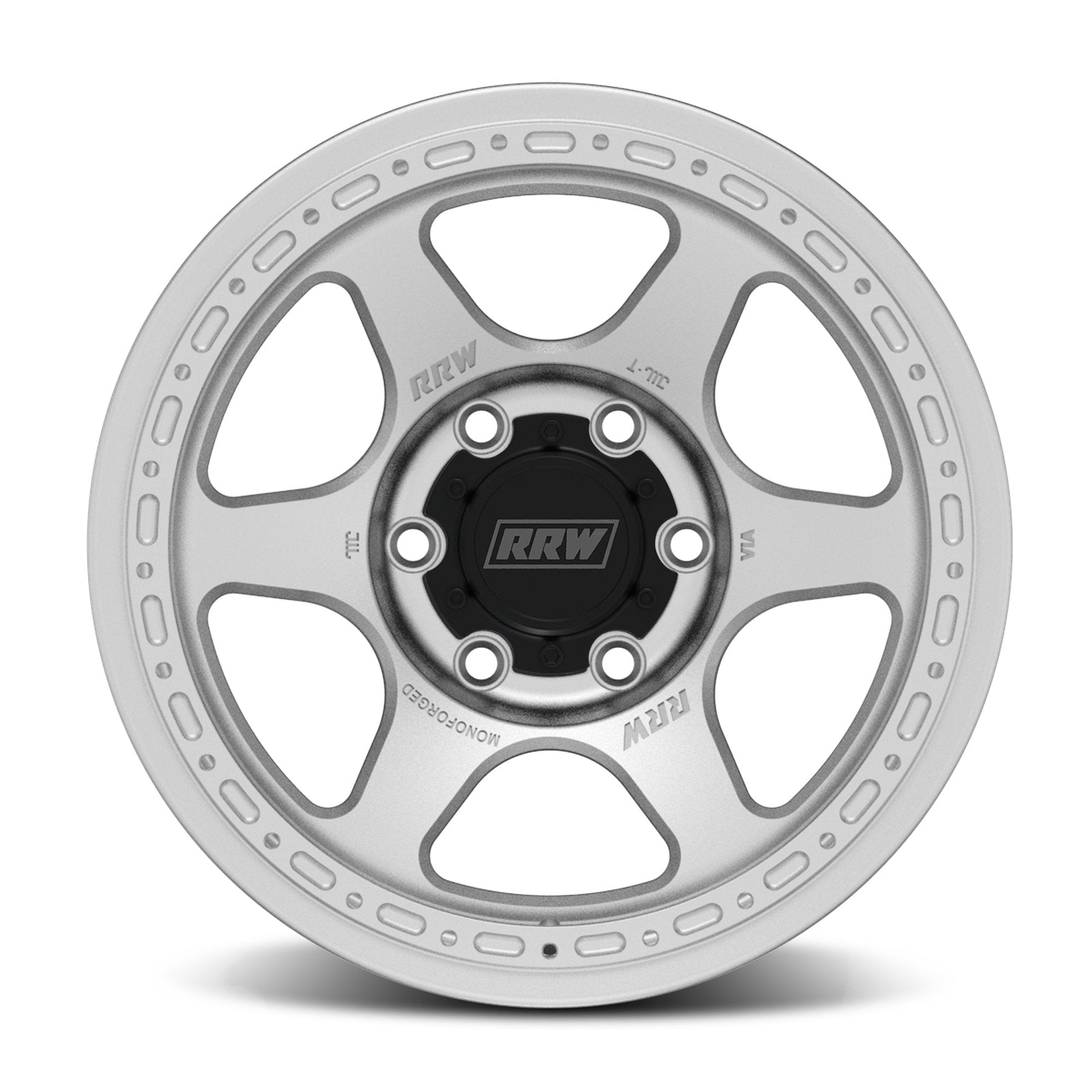

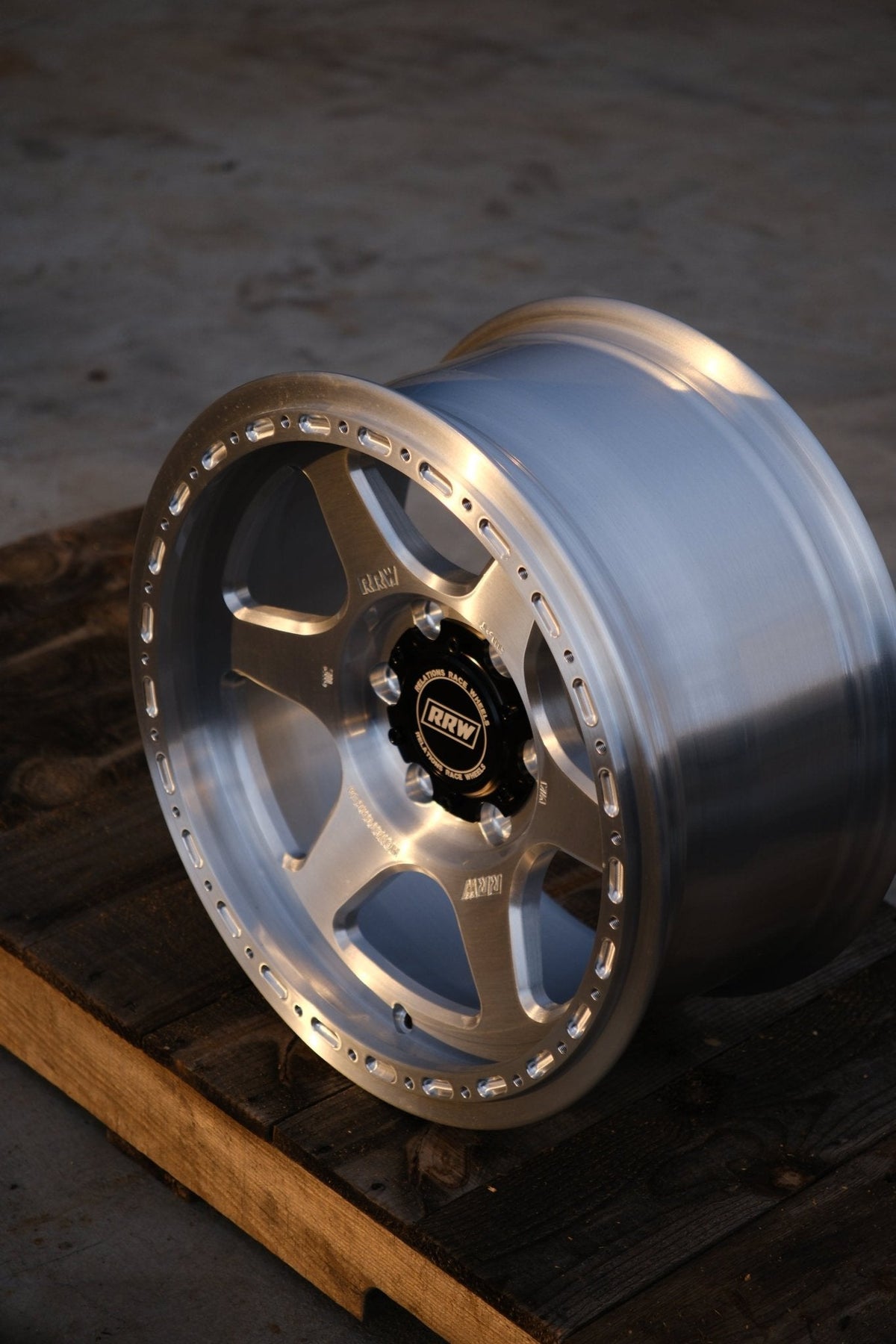

Refine your build with the RRW RS2-H Hybrid MonoForged Wheel in Brushed Aluminum, engineered to deliver exceptional strength, precision fitment, and a clean, modern off-road aesthetic. Utilizing advanced MonoForged construction, the RS2-H offers a lightweight yet incredibly durable wheel designed to handle daily driving, overlanding, and demanding off-road conditions—while maintaining OEM-level reliability and balance.
Note
-
Lug Nuts: Not compatible with OEM lug nuts. Conical seat lug nuts are required for proper installation.
-
Hub-Centric Fitment: Center bore varies by offset to ensure precise, vibration-free mounting on supported vehicle platforms.
-
TPMS: Compatible with OEM-style TPMS sensors.
-
Certification: Manufactured in a JWL/VIA certified facility and tested to meet and exceed OEM specifications.
Specifications
-
Sizes & Offsets:
-
17x8.5: -12mm, +25mm
-
18x9: +18mm
-
Bolt Pattern: 6x5.5 / 6x139.7
-
Center Bore:
-
-12 Offset: 106.1mm (hub-centric for Toyota trucks & GX)
-
+12 / +18 / +25 Offsets: 95.2mm (hub-centric for 24+ Tacoma, 22+ Tundra, 24+ 4Runner, Land Cruiser 250, GX550)
-
Load Rating: 2,500 lbs per wheel
-
Backspacing: Varies by size and offset
-
Finish: Brushed Aluminum
-
Center Cap: Embossed ABS caps included
-
TPMS Compatibility: Yes
-
Lug Nut Requirement: Requires conical seat lug nuts (sold separately)
Vehicle Fitment
6x5.5 / 6x139.7 –12 Offset
- Toyota Tacoma (2023 and older)
- Toyota 4Runner (5th Gen)
- Toyota FJ Cruiser
- Lexus GX470
- Chevy Silverado 1500
6x5.5 / 6x139.7 +18 / +25 Offset
- Toyota Tacoma (4th Gen 2024+)
- Toyota Tundra (3rd Gen 2022+)
- Toyota 4Runner (6th Gen 2024+)
- Toyota Land Cruiser 250
- Lexus GX550
- Ford Bronco
- Ford Ranger
Package Contents
- (1) RRW RS2-H Hybrid MonoForged Wheel | Brushed Aluminum
- (1) Embossed ABS Center Cap
