The factory hangers on 2005+ Toyota Tacomas are thin and prone to bending, deflection, and premature wear. This not only reduces ride quality but also prevents your leaf springs from performing properly.

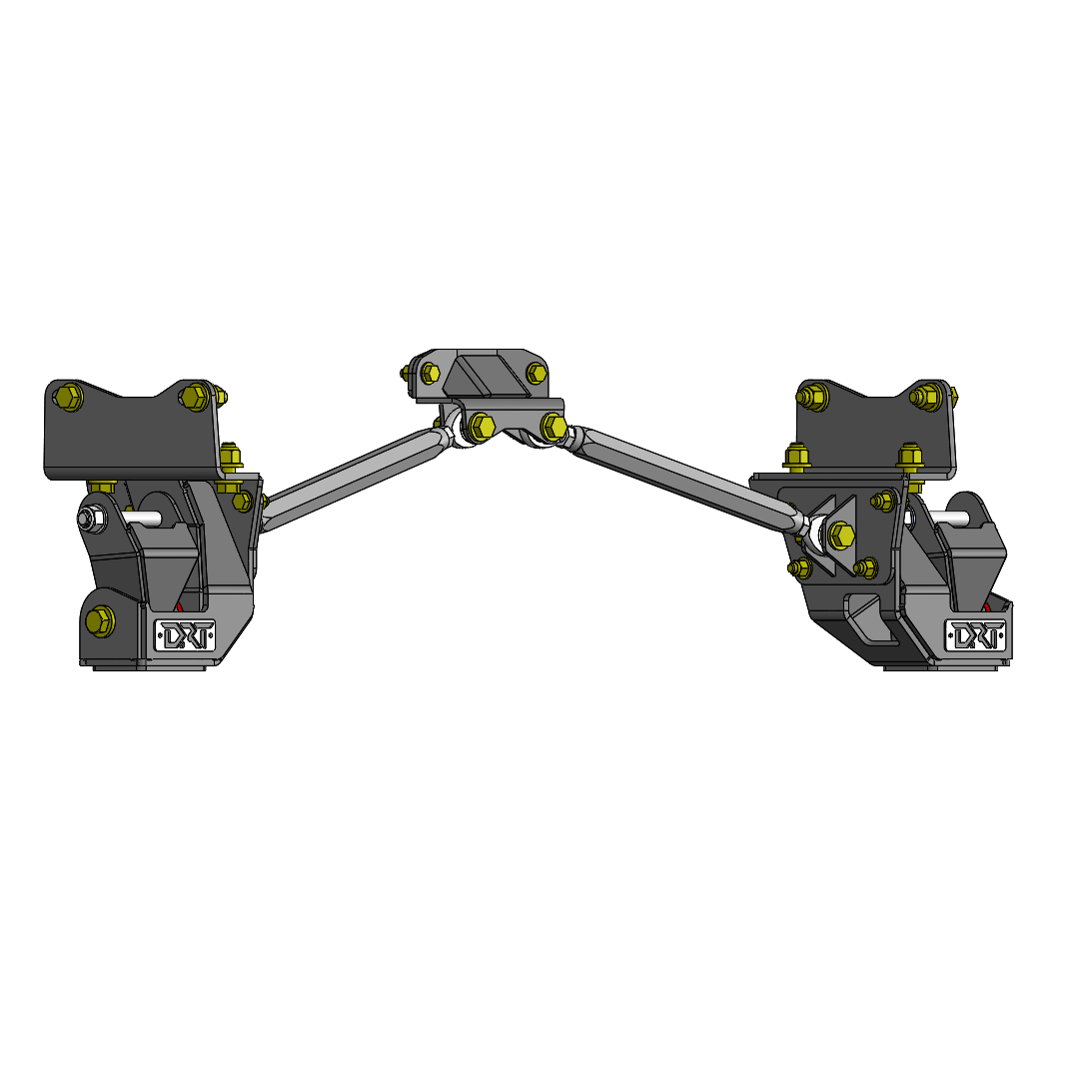

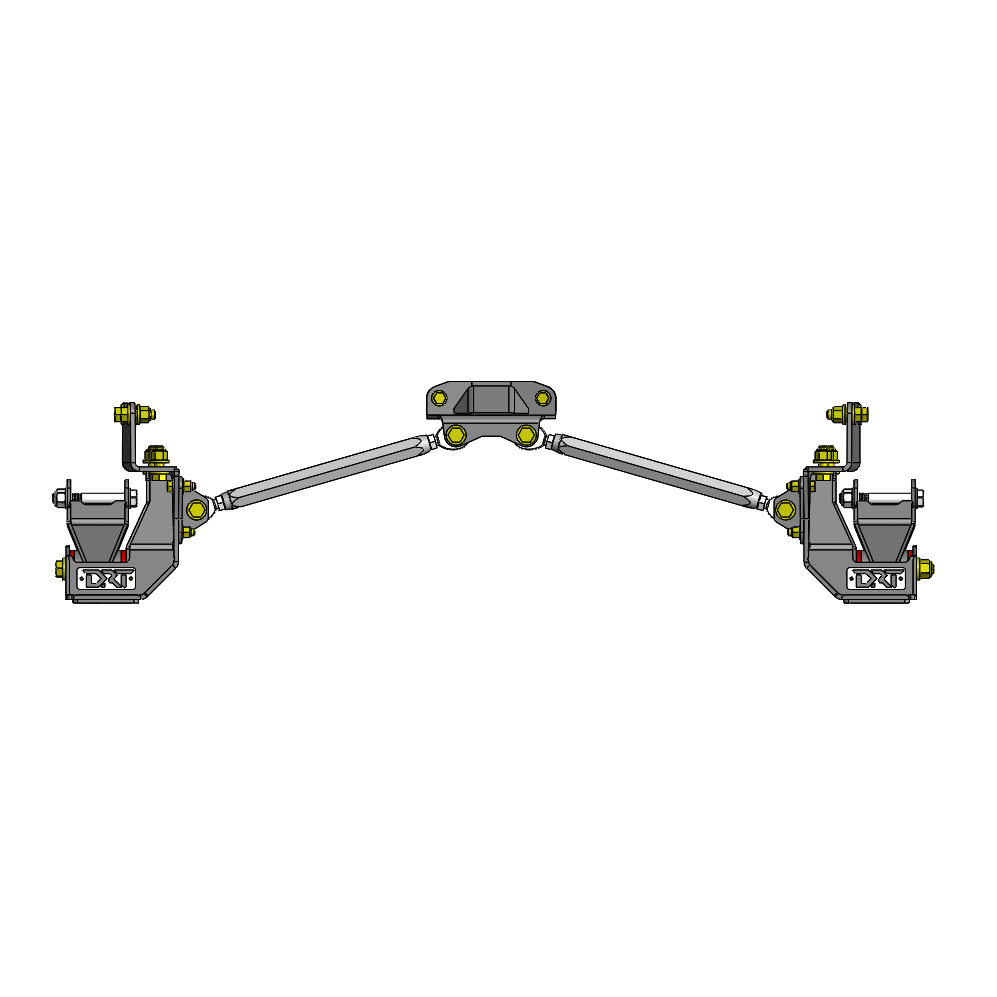

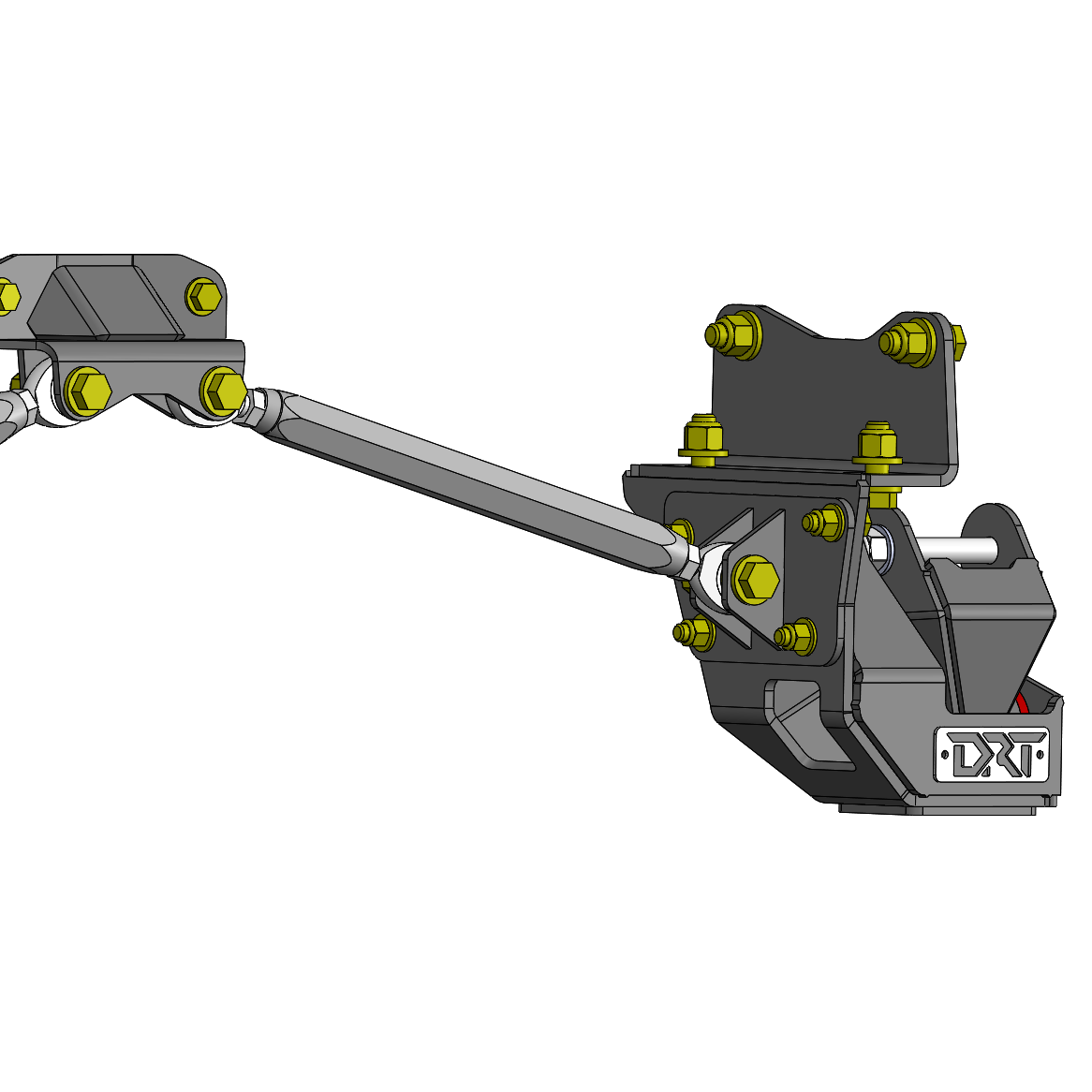

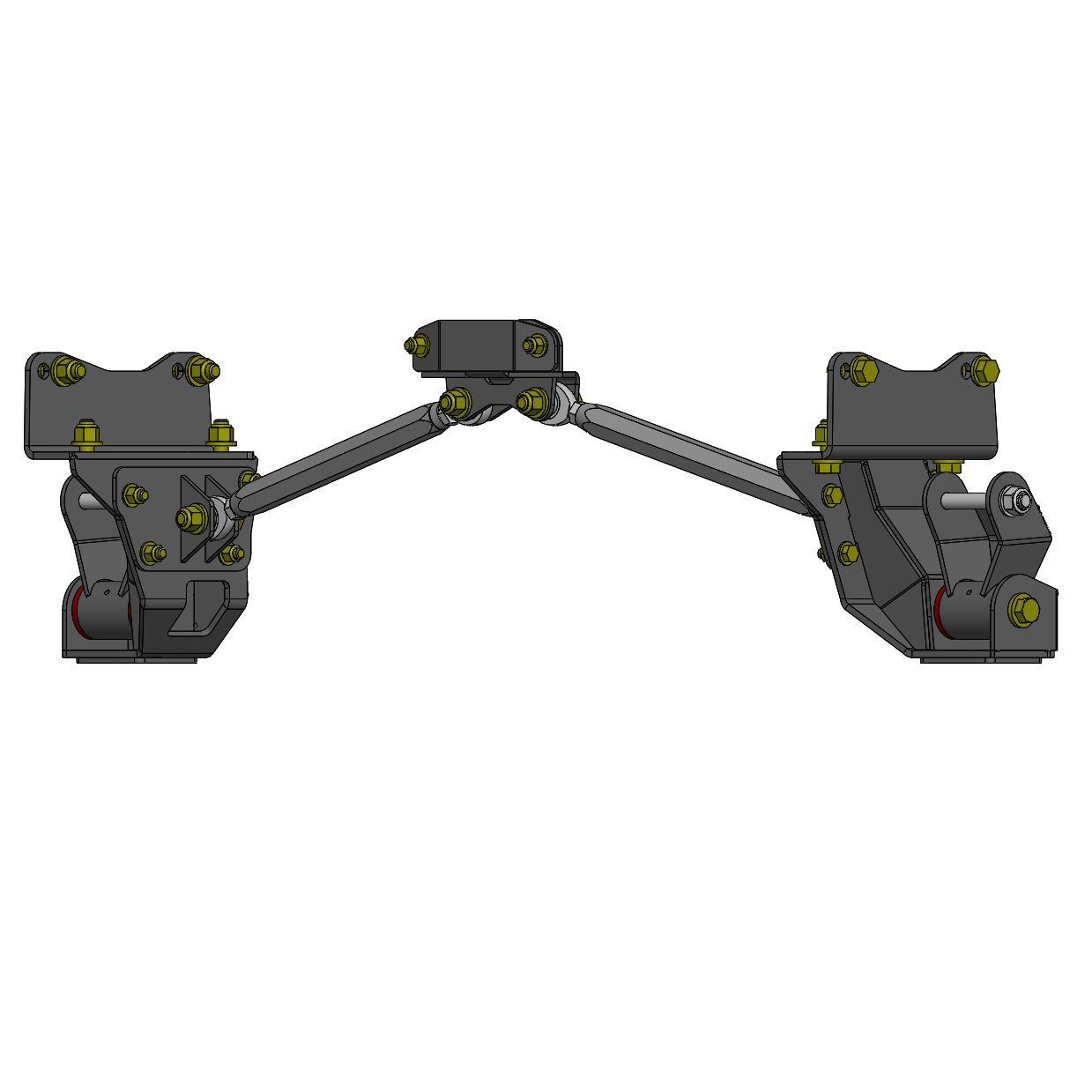

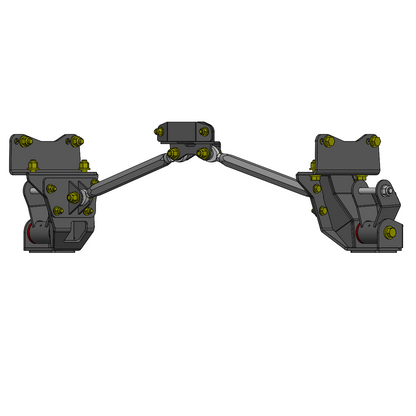

The DRT hangers are engineered to eliminate these issues by stiffening the mounting points, improving geometry, and allowing aftermarket leaf springs to cycle cleanly through their travel. The shackle pivot is moved back to optimize suspension performance and unlock the full potential of long-travel leaf springs.V2 hangers and crossbars are now shipping and differ slightly from images the actual images seen here, The CAD photos seen are accurate to the V2 hangers. The updated crossbar is machined from billet, and the hangers include an additional hole to better fit longer leafs such as Deaver and Allpro.
Note:Allpro leaf springs require a ⅛” spacer. 1/8" spacers are included standard.
Hanger Specs
Built from 1/4” and 3/16” steel
100% MIG welded to industry-leading standards
Durable satin black powder coat finish
Stainless steel logo plates
Includes Grade 8 hardware
Improved geometry for smoother wheel travel
Includes 3/16” steel shackle
Zerk fittings and greaseable polyurethane bushings
2” x .250 DOM pivot tube (machined)
Designed to align perfectly with the tapered Tacoma frame rails
Crossbar Upgrade
For even greater improvements, add the optional billet crossbar.
Ties the hangers into a factory crossmember
Increases frame and hanger rigidity
Reduces the frame flex Tacomas are known for
Enhances suspension performance and stability
Provides peace of mind during hard landings directly on the hangers
Machined from Aerospace grade 6061 aluminum and Type III clear anodized
