The Diode Dynamics SS5 CrossLink 25-inch LED Lightbar delivers unmatched intensity, modular flexibility, and premium construction in a powerful four-pod configuration. Built using patent-pending CrossLink technology, this kit links four SS5 LED pods into a single rigid lightbar while maintaining adjustability for straight or curved mounting. Featuring industry-leading output from 5-inch pods, advanced TIR optics, and selectable backlight colors, the SS5 CrossLink is designed for drivers who demand extreme performance and customization.
Important notes
-

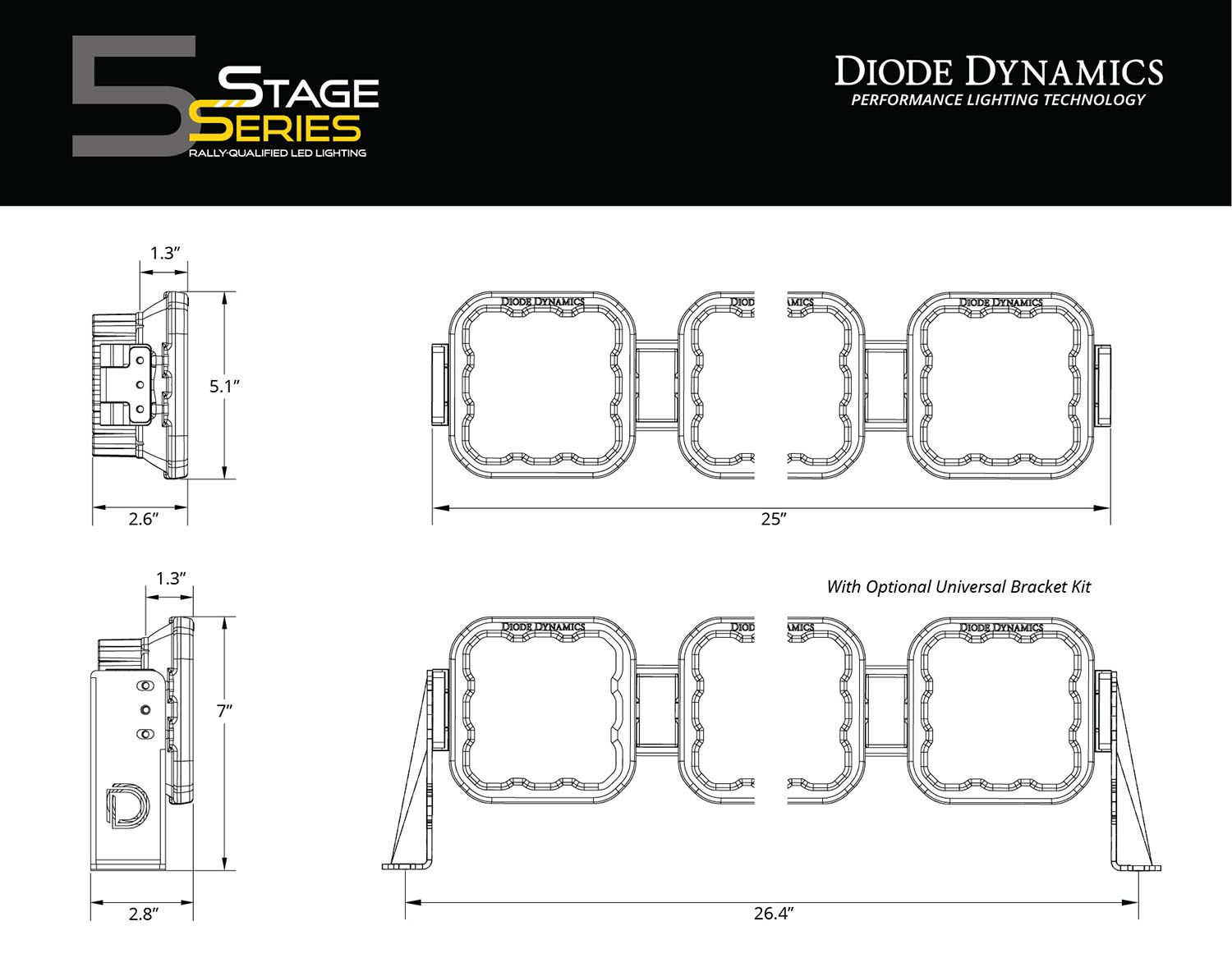

Configuration: Four linked SS5 LED pods (25-inch total width)
-
Beam patterns: Driving or Combo (Driving + Flood)
-
Output colors: 6000K white or 3000K selective yellow
-
Backlight: Selectable (eight colors; yellow kits include amber-only backlight)
-
Power levels: Available in Sport or Pro
-
Warranty: Lifetime manufacturer warranty
Features
-
CrossLink design: Patent-pending CNC aluminum links connect up to eight SS5 pods into a single rigid and adjustable lightbar.
-
Optics: Custom-engineered TIR optics capture and focus nearly all usable light forward, reducing glare and wasted output.
-
Output: Ultra-high intensity capable of projecting usable light nearly a mile downrange.
-

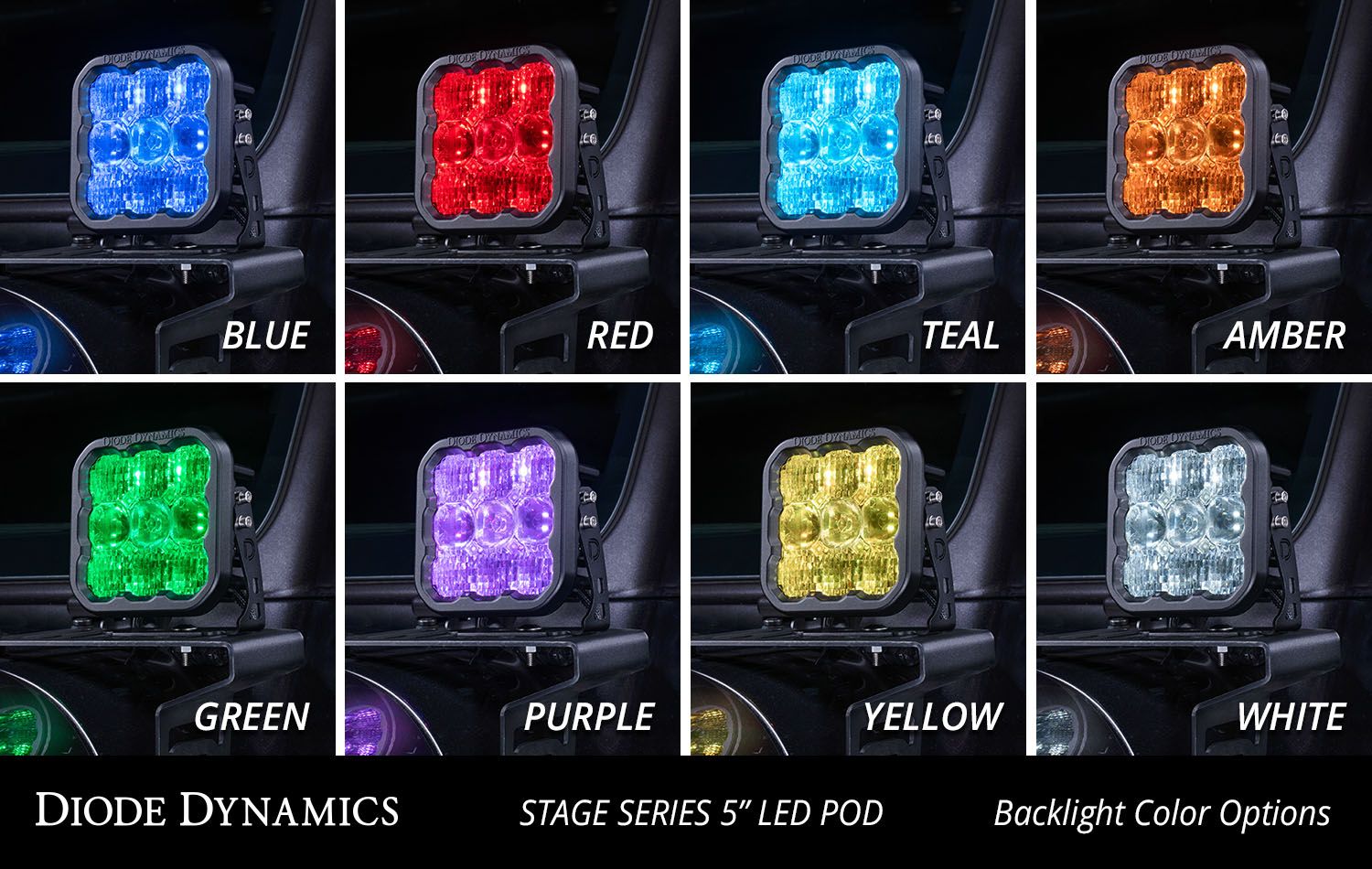

Backlight: Fully illuminated TIR optic backlight with eight selectable color options for accent lighting or added visibility.
-
Adjustability: Modular linking system supports straight or curved configurations without special pod variants.
-
Beam patterns: Driving pattern for speed-focused distance or Combo pattern for balanced distance and area illumination.
-
Lens system: Interchangeable lenses allow easy changes to beam pattern or output color.
-
Construction: Heavy-duty, torture-tested housing engineered for extreme off-road and high-speed environments.
-
Electronics: Constant-current driver ensures stable output and long LED lifespan.
-
Assembly: Designed, assembled, and quality-checked in the USA.

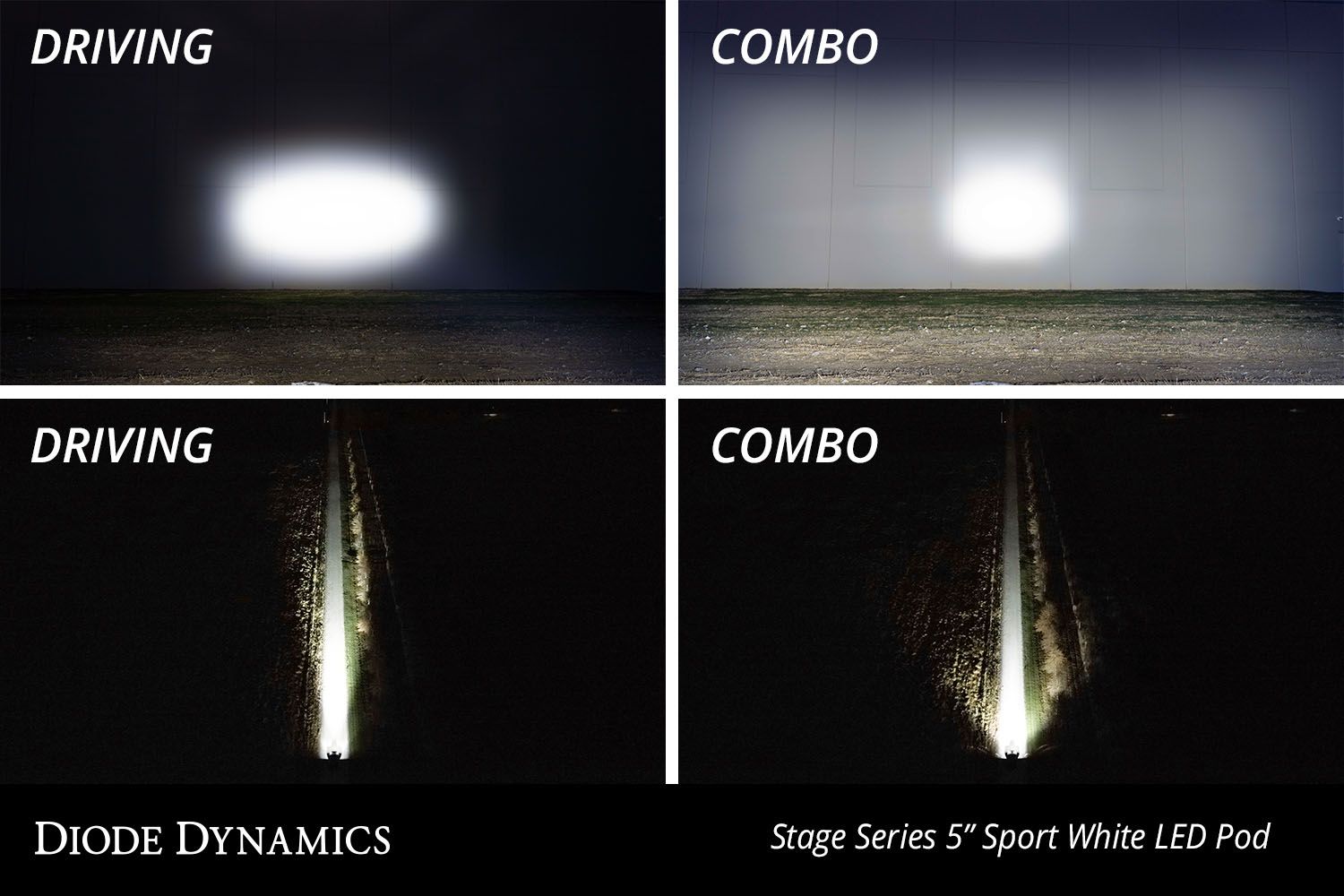

Beam pattern details
-
Driving: Focused 30° x 20° beam optimized for high-speed visibility without excessive foreground glare.
-
Combo: Blends a 30° x 20° driving beam with surrounding flood output for a wide 70° x 30° illumination pattern.
Specifications
Specifications listed below are per individual SS5 pod.
-
Main beam power: Sport: 40W, Pro: 90W
-
Backlight power: White: 3.17W, Yellow: 3.07W
-
Operating voltage: 9–16V
-
Color temperature: 6000K white or 3000K selective yellow
-
Ingress rating: IP69K waterproof and high-pressure resistant
-
Operating temperature: -40°F to 185°F (-40°C to 85°C)
-
LED emitters: Luxeon Z ES, Cree XP-L HI
-
Driver type: Constant current
-
Materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Cooling: Passive pin-fin heatsink
-
Connector: Deutsch DT input

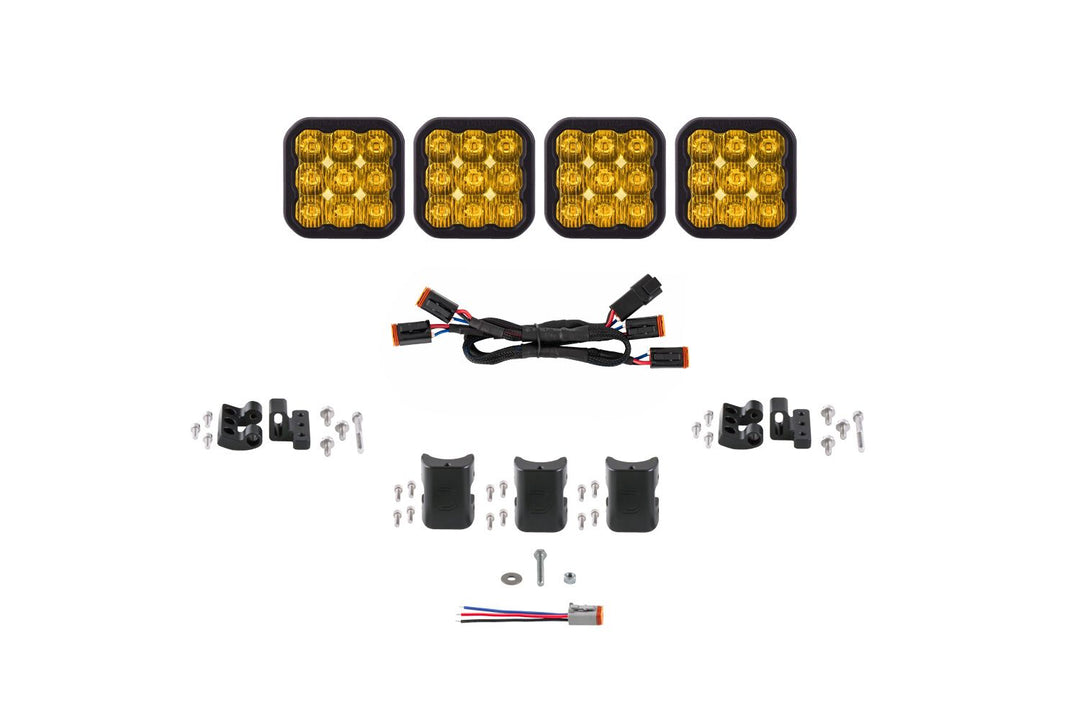

In the box
-
LED pods: Four (4) Stage Series SS5 5-inch LED pods
-
Links: Three (3) CrossLinks with mounting hardware
-
Mounting: One (1) CrossLink end-mount kit
-
Wiring: One (1) DT 4-pod connecting harness
-
Pigtail: One (1) Deutsch-style wire pigtail
-
Quantity: One (1) complete lightbar kit
Installation
-
Install time: 30–60 minutes
-
Tools needed: Basic toolset
-
Torque note: Recommended 5 ft-lbs on long end bolts with threadlocker
Warranty and guarantee
-
Warranty: Lifetime warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guarantee
