The SS5 CrossLink Lightbar from Diode Dynamics delivers extreme output and modular versatility in a rugged, trail-ready package. Using patent-pending CrossLink technology, this system links five SS5 5-inch LED pods into a single 31.5-inch lightbar, producing some of the highest intensity output available in its class. Built with advanced TIR optics and torture-tested construction, this lightbar is designed for serious off-road use, high-speed driving, and demanding conditions.
Important notes
-
Modular design: CrossLink system allows linking up to eight SS5 pods
-
Backlight limitation: Yellow lens versions are only available with an amber backlight
-
On-road legality: SS5 Driving pattern is not SAE auxiliary high beam compliant due to output intensity
-
Mounting flexibility: Can be configured straight or curved
-
Made in USA: Assembled in the United States using globally sourced materials
Features
-

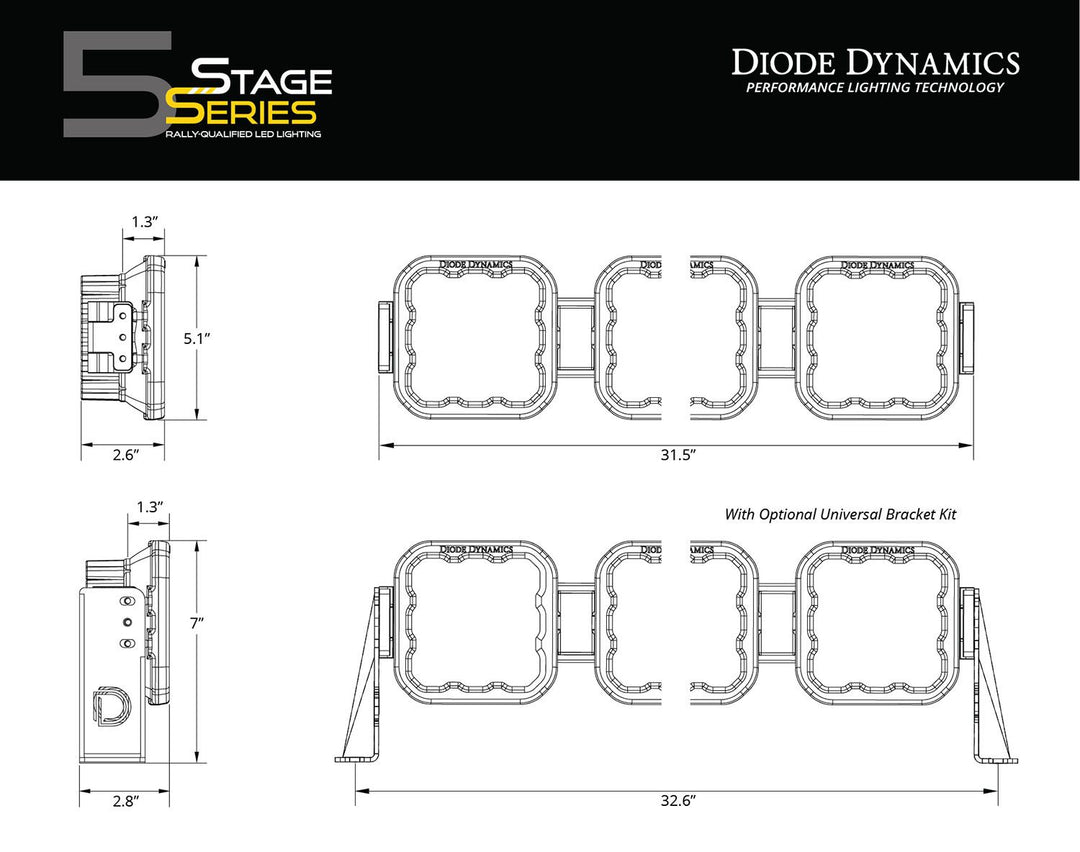

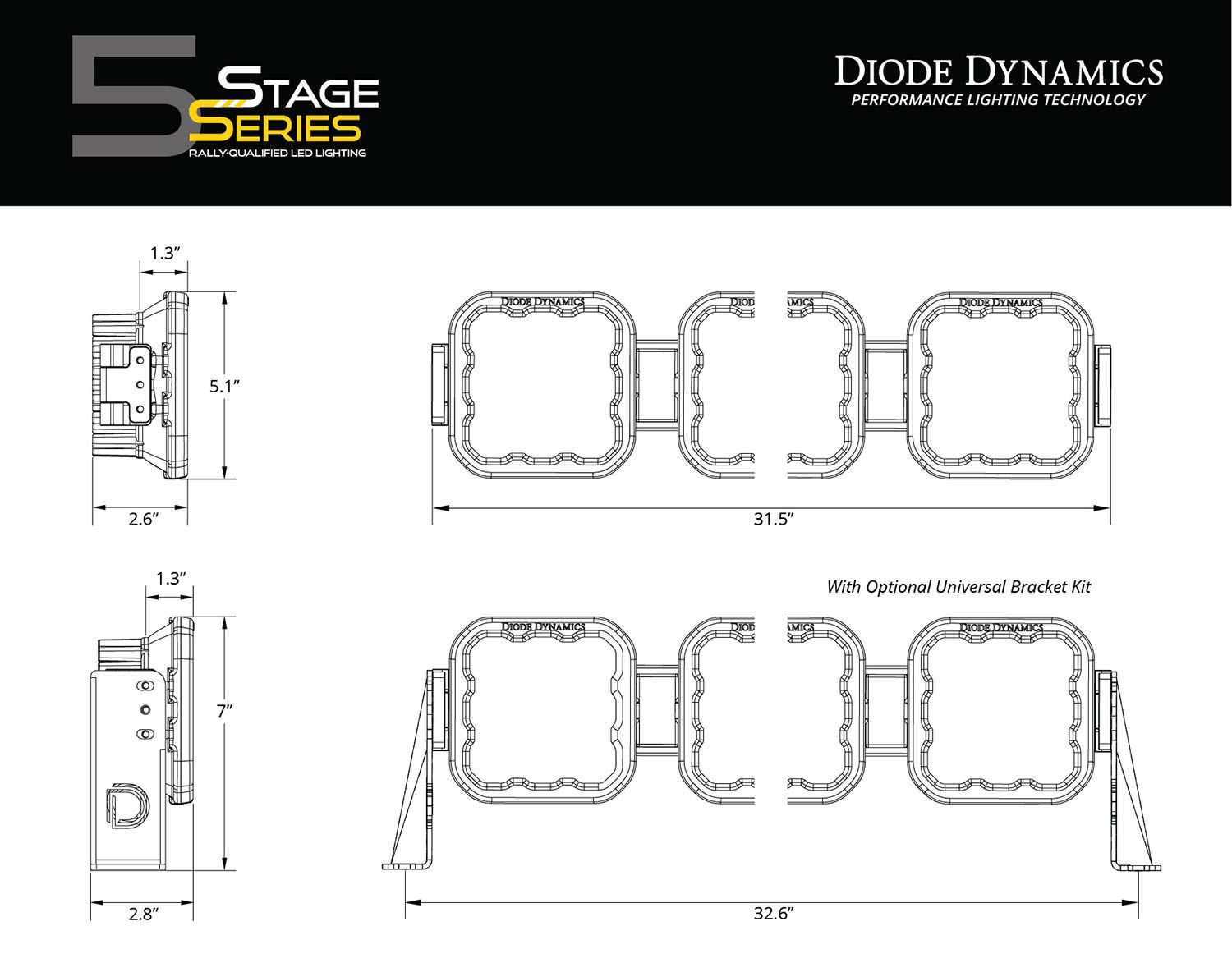

Five-pod configuration: Links five 5-inch SS5 LED pods into a 31.5-inch lightbar
-
TIR optics: Custom total internal reflection optics maximize usable light while reducing glare
-
Ultra-high intensity: Capable of projecting light nearly a mile downrange
-
Selectable backlight: Choose from eight backlight colors for accent lighting
-
CrossLink technology: CNC-machined aluminum links provide extreme rigidity and adjustability
-
Driving beam pattern: 30×20 degree spread optimized for high-speed illumination
-
Combo beam pattern: Combines driving and flood optics for distance and peripheral coverage
-
Interchangeable lenses: Swap optics or colors without replacing the entire pod
-
Sport and Pro output levels: Choose 40W Sport or 90W Pro per pod
-
Deutsch DT connectors: Weather-sealed connections for reliable wiring
-
Heavy-duty construction: Designed and tested for vibration, moisture, and extreme temperatures
-
Snap-on covers compatible: Optional covers available for protection and compliance
Backlight functionality
Each SS5 pod features a fully illuminated backlight that fills the TIR optic for a unique, premium appearance. Backlight color selection is simple—cycle power to change colors with no controller required. This provides added visibility and customization when the main beam is off.

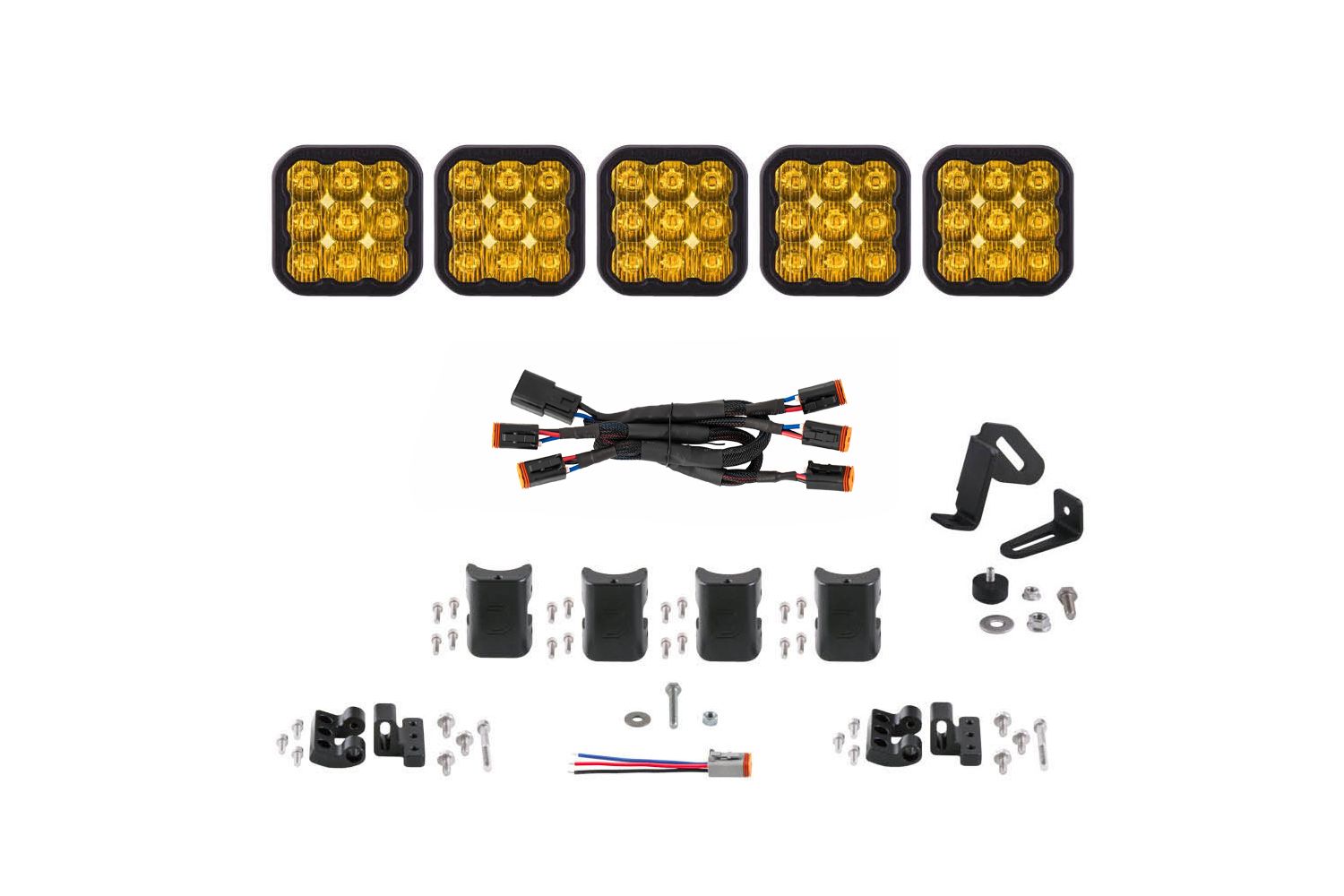

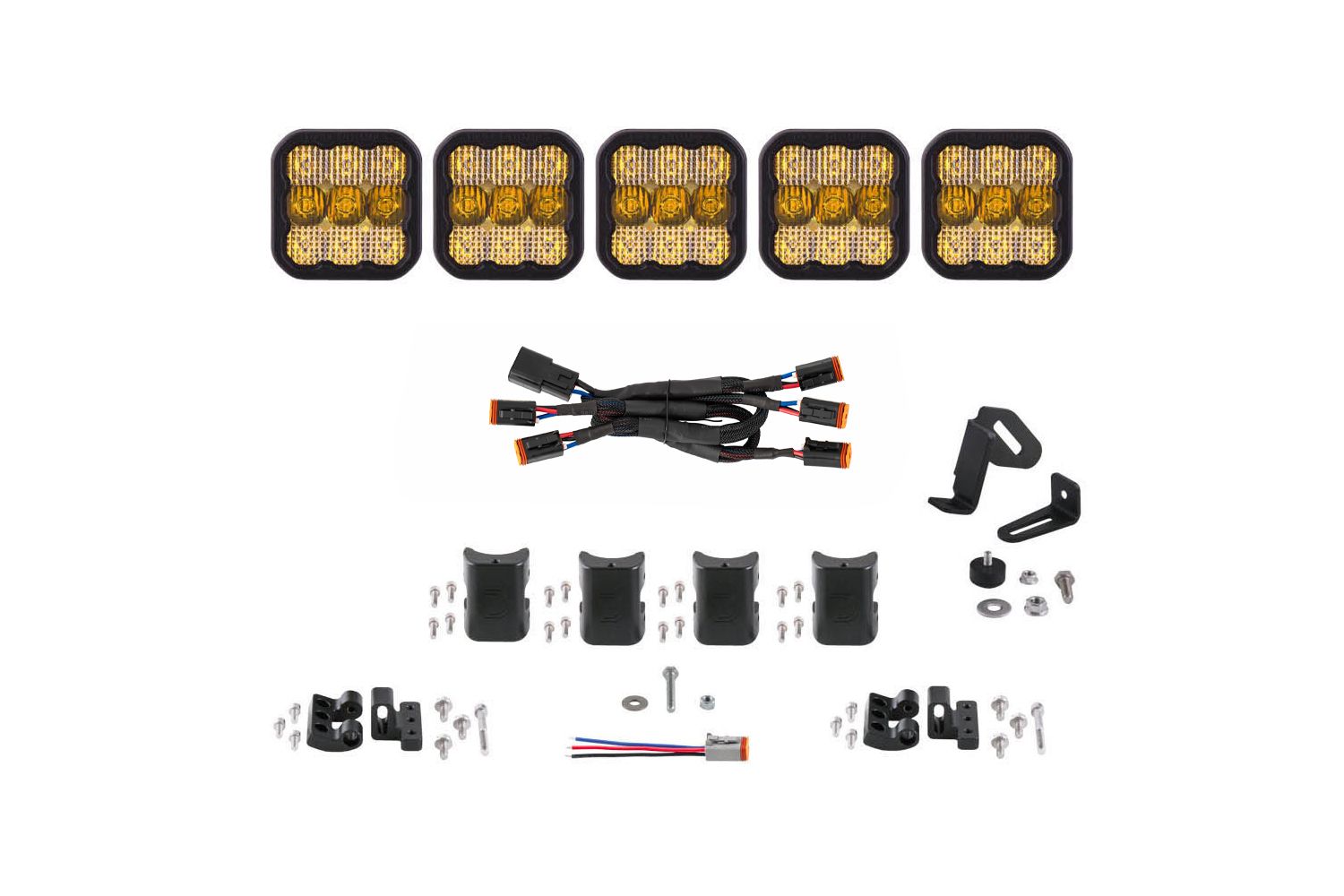

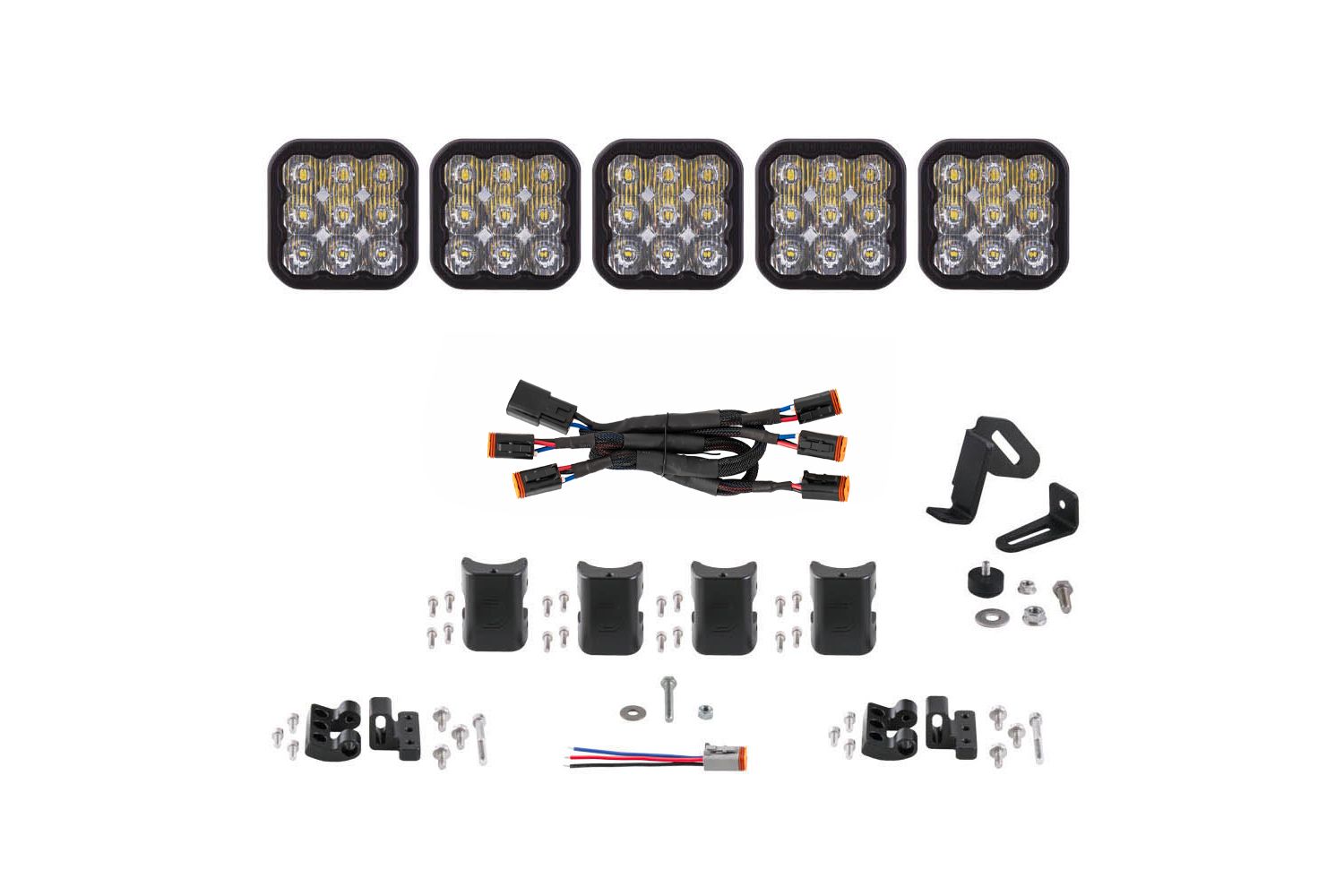

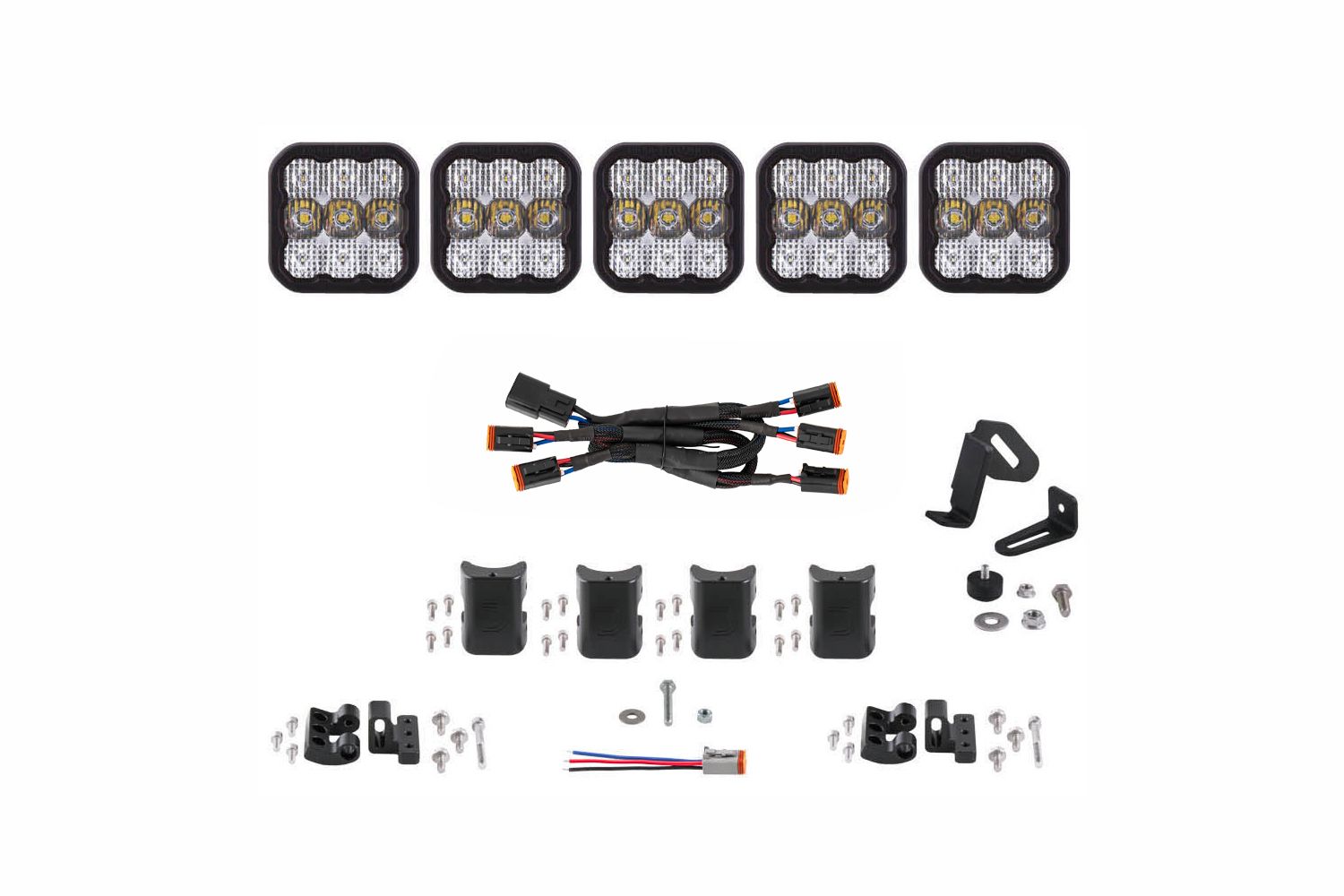

What’s included
- Five (5) Stage Series 5-inch LED pods
- Four (4) CrossLink modules with hardware
- One (1) CrossLink support with hardware
- One (1) CrossLink end-mount kit
- One (1) DT 5-pod connecting harness
- One (1) Deutsch-style wire pigtail
Warranty and support
-
Warranty: Lifetime limited warranty
-
Return policy: 30-day returns with no restocking fee
-
Satisfaction guarantee: 100% satisfaction backed by Diode Dynamics
Installation
-
Installation time: Approximately 30–60 minutes
-
Tools required: Basic hand tools
-
Torque recommendation: 5 ft-lbs on long-end bolts with threadlocker applied
