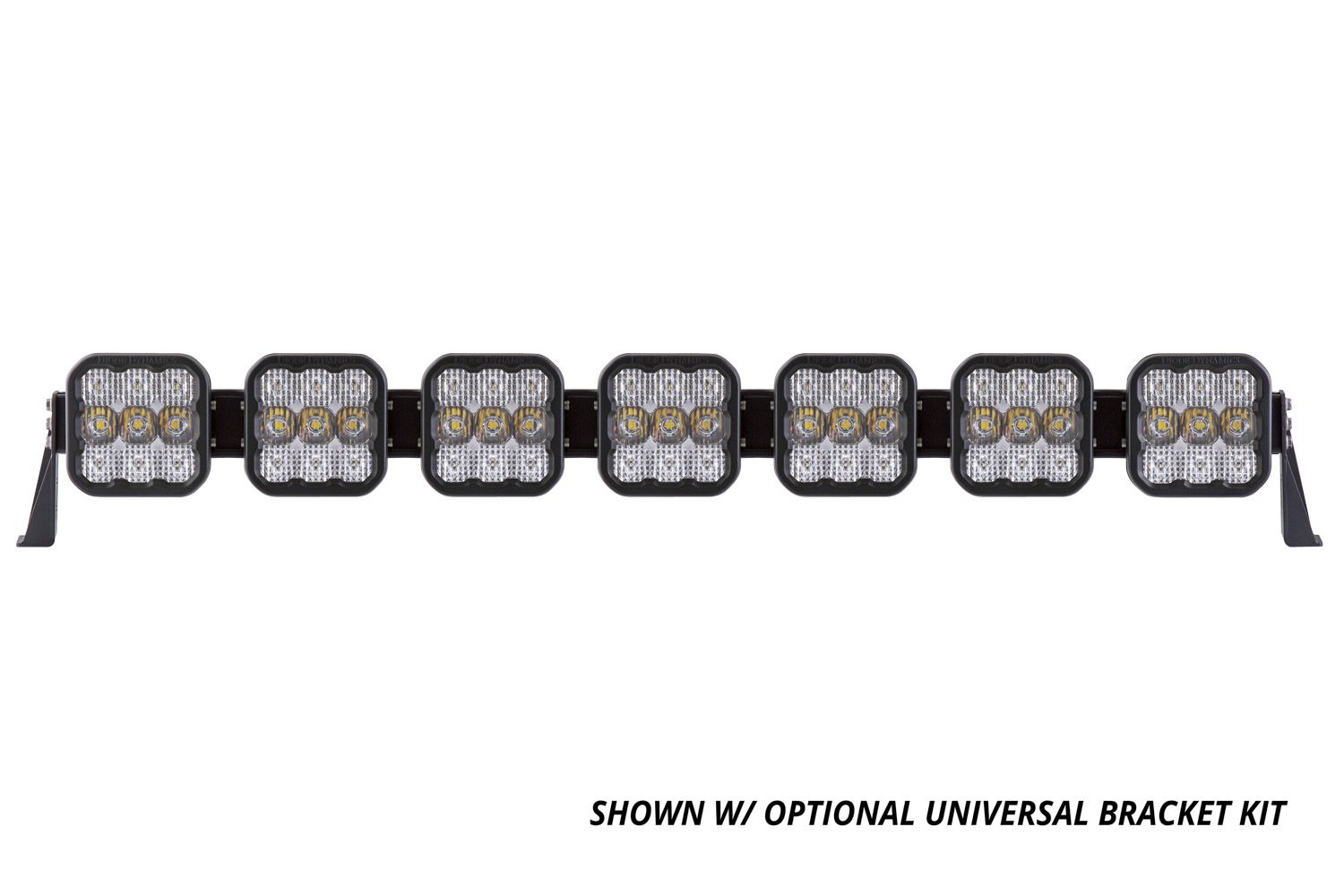

The SS5 CrossLink Lightbar from Diode Dynamics delivers extreme long-range performance in a full-width 44-inch configuration. Utilizing patent-pending CrossLink technology, this system links seven SS5 5-inch LED pods into a single ultra-rigid lightbar, producing some of the highest intensity output available from a pod-based lighting system. Engineered with advanced TIR optics and built to endure the harshest environments, this setup is ideal for high-speed driving, off-road use, and wide-coverage applications.
Important notes
-
Modular system: CrossLink design allows linking up to seven SS5 pods
-
Backlight limitation: Yellow lens versions are only available with an amber backlight
-
On-road legality: SS5 Driving pattern exceeds SAE auxiliary high beam limits
-
Mounting flexibility: Can be configured straight or curved
-
Made in USA: Assembled in the United States using globally sourced materials
Features
-

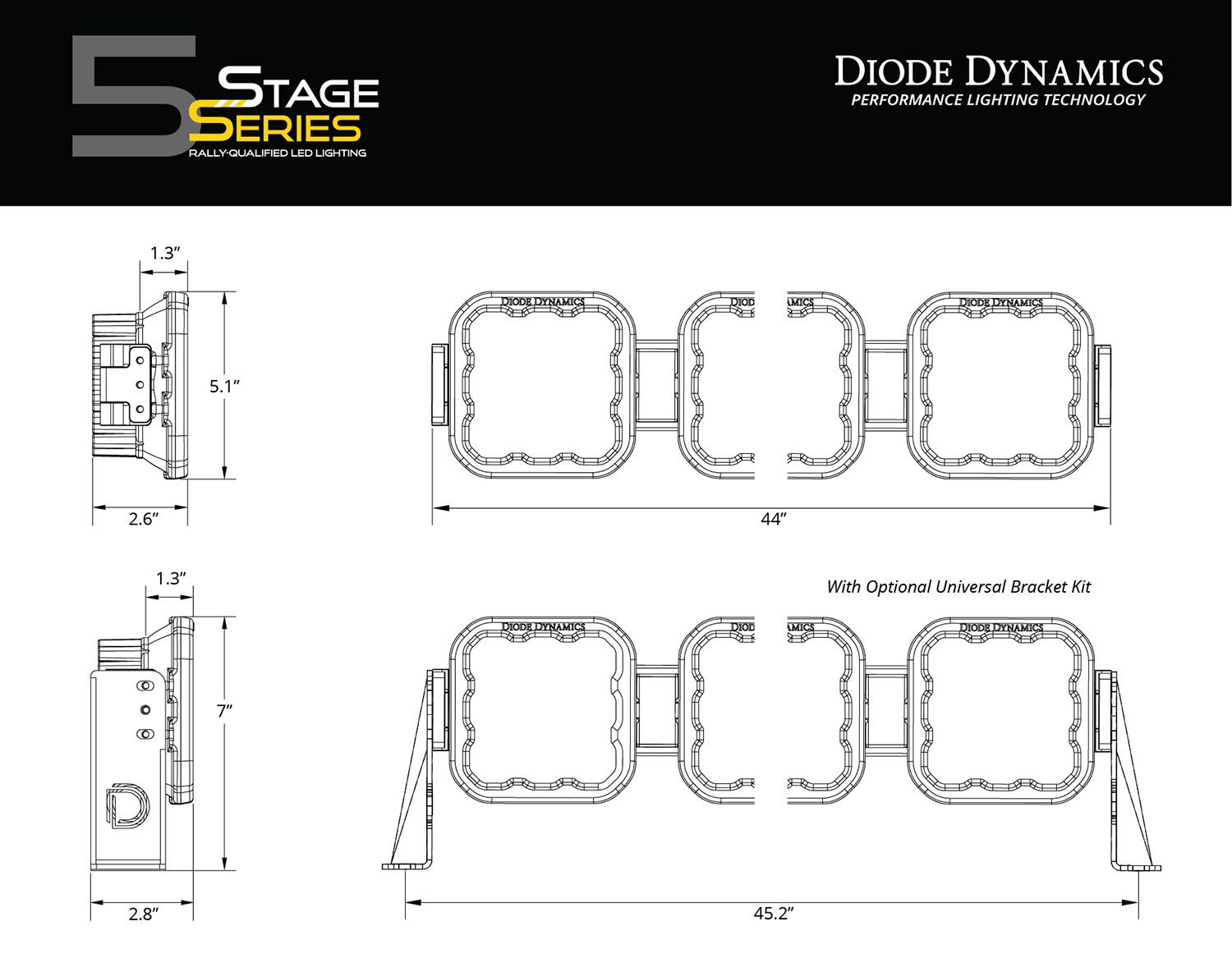

Seven-pod configuration: Links seven 5-inch SS5 LED pods into a 44-inch lightbar
-
TIR optics: Custom total internal reflection optics maximize usable light and reduce glare
-
Ultra-high intensity: Capable of projecting light nearly a mile downrange
-
Selectable backlight: Eight backlight color options for accent or visibility lighting
-
CrossLink technology: CNC-machined aluminum links provide extreme rigidity and adjustability
-

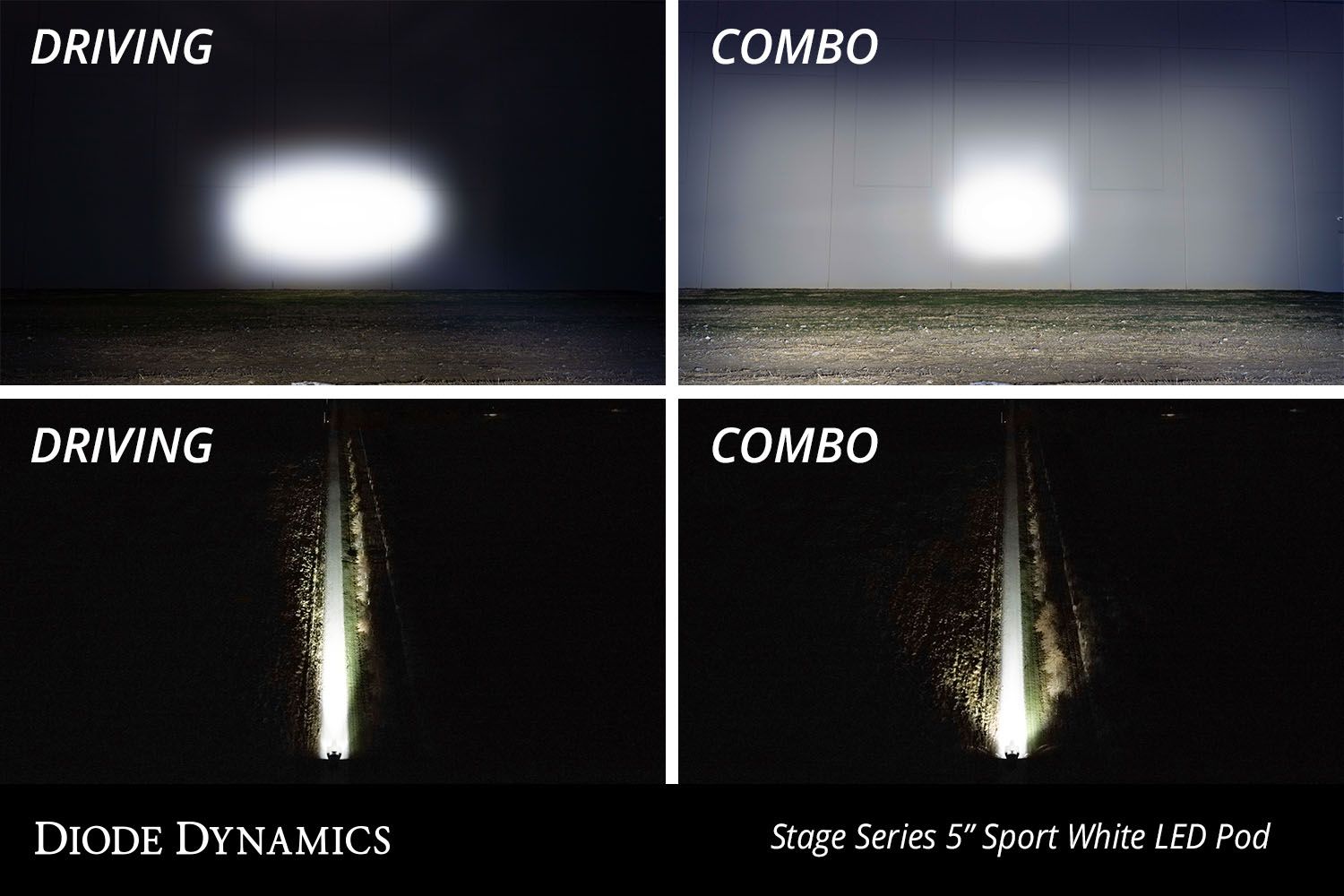

Driving beam pattern: 30×20 degree spread optimized for high-speed illumination
-
Combo beam pattern: Combines driving and flood optics for distance and peripheral coverage
-
Interchangeable lenses: Swap beam patterns or colors without replacing pods
-
Sport and Pro output levels: Choose 40W Sport or 90W Pro per pod
-
Deutsch DT connectors: Weather-sealed connections for reliable power delivery
-
Heavy-duty construction: Tested for vibration, moisture, corrosion, and extreme temperatures
-
Snap-on cover compatible: Optional covers available for protection and compliance

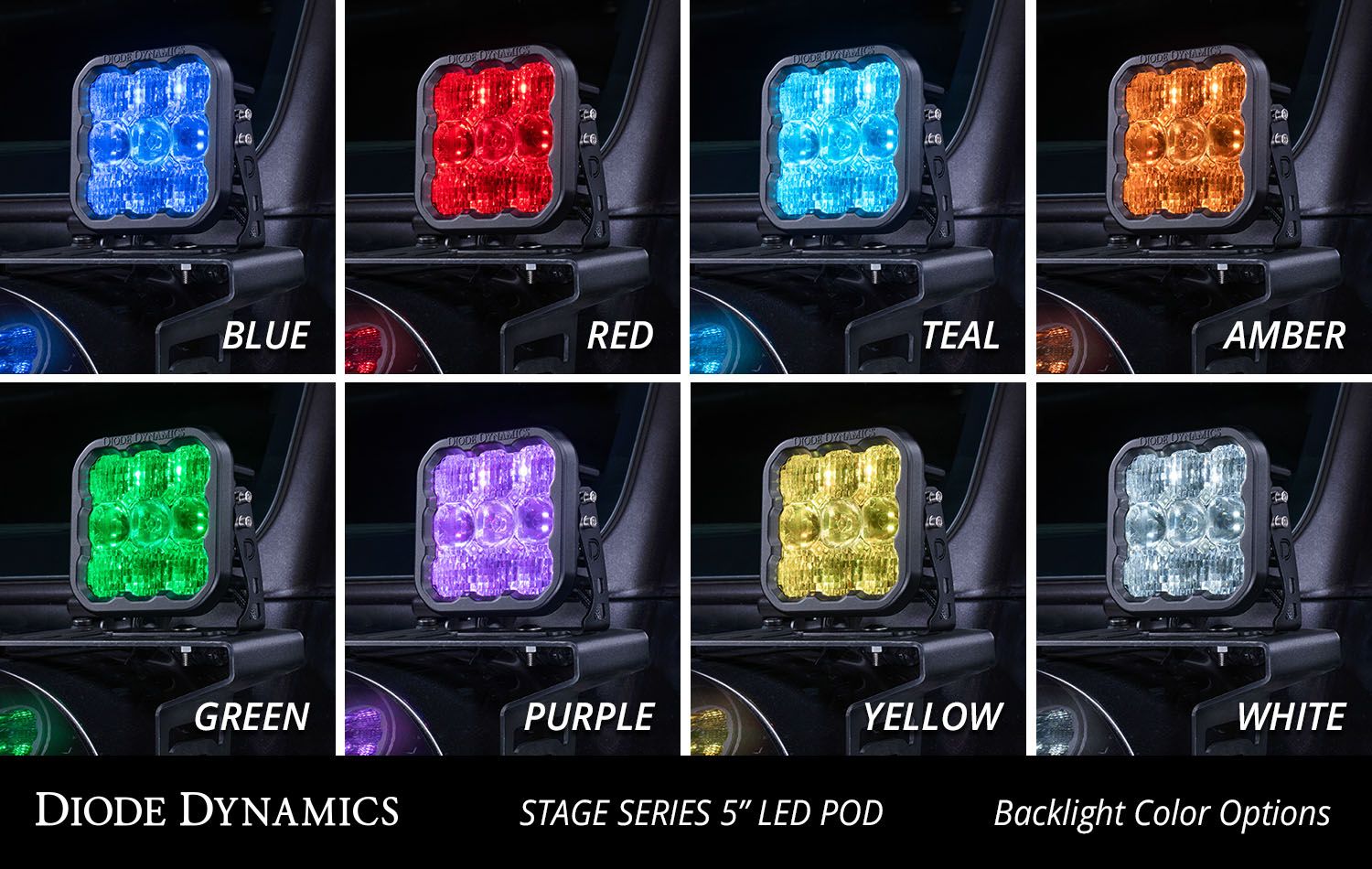

Backlight functionality
Each SS5 pod features a fully illuminated backlight that fills the TIR optic for a distinctive and premium appearance. Backlight color selection is controlled by cycling power—no controller or programming required. This provides enhanced visibility and customization when the main beam is off.

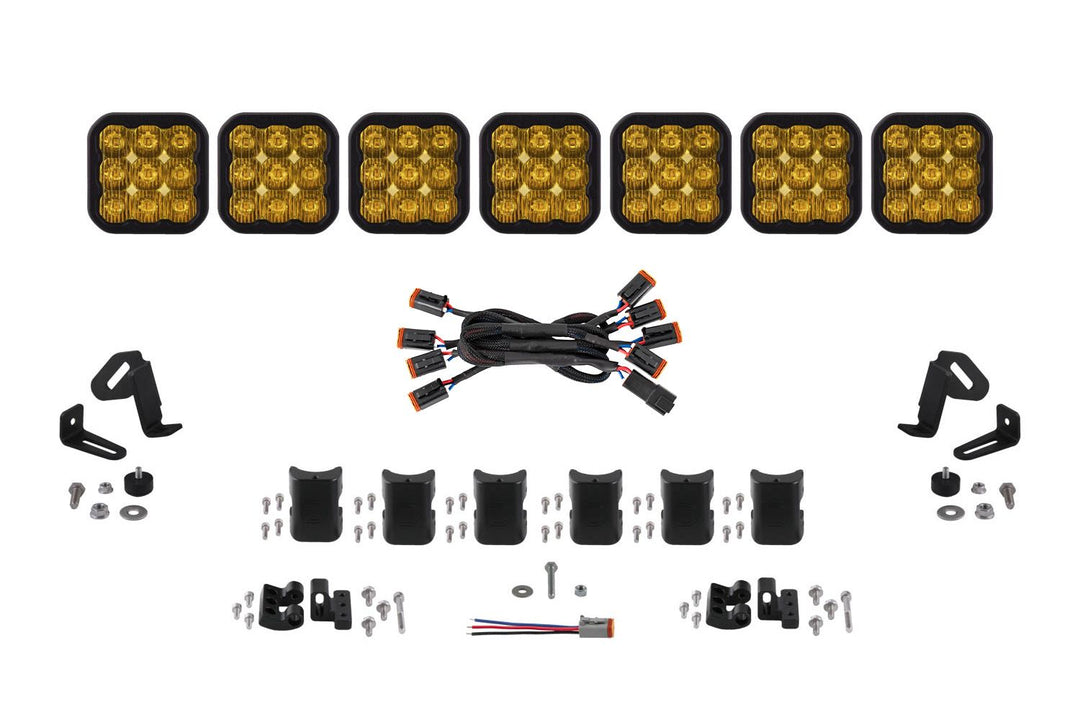

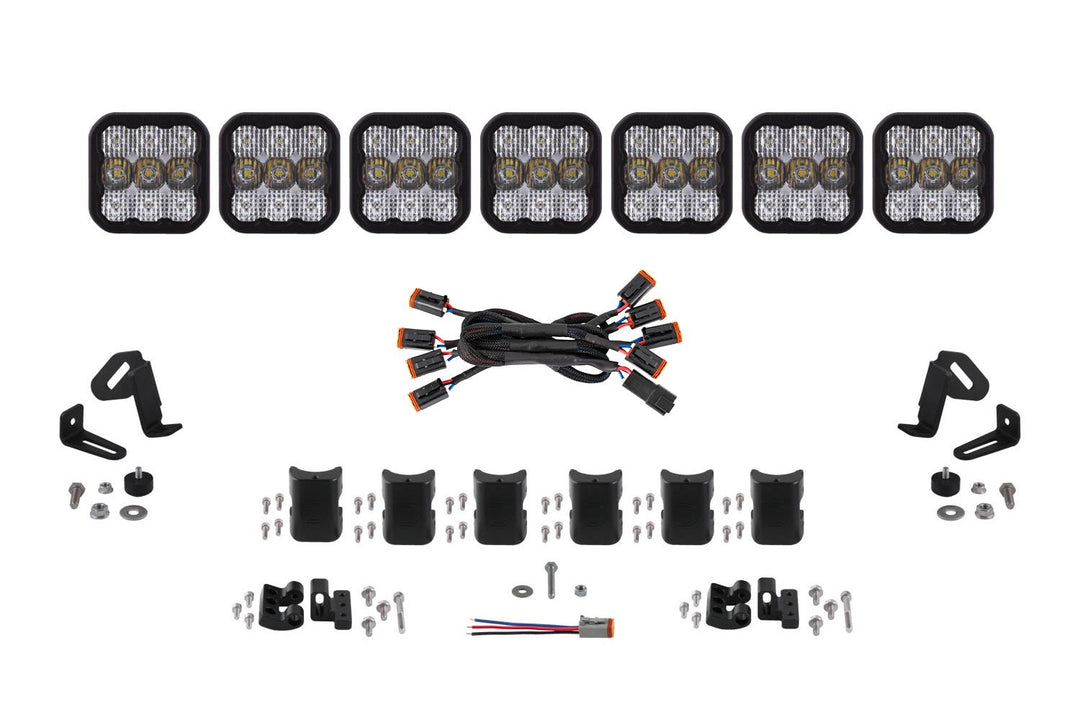

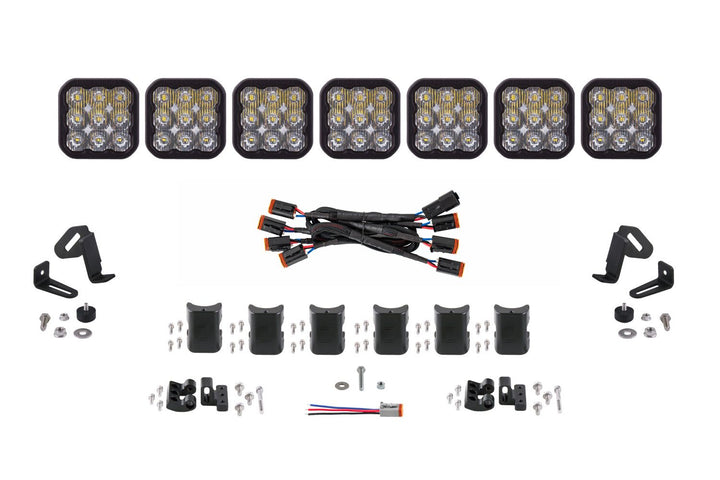

What’s included
- Seven (7) Stage Series 5-inch LED pods
- Six (6) CrossLinks with hardware
- Two (2) CrossLink supports with hardware
- One (1) CrossLink end-mount kit
- One (1) DT 7-pod connecting harness
- One (1) Deutsch-style wire pigtail
Warranty and support
-
Warranty: Lifetime limited warranty
-
Return policy: 30-day returns with no restocking fee
-
Satisfaction guarantee: 100% backed by Diode Dynamics
Installation
-
Installation time: Approximately 30–60 minutes
-
Tools required: Basic hand tools
-
Torque recommendation: 5 ft-lbs on long-end bolts with threadlocker applied
