The SS5 CrossLink 8-Pod Lightbar delivers extreme output, modular flexibility, and race-proven durability in a full-width 50-inch configuration. Using Diode Dynamics’ patent-pending CrossLink technology, eight SS5 LED pods are linked into a single rigid lightbar, engineered with advanced TIR optics to provide massive downrange distance and wide usable coverage. Designed for demanding off-road, overland, and high-speed applications, this system offers unmatched performance with a clean, customizable setup.
Important notes
-
Backlight limitation: Yellow lens kits are only available with an amber backlight color
-
Power selection: Sport and Pro output levels vary significantly in total wattage and intensity
-
Installation recommendation: Use threadlocker and torque long-end bolts to 5 ft-lbs
Features
-

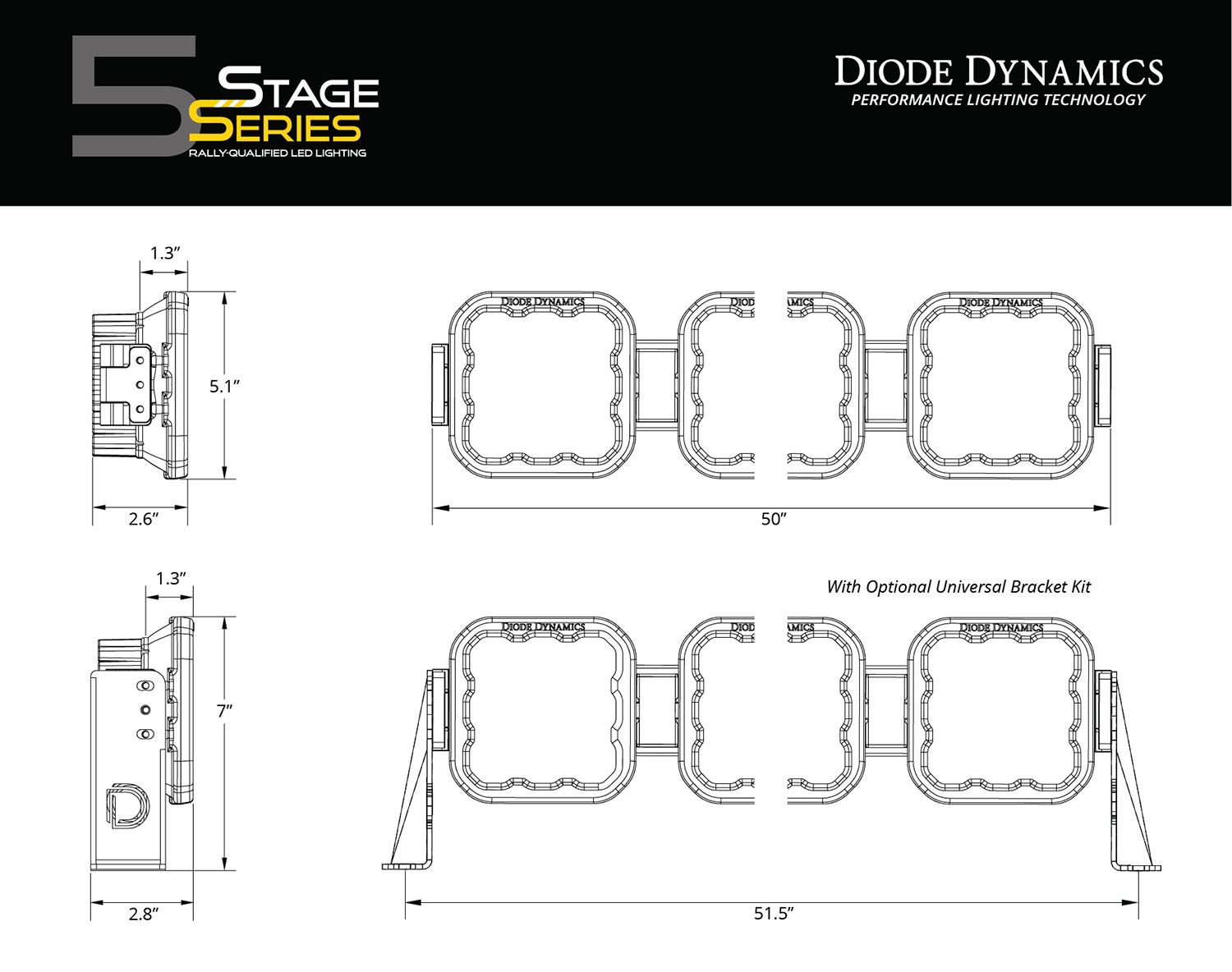

Eight-pod configuration: Creates a full 50-inch linked lightbar using modular SS5 pods
-
TIR optics: Total internal reflection optics maximize efficiency while reducing glare
-

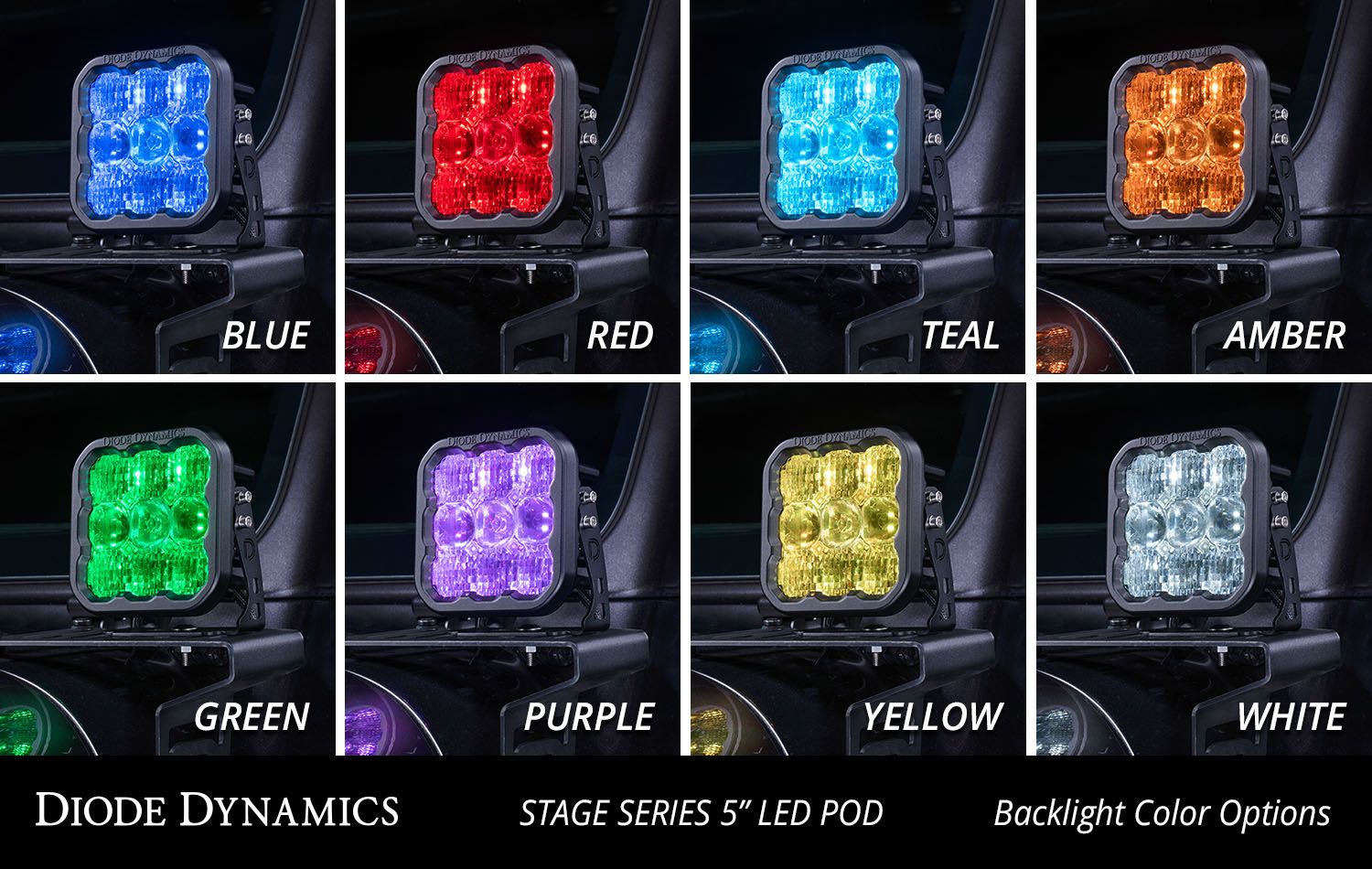

Selectable backlight: Eight color options controlled by cycling power on and off
-
CrossLink system: CNC-machined aluminum links provide rigidity with straight or curved adjustability
-

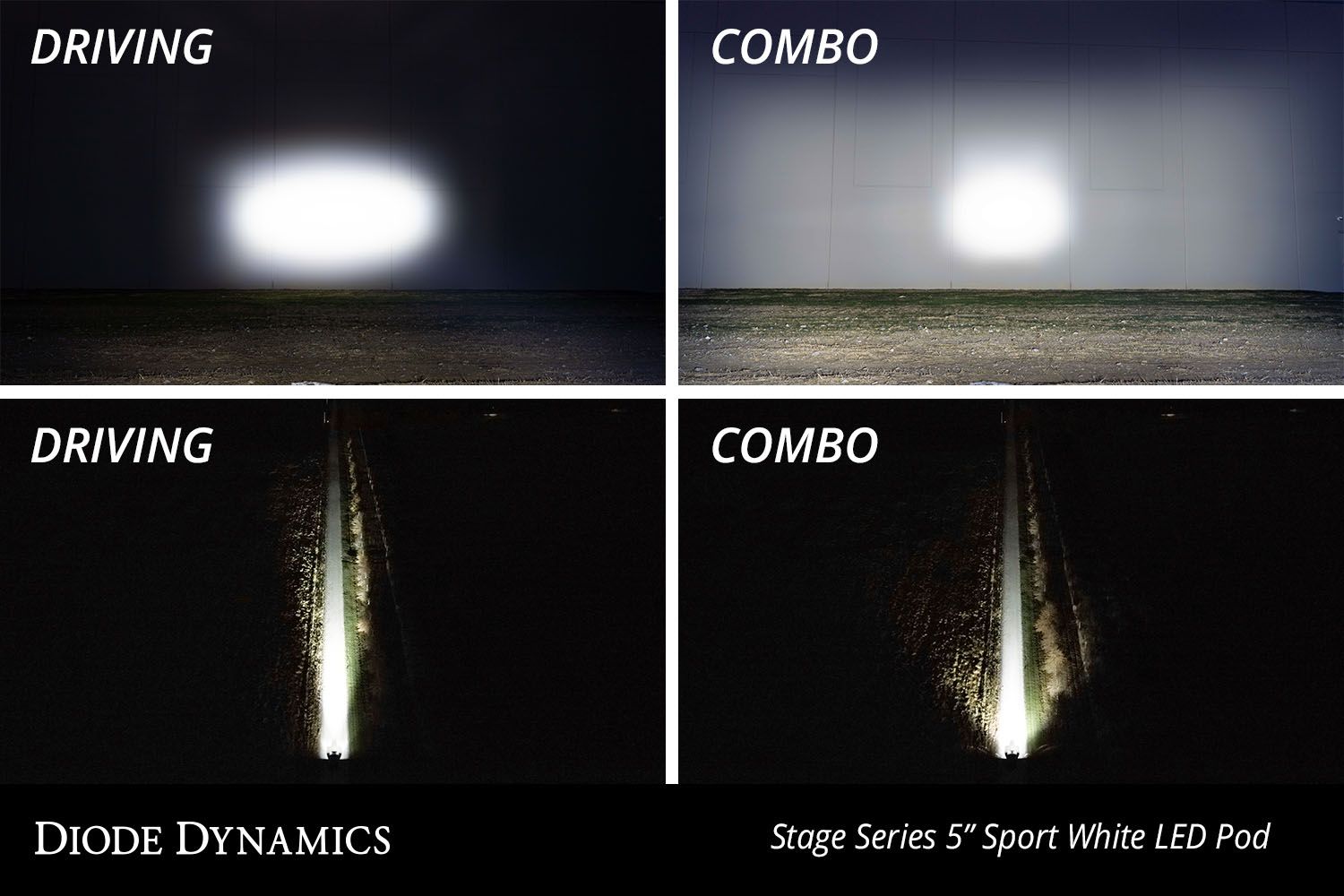

Extreme output: Capable of projecting usable light nearly one mile
-
Heavy-duty construction: Torture-tested for vibration, moisture, and harsh environments
-
Made in USA: Assembled in the United States for consistent quality and performance
Specifications
(Specifications listed are per individual pod)
-
Main beam power: Sport 40W, Pro 90W
-
Backlight power: White 3.17W, Yellow 3.07W
-
Operating voltage: 9–16V
-
Main beam current: Sport White 2.75A, Sport Yellow 2.8A, Pro 6A
-
Backlight current: White 0.25A, Yellow 0.24A
-
Color temperature: 3000K (Yellow), 6000K (White)
-
LED emitters: Luxeon Z ES, Cree XP-L HI
-
Connector type: Deutsch DT input
-
Cooling method: Passive pin-fin heatsink
-
Materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Ingress rating: IP69K waterproof, high-pressure rated
-
Operating temperature: -40°F to 185°F
Fitment
-
Universal fitment: Compatible with any vehicle using the included CrossLink mounting system

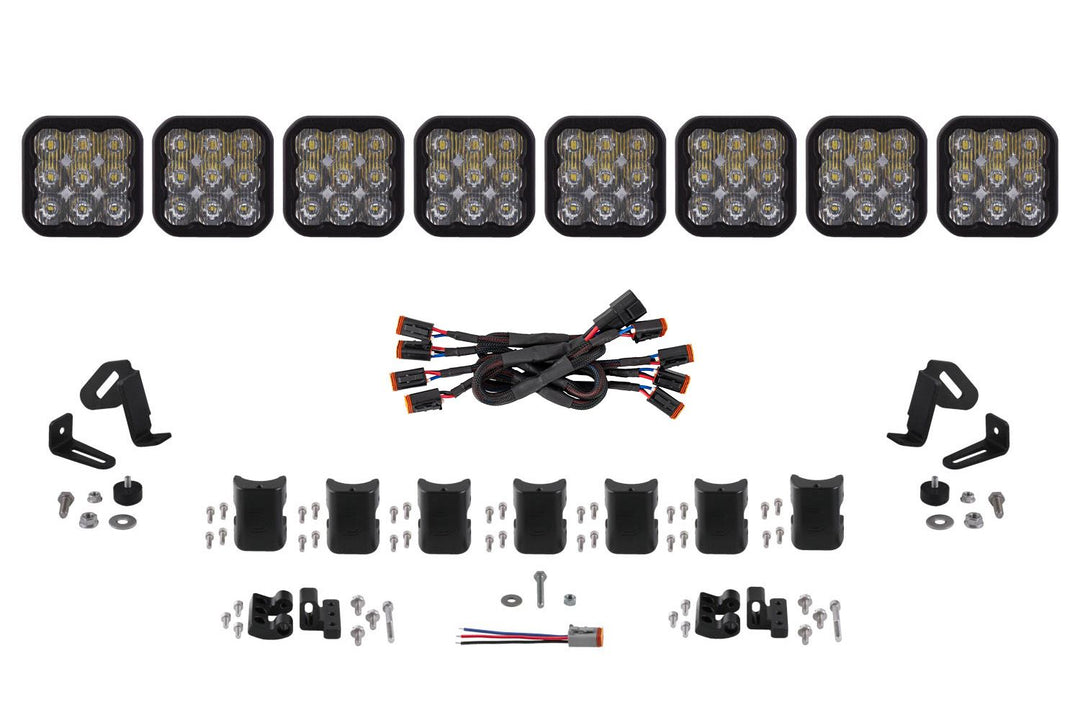

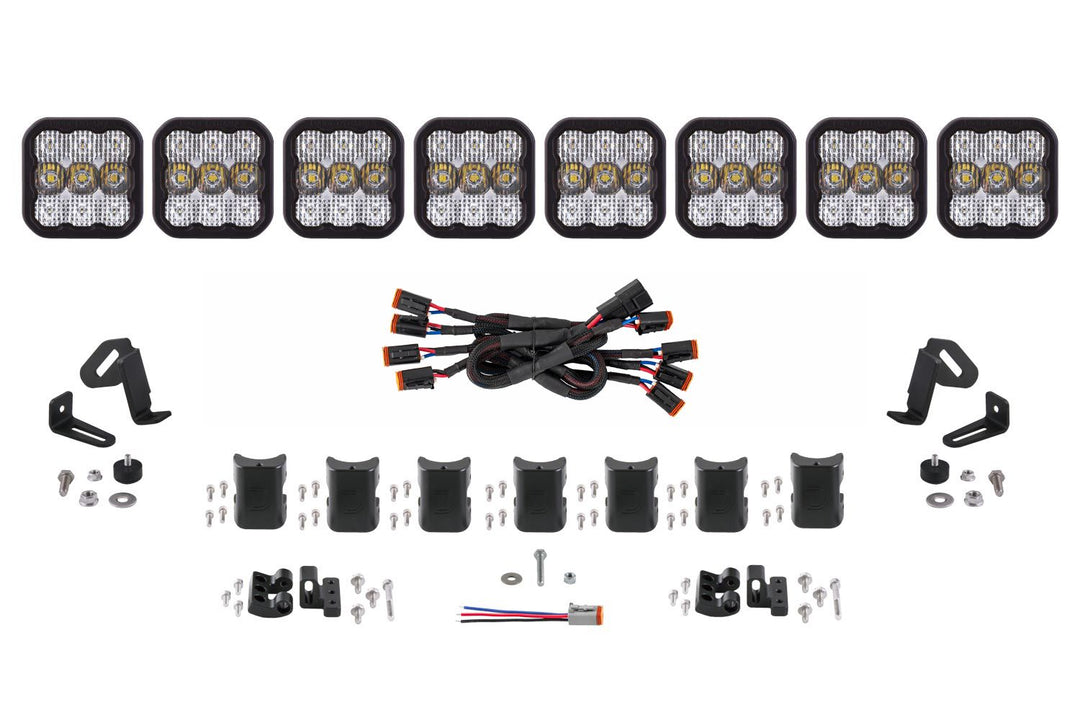

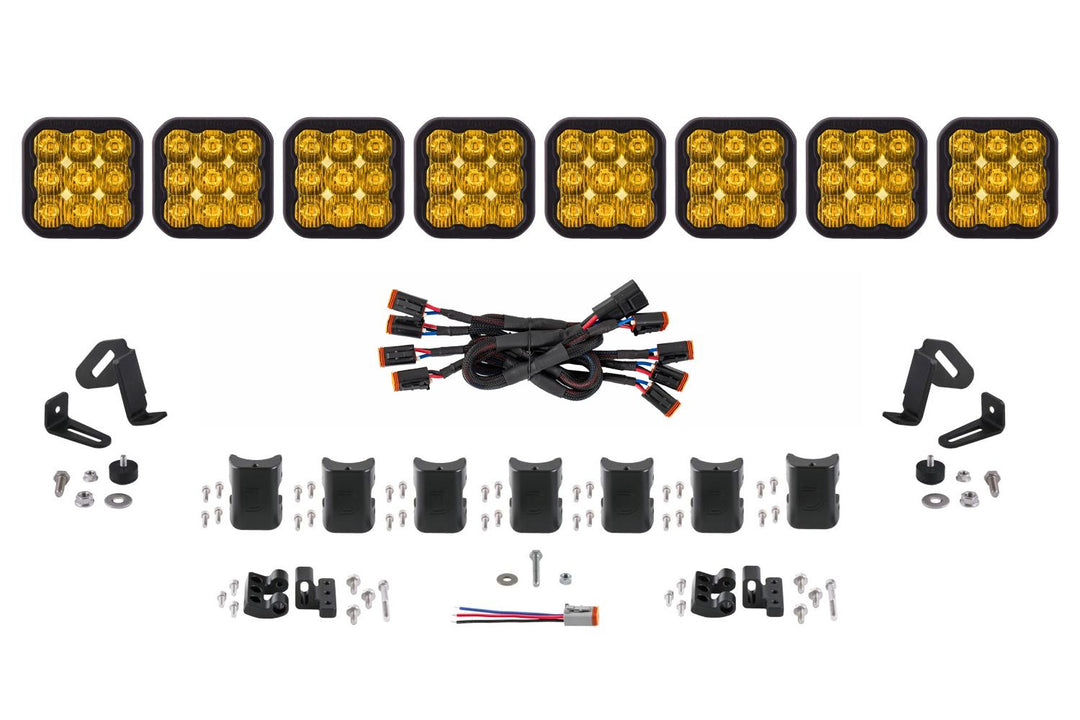

Included in the box
-
LED pods: Eight (8) Stage Series 5-inch SS5 LED pods
-
CrossLinks: Seven (7) CrossLink connectors with hardware
-
Support brackets: Two (2) CrossLink supports
-
End mounts: One (1) CrossLink end-mount kit
-
Wiring harness: One (1) DT 8-pod connecting harness
-
Pigtail: One (1) Deutsch-style wire pigtail
Warranty and guarantee
-
Warranty: Lifetime limited warranty
-
Returns: 30-day return policy with no restocking fee
-
Guarantee: 100% satisfaction guarantee
Installation
-
Install time: 30–60 minutes
-
Tools required: Basic hand tools
-
Torque spec: 5 ft-lbs on long-end bolts with threadlocker applied
