Front bumper support brackets designed to reinforce the frame by tying the factory bumper mounts into the front sway bar mounts. This added support helps distribute load more evenly during winching or recovery situations. Recommended for vehicles that will see regular winch use. Compatible with Hi-Lite Tacoma Overland Front Bumpers (Bull Bar and No Bull Bar styles).
Important Notes
Fits 2016–2023 Toyota Tacoma
May require trimming of plastic fender liner for clearance

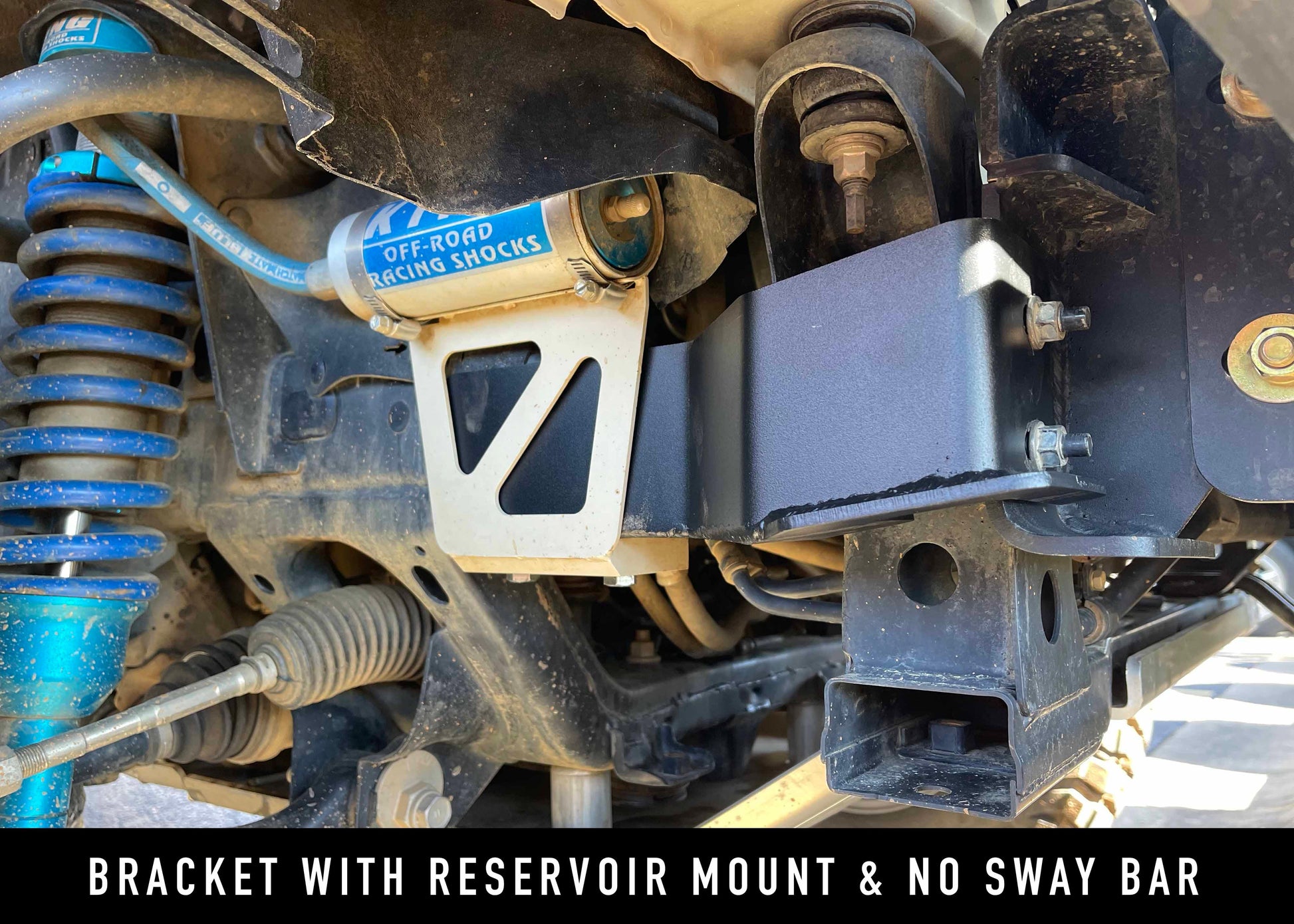

May require longer hardware if using shock reservoir brackets
Made for off-road use only
Features

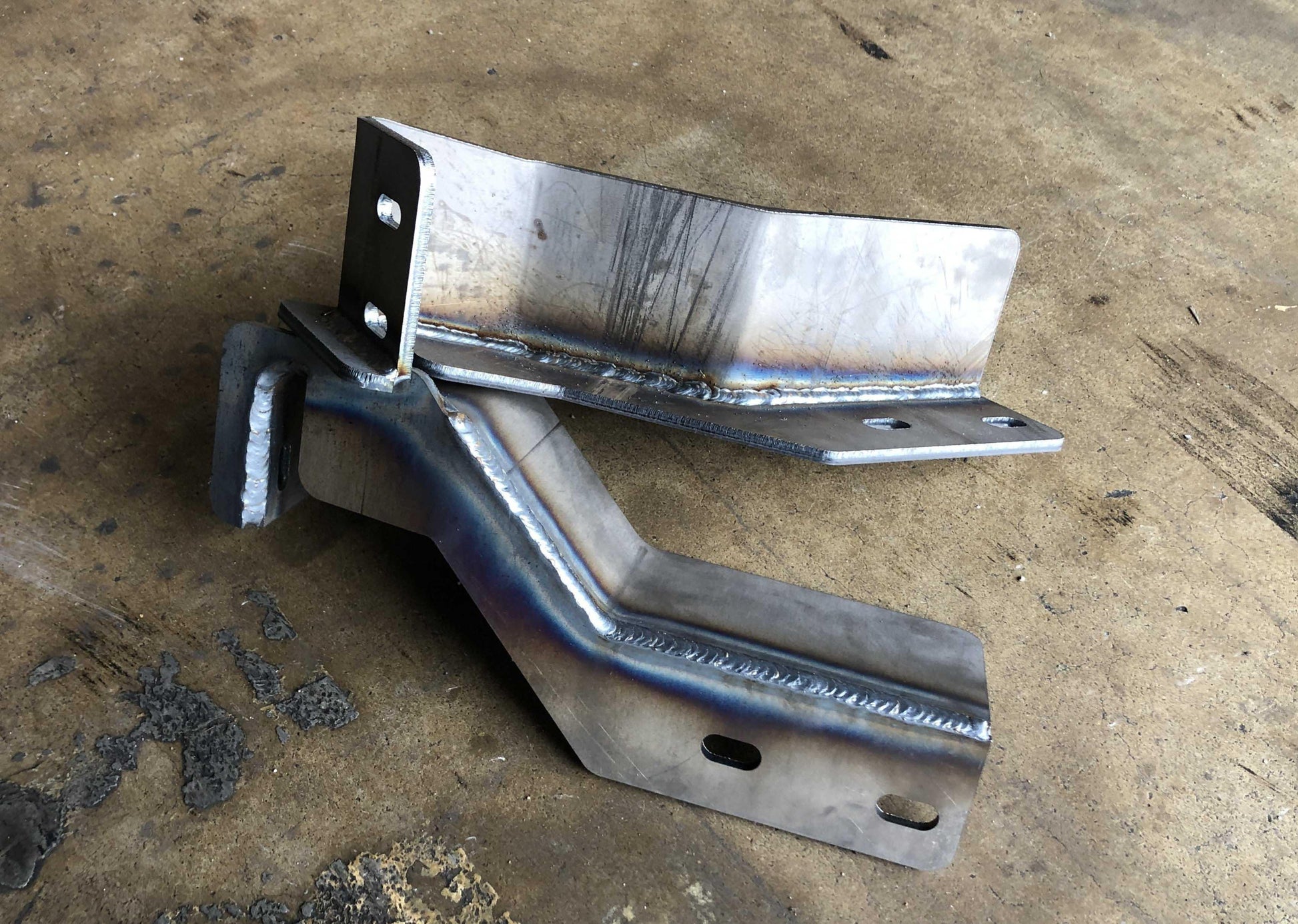

3/16" Steel Construction: Strong, durable brackets designed to reinforce recovery load points.
Easy Bolt-On Install: Can be installed before or after the bumper.

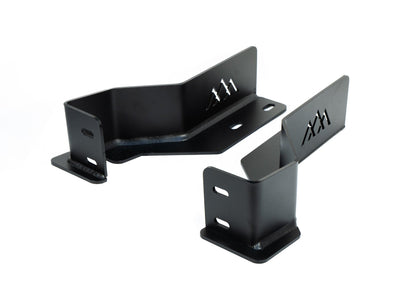

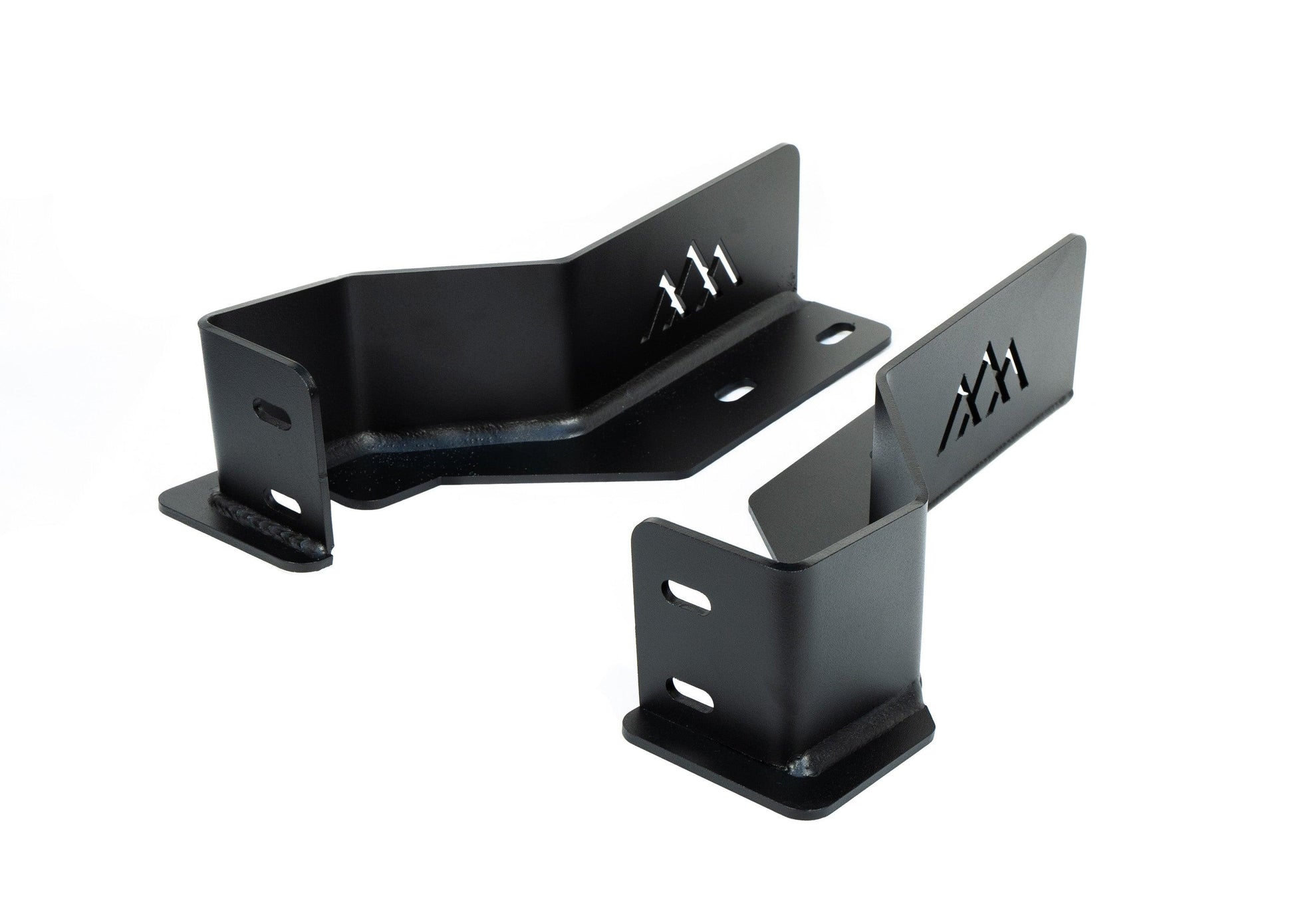

Pair Included: Comes as a left and right bracket set.

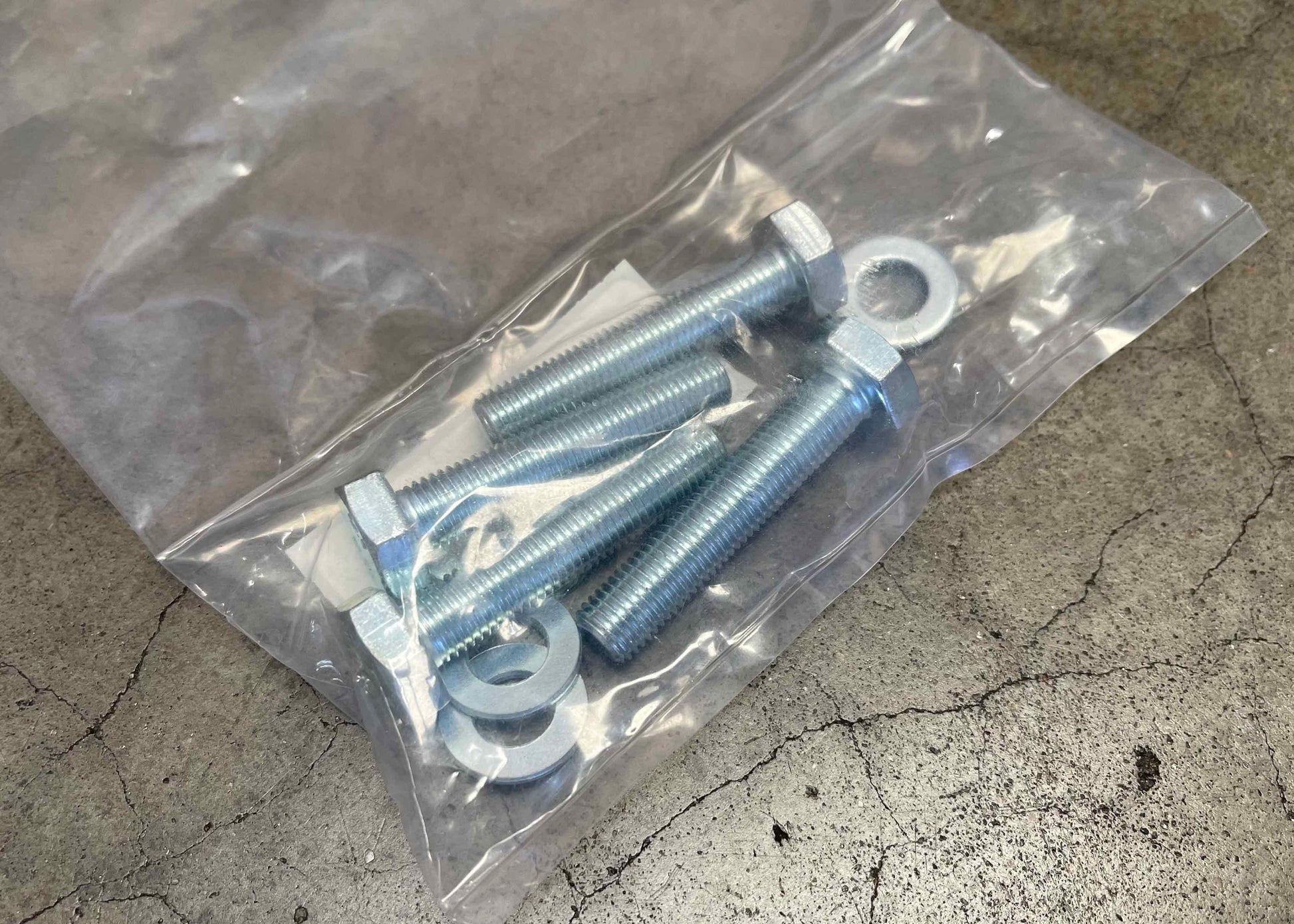

Hardware Kit Included: Includes installation bolts and nuts.
Powder Coated Finish: Added protection against corrosion.
USA Made: High-quality materials and craftsmanship.

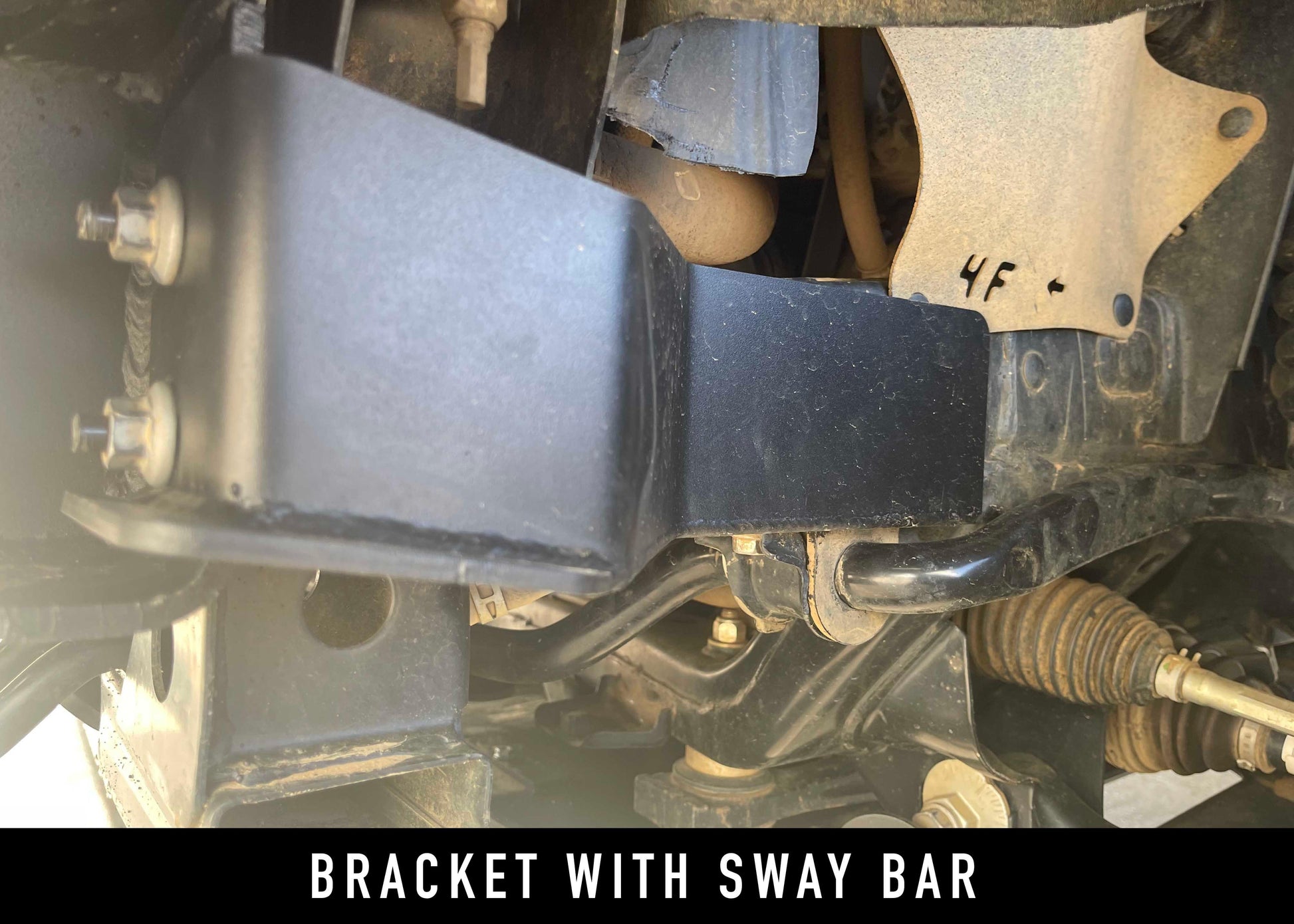

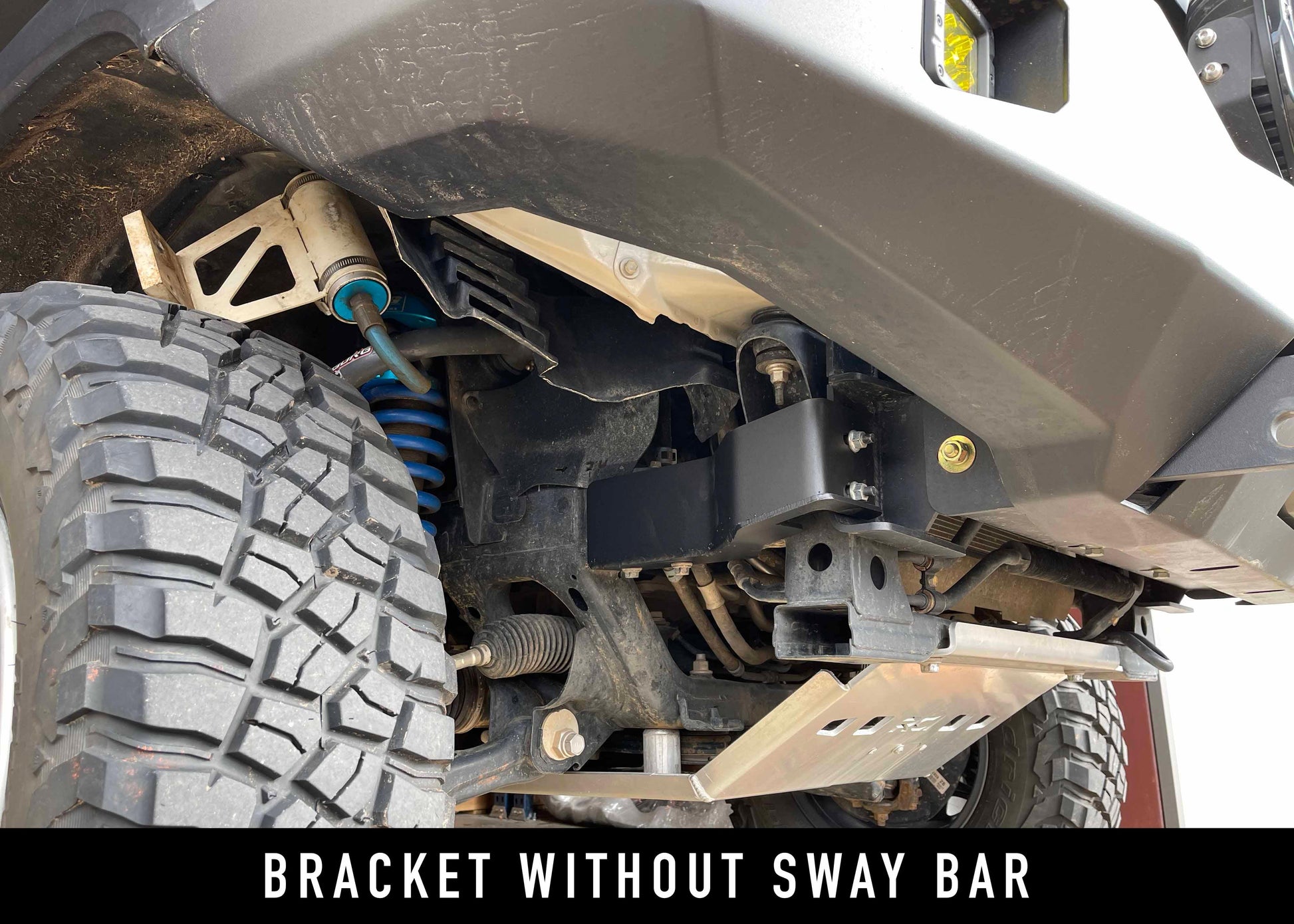

Install Overview
Remove factory sway bar bolts (4 total).
Remove factory nuts from bumper mounts (4 total).
Position brackets over the factory bumper mount studs.
Reinstall nuts loosely to hold brackets in place.
Reinstall sway bar using supplied bolts through the new brackets.
