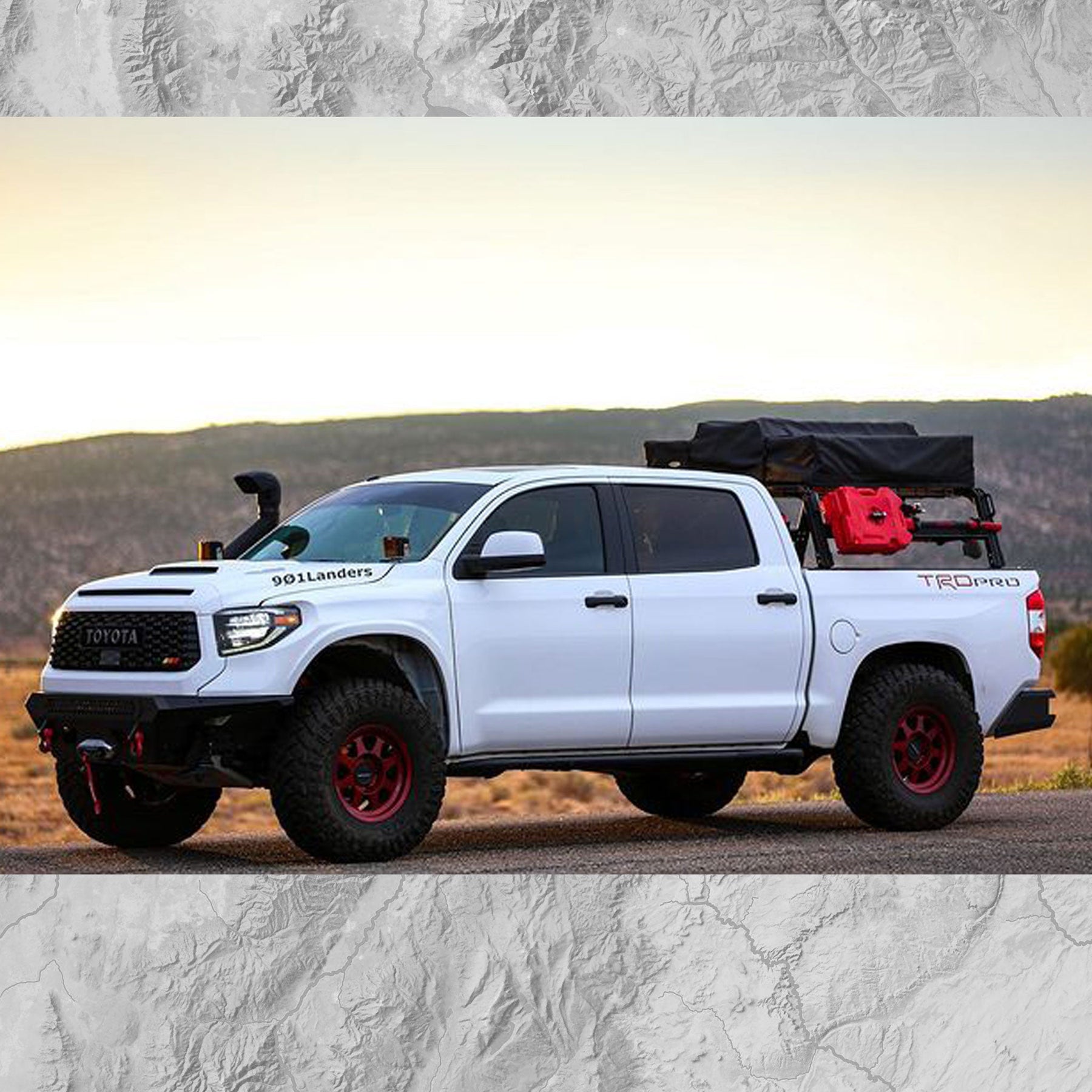

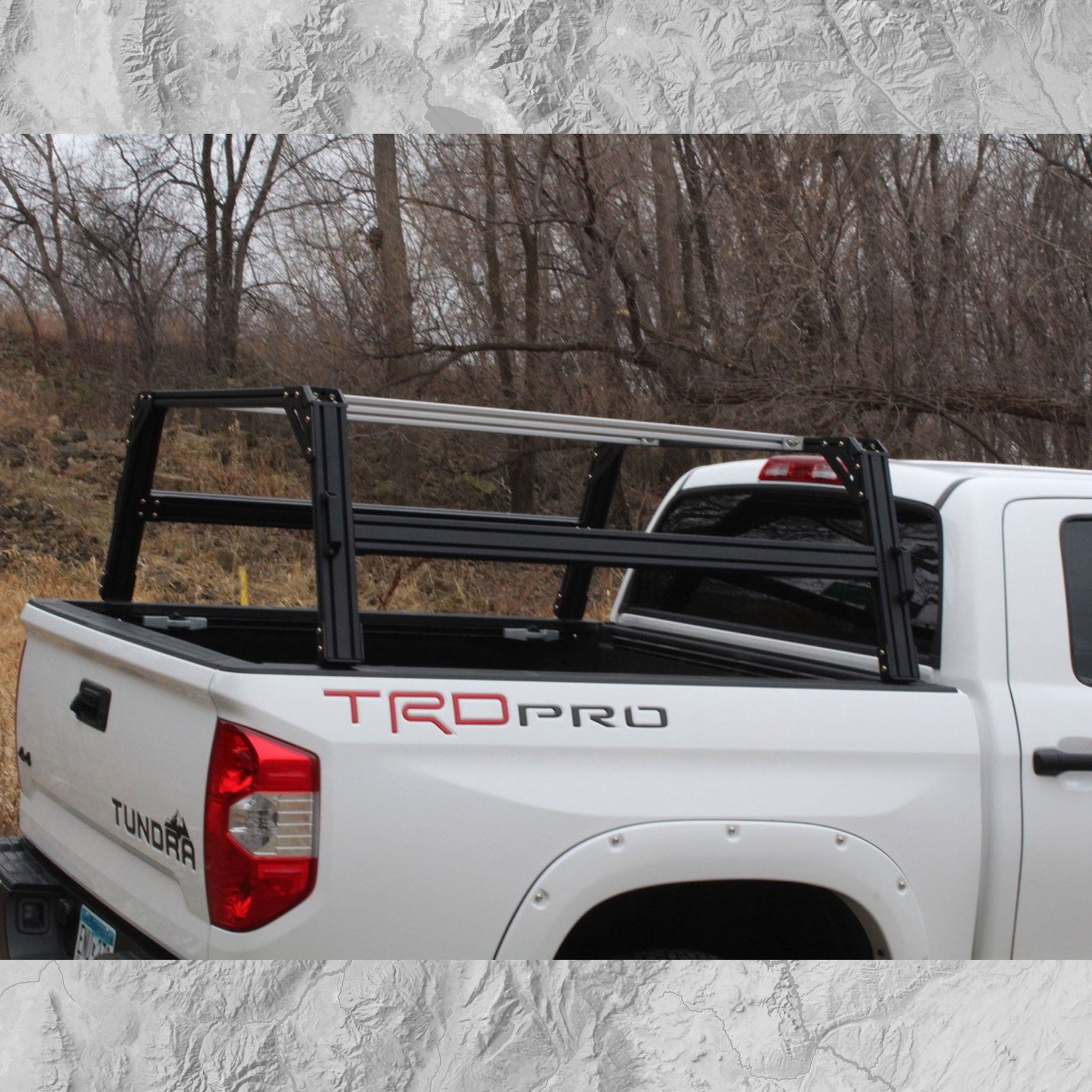

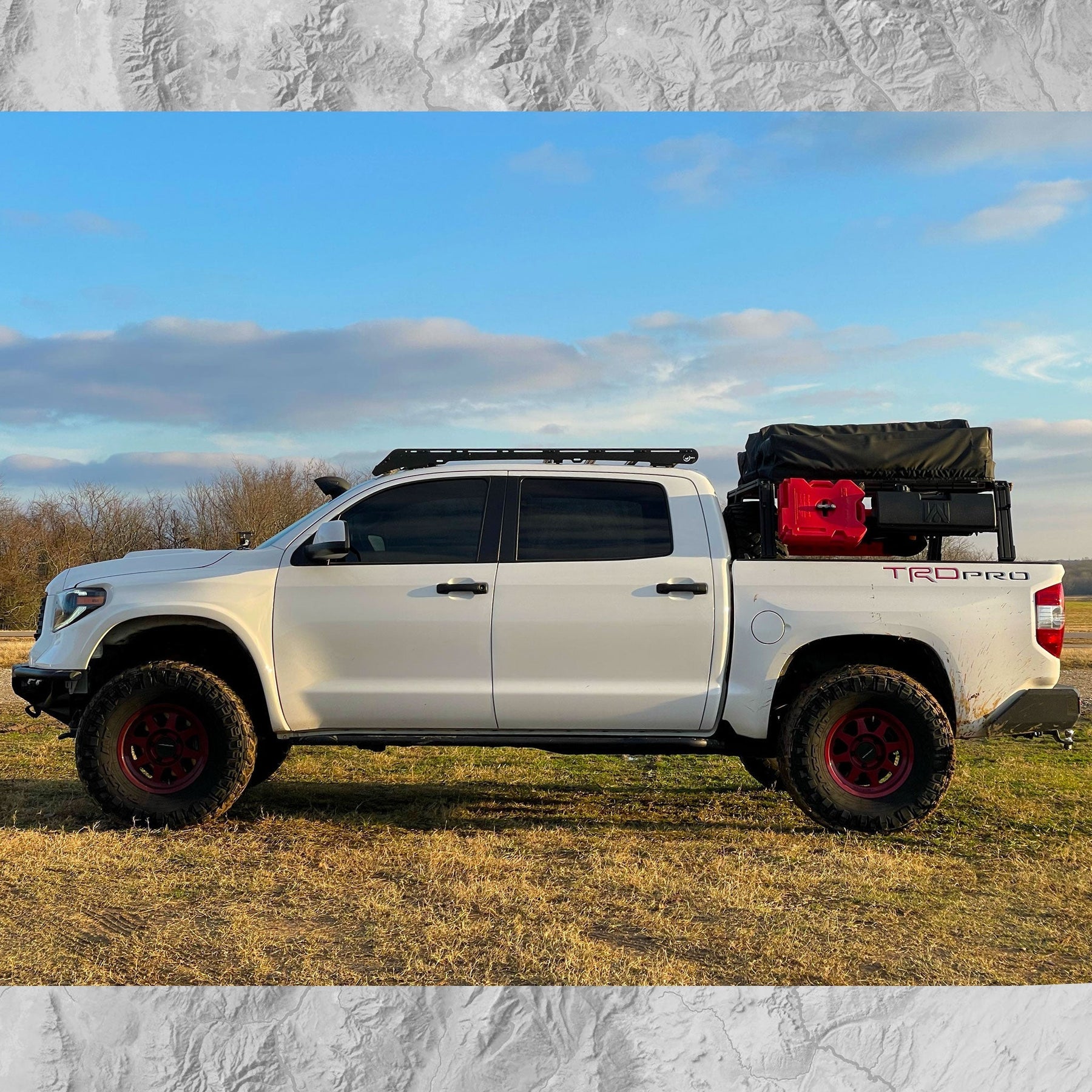

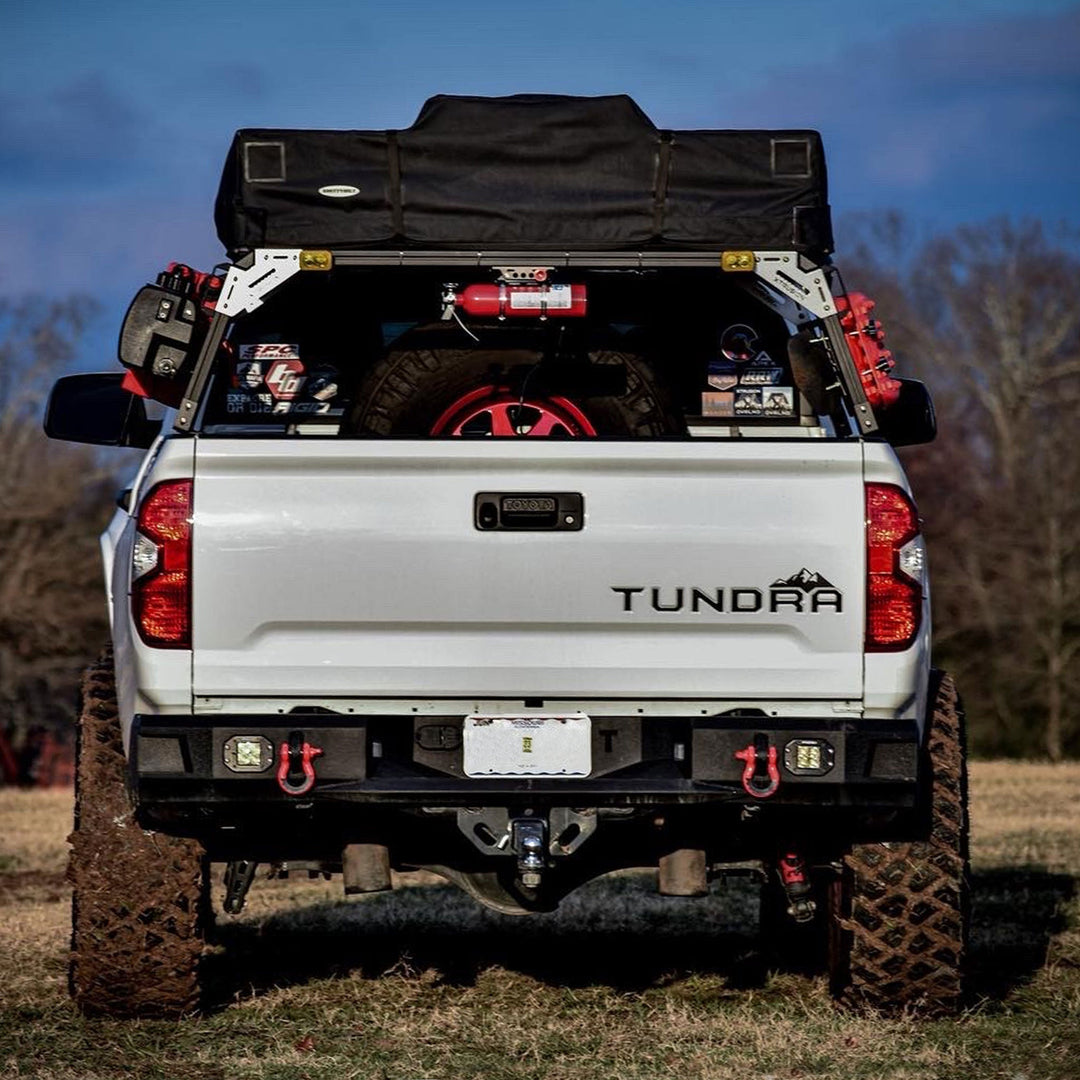

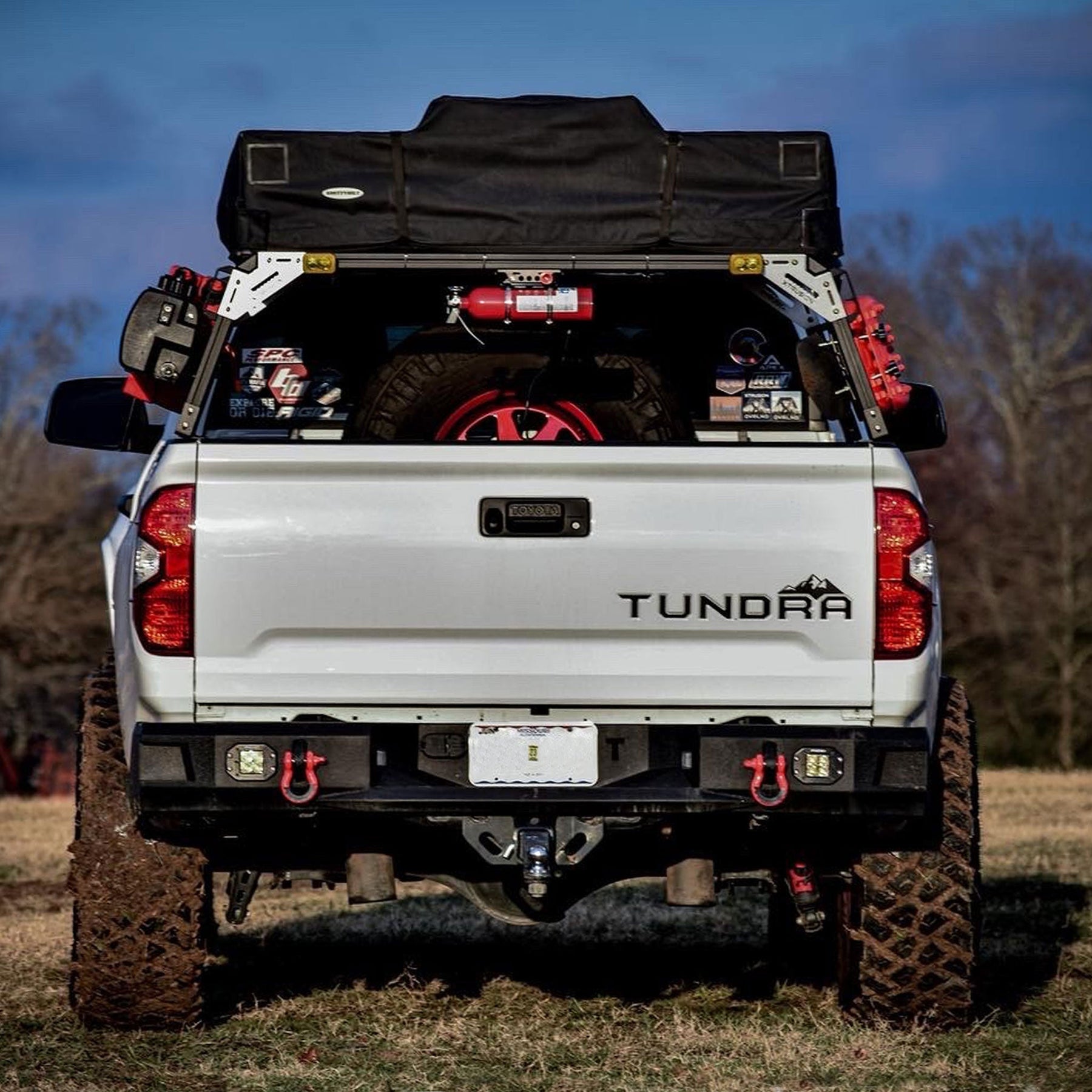

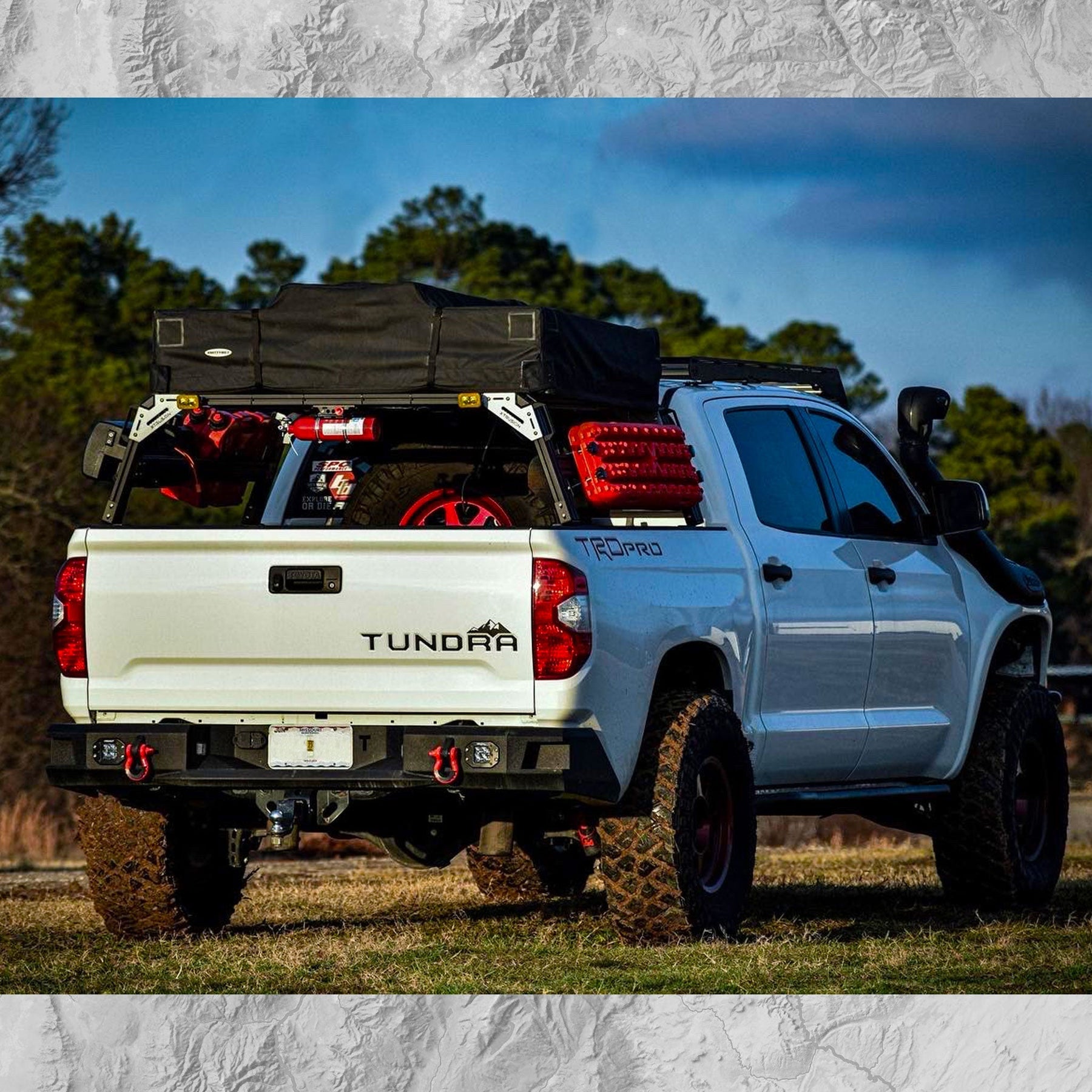

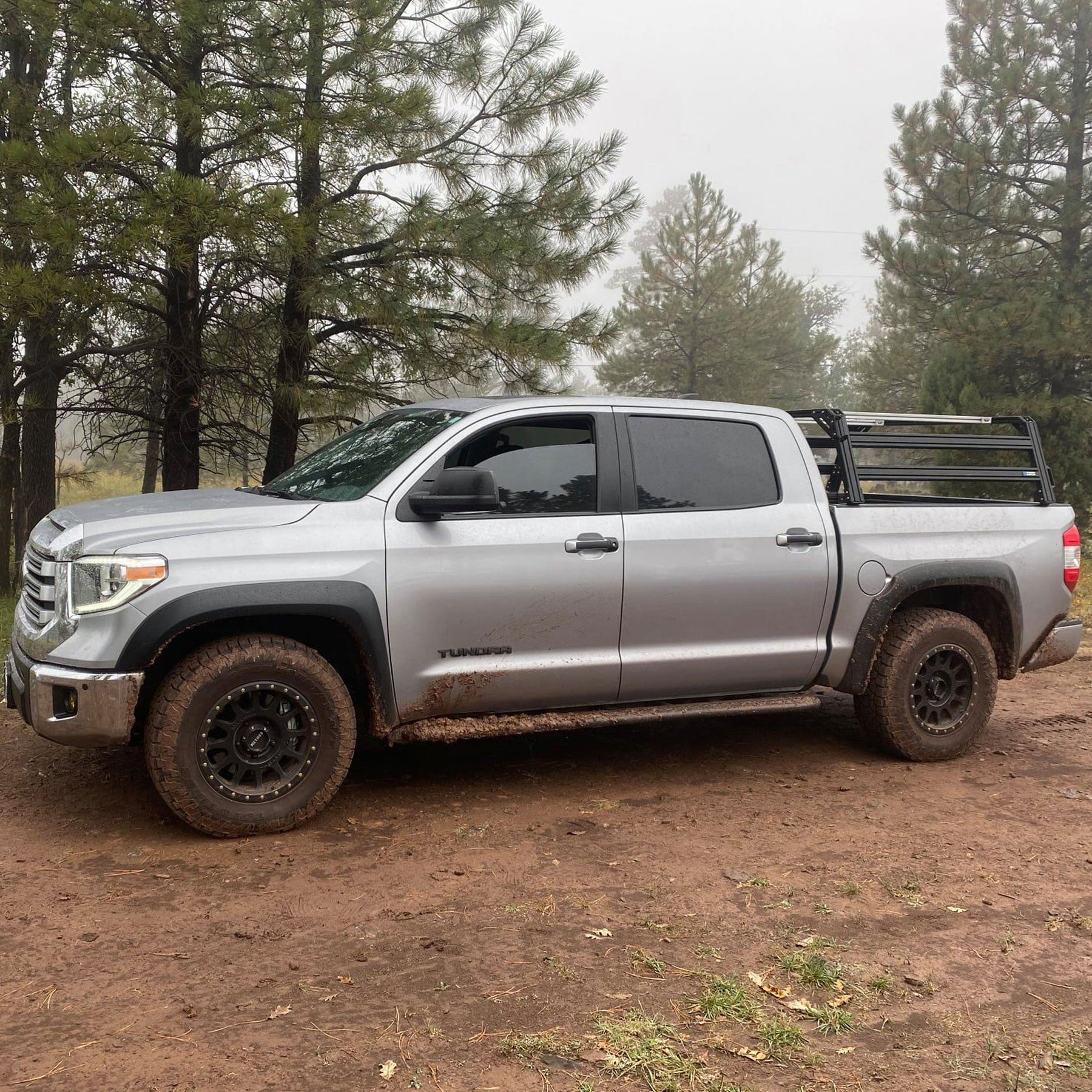

Get your rig dialed in just right with one of the most modular bed racks on the market. The XTR1 Bed Rack is specifically engineered to work with Retrax XR bed covers featuring integrated T-slot rails, giving you a clean, secure mounting solution without compromising strength or versatility.
Constructed from strong, lightweight aluminum extrusion, the XTR1 delivers maximum flexibility for mounting gear exactly where you want it. Whether you're running recovery equipment, rooftop tents, MOLLE panels, or job site tools, this rack is built to adapt to your setup.
Important notes
-
Retrax XR compatibility: Designed to integrate directly with Retrax XR bed covers equipped with T-slot rails.
-
Rail modification notice: Some tonneau cover rails may require minor modifications for proper fitment.
-
Compatibility questions: Contact support@xtrusiondesigns.com for fitment assistance.
-
OEM capacity limitation: Rated capacities are subject to OEM bed rail limitations, whichever is lower.
-
Additional accessories shown: Product photos may include accessories sold separately.
-
Terms and conditions: See full terms for additional product disclaimers.
Features
-
Lightweight extrusion construction: Strong yet lightweight aluminum extrusion allows mounting accessories in virtually any position.
-
XR-specific mounting brackets: Designed to attach directly to Retrax XR T-slot rails.
-
Modular configuration: Simple, adaptable layout for overland, work, or daily use setups.
-
Reinforced structure: Includes top braces and side braces for added rigidity.
-
Accessory-ready system: Comes with mounting hardware and reinforcement components for expanded capability.
Specifications
-
Dynamic off-road capacity: 400 pounds evenly distributed.
-
Dynamic on-road capacity: 800 pounds evenly distributed.
-
Static capacity: 1500 pounds evenly distributed or OEM bed rail capacity, whichever is less.
Included in the box
-
2 crossbars: Primary top mounting structure.
-
4 uprights: Vertical structural supports.
-
2 top braces: Upper reinforcement components.
-
2 side braces: Added structural stability.
-
4 Retrax XR bed rail brackets: Connect uprights directly to XR T-slot rails.
-
4 top corner brackets: Secure crossbars to uprights.
-
Complete hardware kit: All required screws and assembly hardware.
-
XTR Off-Road reinforcement plates (black): Included for added strength.
-
XTR grab handle kit (set of 4): Included for improved usability.
-
16 drop-in T nuts (5/16-8): Included.
-
16 button head screws (5/16-8 x 5/8"): Included.
Accessory stages
-
Stage 1: Bed rack only.
-

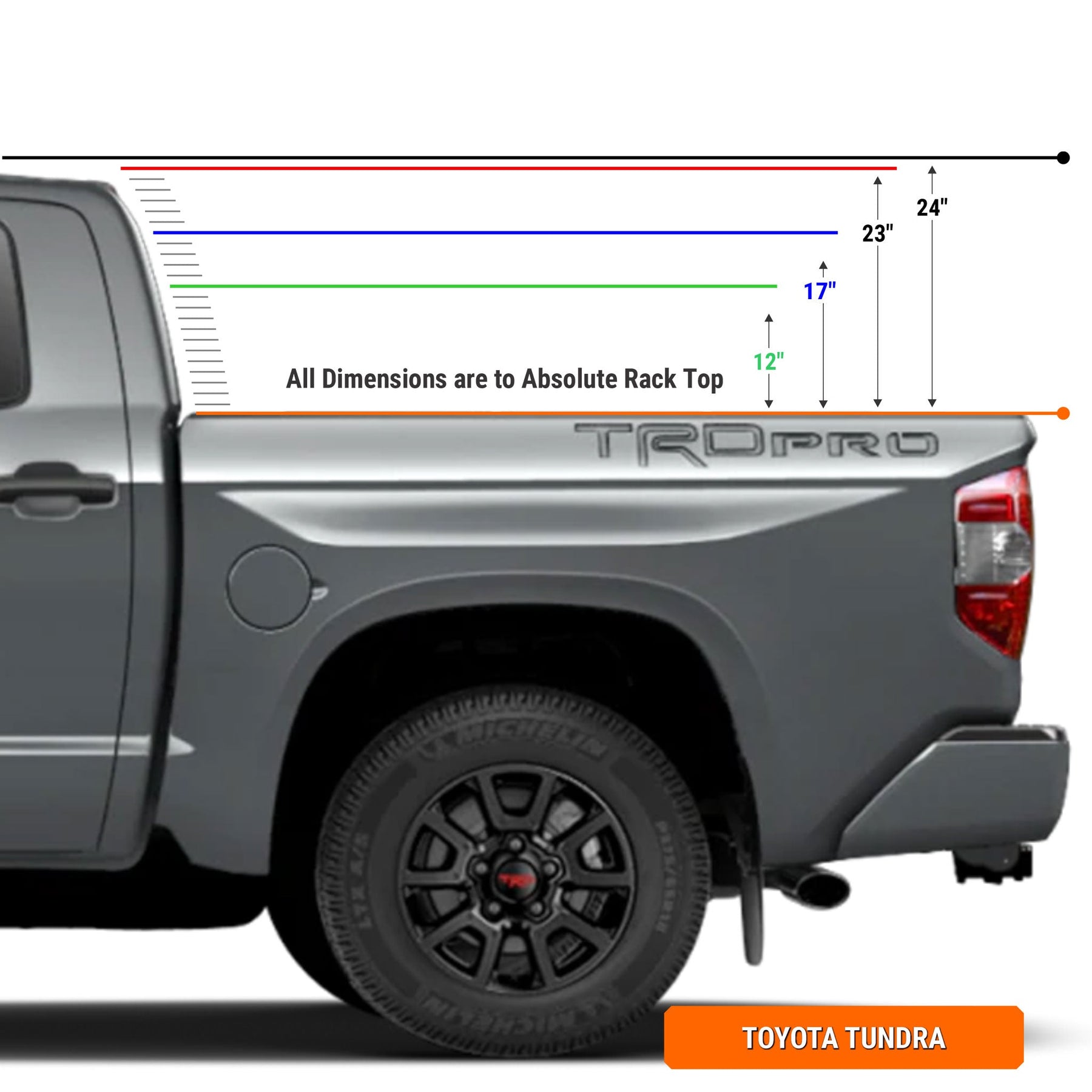

Stage 2: Bed rack + 8 MOLLE plates (short 12x9 plates for mid height racks and tall 16x11 plates for cab height racks).
-
Stage 3A: Bed rack + 8 MOLLE plates + 1 AXS Gate Kit + 1 Slide Out.
-
Stage 3B: Bed rack + 8 MOLLE plates + 2 AXS Gate Kits.
-
Stage 3C: Bed rack + 8 MOLLE plates + 2 Slide Out Kits.
