Factory fog lights are designed to meet minimum requirements—not to truly perform. The Elite Series Fog Lamps were engineered from the ground up to change that. Built as a high-performance, OEM-grade replacement for the Toyota 4Runner, these fog lamps deliver dramatically wider, more intense output while maintaining a clean factory appearance. With SAE-compliant performance, integrated amber backlighting, and true plug-and-play installation, this is one of the most effective visibility upgrades you can make for inclement weather and low-light driving.
Important notes
-
Road-Legal: SAE F3 compliant fog light when properly aimed (check local regulations)
-
Compatibility: Fits all 4Runner trim levels, including Limited, TRD Pro, and ORP
-
Backlight Use: Amber backlight shuts off automatically when main beam is active
Features
-
OEM-Grade Replacement: Direct-fit fog lamp upgrade designed specifically for Toyota 4Runner
-
Custom Optic: Patent-pending toroidal lens delivers an ultra-wide, smooth beam pattern
-

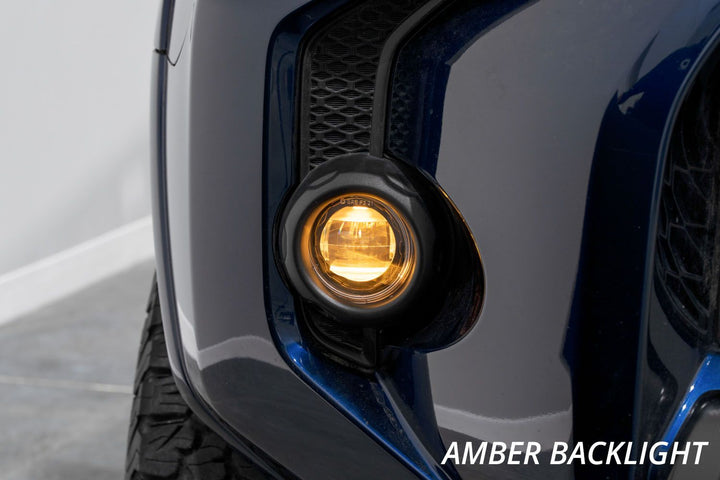

Amber Backlight: Integrated amber accent light for a distinctive OEM-plus appearance
-
SAE Compliant: Meets SAE F3 fog light standards for legal on-road use
-
Plug-And-Play: Main beam connects directly to factory wiring with no modification
-
USA Assembled: Built in the USA using OEM-grade materials
Performance highlights
-

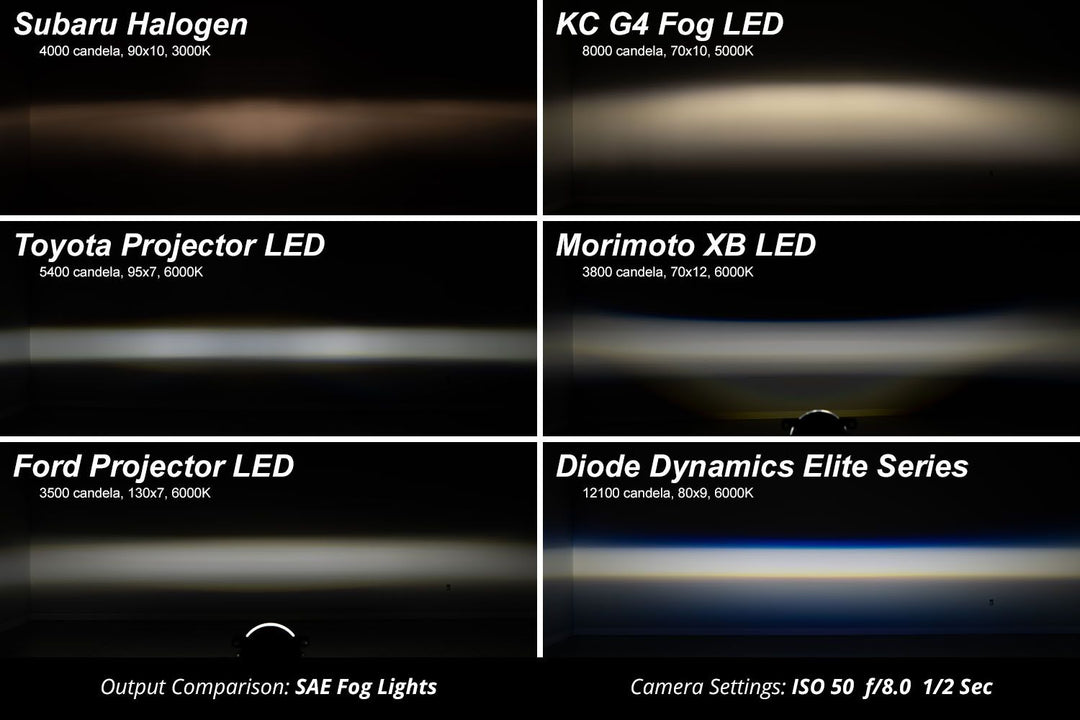

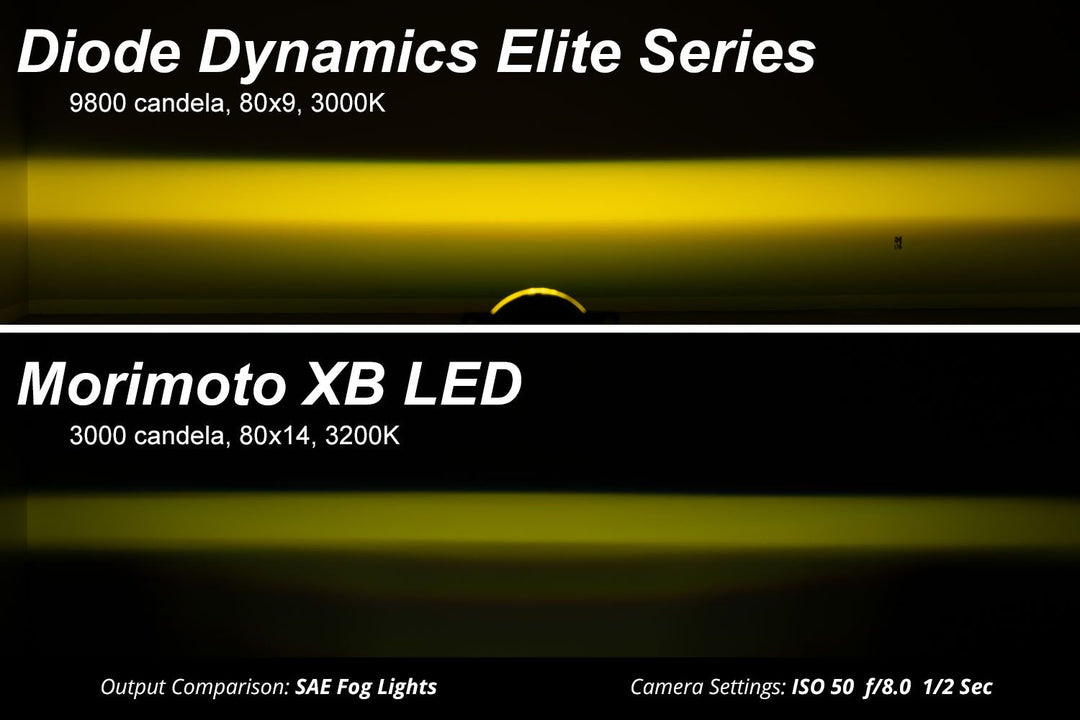

Wide Output: 80-degree spread with a smooth, glare-free cutoff
-
High Intensity: Up to 5× more output than factory halogen fog lamps
-

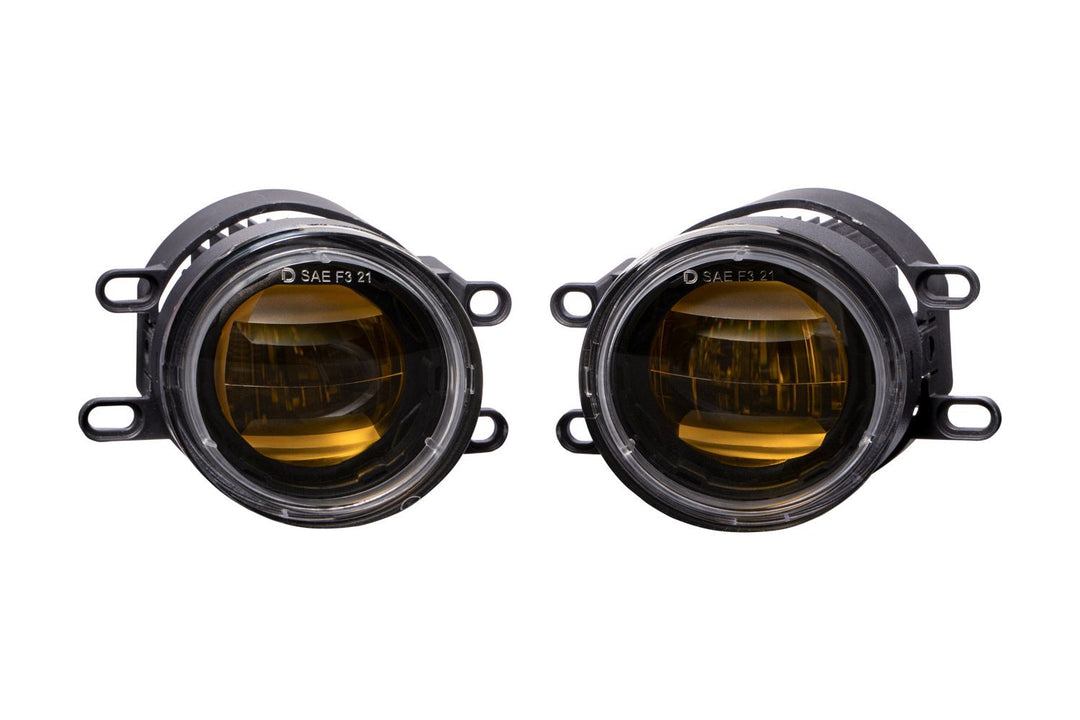

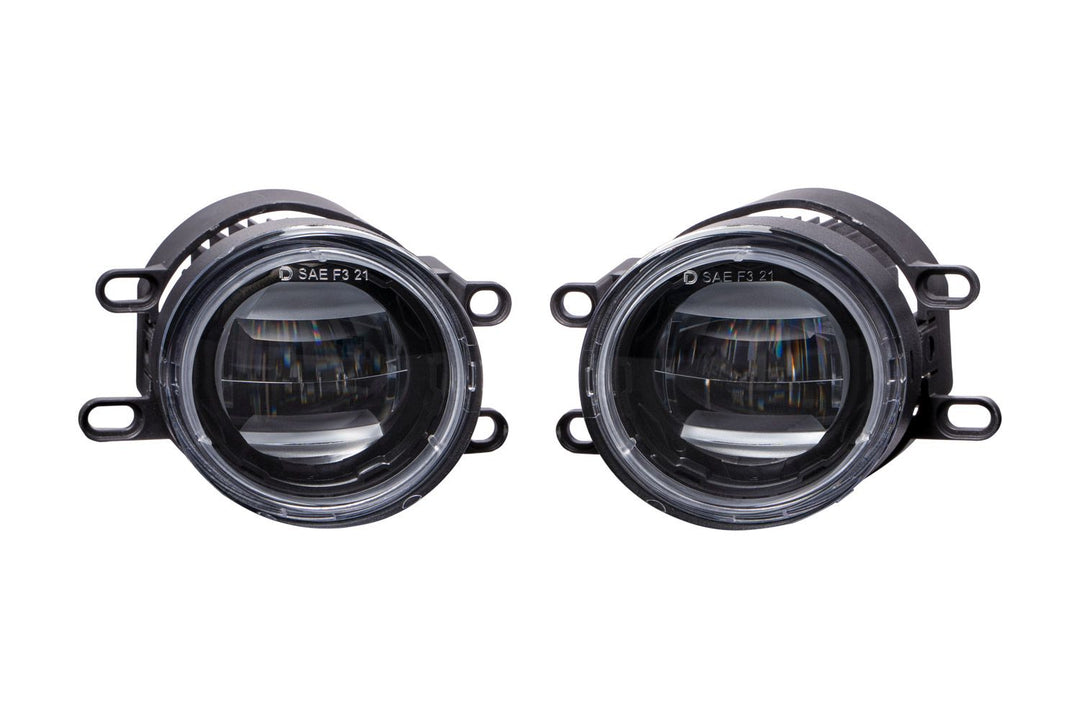

Color Options: Available in 6000K white or 3000K selective yellow
Specifications
-
Raw Lumens:
- White: 1,850 lm
- Yellow: 1,650 lm
- Backlight: 14 lm
-
Peak Intensity:
- White: 10,200 cd
- Yellow: 8,700 cd
-
Color Temperature: 3000K (Yellow), 6000K (White)
-
Beam Pattern: Fog, 80° × 6°
-
Power:
- White Main Beam: 17W
- Yellow Main Beam: 15W
- Backlight: 0.3W
-
Current @ 13.2V:
- White: 1.3A
- Yellow: 1.2A
- Backlight: 0.025A
-
Operating Voltage: 9–16V
-
Operating Temperature: -40°F to 185°F (-40°C to 85°C)
-
Ingress Rating: IP68 waterproof
-
Materials: Copper PCB, UV-coated polycarbonate lens, precision aluminum casting
Fitment
-
Application: Fog light
-
Make: Toyota
-
Model: 4Runner
-
Years: (2014–2024)
-
Electrical Compatibility: No electrical issues (tested and confirmed)

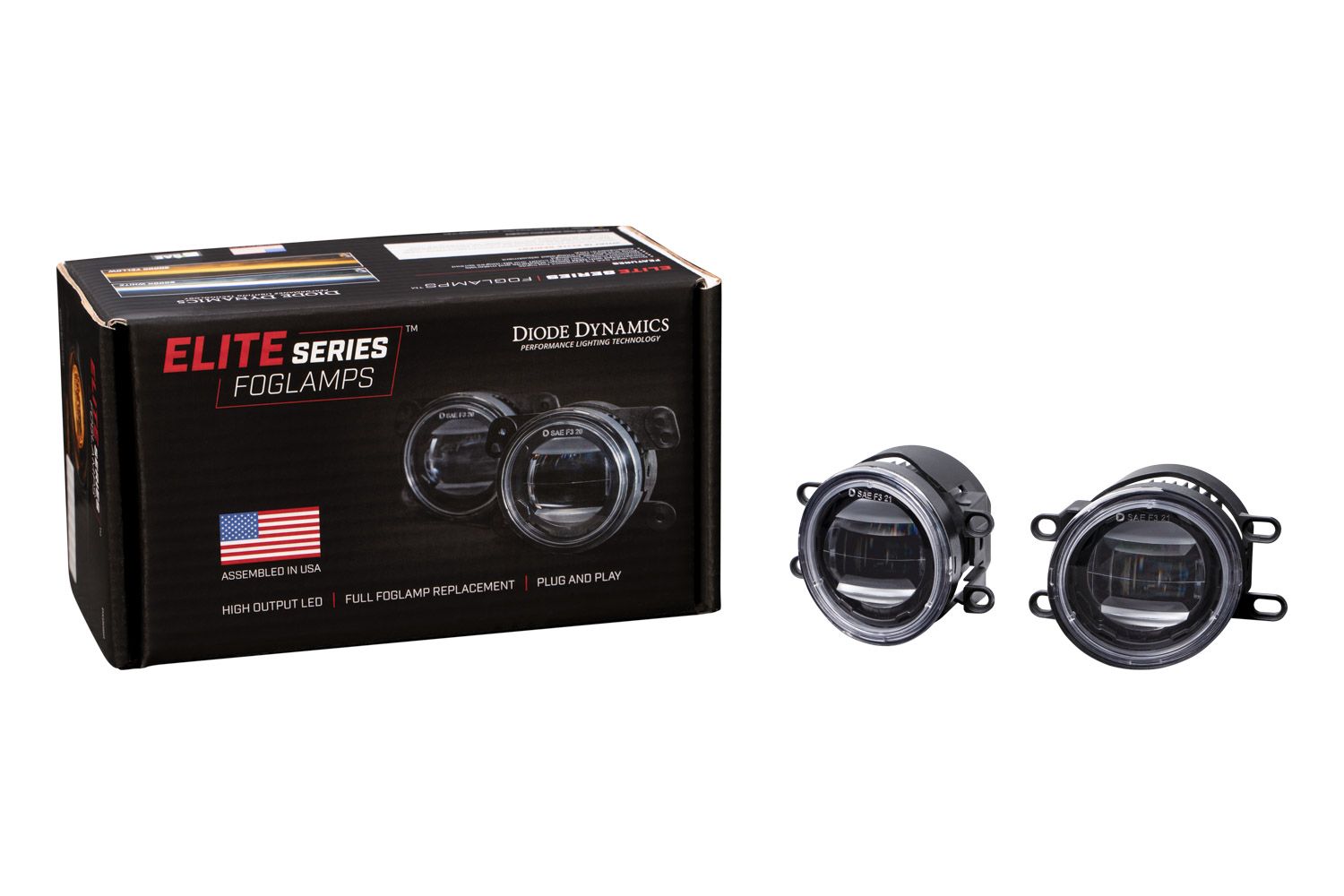

Included in the box
-

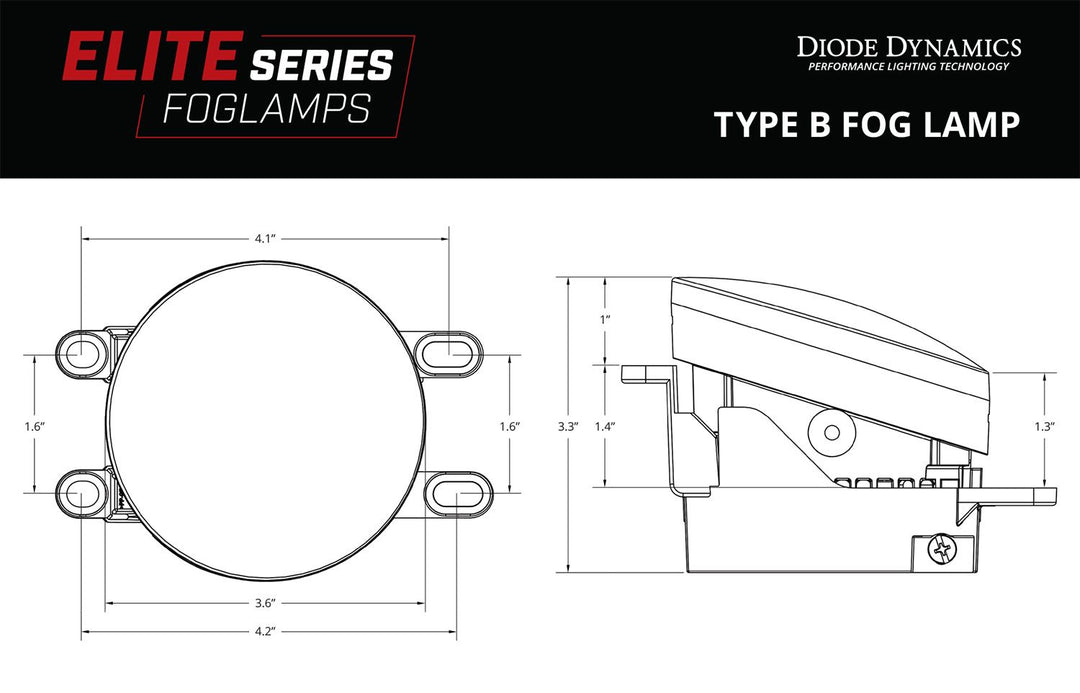

Fog Lamps: Two (2) Elite Series Type B fog lamps
-
Wiring: Two (2) H11 4-pin DT backlight tap wires
-
Hardware: Two (2) T-taps
-
Guide: Mounting guide
Installation
-
Install Time: 30–60 minutes
-
Tools Needed: Basic toolset
-
Modification Required: None
-
Aiming: Adjustable after install
Warranty & Guarantee
-
Warranty: 8-year limited warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guaranteed
