Factory fog lights are designed to meet minimum requirements—not to truly improve visibility. The Elite Series Fog Lamps change that completely. Engineered from the ground up for real performance, this OEM-style upgrade delivers dramatically wider, more intense output while maintaining a clean factory appearance. With plug-and-play installation, integrated amber backlighting, and full SAE compliance, this is one of the most effective lighting upgrades you can make to your RAV4 TRD Off-Road or Adventure.
Notes
-
Trim Compatibility: Only compatible with TRD Off-Road and Adventure trims
-
Fog Light Requirement: Vehicle must already be equipped with factory fog lights
-
Road Legal: SAE F3 compliant for on-road use (verify local regulations)
-
Backlight Use: Amber accent light use may vary by local laws
Features
-
High-Performance Replacement: OEM-grade upgrade designed specifically for RAV4 TRD Off-Road/Adventure
-
Custom Optical Design: Patent-pending optic delivers an ultra-wide, high-intensity fog pattern
-
Amber Backlight: Integrated accent lighting for added visibility and modern styling
-
SAE F3 Compliant: Road-legal fog light output with sharp cutoff to prevent glare
-
Plug-and-Play: Direct replacement using factory connectors—no modification required
-
Made in USA: Engineered and assembled in the USA using OEM-grade materials
Performance Overview

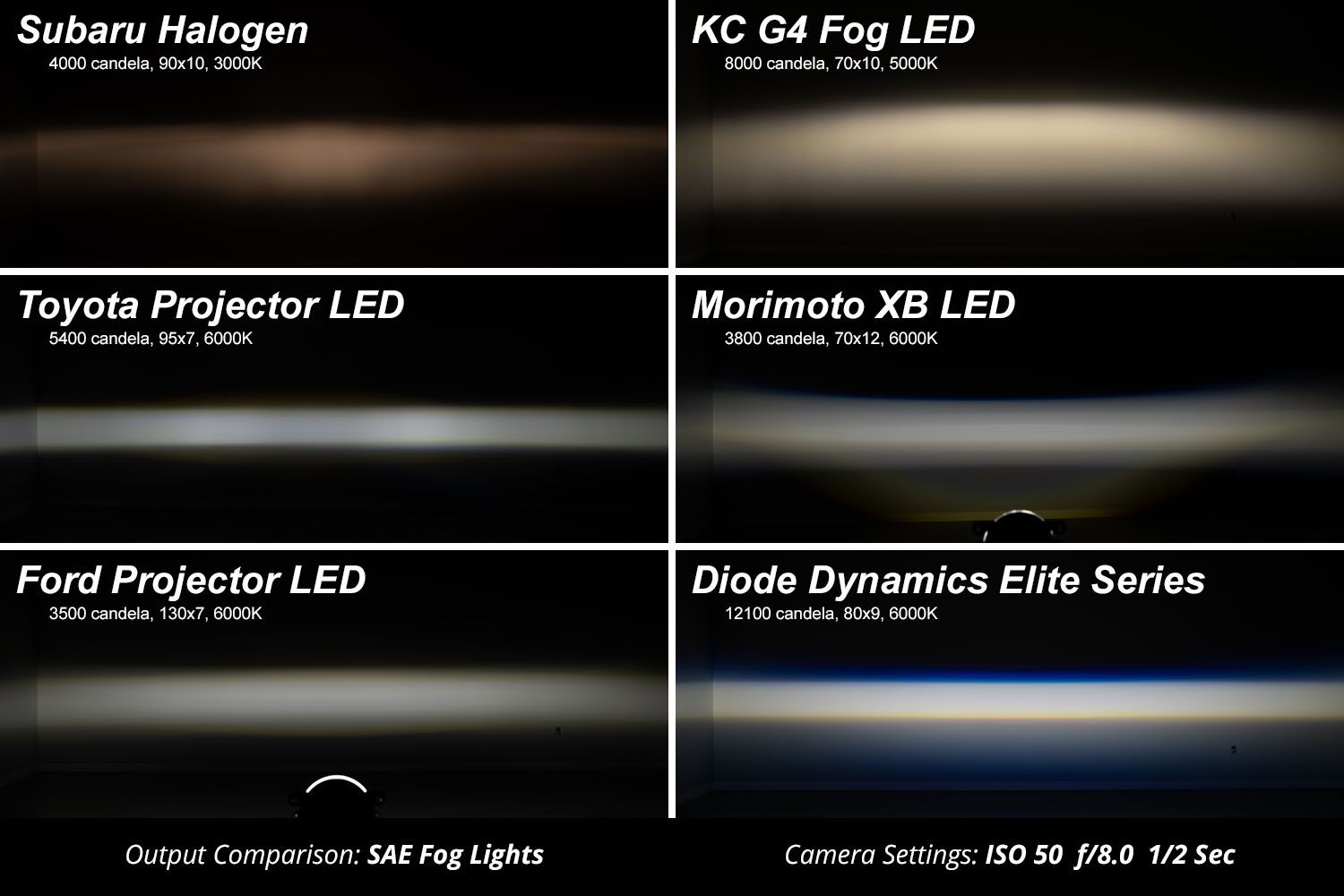

Output That Outperforms

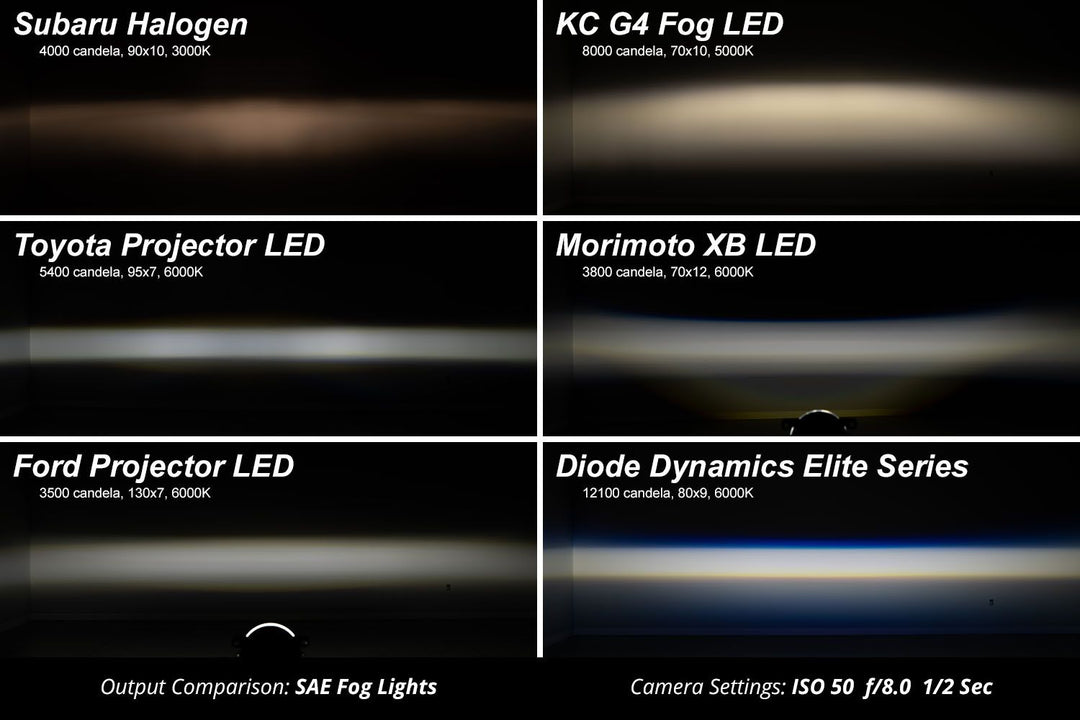

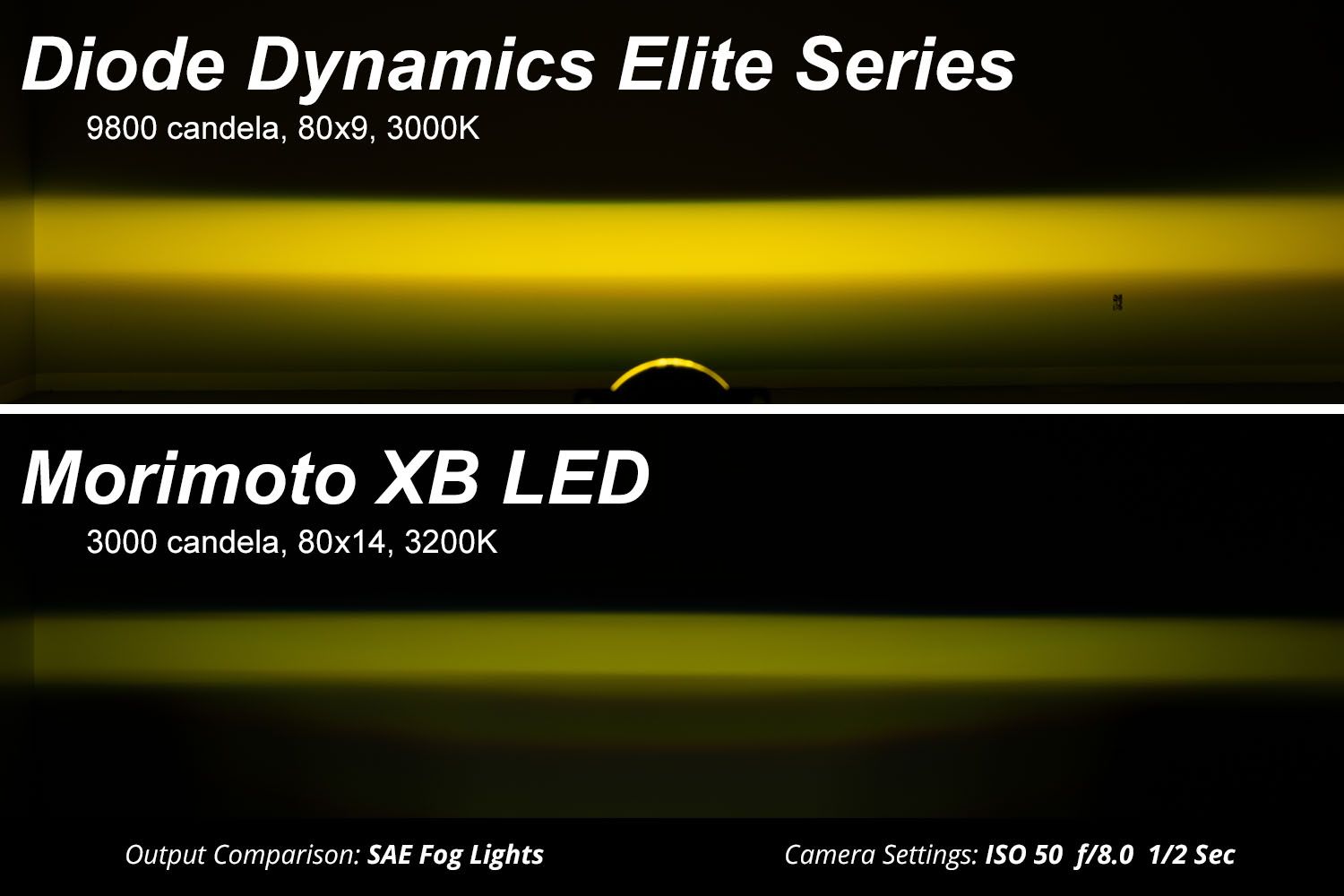

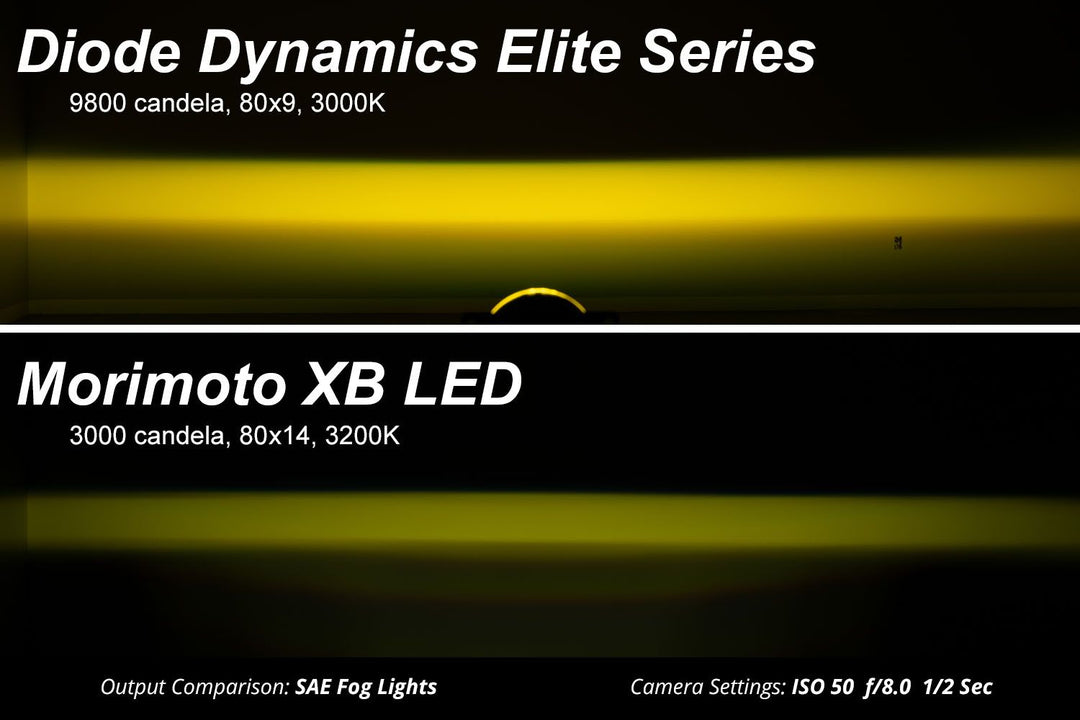

At the heart of the Elite Series Fog Lamp is a precision-engineered single-piece toroidal lens. Designed using advanced optical simulation, it produces an exceptionally wide 80-degree beam with smooth distribution and a razor-sharp cutoff—eliminating glare while maximizing usable light. Despite the massive output increase (up to 5× brighter than halogen), the lamp still meets SAE F3 standards for legal on-road use.
White or Selective Yellow Options
-
6000K White: Crisp, cool white that matches factory LEDs and DRLs, with a premium color flicker at the cutoff
-

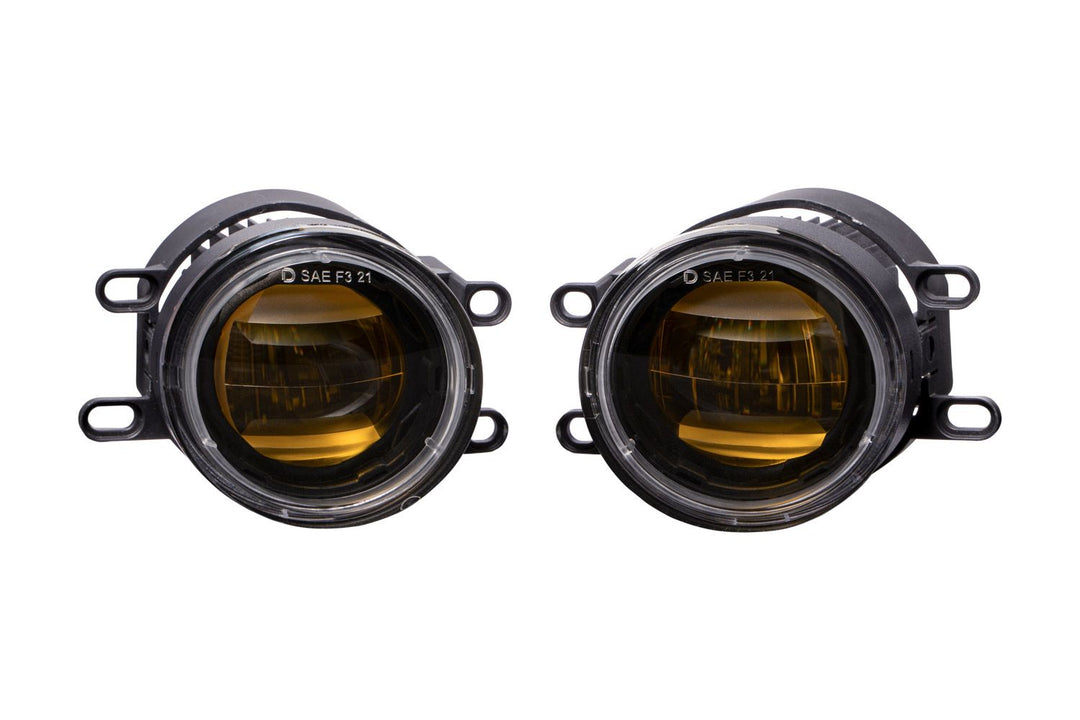

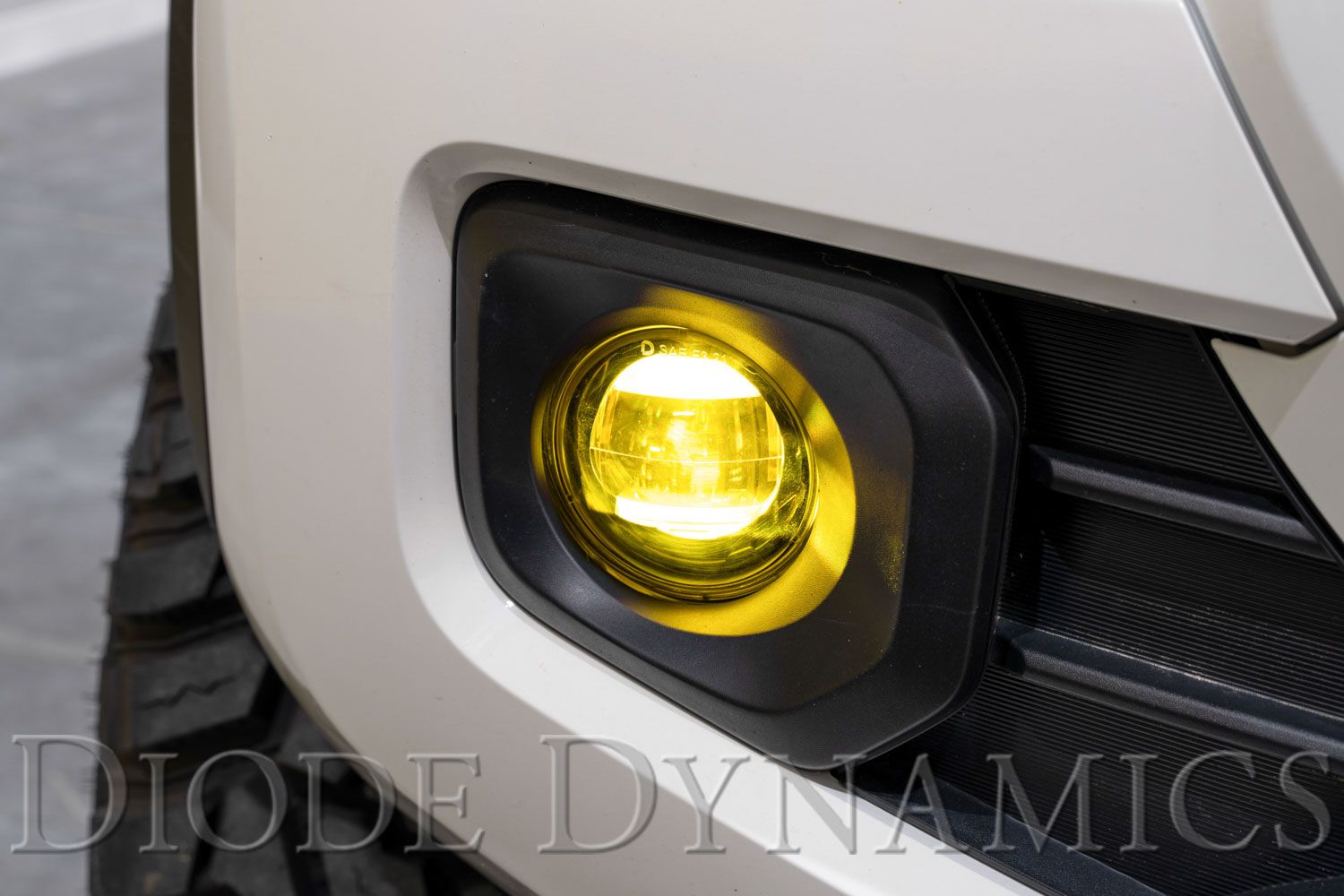

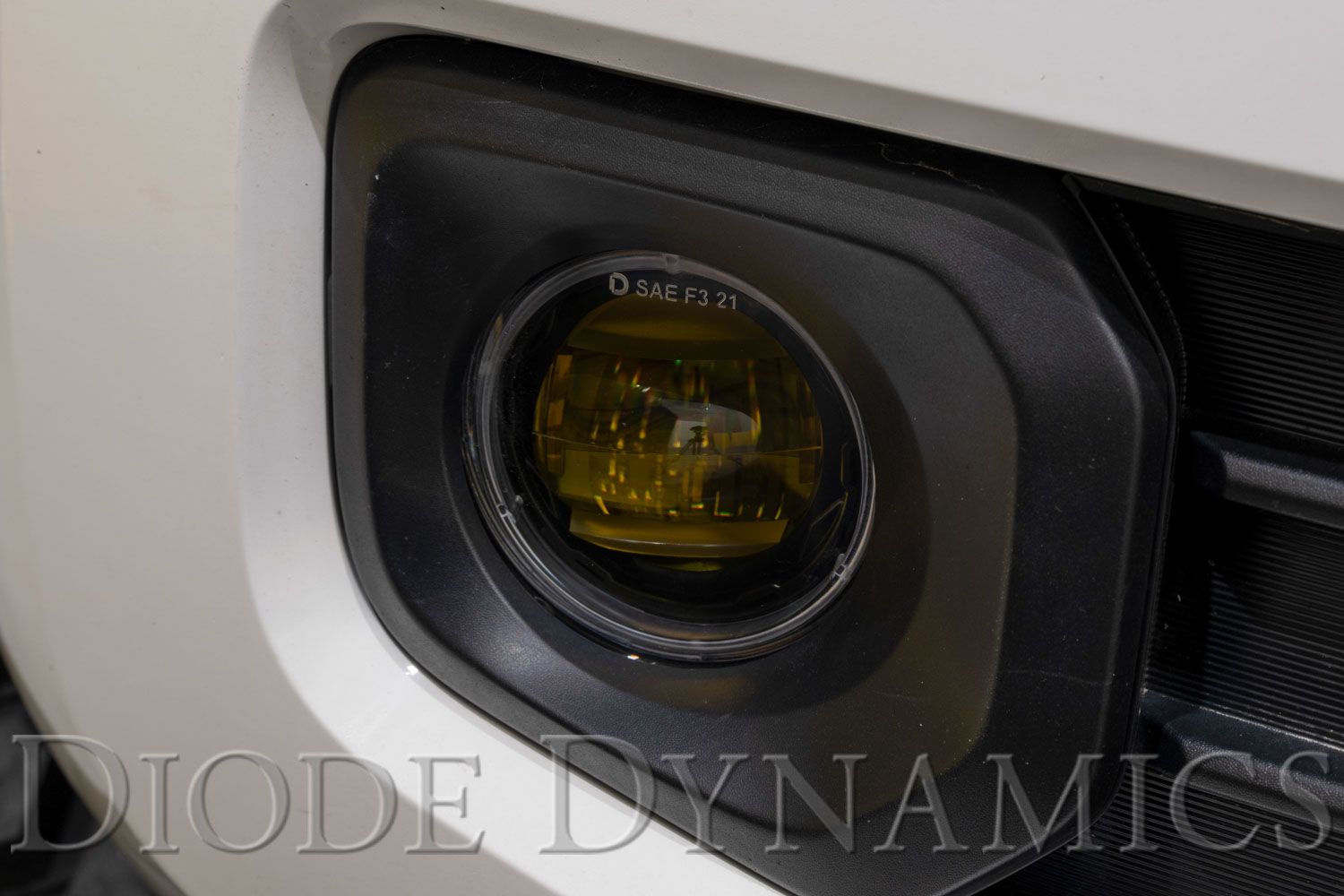

3000K Yellow: High-contrast output ideal for fog, rain, and snow, using a yellow emitter and lens for maximum efficiency

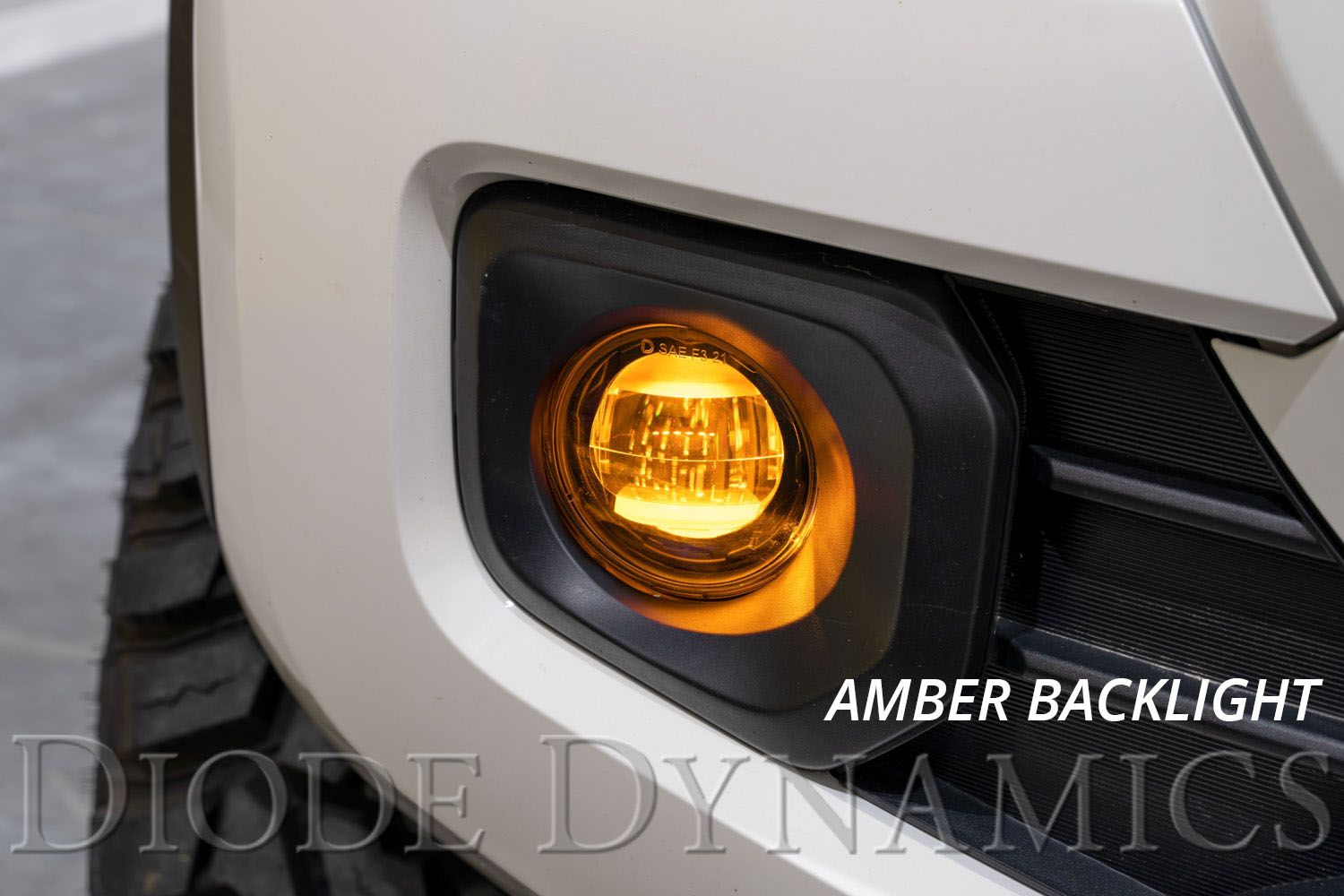

Amber Backlight Function
Each lamp includes an integrated amber backlight that fully illuminates the lens for a bold accent or marker-light effect. The backlight automatically shuts off when the main beam is activated and can be wired to any constant 12V source using the included taps.
Installation & Build Quality
-

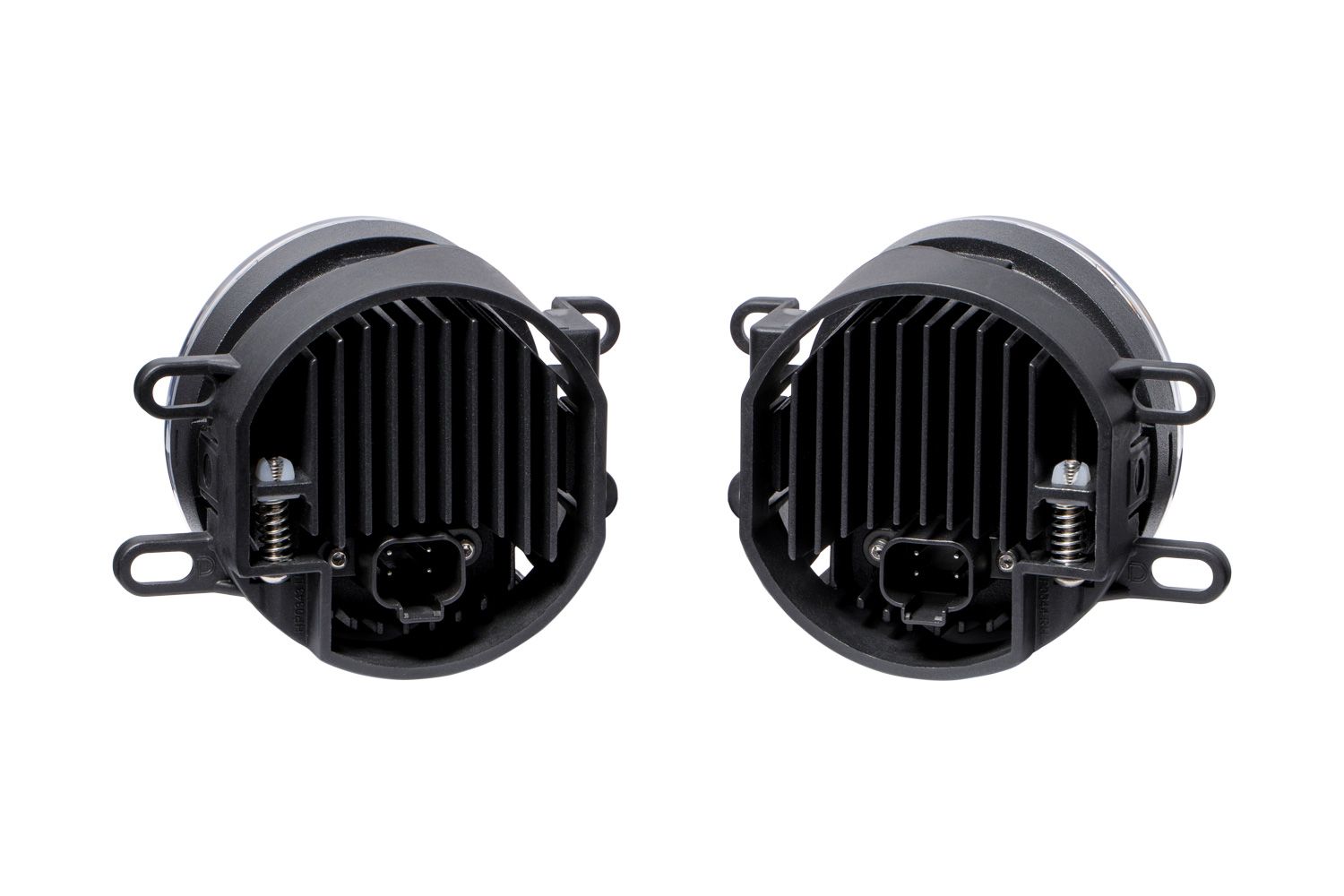

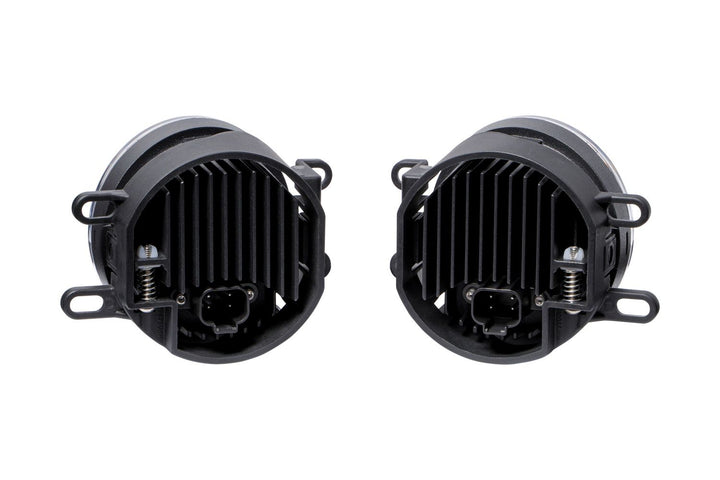

Bolt-On Fitment: Direct replacement using glass-fiber-reinforced brackets
-
Adjustable Aiming: Fine-tune beam pattern after installation
-
OEM-Grade Construction: Precision aluminum housing, copper-core PCB, UV-coated lens
-
USA Assembled: Robotically sealed with urethane epoxy for long-term durability

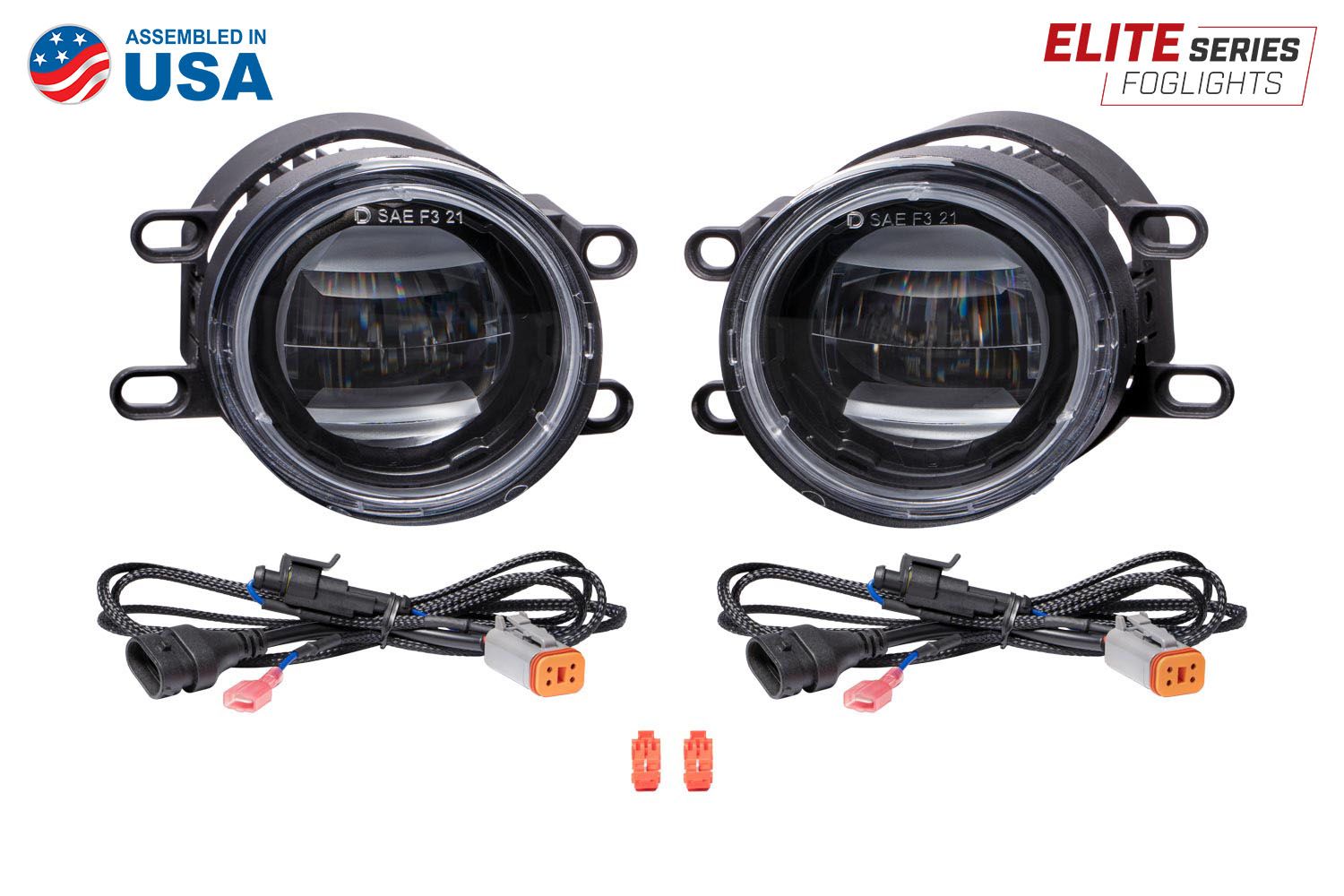

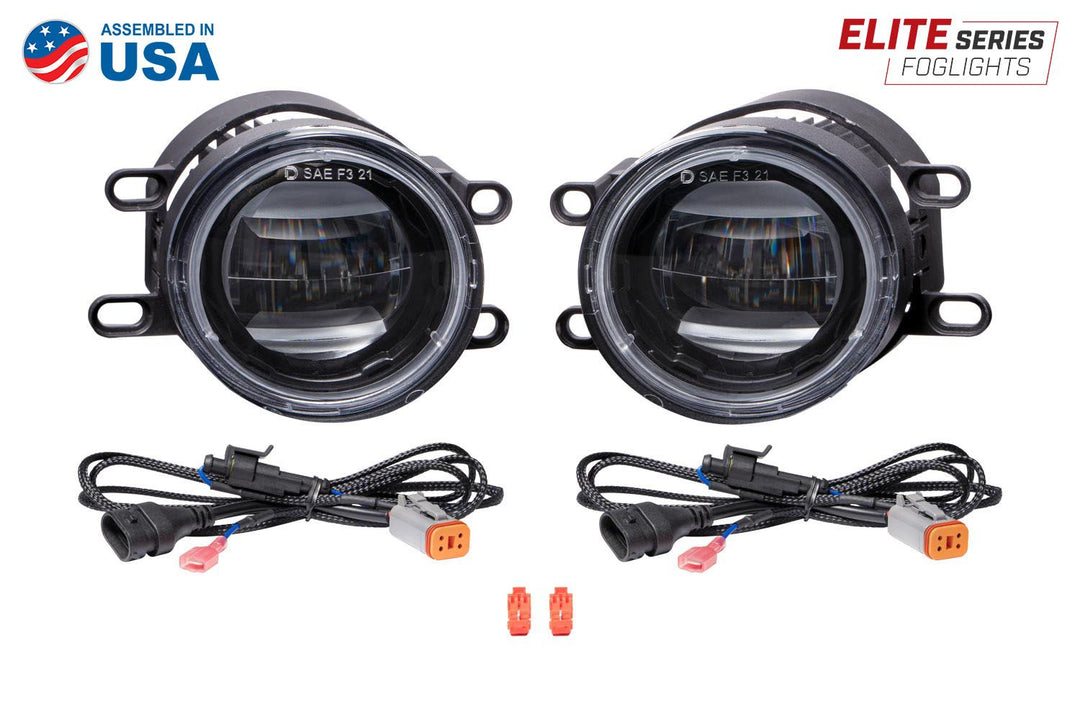

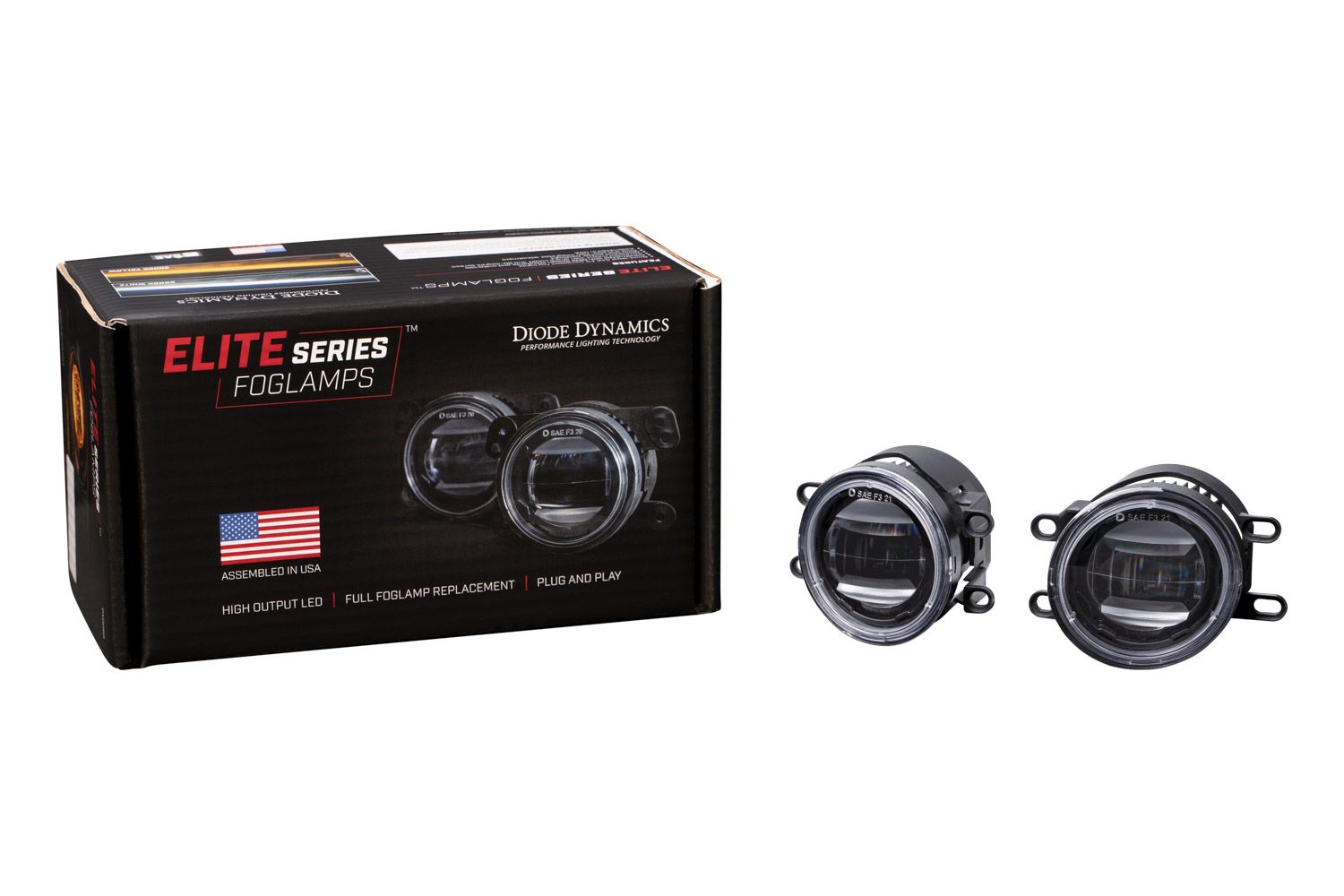

What’s Included
-

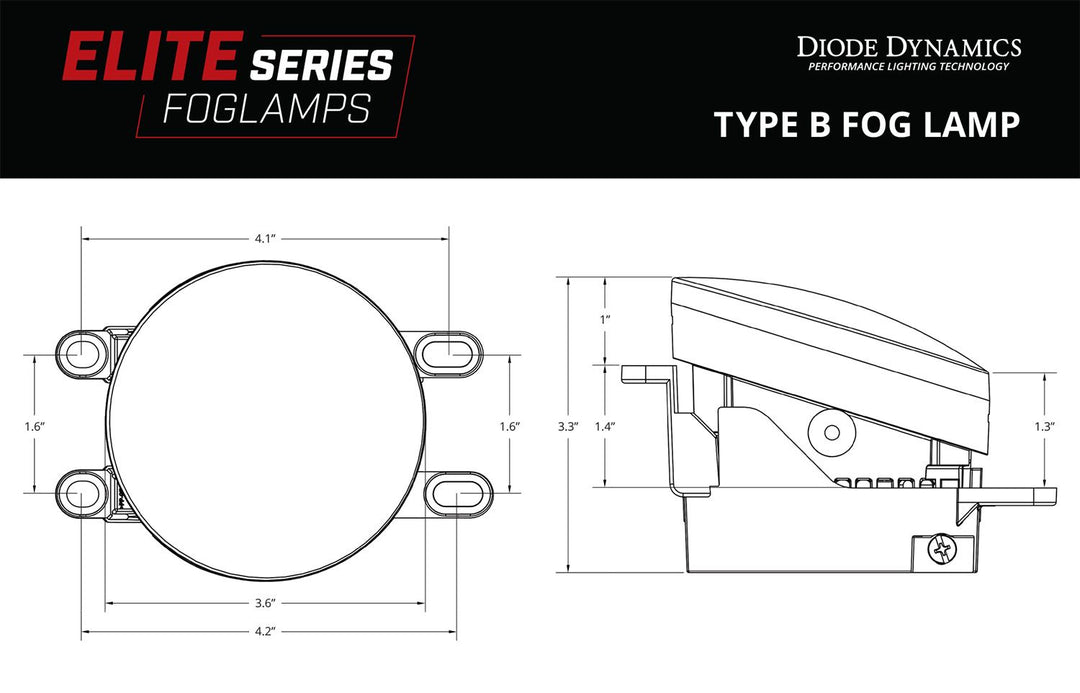

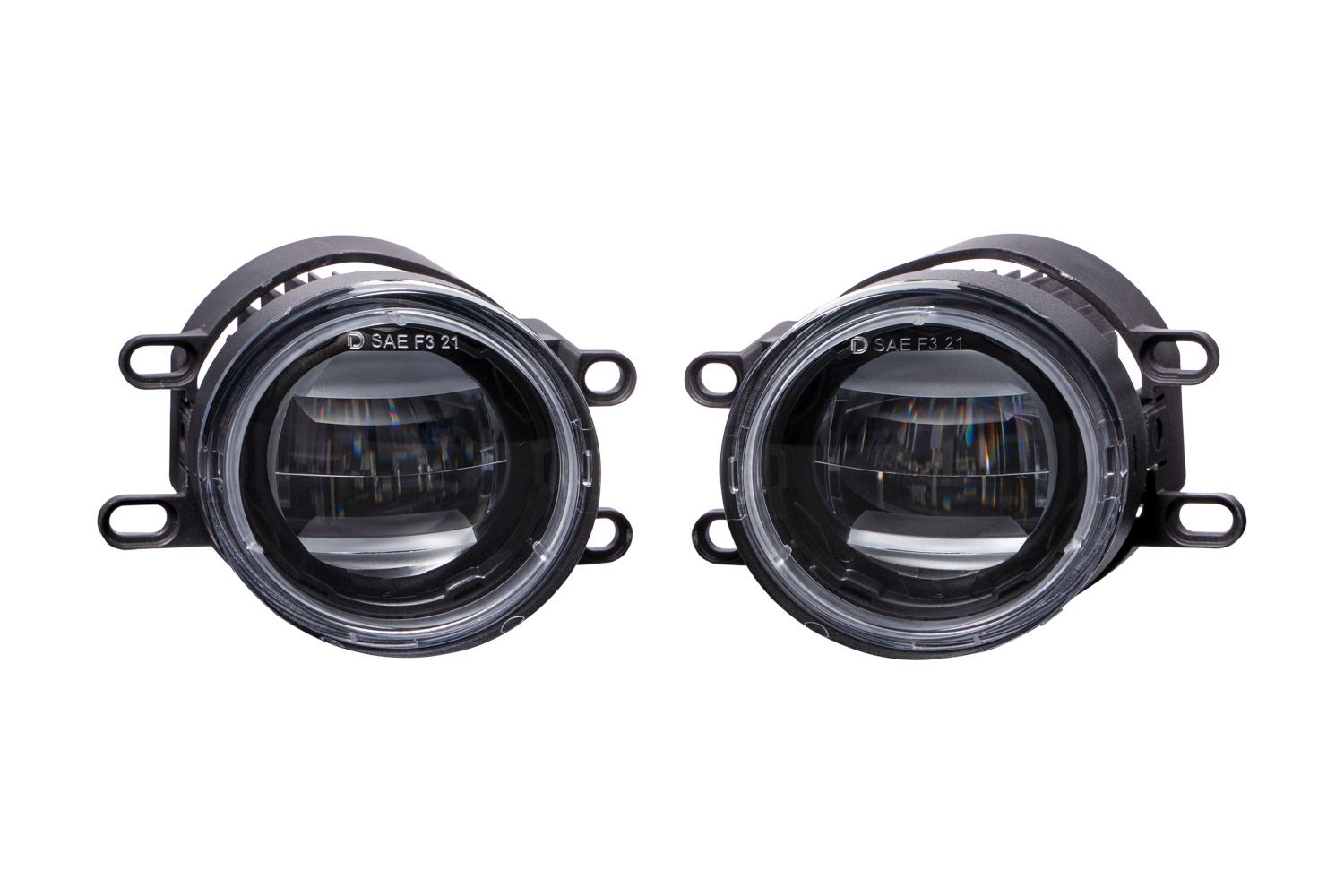

Fog Lamps: Two (2) Elite Series Type B fog lamps (left & right)
-
Wiring: Two (2) H11 4-pin DT backlight tap wires
-
Hardware: Two (2) T-taps
-
Guide: Mounting and aiming guide
-
Quantity: Pair
Specifications
-
Raw Lumens:
- White: 1,850 lm
- Yellow: 1,650 lm
- Backlight: 14 lm
-
Intensity:
- White: 10,200 cd
- Yellow: 8,700 cd
-
Beam Pattern: Fog – 80° × 6°
-
Color Temperature: 6000K (White) / 3000K (Yellow)
-
Power:
- Main Beam White: 17W
- Main Beam Yellow: 15W
- Backlight: 0.3W
-
Operating Voltage: 9–16V
-
Ingress Protection: IP68 Waterproof
Warranty & Support
-
Warranty: Industry-leading 8-year limited warranty
-
Returns: 30-day returns with no restocking fee
-
Support: Backed by Diode Dynamics engineering and US-based support
Fitment
-
Application: Fog Light
-
Make: Toyota
-
Model: RAV4 TRD Off-Road / Adventure
-
Years: 2022, 2023, 2024, 2025, 2026
Installation
-
Time Required: 30–60 minutes
-
Tools Needed: Basic hand tools
-
Modification Required: None
