Upgrade the factory fog lights on your Toyota RAV4 TRD Off-Road or Adventure with the SS3 Fog Light Bracket Kit—a true performance-driven solution with OEM-style fitment. Featuring higher output intensity than any other 3-inch light on the market, this kit combines custom-engineered TIR optics, bolt-on installation, and a clean factory appearance to deliver serious lighting performance without compromising style or reliability.
Important notes
-
Trim compatibility: Only compatible with TRD Off-Road and Adventure trim levels
-
Fog light requirement: This kit is a replacement for OEM fog lamps; vehicles without factory fog lights may require additional hardware and wiring
-
Road legal: SAE J583 compliant when properly aimed; verify local regulations
Features
-
Direct replacement: Designed specifically for OEM fog lamp locations on the RAV4 TRD Off-Road/Adventure
-
SAE compliant output: Road-legal fog light performance with proper beam control
-
Angled bezel: Maintains a clean, factory-style appearance
-
Plug and play: Installs using factory connectors with no modification required
-
Advanced TIR optics: Maximizes usable light while reducing glare and wasted output
-
Durable construction: Powder-coated aluminum die-cast housing for long-term reliability
-
Made in USA: Engineered and assembled in the USA using globally sourced materials
Performance highlights
-
Increased light output: Higher intensity than any other 3-inch LED pod available
-
Optical efficiency: Patent-pending TIR optic acts as both lens and optic for maximum efficiency
-
SAE fog pattern: FineLine optic produces an ultra-wide 80-degree spread with controlled cutoff
-

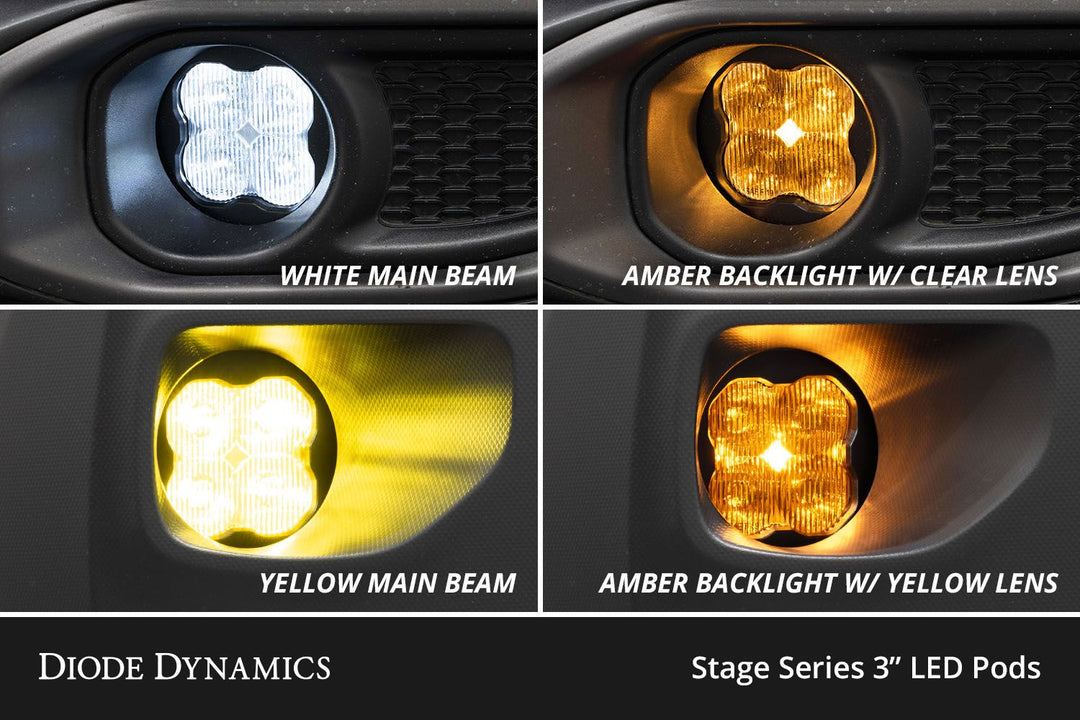

Amber backlight: Integrated amber accent light fully illuminates the optic for a modern look
-

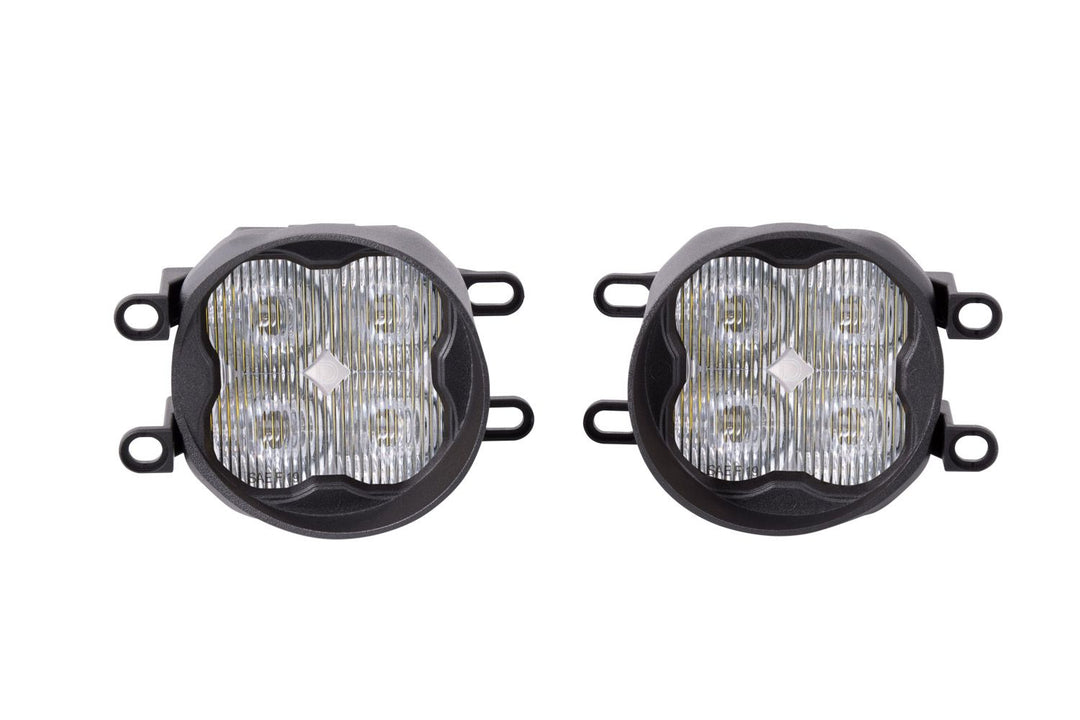

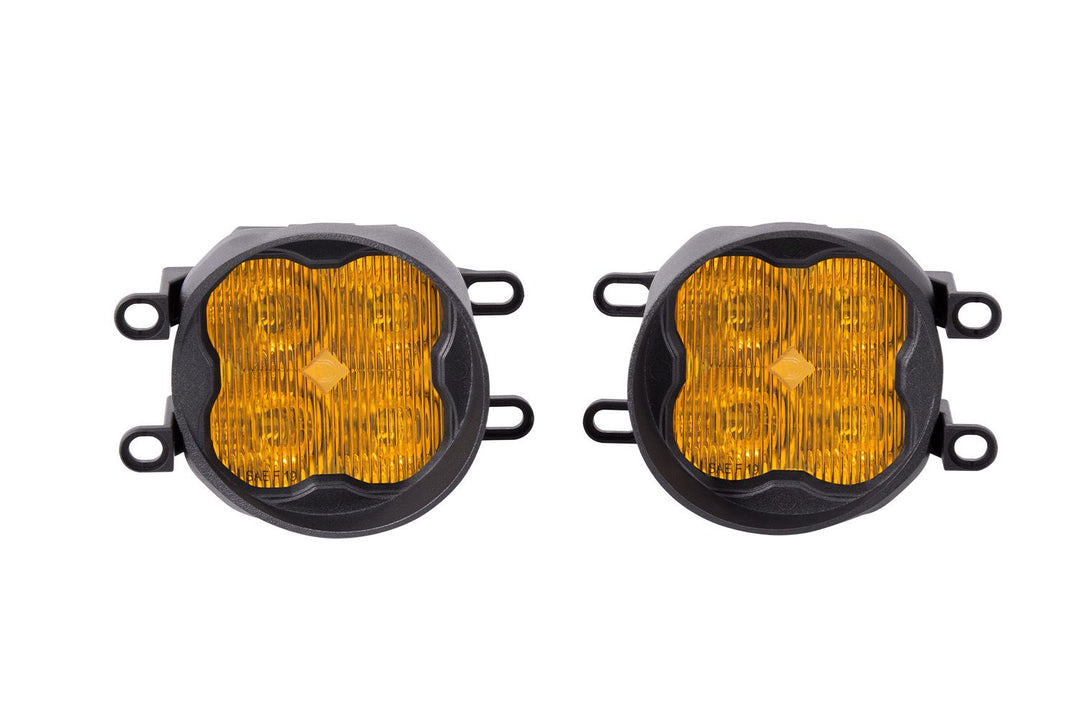

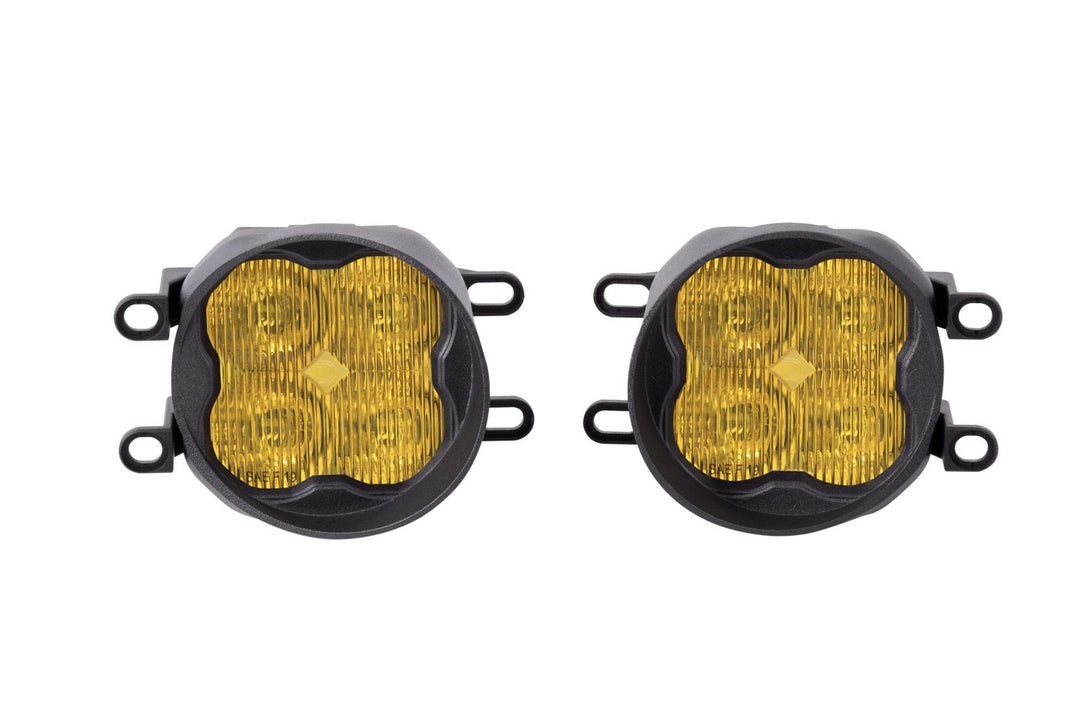

Color options: Available in 6000K white or 3000K selective yellow
-
Power levels: Offered in Sport, Pro, and Max configurations to match your performance needs
Specifications
(Per individual pod)
-
Measured output (lumens):
- Fog White Sport: 1,520 lm
- Fog White Pro: 3,000 lm
- Fog White Max: 3,500 lm
- Fog Yellow Sport: 1,300 lm
- Fog Yellow Pro: 2,700 lm
- Fog Yellow Max: 3,500 lm
-
Raw output (lumens): Up to 7,920 lm (Max)
-

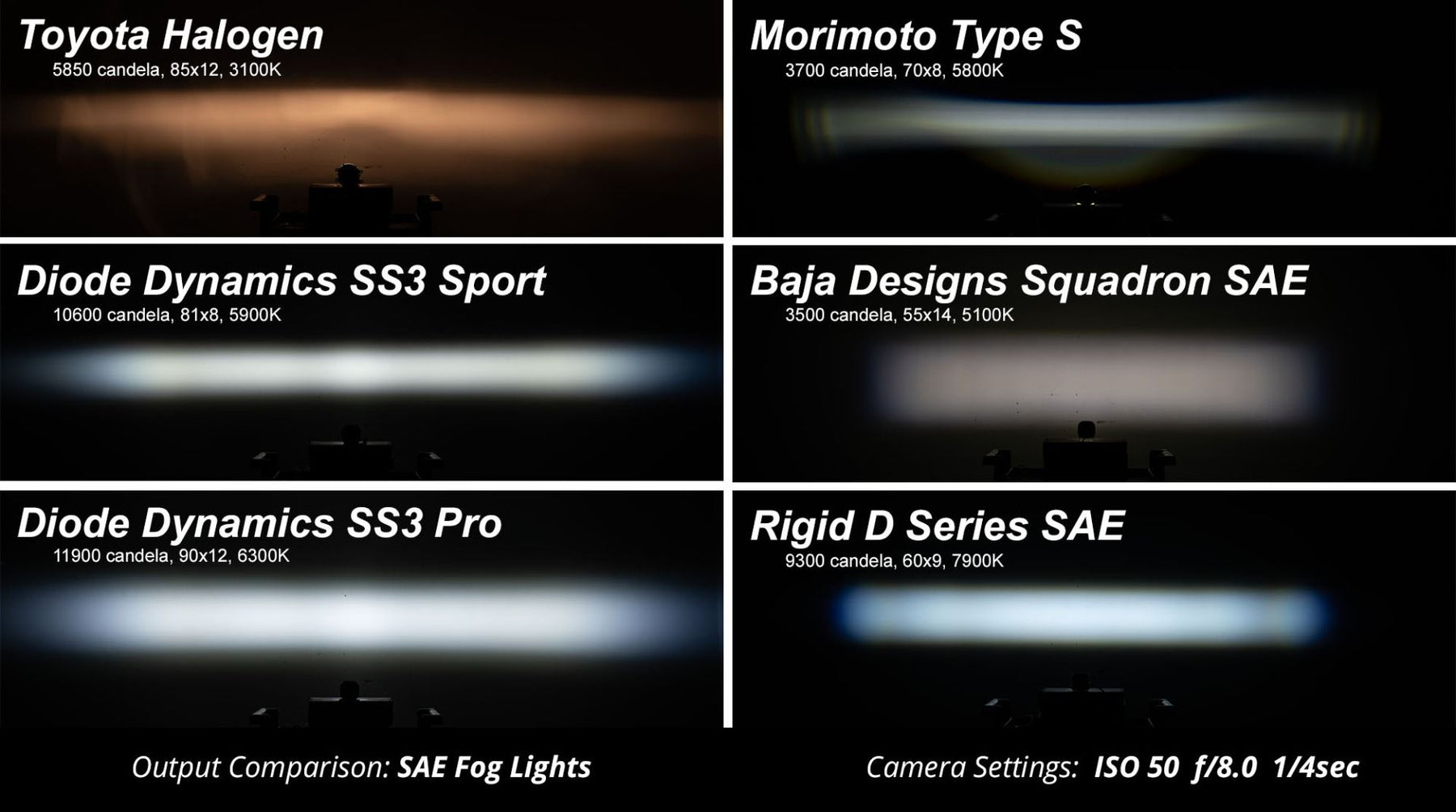

Peak beam intensity: Up to 18,000 cd
-

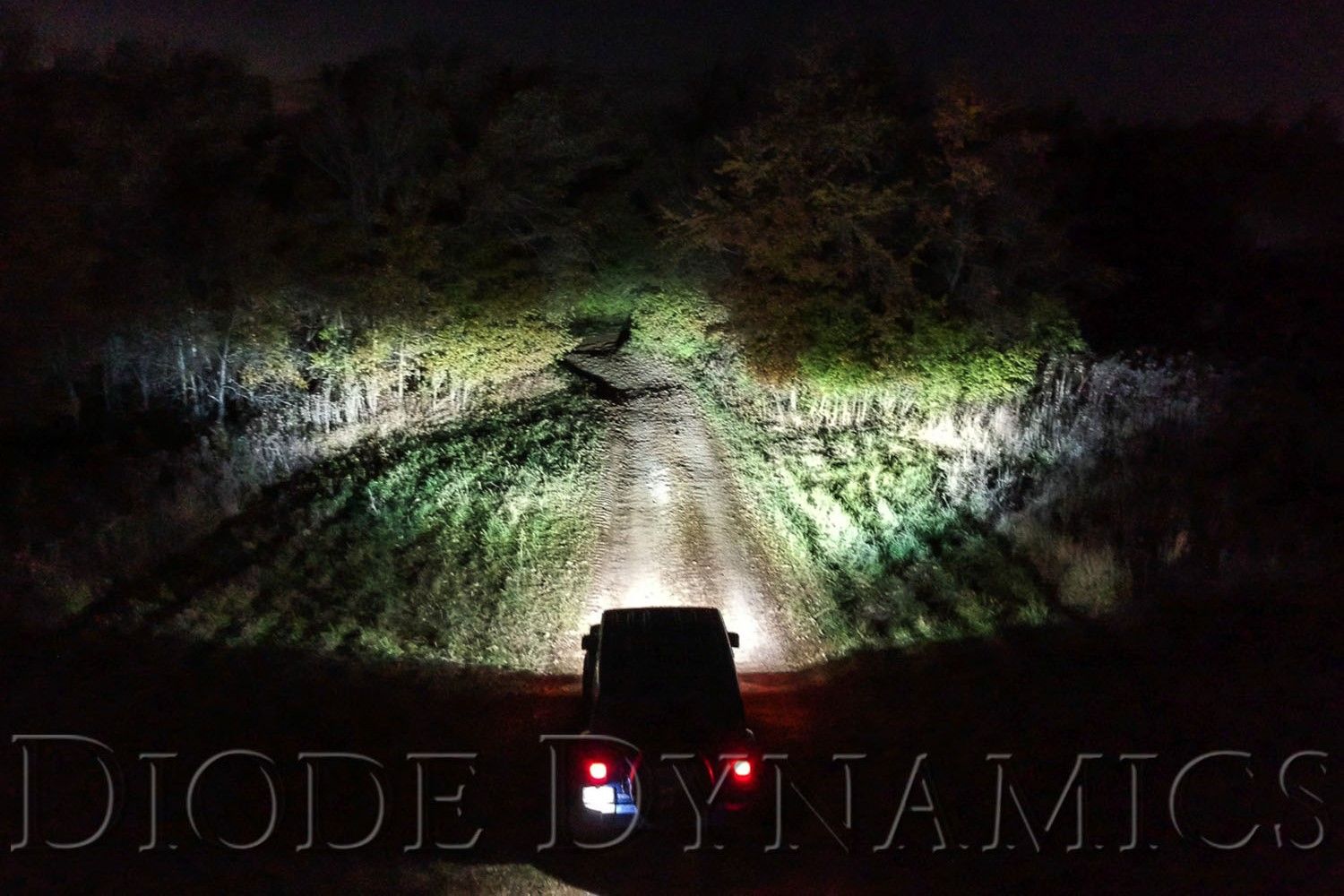

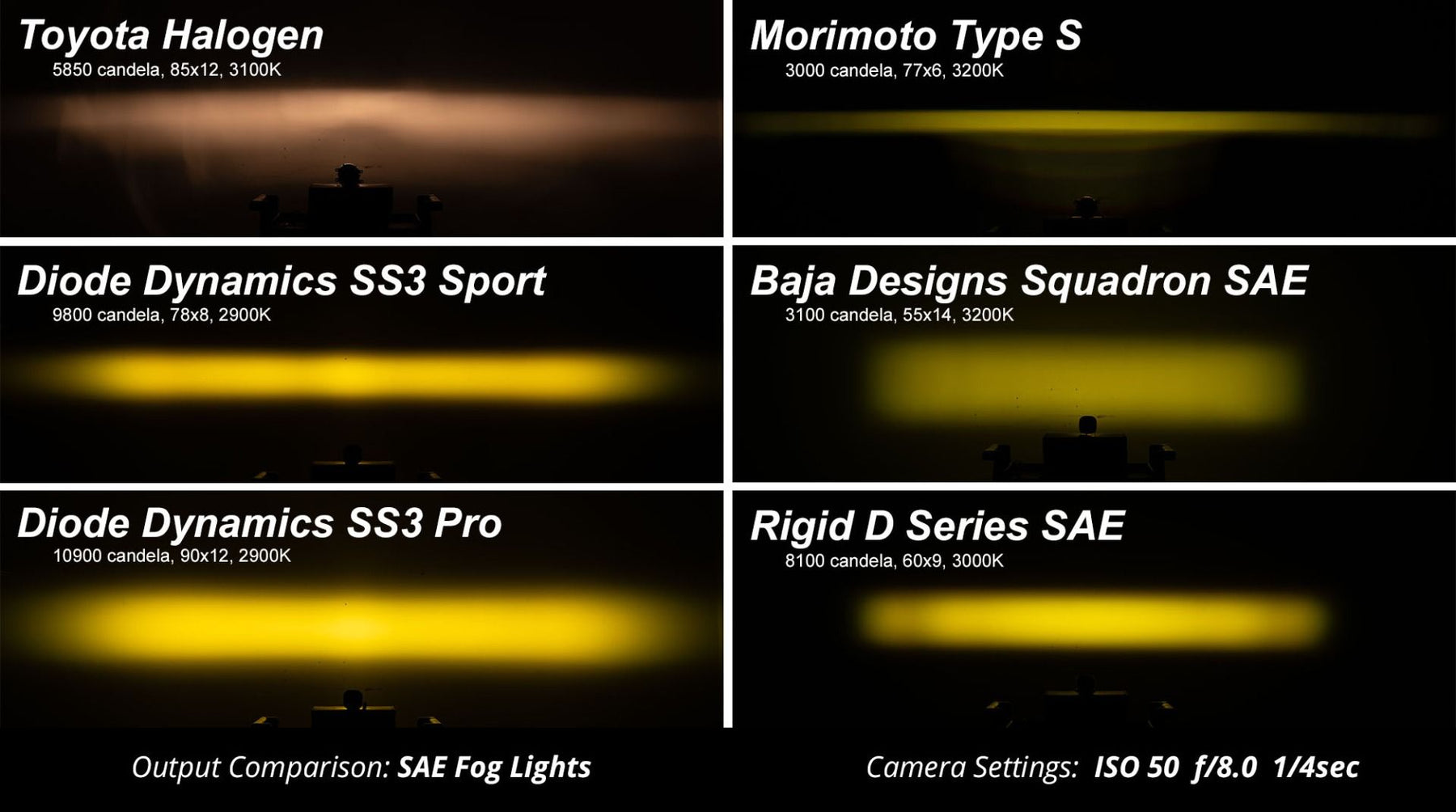

Beam pattern: Fog, 80° × 8°
-
Color temperature: 6000K (White), 3000K (Yellow)
-
Main beam power:
- Sport: 14.5W
- Pro: 36W
- Max: 38.5W
-
Backlight power: 0.4W
-
Operating voltage: 9–30V
-
Ingress rating: IP69K waterproof
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
Fitment
-
Application: Fog light
-
Make: Toyota
-
Model: RAV4 TRD Off-Road / Adventure
-
Years: (2022–2026)
Included in the box
-
LED pods: Two (2) SS3 3-inch angled LED pods
-

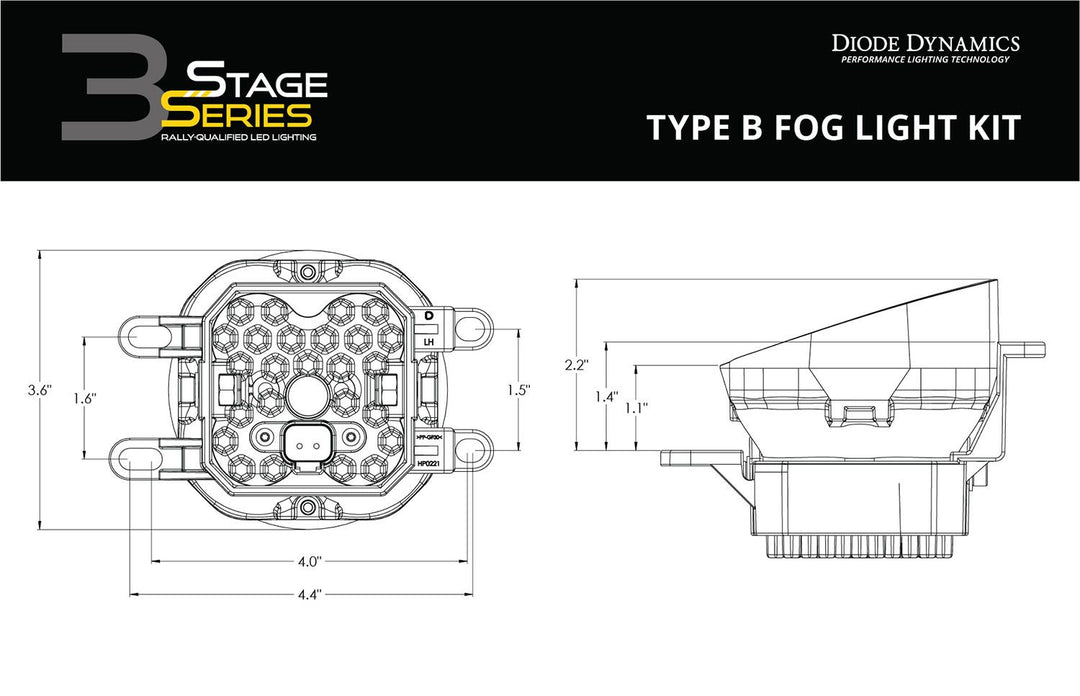

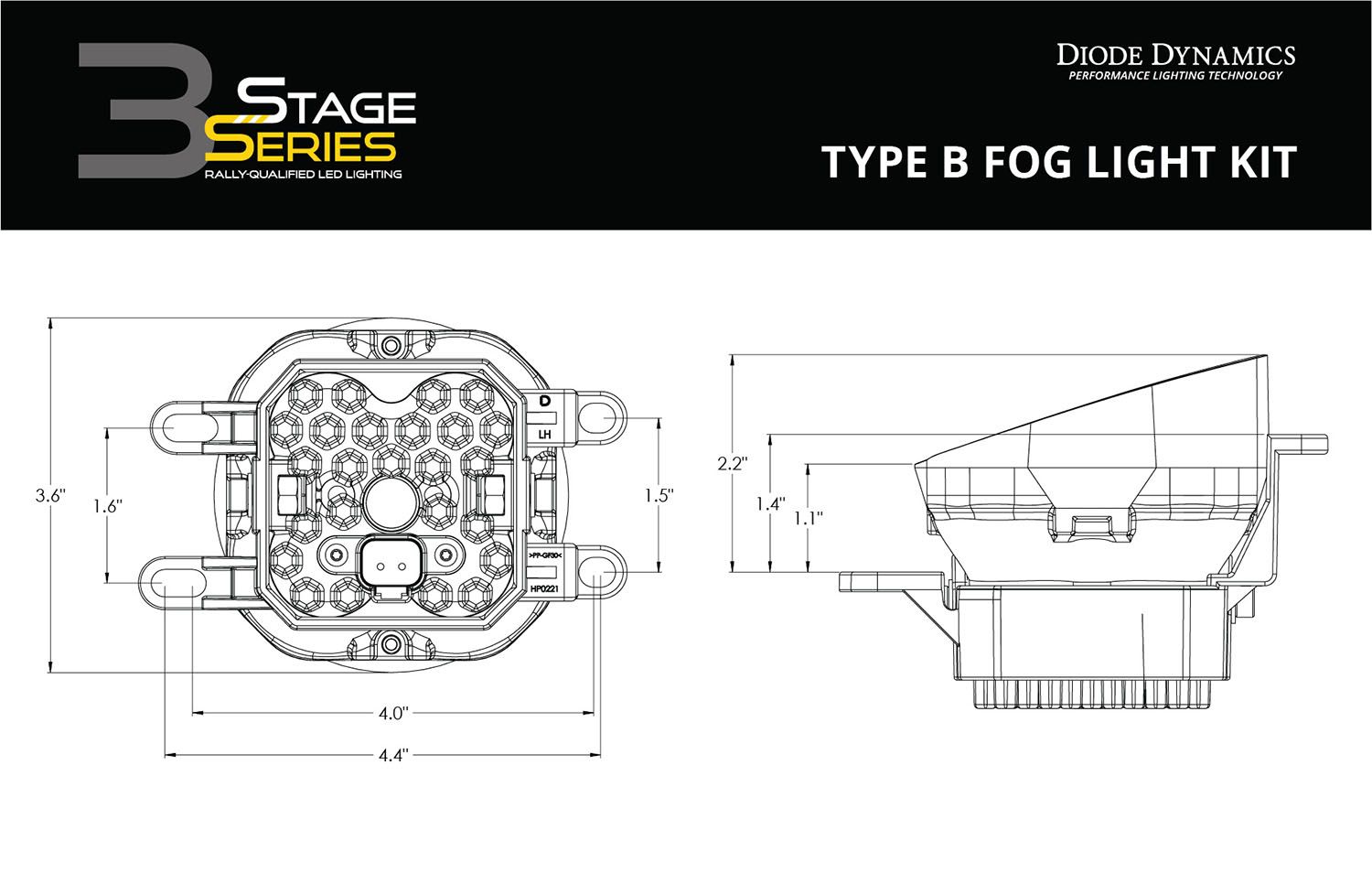

Brackets: Two (2) Type B mounting brackets
-
Wiring: Two (2) H11 4-pin DT backlight tap wires
-
Hardware: Mounting hardware and guide
-
Quantity: Pair
Warranty & installation
-
Warranty: Limited lifetime warranty
-
Return policy: 30-day returns with no restocking fee
-
Installation time: 30–60 minutes
-
Tools required: Basic toolset
-
Modification required: None
