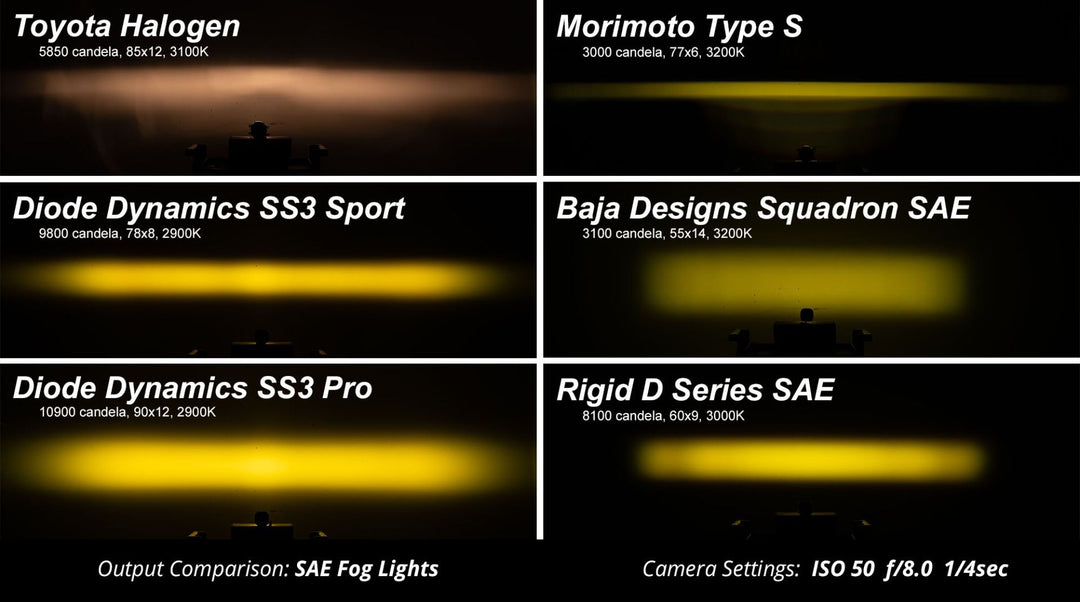

Upgrade your factory fog lights with the SS3 Fog Light Bracket Kit, delivering higher output intensity than any other 3-inch light on the market. Designed for maximum functionality, these LED pods use custom-engineered TIR optics to project highly effective beam patterns while maintaining a clean, factory-style appearance. Built in a durable, bolt-on package, this kit offers a major performance upgrade without sacrificing OEM fit and finish.
Important note
-
Fog lamp requirement: This kit is a replacement for OEM fog lamps; vehicles without factory fog lights may require additional hardware or wiring
-
Road legality: SAE-compliant fog beam pattern when properly aimed and installed
Features
-
Direct replacement: Designed specifically to replace factory Toyota Tacoma fog lamps
-
Road-legal output: SAE-compliant fog light beam pattern for on-road use
-
Factory-style appearance: Includes custom brackets with bezels for an OEM look
-
Plug-and-play installation: No cutting, drilling, or modification required
-
TIR optic technology: Advanced optics deliver high efficiency and focused output
-
Durable construction: Powdercoated aluminum die-cast housing for long-term use
-
Made in USA: Engineered and assembled in the USA using global materials
Output color options
-

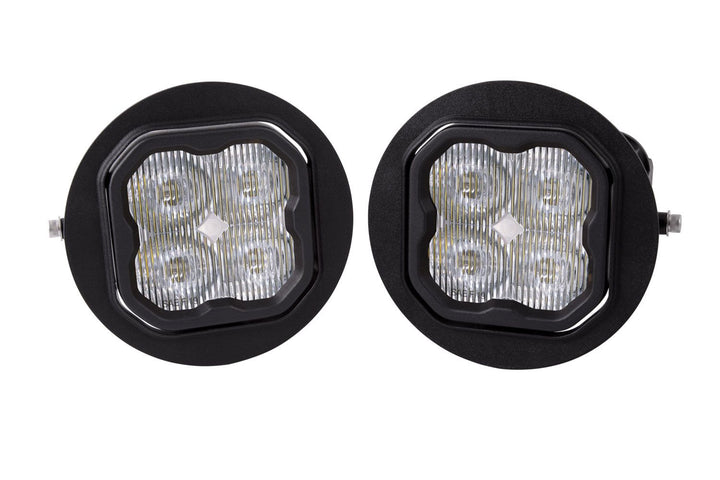

White (6000K): True cool white output that matches factory LED lighting
-

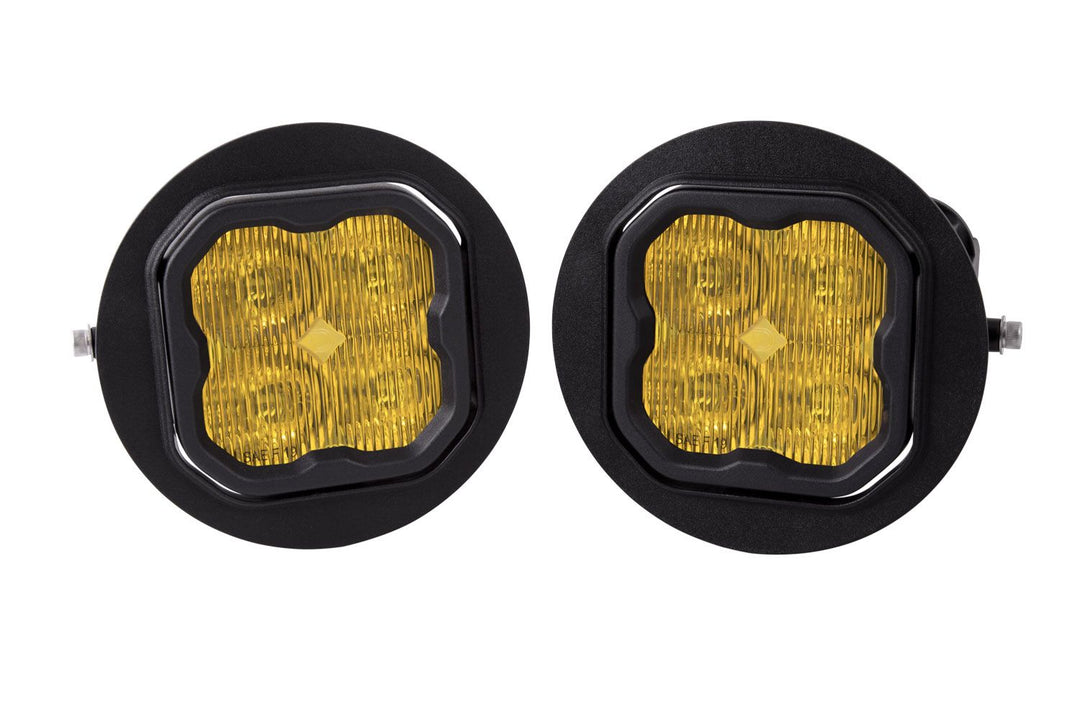

Yellow (3000K): High-contrast output ideal for poor weather conditions
Power level options
-
Sport: High-intensity output with excellent performance and value
-
Pro: Increased power and brightness for demanding conditions
-
Max: Maximum output using advanced automotive LED emitters
Specifications (per pod)
-
Measured output: Up to 3,500 lumens depending on model
-
Raw output: Up to 7,920 lumens depending on model
-
Beam angle: Fog pattern, 80° x 8°
-
Operating voltage: 9–30V
-
Power consumption:
- Sport: 14.5W
- Pro: 36W
- Max: 38.5W
-
Current draw:
- Sport: 1.1A
- Pro: 2.7A
- Max: 3.0A
-

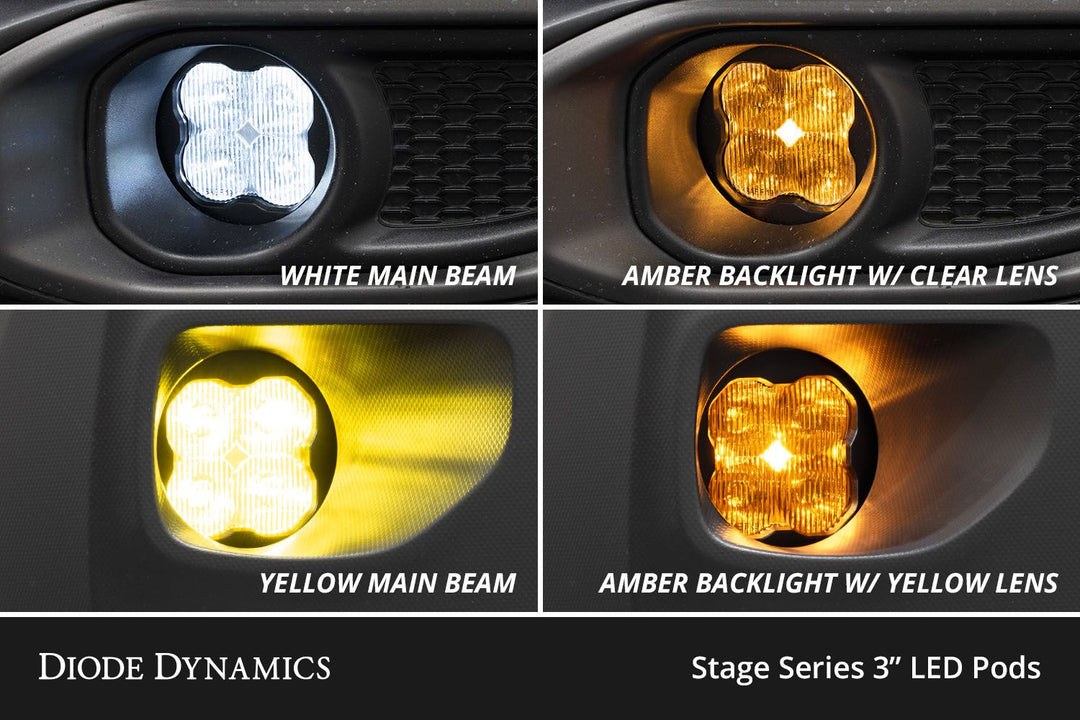

Backlight power: 0.4W
-
Operating temperature: -40°F to 185°F
-
Ingress rating: IP69K waterproof
-
Materials: Polycarbonate lens, aluminum casting, rubber gasket
Vehicle fitment
-
Application: Fog light
-
Make: Toyota
-
Model: Tacoma
-
Years: (2005–2011)
Included in the box
-

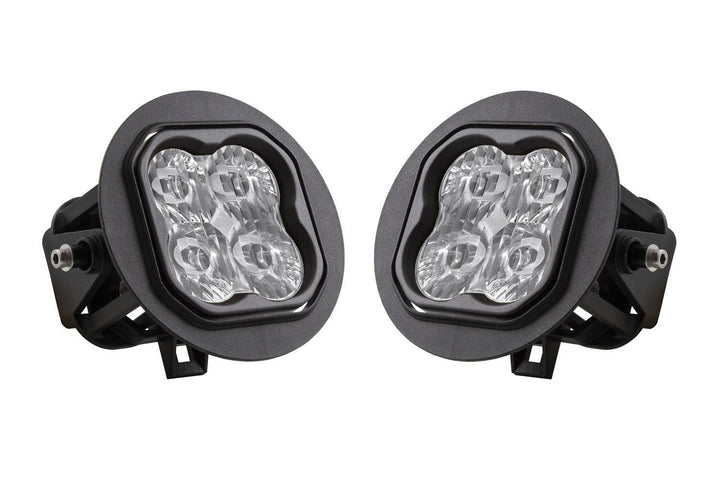

LED pods: Two (2) SS3 3-inch standard LED pods
-
Wiring adapters: Two (2) 9006 DT adapters
-
Mounting hardware: Vehicle-specific brackets and hardware
-
Quantity: Pair (left and right side)
Warranty and returns
-
Warranty: Lifetime warranty
-
Returns: 30-day return policy with no restocking fee
-
Guarantee: 100% satisfaction guaranteed
Installation
-
Installation time: 30–60 minutes
-
Tools required: Basic toolset
-
Modification: None required
