Upgrade your Tacoma’s fog lights with a true performance-driven solution. The SS3 Fog Light Bracket Kit delivers higher output intensity than any other 3-inch light on the market, while maintaining a clean, factory-style appearance. Using advanced TIR optics and precision-engineered mounting brackets, this kit provides dramatically improved visibility with a simple bolt-on, plug-and-play installation.
Designed, engineered, and assembled by Diode Dynamics, the SS3 fog kit is built for drivers who want real performance—not just LED looks.
Important note
-
Compatibility: This kit is not compatible with TRD Pro models
-
Fog light requirement: Designed as a replacement for OEM fog lamps; vehicles without factory fog lights may require additional hardware
-
Legal use: SAE J583 compliant when installed and aimed properly—always verify local regulations
Features
-
Direct replacement: Designed to bolt directly into factory fog light locations on Toyota Tacoma
-
SAE compliant output: Road-legal fog beam pattern when properly aimed
-
Factory-style bezel: Angled bezels maintain an OEM look with improved performance
-
Plug and play: Uses factory fog light connectors with no cutting or splicing
-
TIR optics: Custom-engineered optics maximize efficiency and usable light
-
Amber backlight: Integrated amber accent lighting for added visibility and style
-
Durable housing: Powder-coated aluminum die-cast construction
-
Made in USA: Engineered and assembled in the USA using global materials

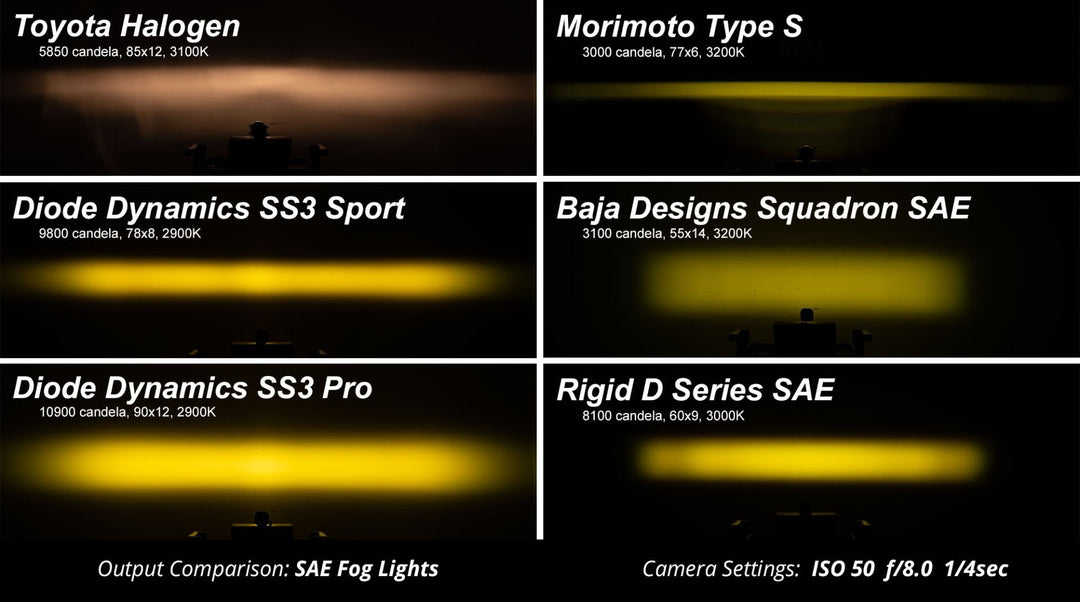

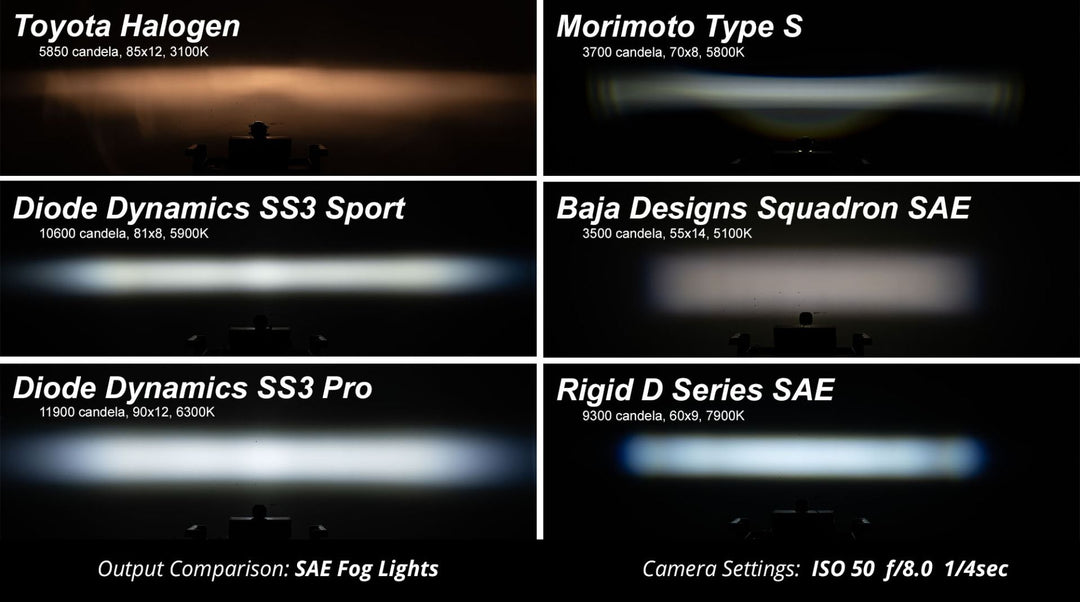

Beam pattern and performance
-
SAE fog (FineLine optic):
- Extremely wide 80-degree horizontal spread
- Smooth output with a sharp cutoff to minimize glare
- Ideal for poor weather, night driving, and trail use
When installed as a pair and aimed correctly, the fog pattern meets SAE J583 standards for legal on-road use.

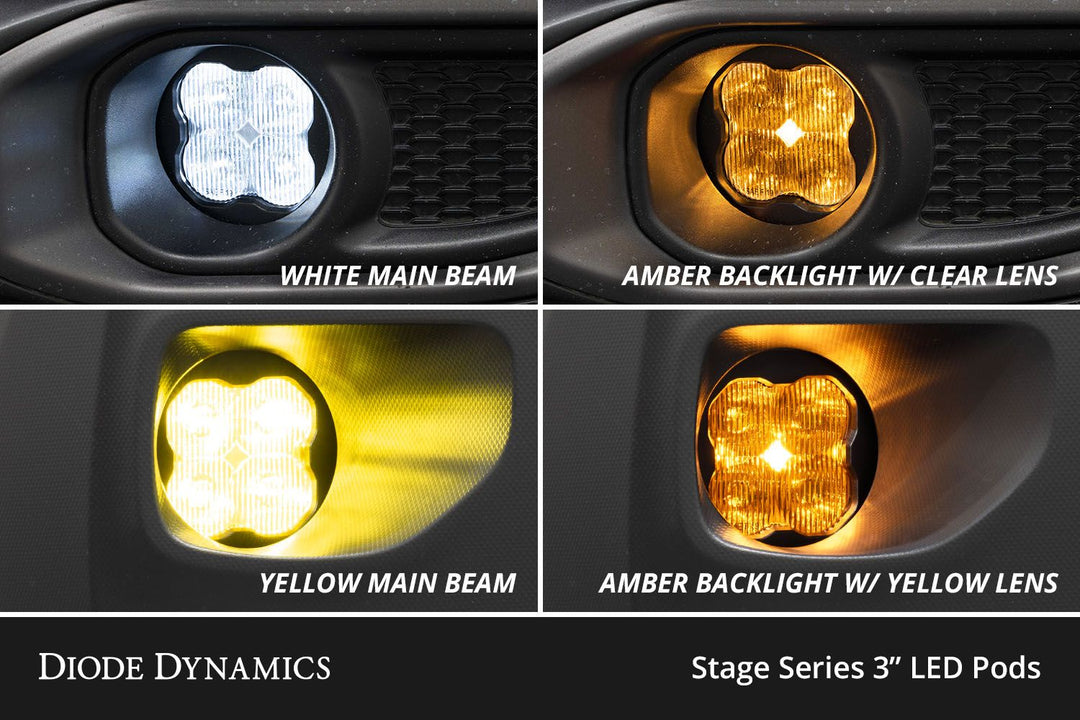

Backlight functionality
Each SS3 LED pod includes an integrated amber backlight that fully illuminates the TIR optic. This backlight can be wired to DRLs, parking lights, or another constant 12V source using the included harness, providing a clean accent light when the main beam is off.
Color and power options
-
White (6000K): Matches factory LEDs with crisp, modern output
-

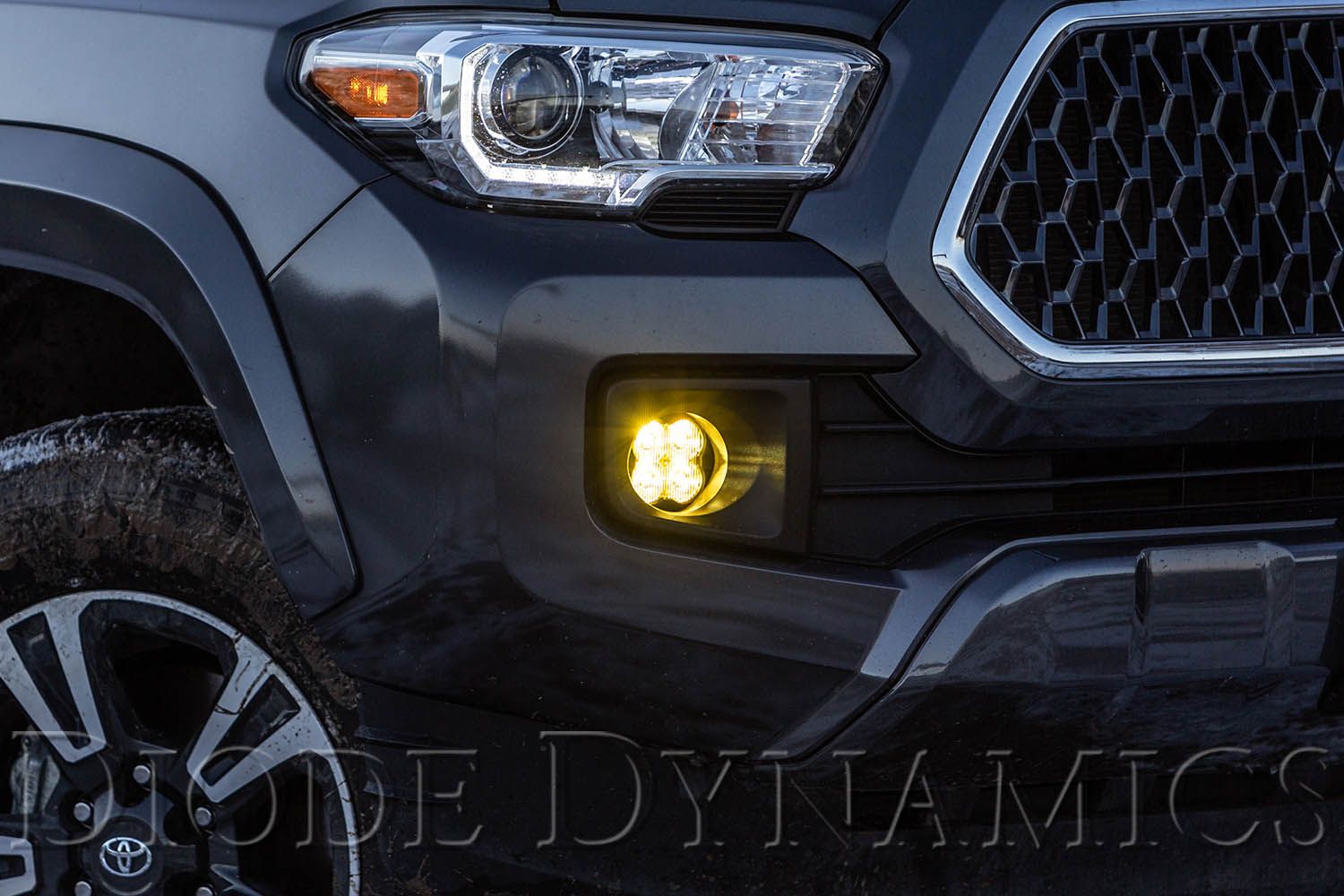

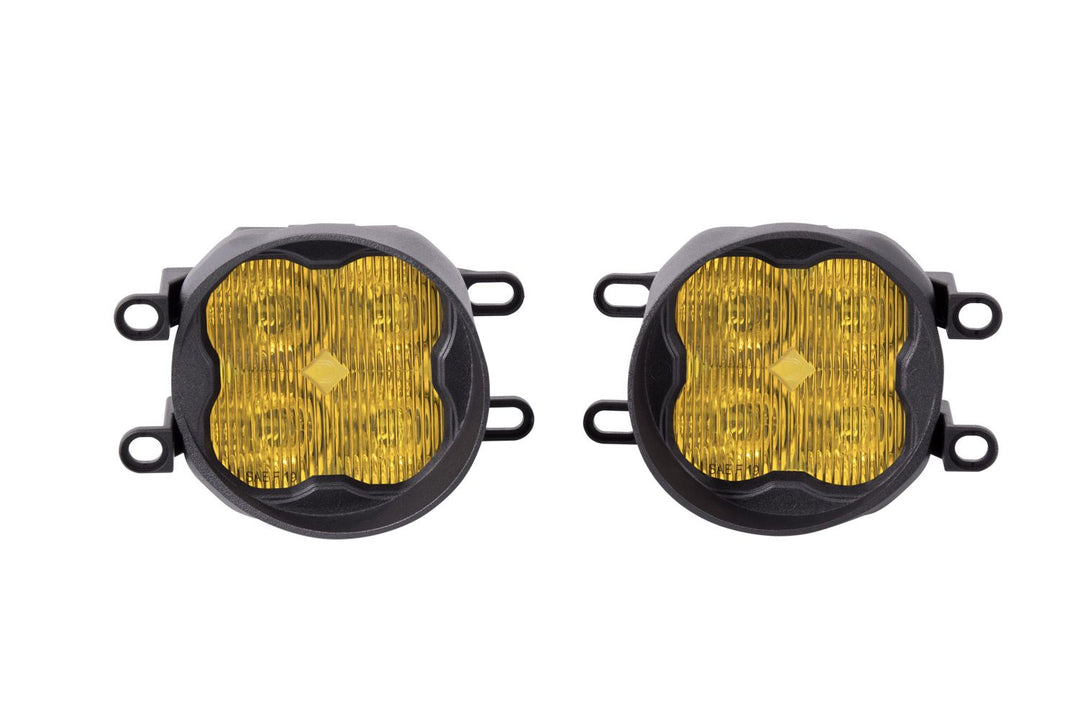

Yellow (3000K): Increased contrast in fog, rain, snow, and dust
Power levels available
-
Sport: Best balance of performance and value
-
Pro: Increased output for demanding conditions
-
Max: Maximum intensity using cutting-edge automotive LED technology
Specifications (per pod)
Fog white
- Sport: 1,520 lm measured / 2,262 lm raw
- Pro: 3,000 lm measured / 5,796 lm raw
- Max: 3,500 lm measured / 7,920 lm raw

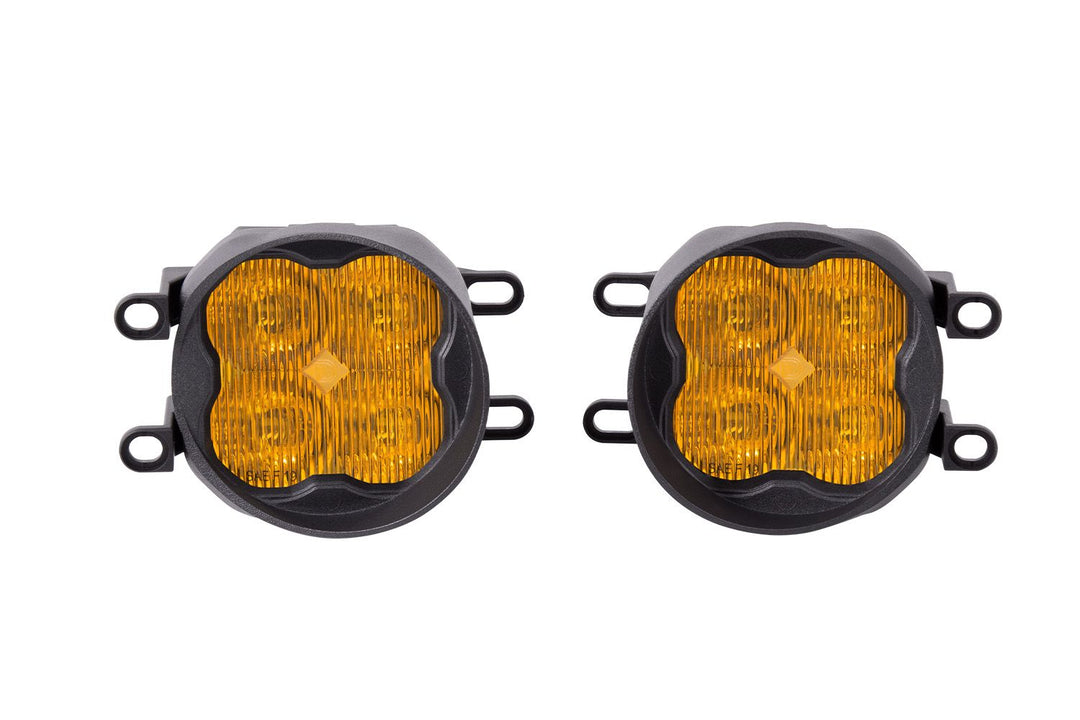

Fog yellow
- Sport: 1,300 lm measured / 1,930 lm raw
- Pro: 2,700 lm measured / 5,220 lm raw
- Max: 3,500 lm measured / 7,920 lm raw
Additional specs
-
Beam angle: Fog, 80° × 8°
-
Main beam power: Sport 14.5W | Pro 36W | Max 38.5W
-
Backlight power: 0.4W
-
Operating voltage: 9–30V
-
Ingress rating: IP69K waterproof
-
Operating temperature: -40°C to 85°C
What’s included

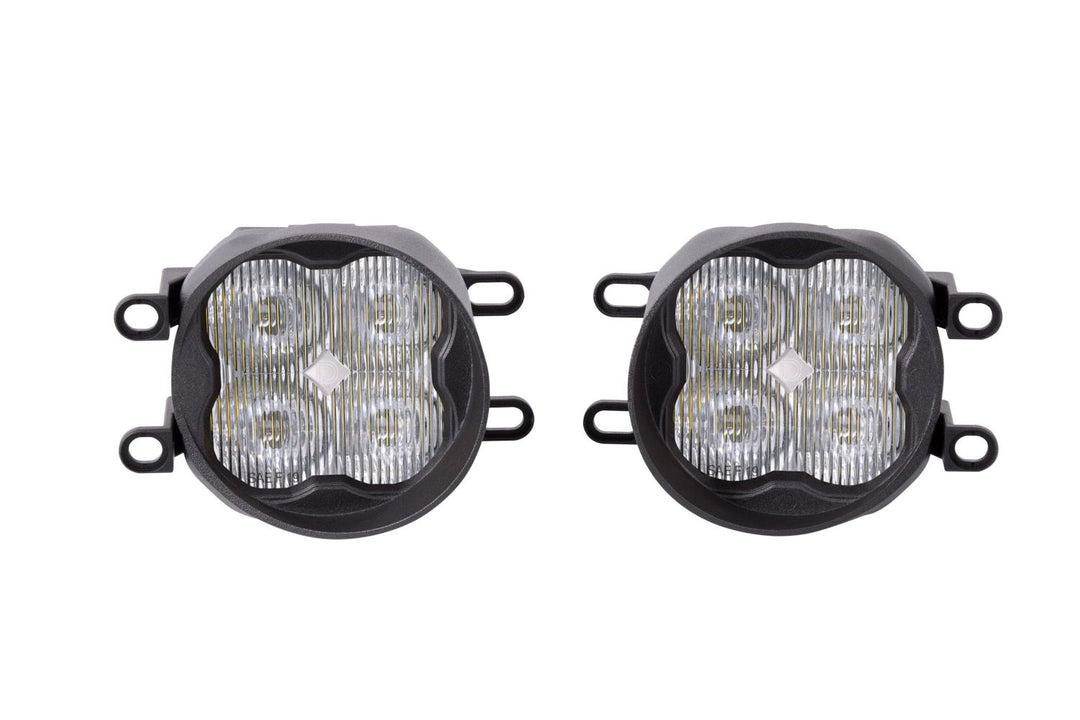

- Two (2) SS3 3-inch angled LED pods

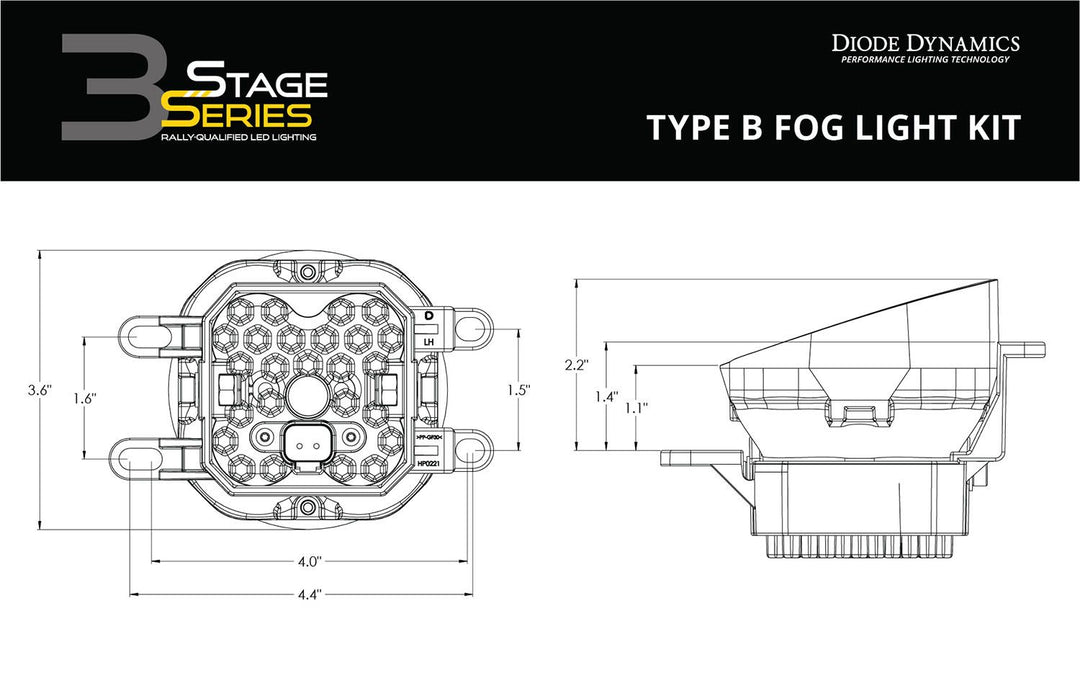

- Two (2) Type B Tacoma fog light brackets
- Two (2) H11 4-pin DT backlight tap wires
- Mounting hardware
- Installation guide
Vehicle fitment
-
Application: Fog light
-
Make: Toyota
-
Model: Tacoma
-
Years: 2016–2023
Installation
-
Install time: 30–60 minutes
-
Tools required: Basic hand tools
-
Modification required: None
Backlight wire reference
- Driver side DRL: Pin 2 – Violet
- Passenger side DRL: Pin 2 – Yellow
Warranty and returns
-
Warranty: Limited lifetime warranty
-
Return policy: 30-day returns with no restocking fee
-
Guarantee: 100% satisfaction guaranteed
