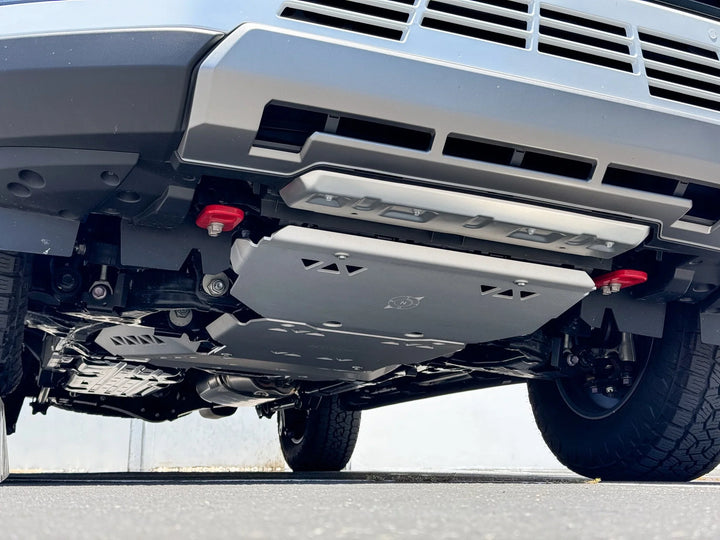

The NYTOP Skid Plate Assembly for the Lexus GX550 is engineered to deliver comprehensive underbody protection for demanding on-road and off-road use. Constructed from thick, TIG welded aluminum, this skid system protects critical components including the engine, transmission, and catalytic converter. Designed with a modular layout for serviceability, it offers strength, coverage, and convenience without compromising fitment or functionality.
Important Notes
Non-hybrid only – Fits all non-hybrid Lexus GX550 trims.
Jacking caution – Do not use the skid plates as jacking points unless the billet jacking block is installed. Only jack directly below the billet jacking block.
Features
Full underbody protection – Shields the engine, transmission, and catalytic converter.
Heavy-duty construction – TIG welded from 1/4-inch aluminum for maximum strength.
Modular design – 3-piece configuration allows easy removal for maintenance and service access.
Direct bolt-on install – Designed for factory mounting locations with no drilling required.
Trail-ready design – Built to handle harsh off-road and overland conditions.
Specifications
Product type – Skid plate assembly
Material – 1/4-inch aluminum
Construction – TIG welded
Design – Modular 3-piece system
Installation – Bolt-on
Torque specs –
M8 bolts: 21 ft-lbs / 29 Nm
M10 bolts: 48 ft-lbs / 65 Nm
Vehicle Fitment
Lexus GX550 (non-hybrid) – (2024–Present
Non-hybrid only – Fits all non-hybrid Lexus GX550 trims.
