Name: BTF Fabrication Long Travel Suspension for Sequoia/Tundra (1st Gen)
Brand: BTF Fabrication
Price: 3149.99 USD
Availability: InStock

BTF Fabrication Long Travel Suspension for Sequoia/Tundra (1st Gen)

$3,149.99

Shipping calculated at checkout.

Select Year

1999-2003

2004-2006

Select Drivetrain

2WD; No Axles Needed

4WD; Include CV Axles

Select Finish // UCA Options

Raw; No Powdercoat // Non-Adjustable UCAs w/ Poly Bushings

Gunmetal Powdercoat // Non-Adjustable UCAs w/ Poly Bushings

Raw; No Powdercoat // Adjustable UCAs w/ Heim Joints

Gunmetal Powdercoat // Adjustable UCAs w/ Heim Joints

Low stock - 10 items left
Backordered, shipping soon

Transform the off-road capability of your vehicle with this Long Travel Suspension Kit designed to dramatically increase wheel travel, suspension strength, and overall off-road performance. With a wider track width and extended suspension geometry, this system allows up to 15 inches of usable wheel travel, giving your truck the articulation and stability needed for rock crawling, trail running, and high-speed desert driving.

Engineered with heavy-duty control arms, upgraded uniballs, and reinforced components, this kit replaces critical factory suspension parts with stronger, performance-focused hardware designed for demanding off-road environments.

Important notes

• Lead time: 8–12 week lead time depending on options and material availability
• Build process: Built to order
• Sales policy: All sales final once ordered

Key features

• Increased suspension travel: Allows up to 15 inches of usable wheel travel
• Wider suspension geometry: Track width increases by 4.5 inches per side for improved stability
• Forward wheel placement: Moves the wheel 1 inch forward for additional firewall clearance
• Heavy-duty uniballs: 1 inch FK uniballs replace factory ball joints for increased strength and durability
• Upgraded bushings: Stock rubber bushings replaced with durable polyurethane bushings or optional heim joints
• Performance control arms: Boxed upper and lower control arms designed for strength and articulation
• Extended brake lines: Steel braided brake lines replace factory hard and soft lines for improved durability

Specifications

• Track width increase: 4.5 inches per side
• Wheel placement: 1 inch forward for firewall clearance
• Maximum wheel travel: Up to 15 inches
• Uniball size: 1 inch FK uniballs
• Control arm finish: Raw steel or powder coated gunmetal grey

4WD kit components

• Custom CV axles: Heat-treated 300M axle shafts
• Rebuilt CV joints: Rebuilt and rebooted OEM CV joints
• Pre-assembled axles: Ready for direct bolt-on installation

Included in the box

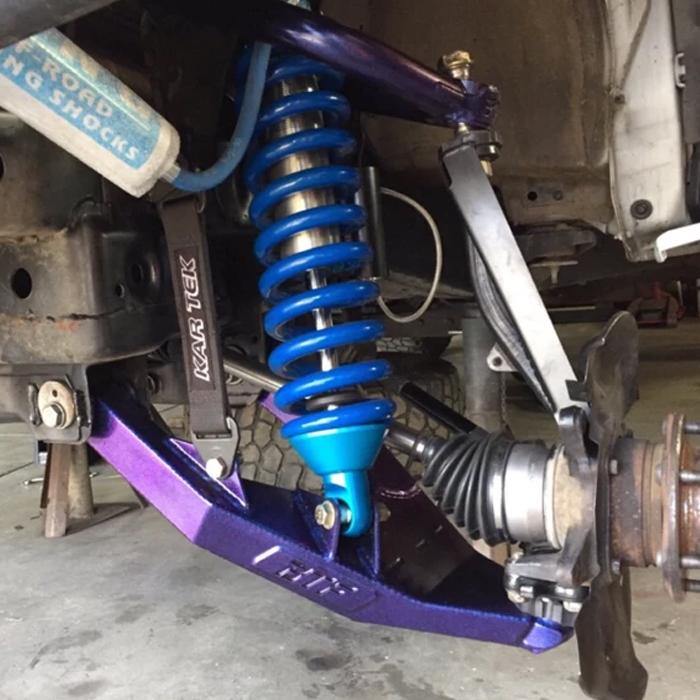

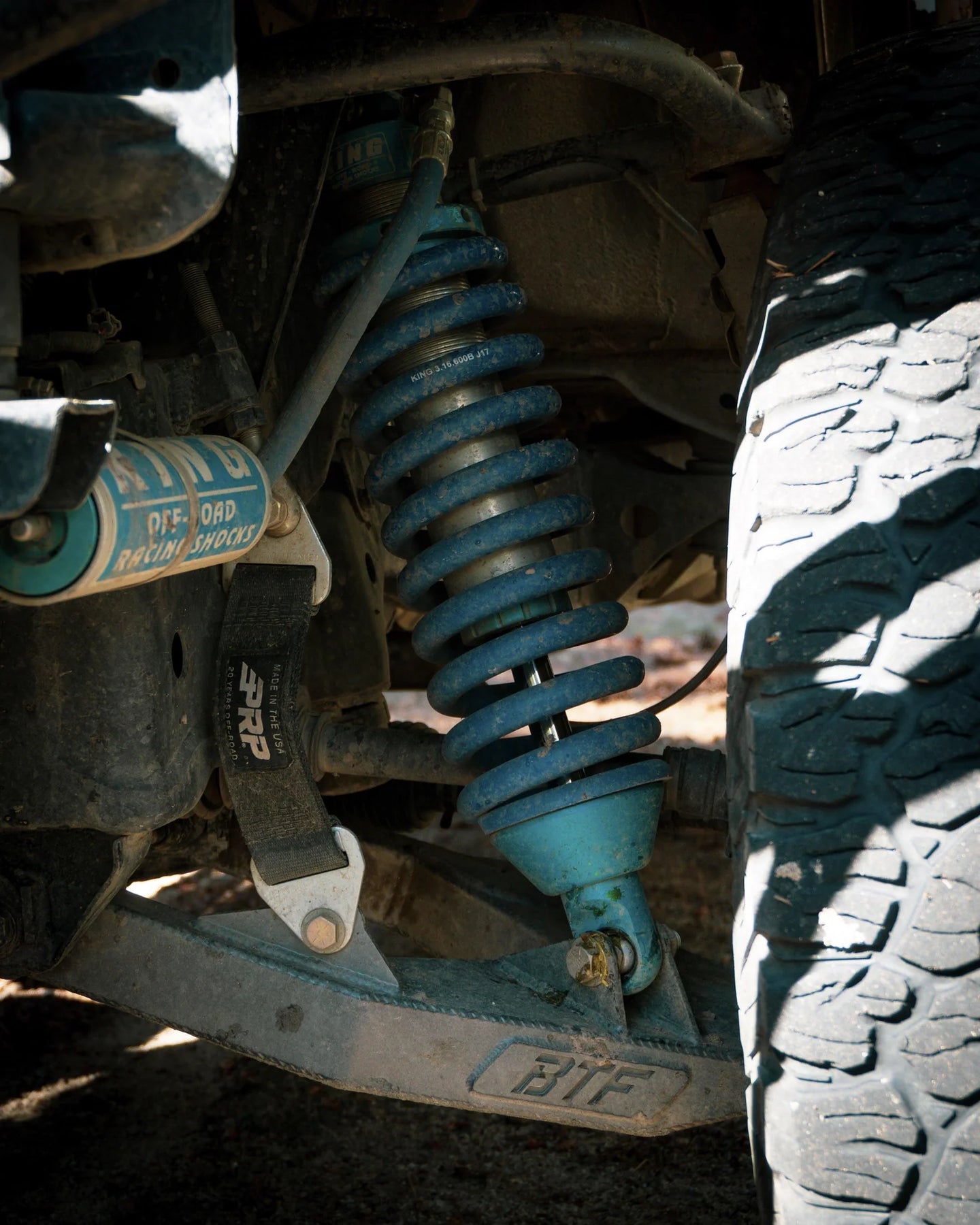

• Upper control arms: Boxed upper arms with Energy Suspension polyurethane bushings
• Lower control arms: Heavy-duty boxed lower arms
• Tie rod extensions: Steering extension components
• Brake lines: Extended steel braided brake lines
• Uniball adapters: Spindle to upper uniball adapters
• Coilover brackets: Custom coilover top brackets
• CV axles: Custom assembled CV axles for 4WD applications

Optional upgrades

• Adjustable upper arms: Available with FK heim joints
• Custom coilovers: Available as an add-on option
