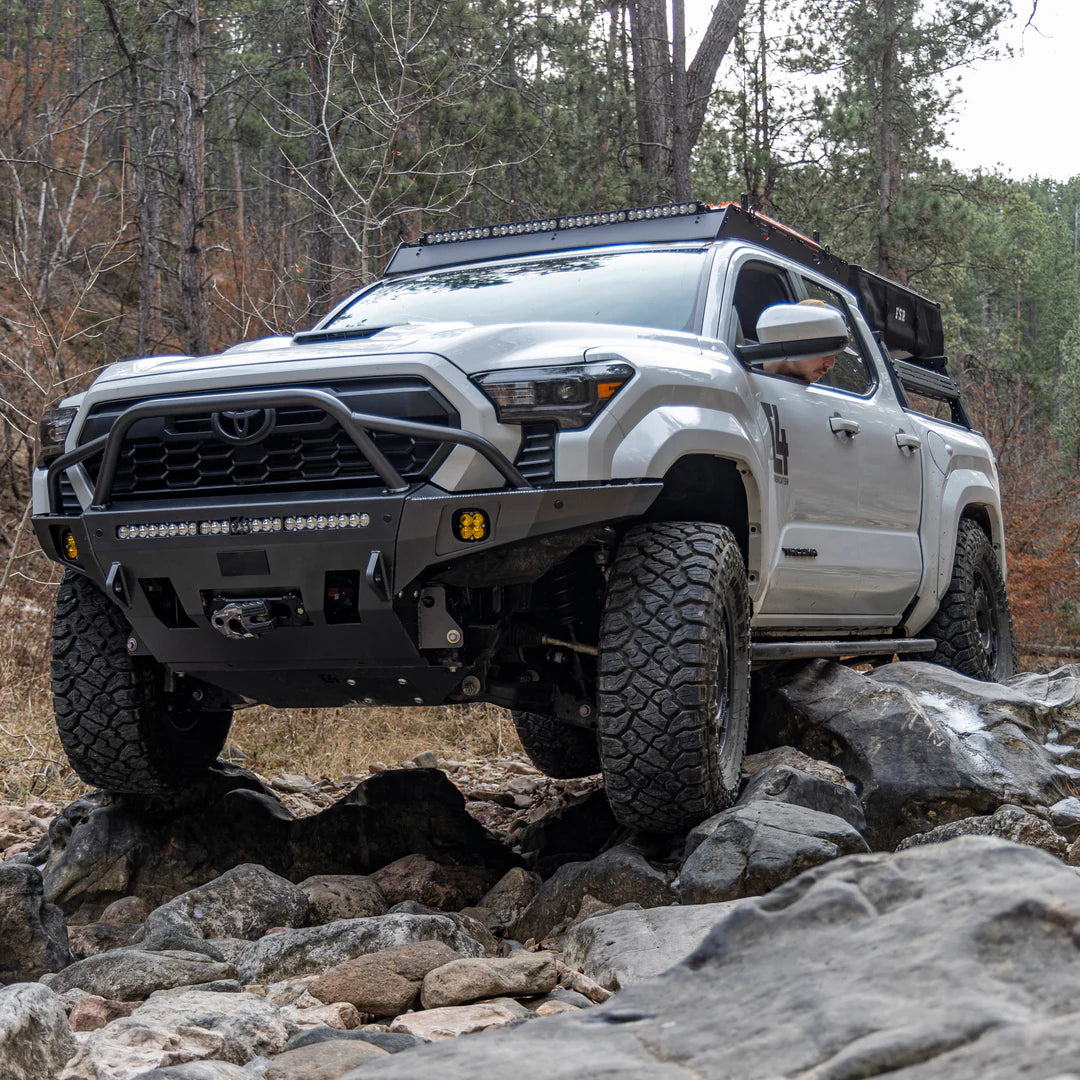

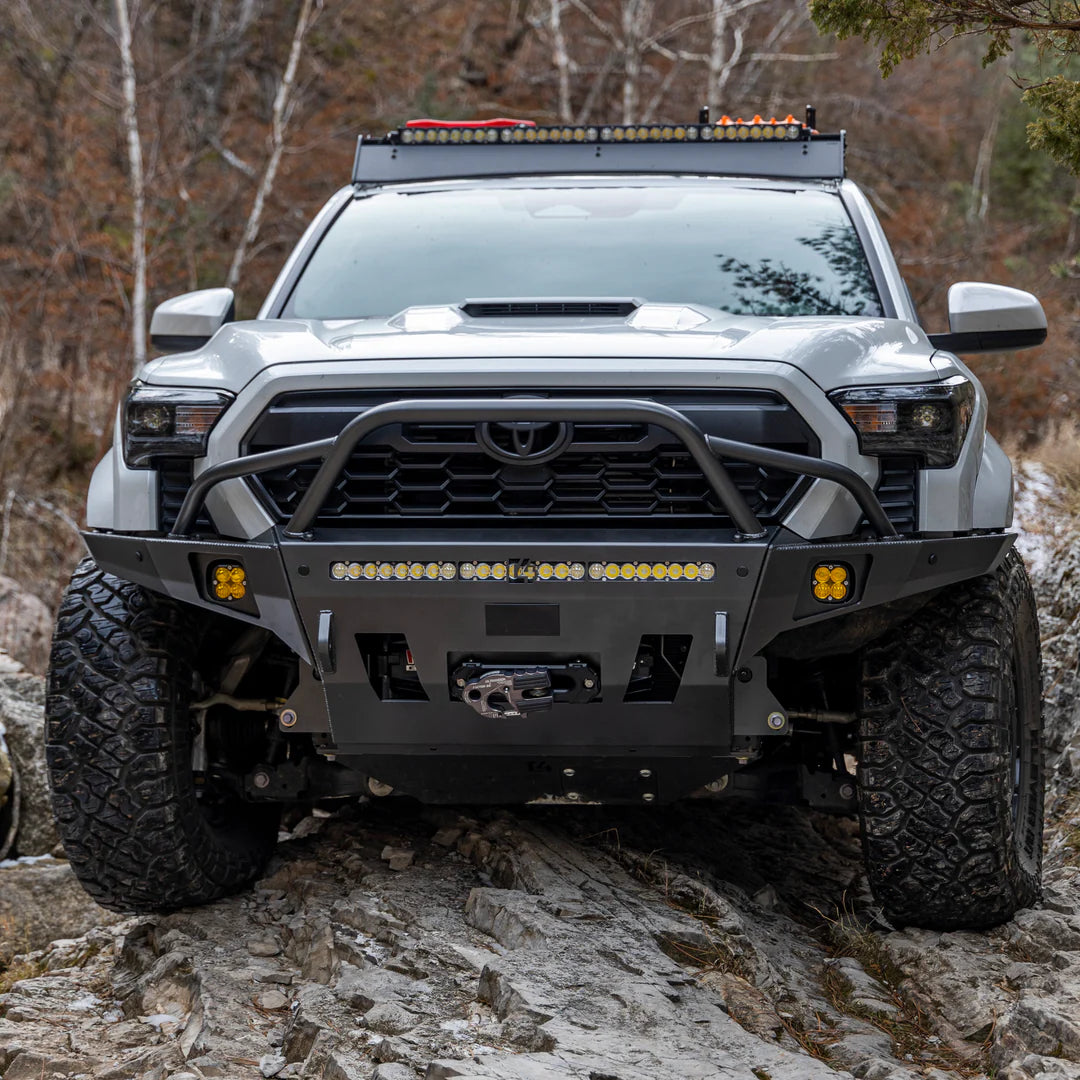

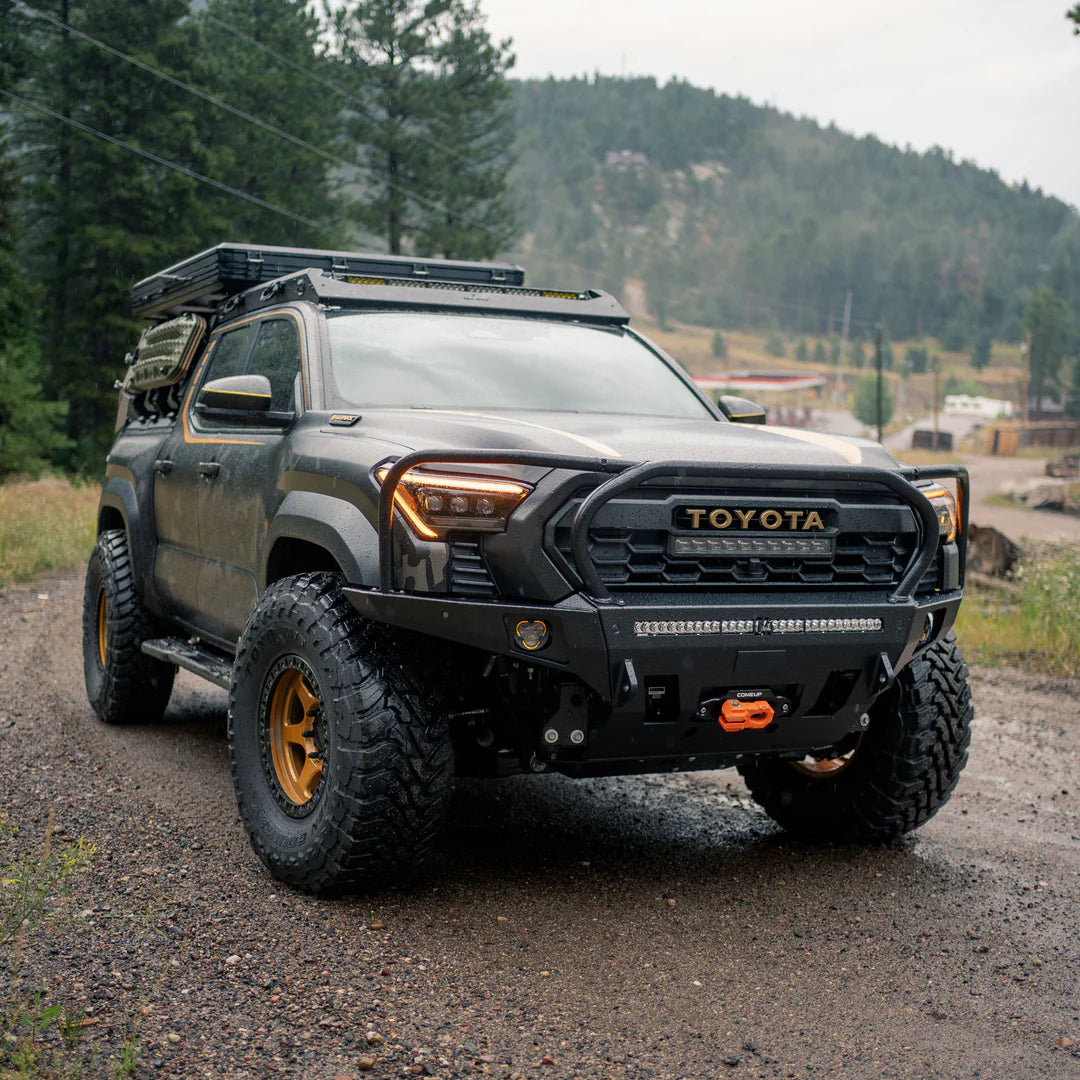

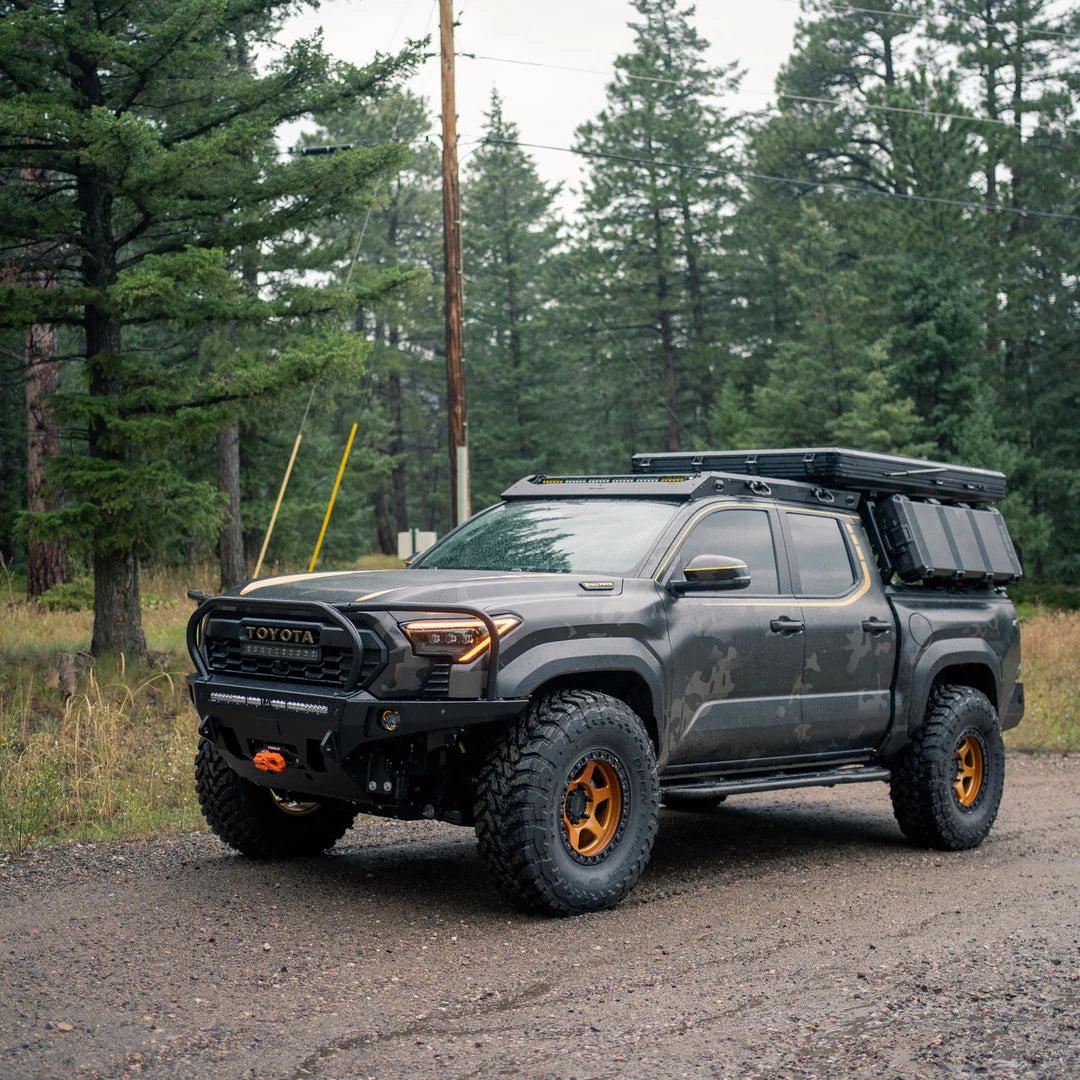

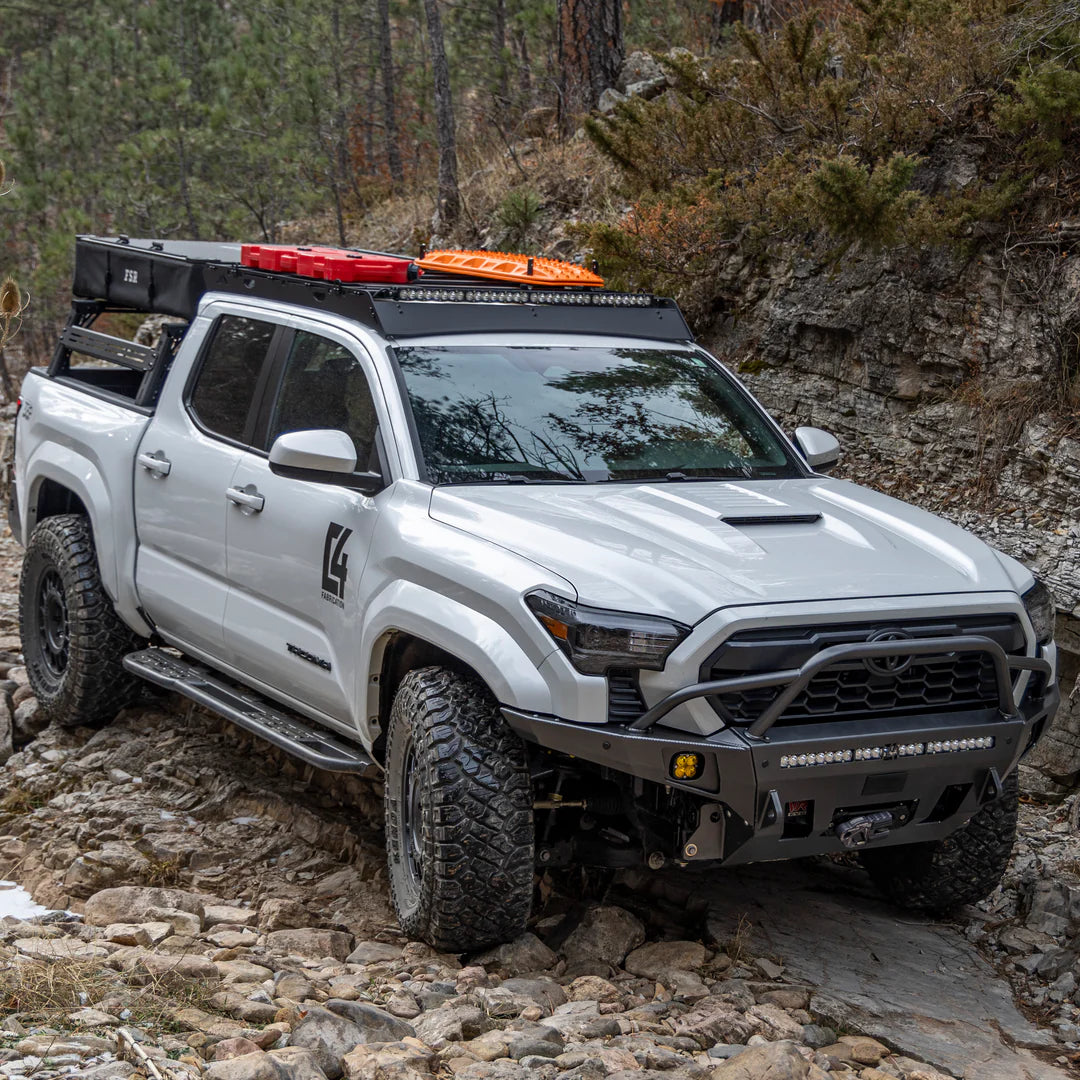

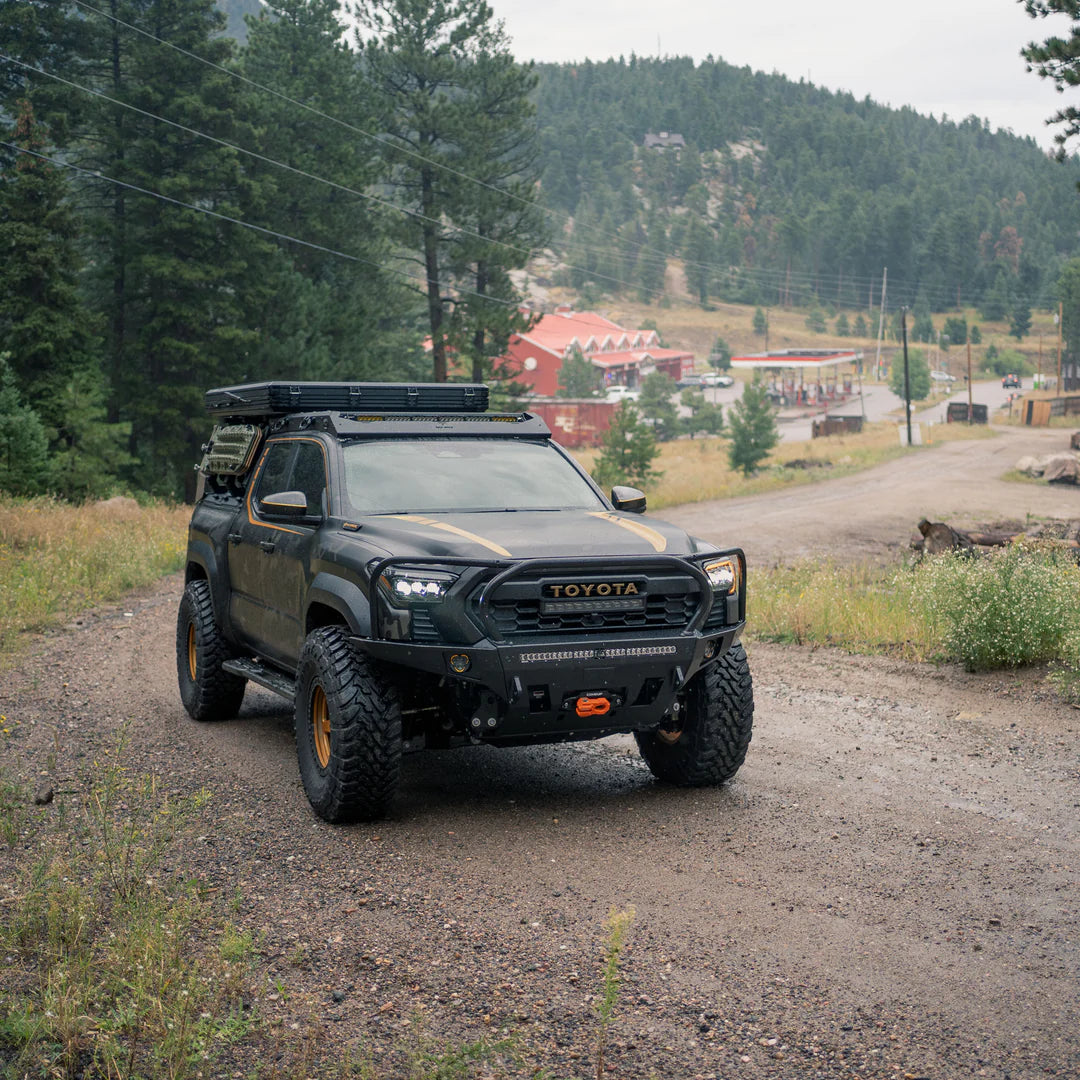

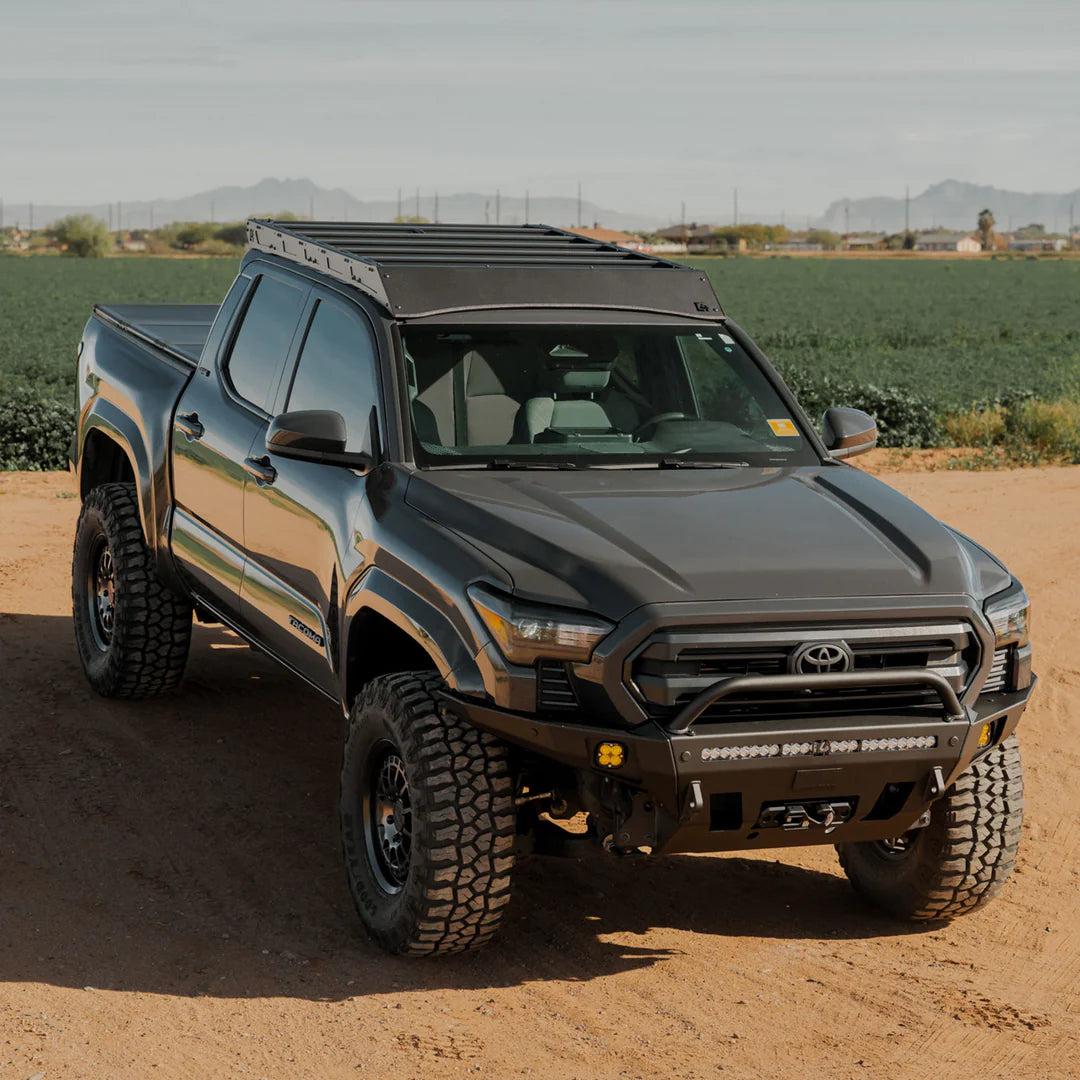

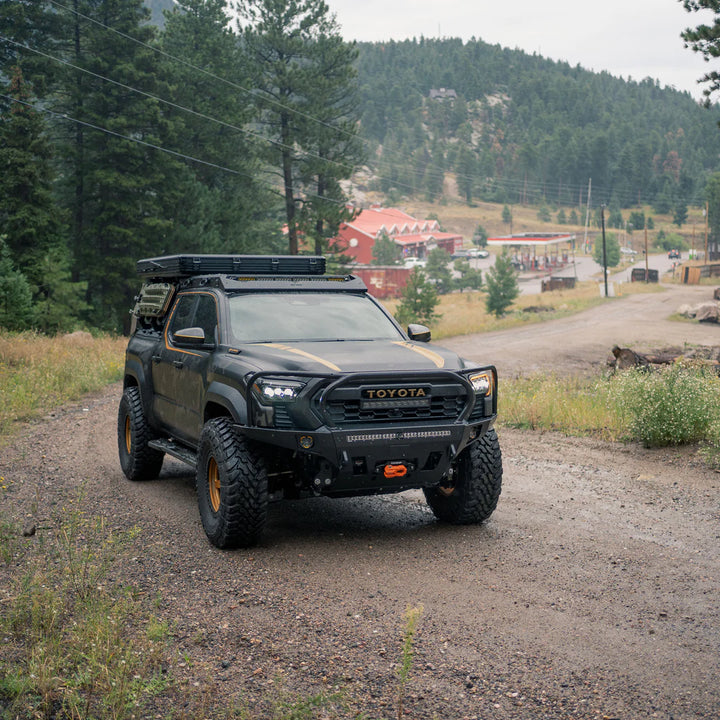

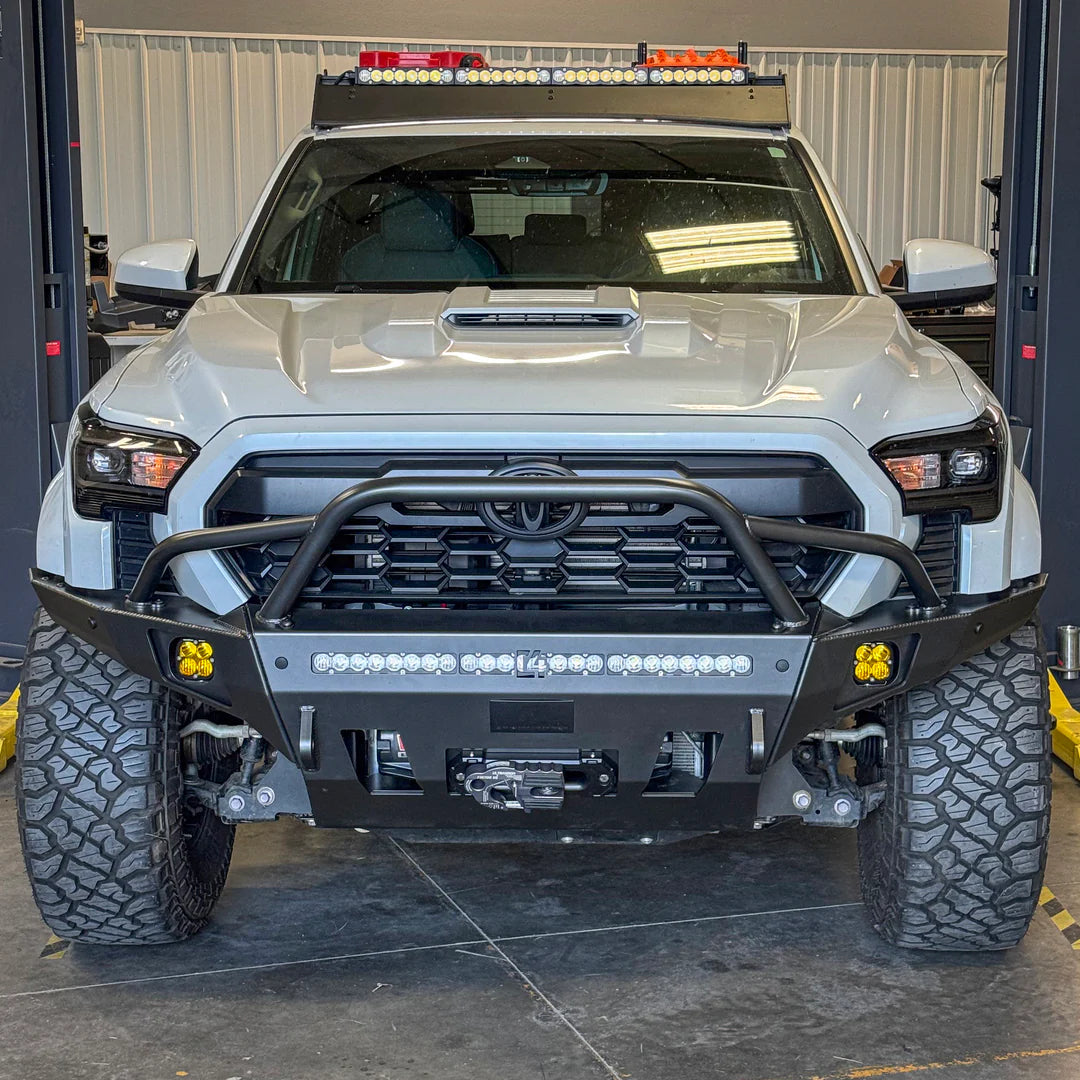

Name: C4 Fabrications Overland Front Bumper for Tacoma (2024+)
Brand: C4 Fabrication
SKU: 1224-32000-TRD
Price: 1874.0 USD
Availability: InStock

C4 Fabrications Overland Front Bumper for Tacoma (2024+)

$1,874.00

Shipping calculated at checkout.

Select Finish

Raw

Powder Coat

Select Bull Bar Option

No Bull Bar

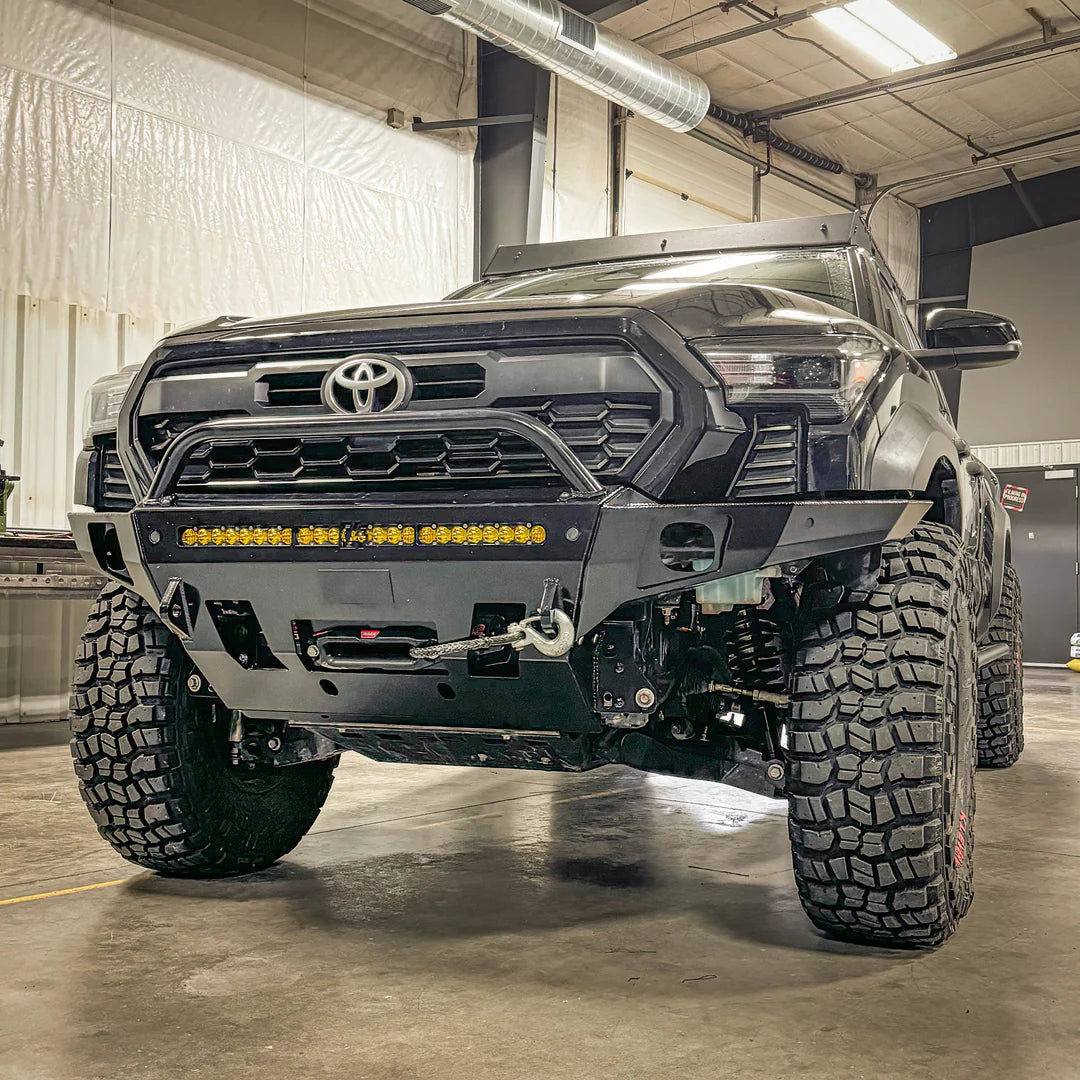

Low Bull Bar

Mid-Height Bull Bar w/ Tube Gussets

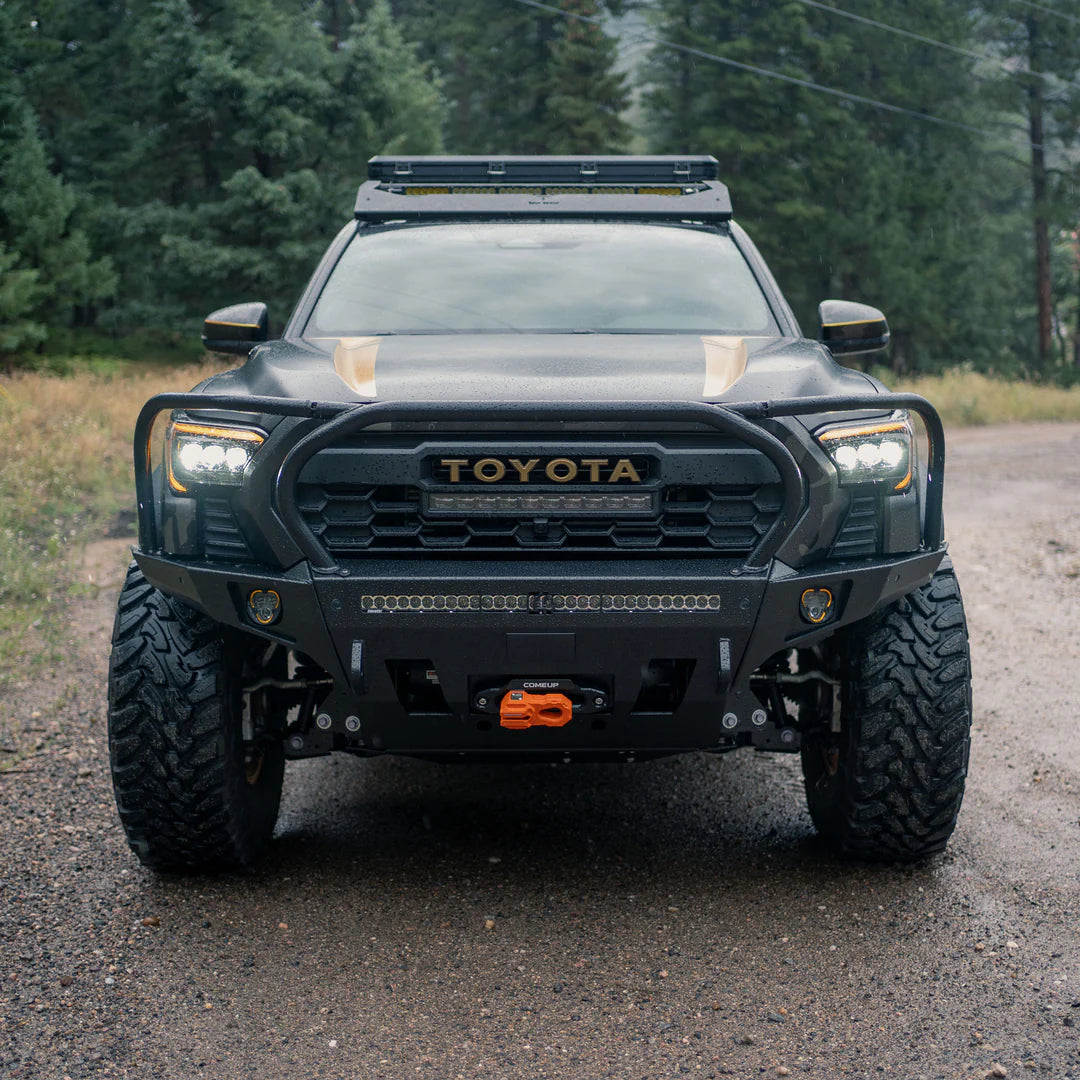

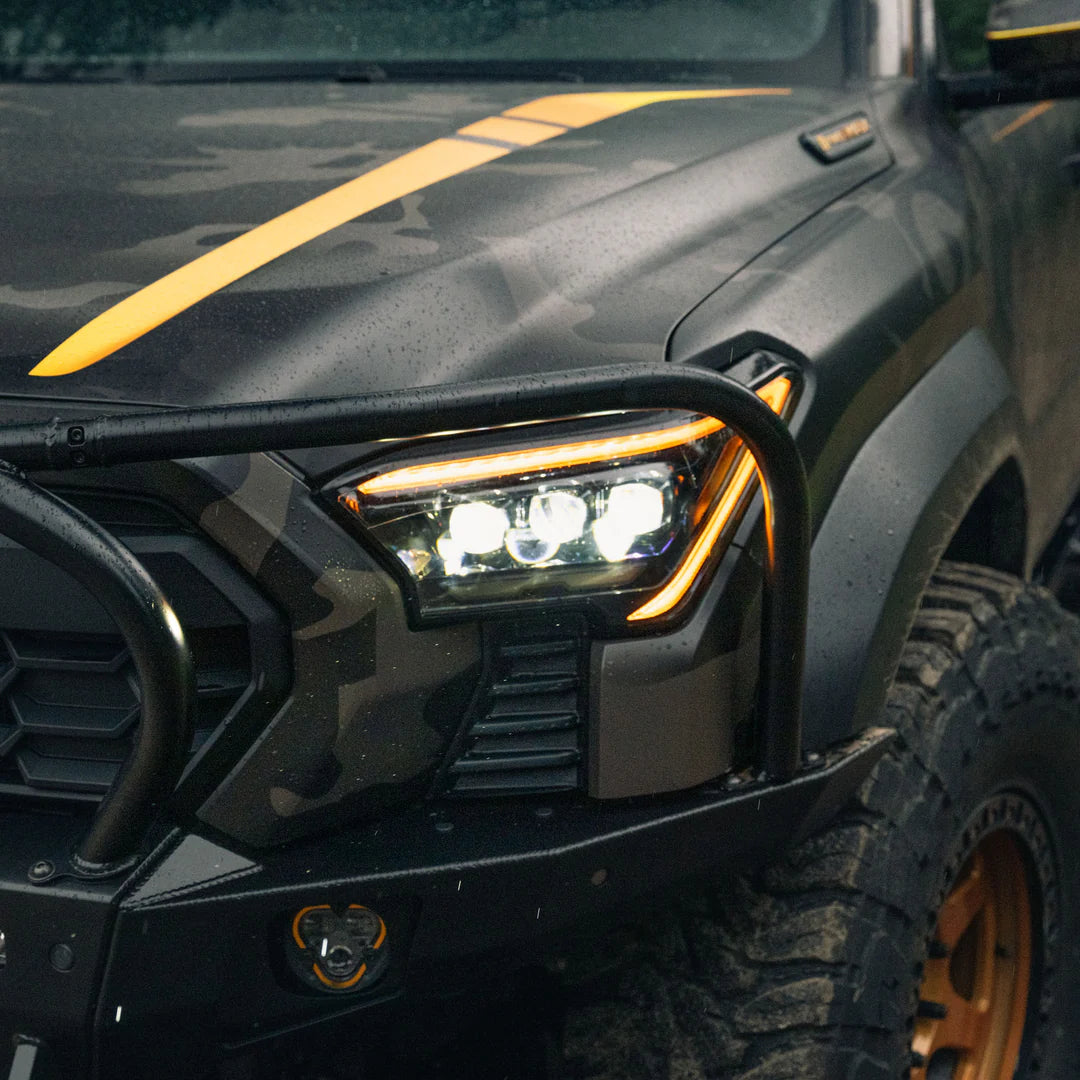

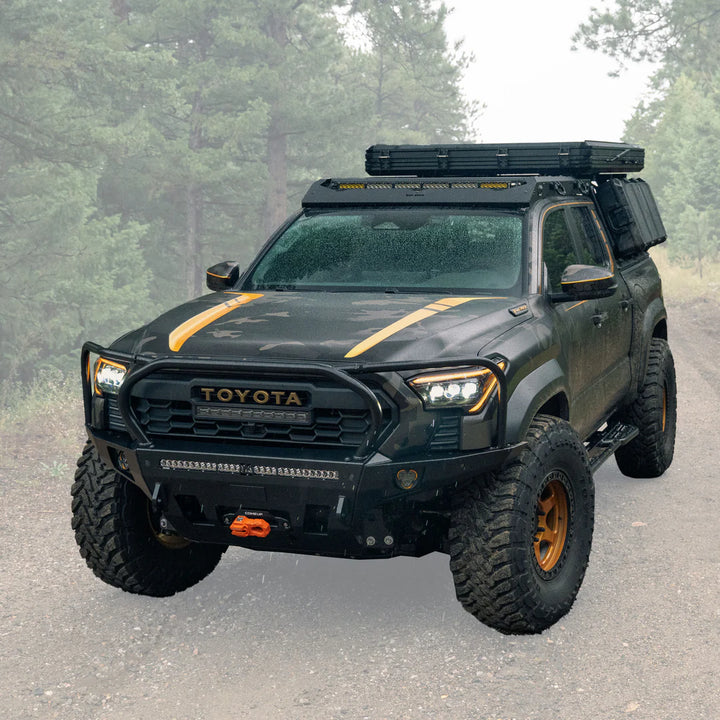

Full-Height Bull Bar w/Headlight Hoops

Select Trim Level

TRD Pro or TRD Off-Road

Anything Else

Low stock - 5 items left
Backordered, shipping soon

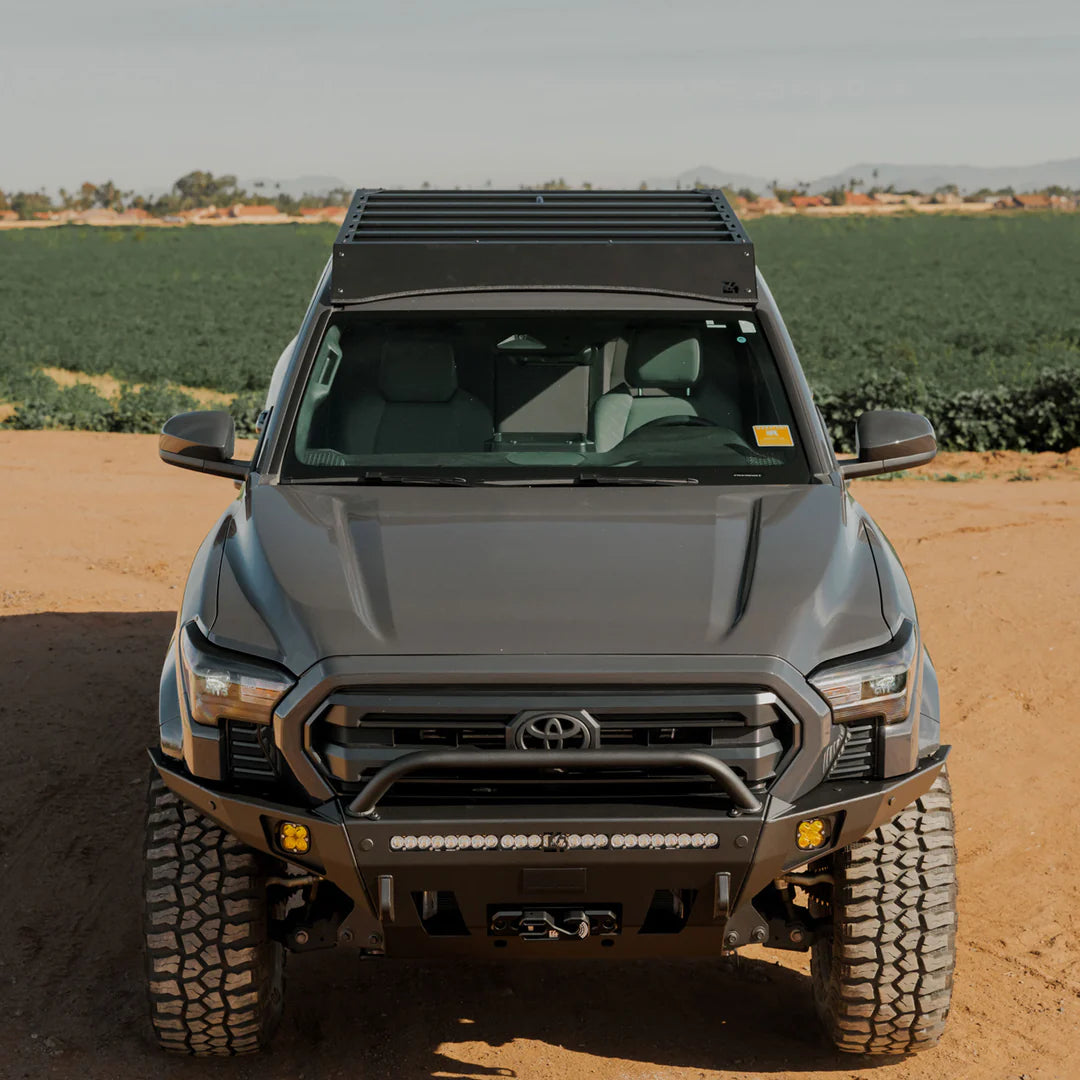

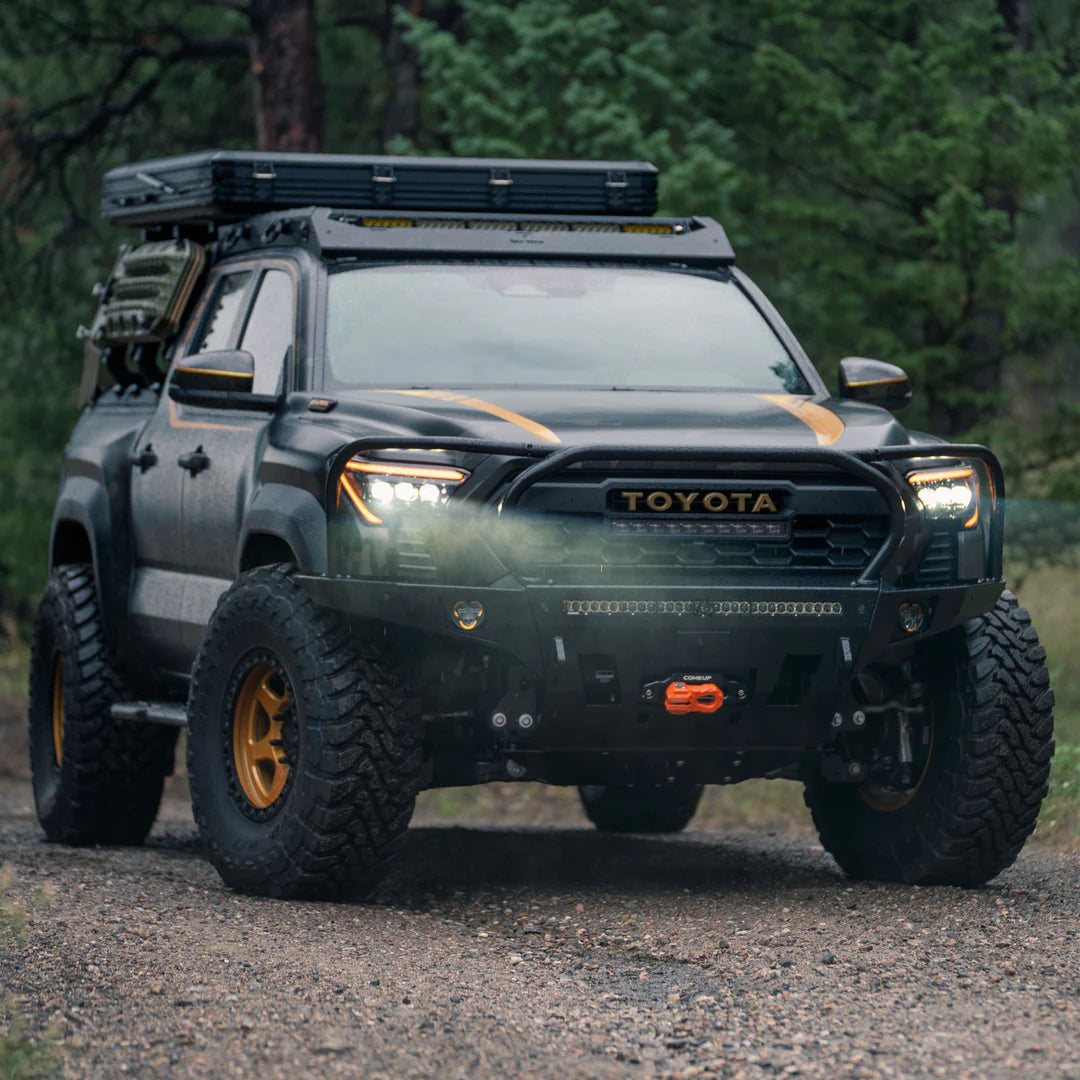

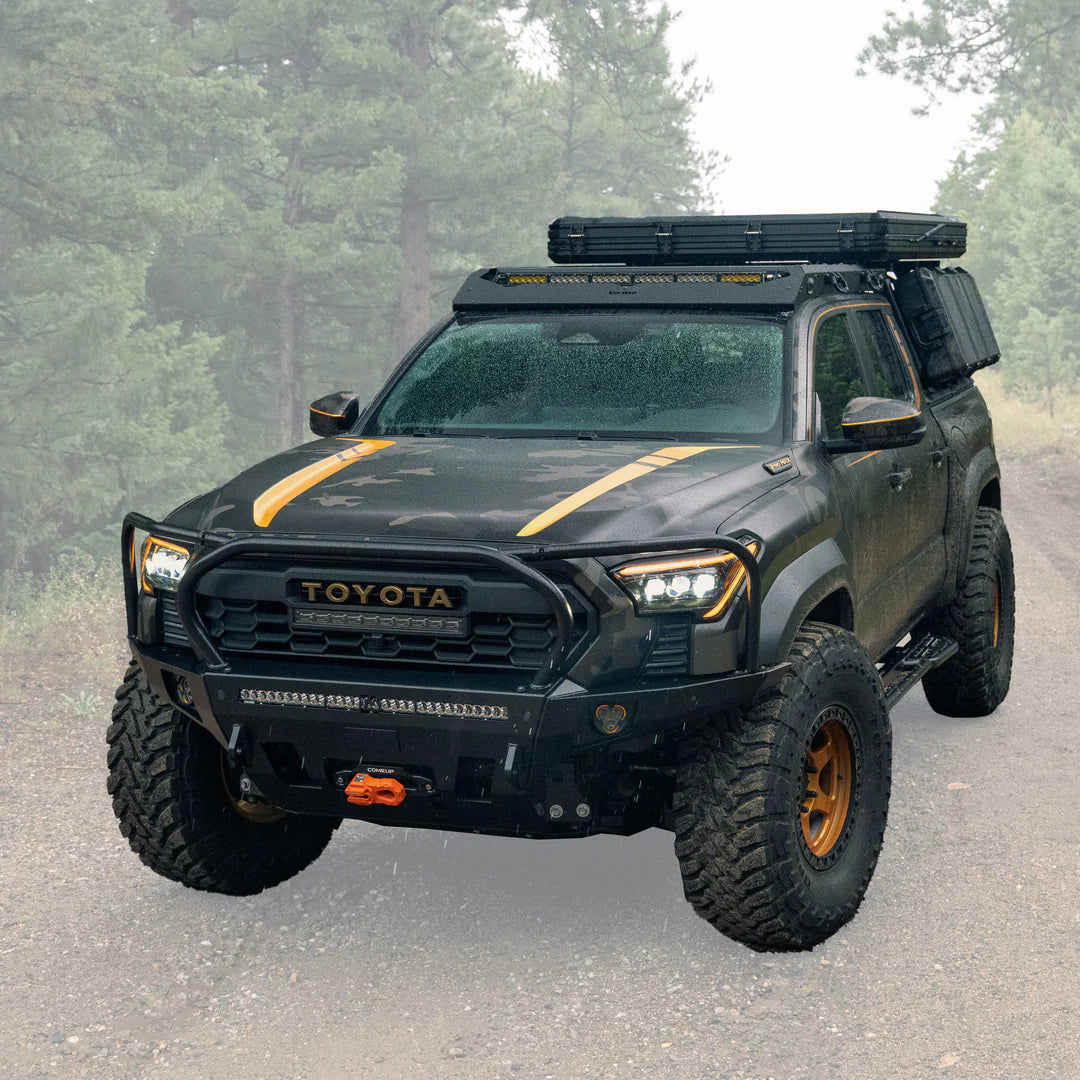

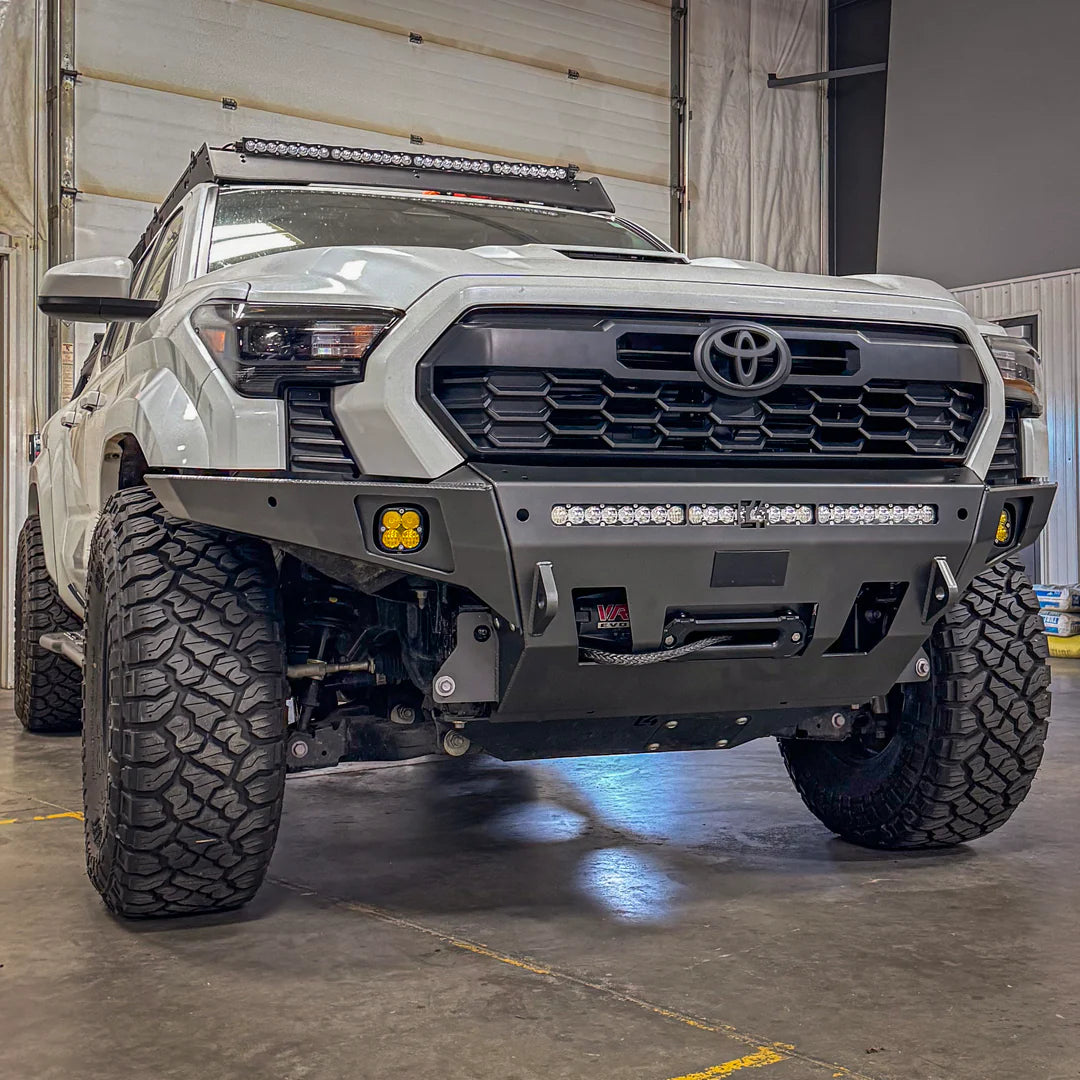

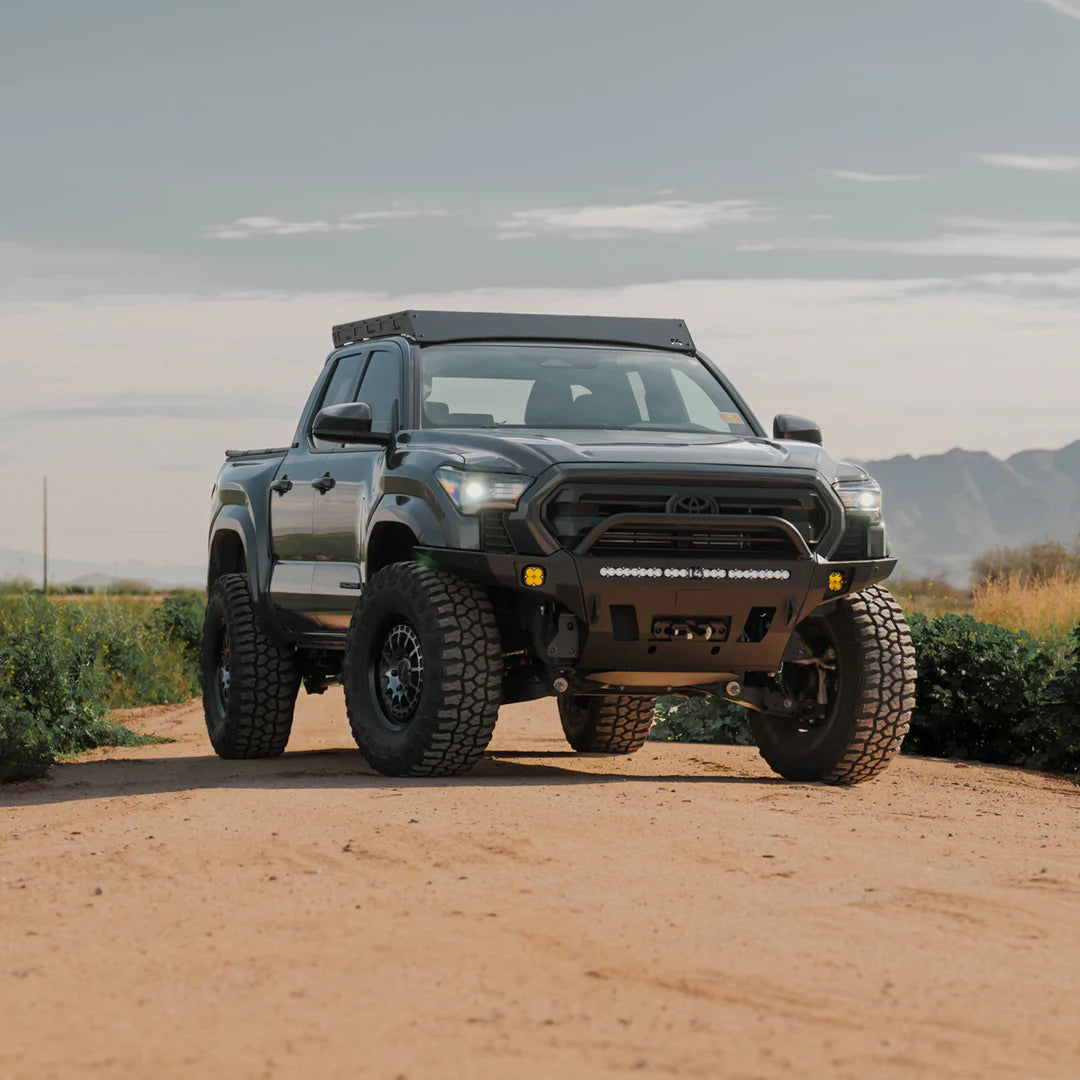

Upgrade the front end of your 2024+ Tacoma with the Overland Front Bumper, engineered for serious off-road performance, concealed winch capability, and seamless integration with modern lighting and safety systems. Built specifically for the 4th Gen Tacoma, this bumper delivers improved clearance and approach angle while maintaining compatibility with Toyota Safety Sense and factory parking sensors.

Important Notes

Lead Time: 6-8 Week lead time
Plastic Trimming Required: Cutting of the factory plastic bumper is required for installation
Finish Requirement: If powder coat is not selected, bumper must be painted or powder coated prior to installation to prevent rust
TSS Compatibility: All bull bar variants retain Toyota Safety Sense and parking sensors
TSS Recalibration: Some vehicles may require professional recalibration after installation
Fog Light Compatibility: Factory fog lights are not supported
Shipping Method: This product ships via Ground

Features

Heavy-Duty Construction: Built from 3/16 inch laser-cut P&O steel for strength and durability
Integrated Recovery Points: 3/4 inch thick D-ring tabs fully welded front and back
Washer Tank Skid Included: Adds protection to vulnerable components
Winch Controller Relocation Kit: Included for proper fitment of compatible winches
Winch Lever Access: Front-facing cutouts allow easy clutch lever operation

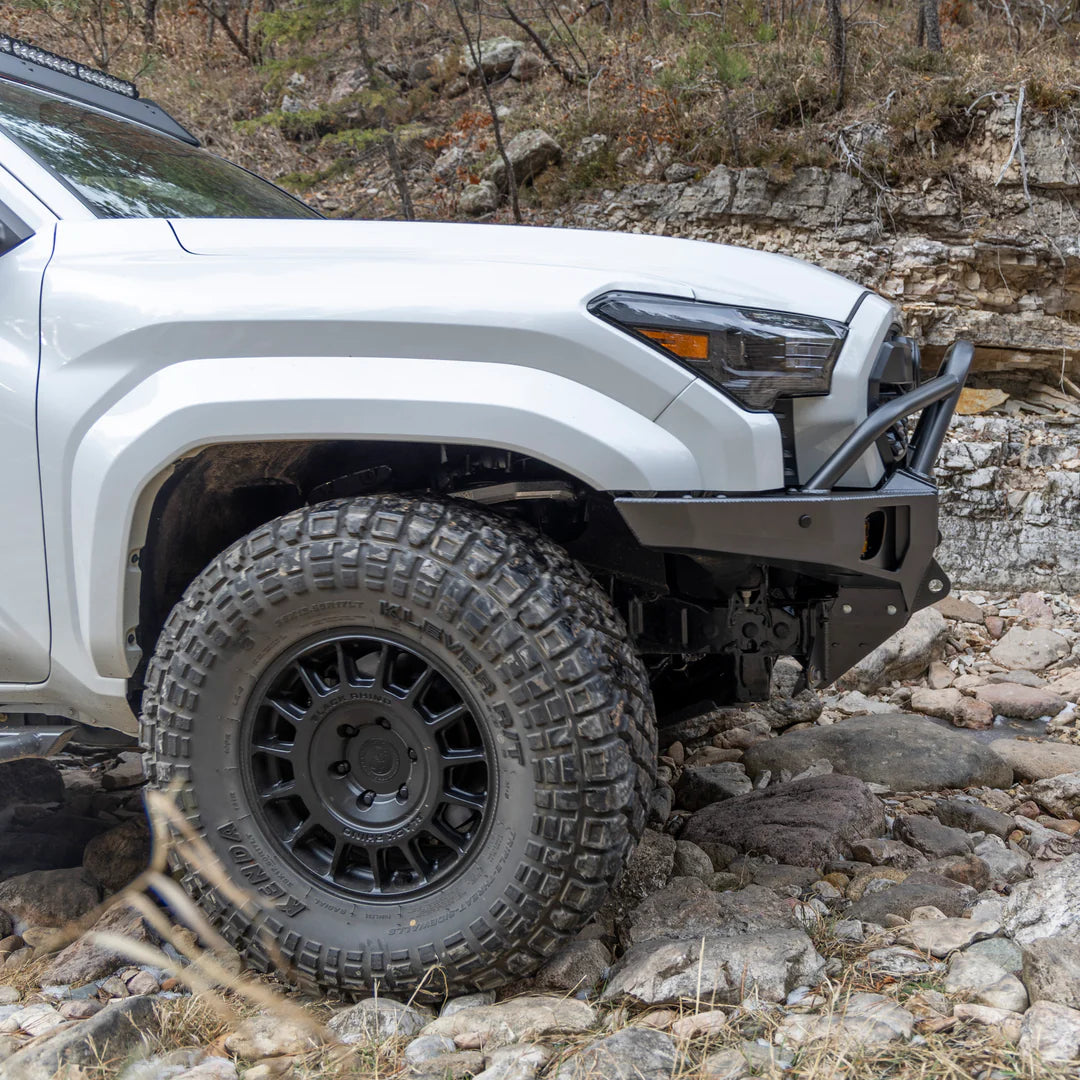

High Clearance Design: Improves approach angle and front-end clearance

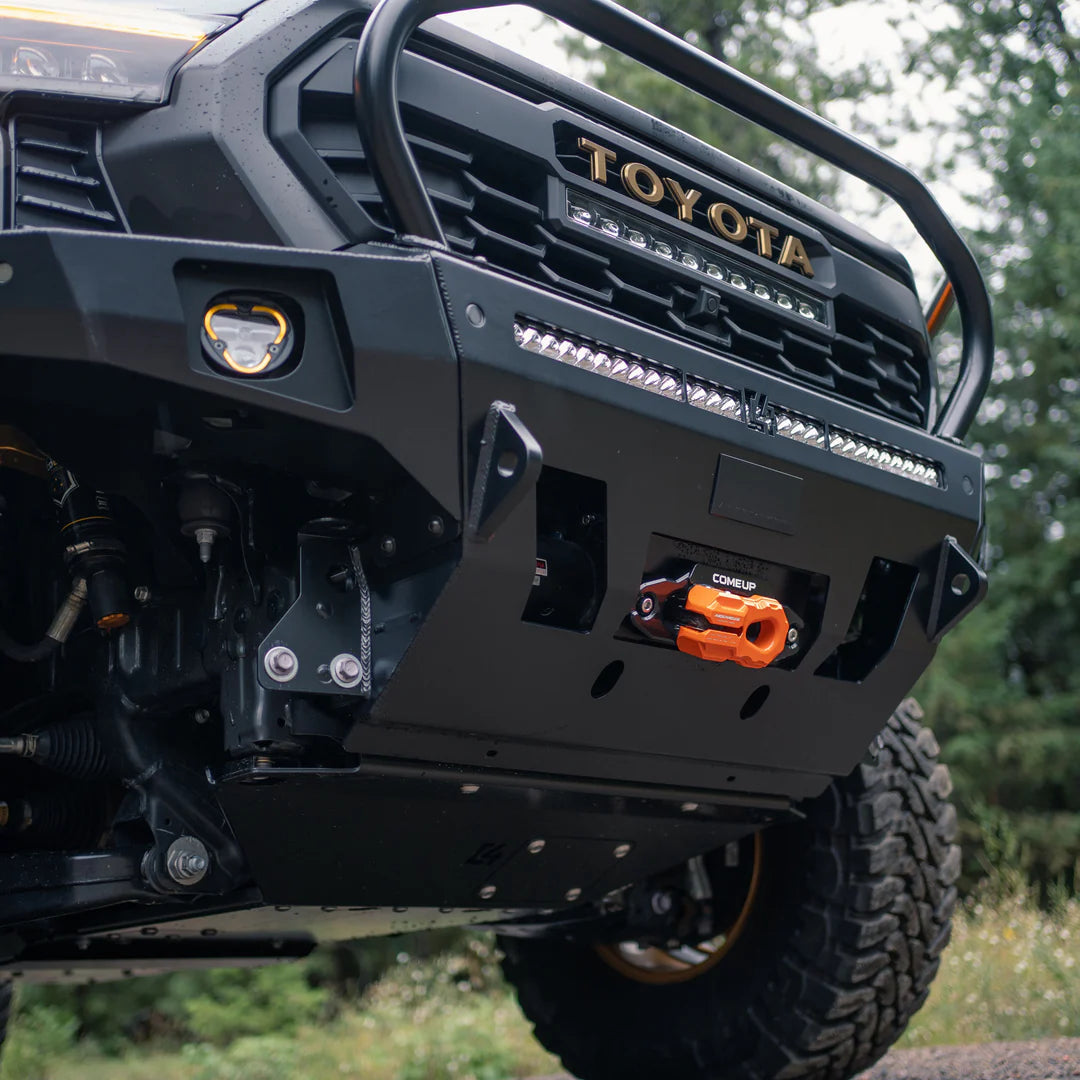

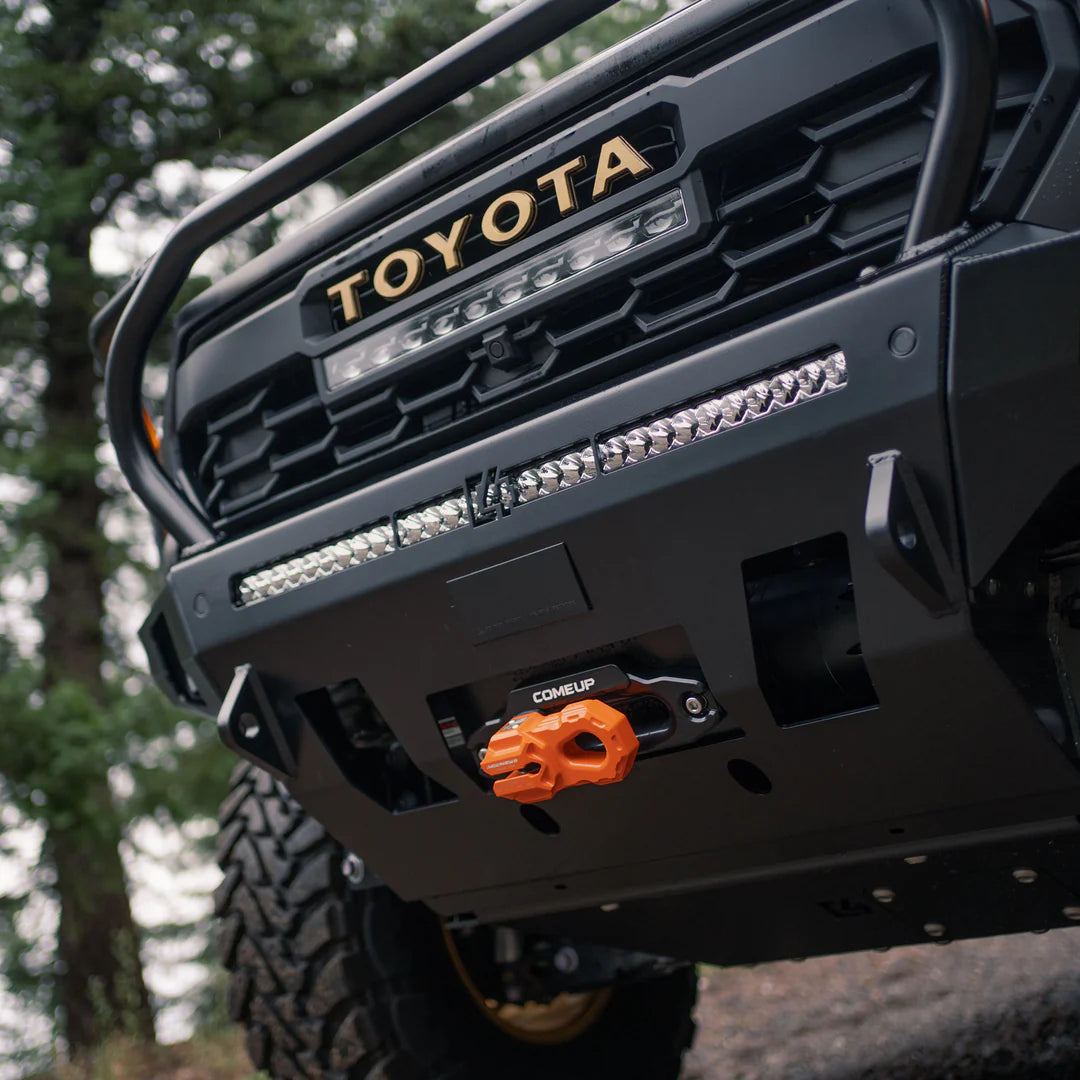

Concealed Winch Mount: Fits most 8k–12k winches

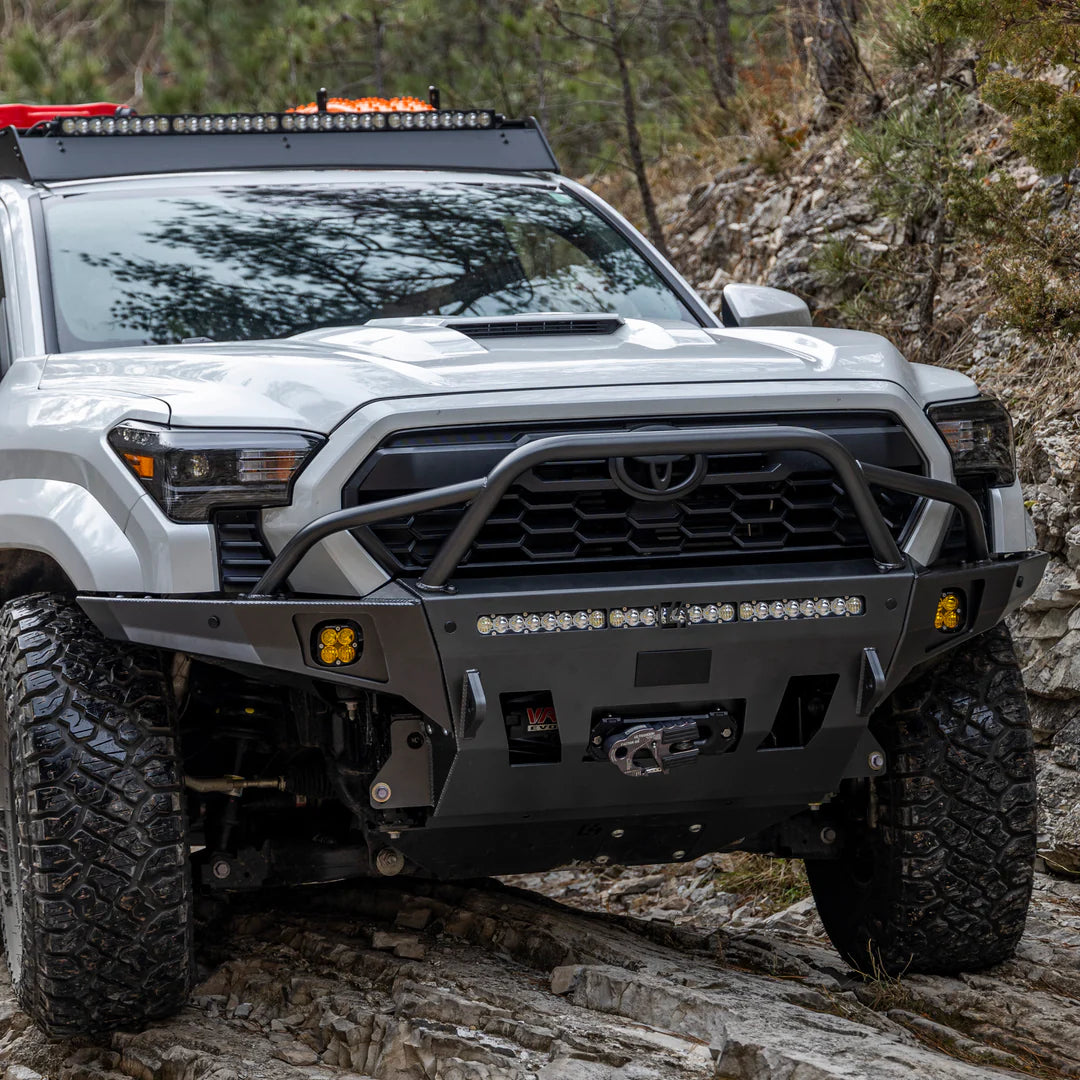

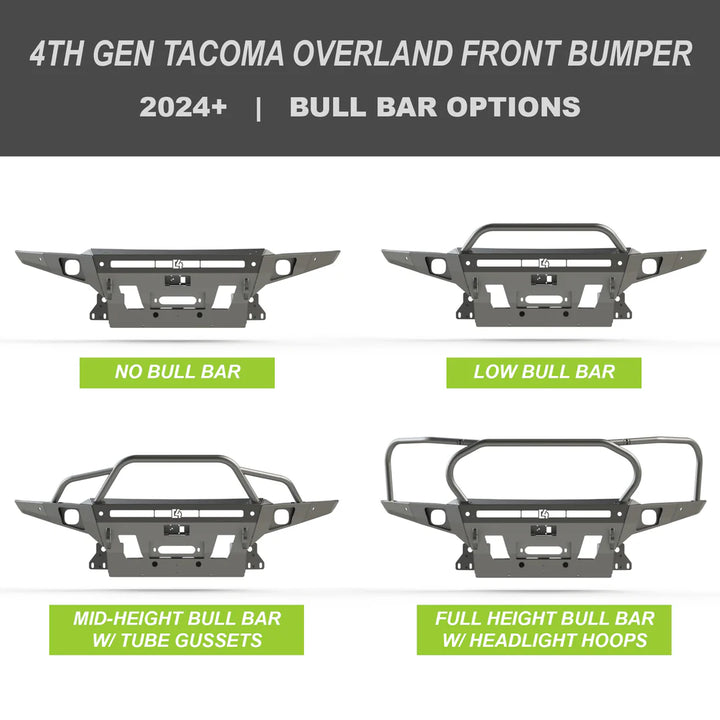

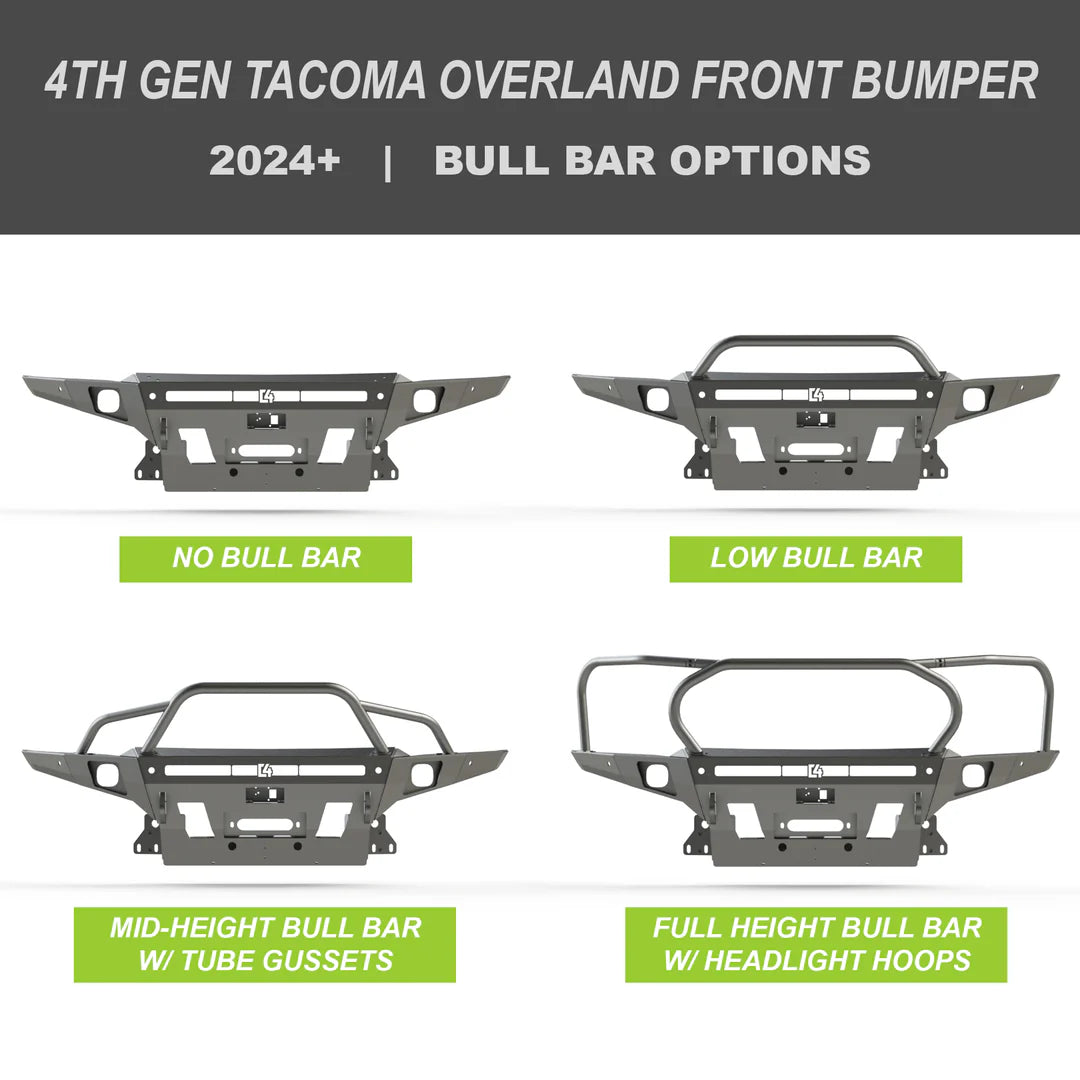

Bull Bar Options: Available in no bar, low, medium, and high bar configurations
Reinforced Tubing: 1 3/4 inch OD tubing with 1/8 inch wall thickness for bull bars

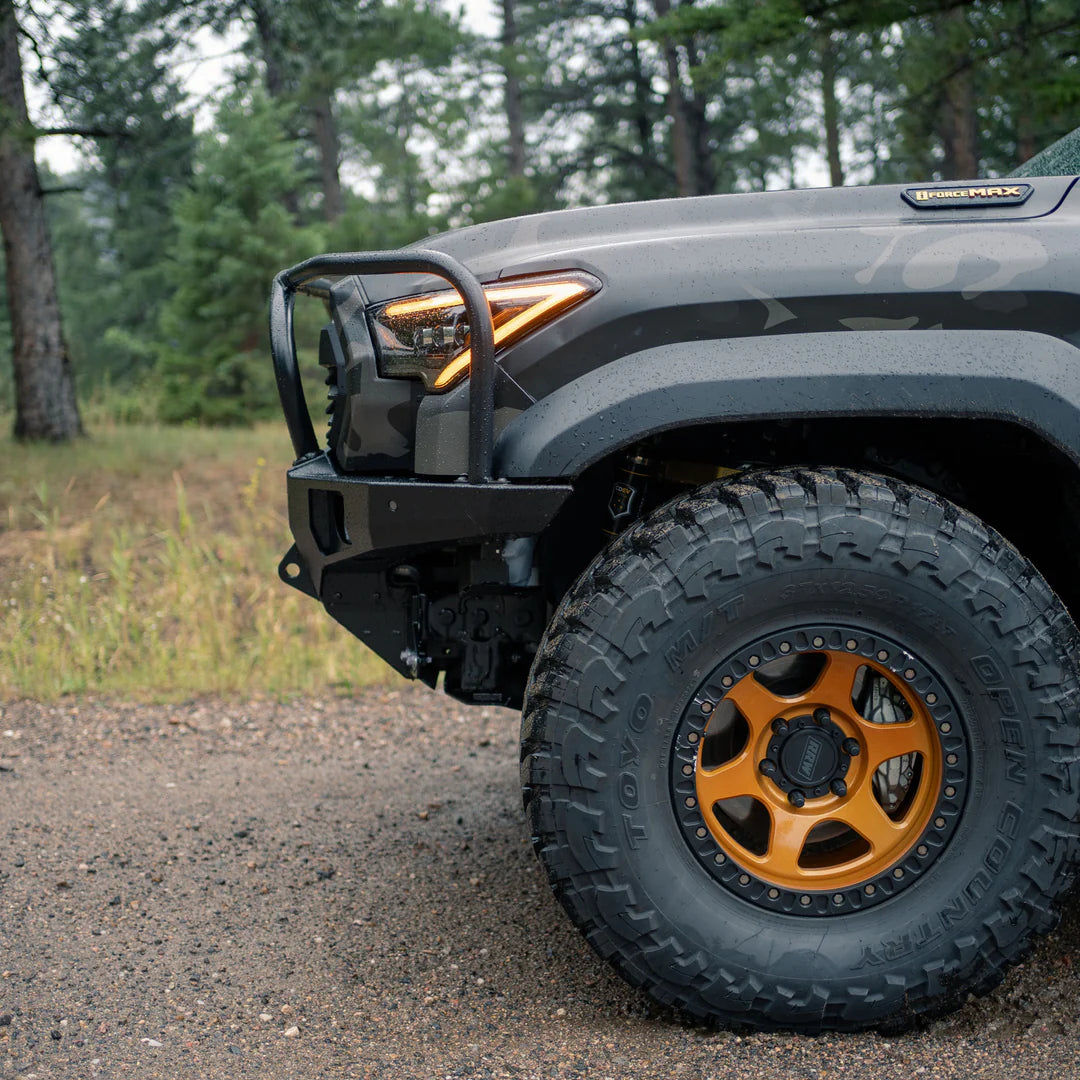

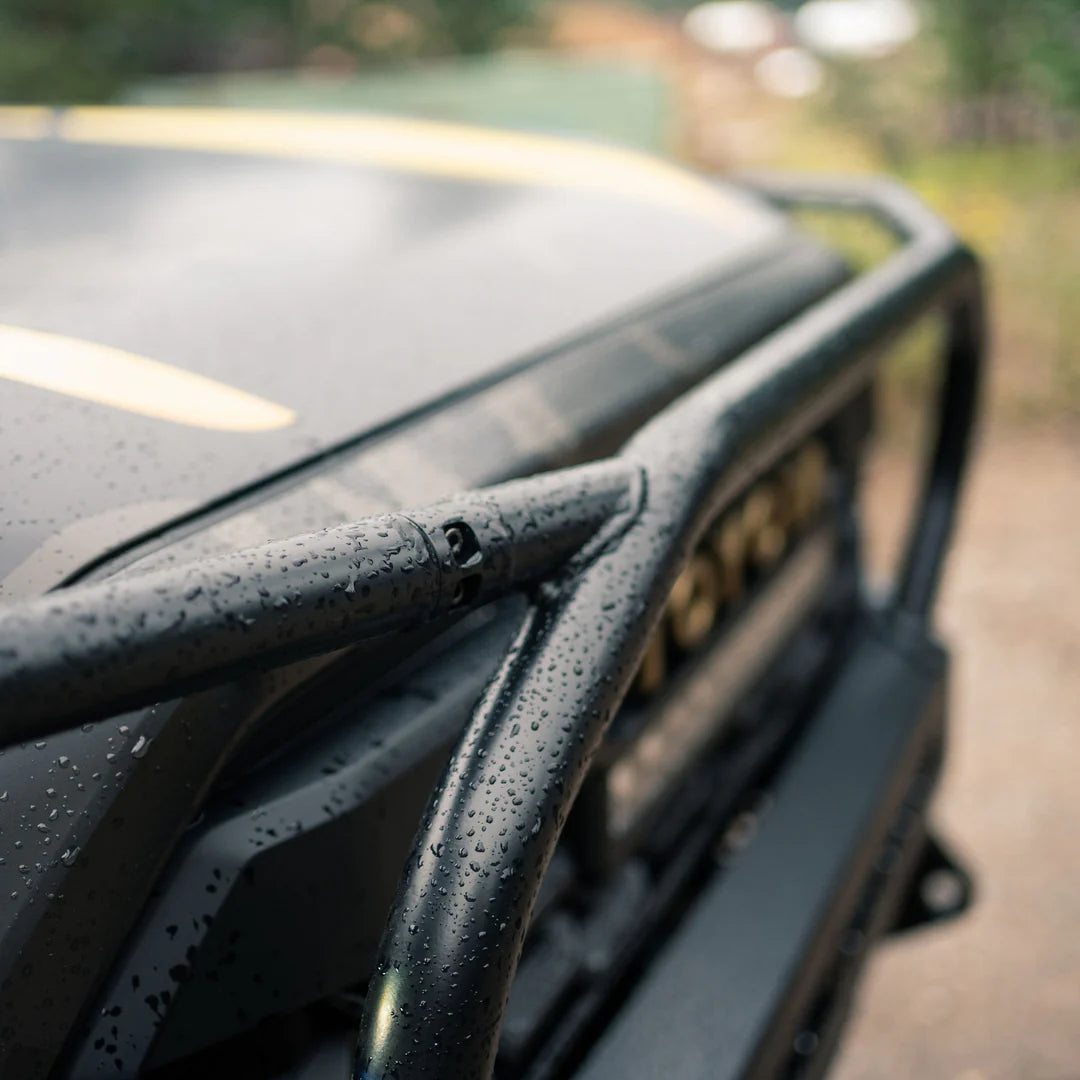

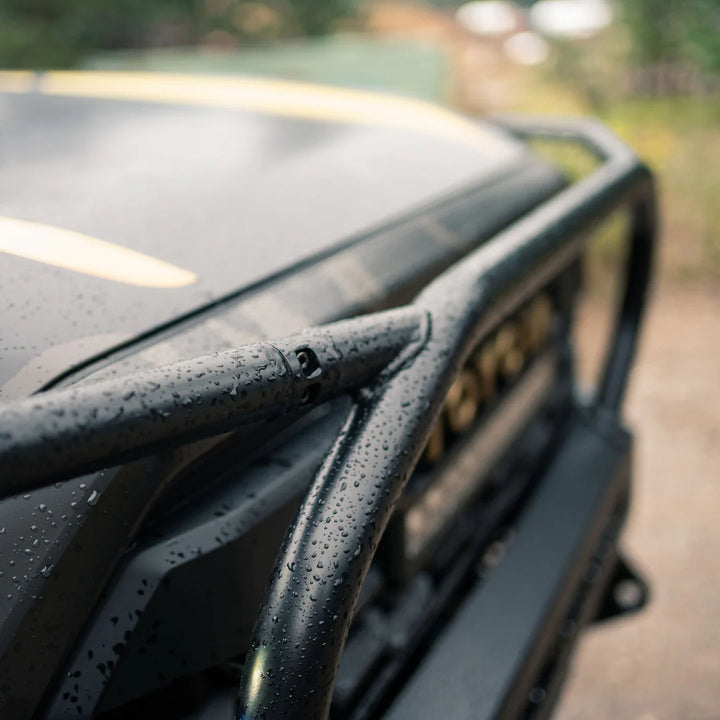

Gusset & Hoop Tubing: 1 1/2 inch OD tubing used for gussets and headlight hoops
Weight Options: 114 lbs without bull bar, 121 lbs with low-height bar, 128 lbs with mid-height bar and gussets, 138 lbs with full-height bar and headlight hoops

Lighting Compatibility

Center Light Bar Mount: Designed specifically for Baja Designs S8 30 inch light bar
Additional Compatibility: Works with RIGID 30 inch SR Series and Extreme LED 30 inch 5D light bar

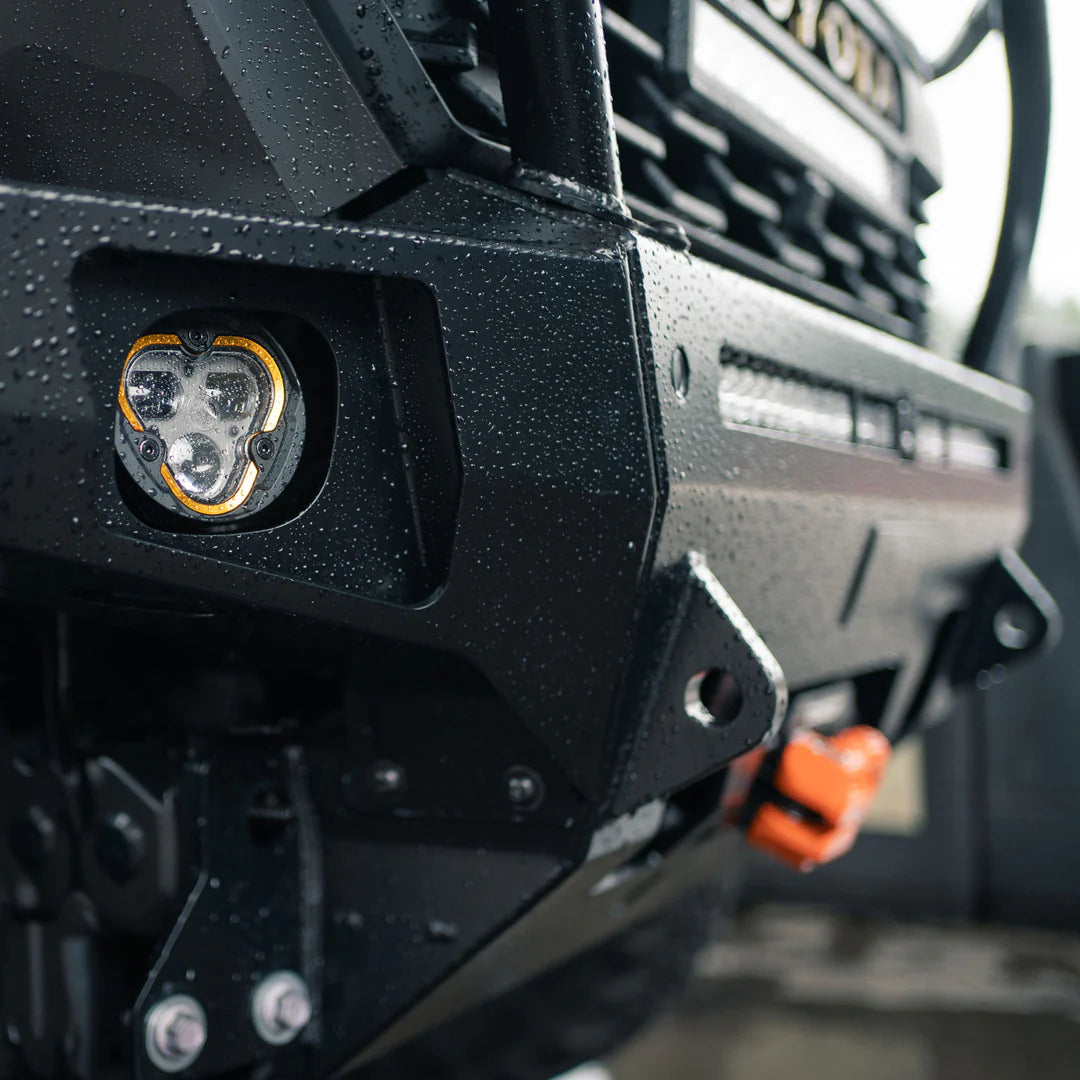

Fog Light Pockets: Designed for Baja Designs Squadron lights or similar size

Winch Compatibility

Winch Size Range: Supports most 8k–12k winches
Confirmed Fitment: Compatible with ComeUp, Smittybilt X20, Warn Zeon, and Warn VR series
Control Box Note: Winches with relocatable control boxes are recommended
Fairlead Recommendation: Synthetic rope winches with hawse fairleads recommended for best functionality

Fitment

Vehicle Application: 2024–2025 Toyota Tacoma 4th Gen
Mini Skid Requirement: TRD Pro and TRD Off-Road models do not require additional mini-skid panel
Sensor Retention: Maintains OEM parking sensors and Toyota Safety Sense
